Rittal 8619310 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1800 mm

Your rating:
Average rating
product review for Rittal 8619310 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1800 mm
( 4.4 / 5 ) 17 ratings

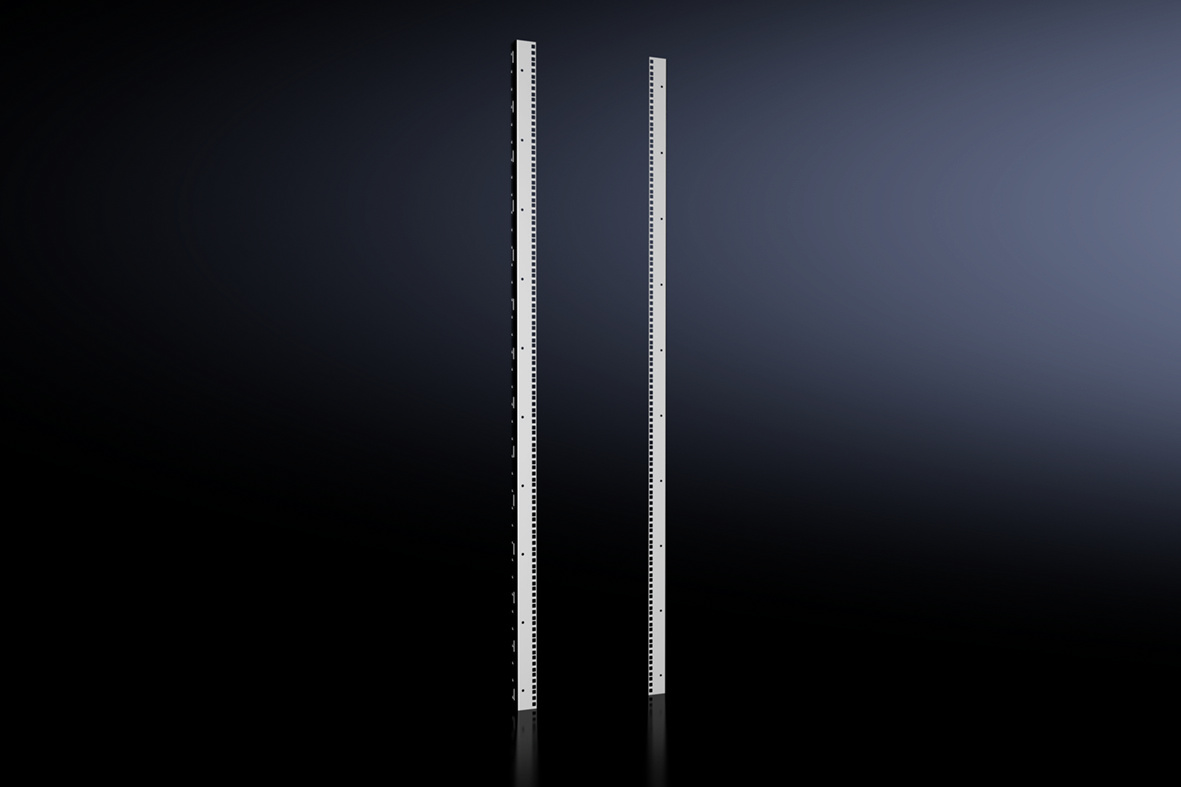

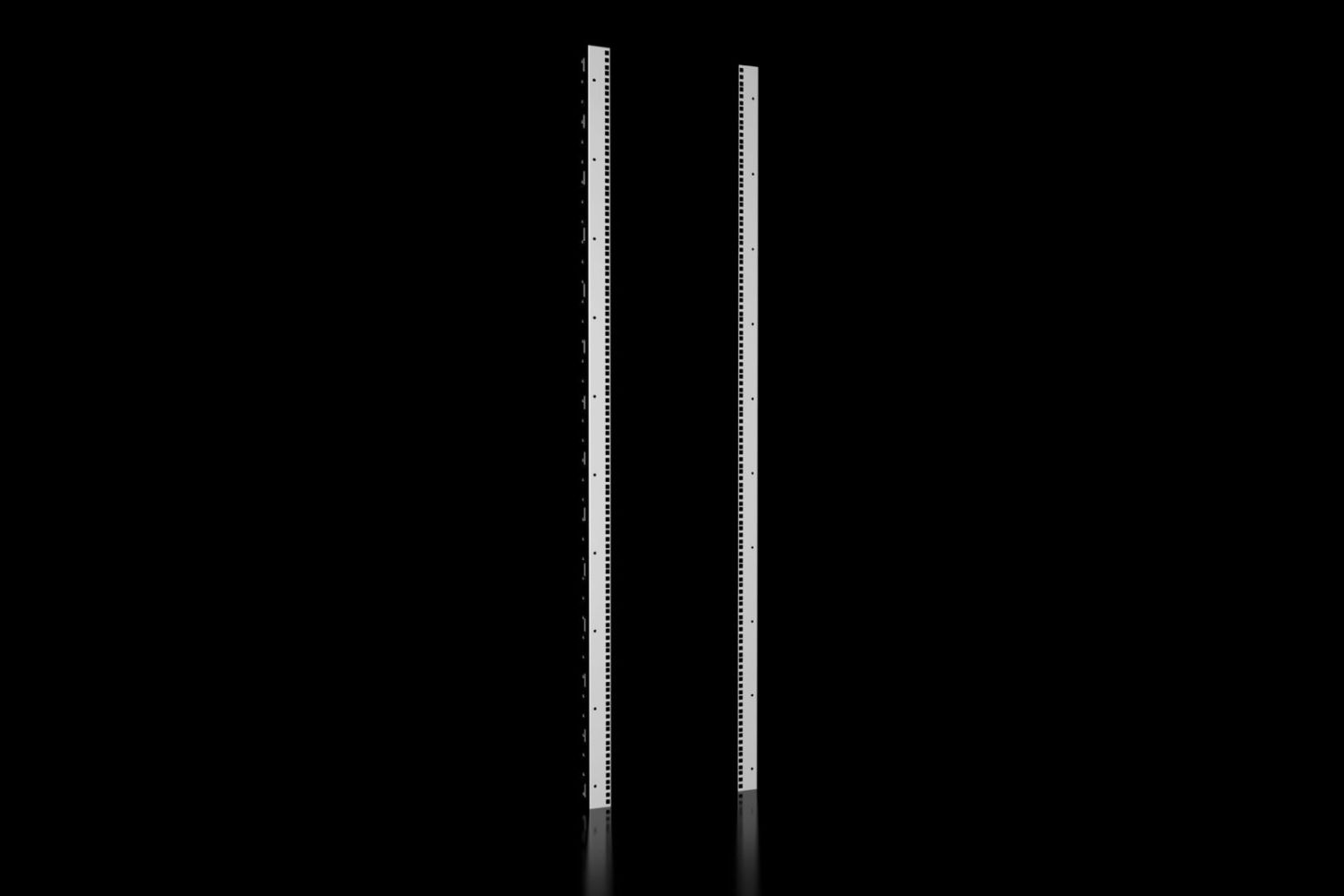

Rittal 8619310
This image may differ from the desired article.
Rittal 8619310Rittal 8619310Rittal 8619310
79,24 EUR
( 94,30 EUR incl. VAT )
≈ £66.32  |  ≈ $87.08
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8619310 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1800 mm
Datasheet:file_download Download
Lieske Part No.:1441941
Mfg Part No: 8619310
UPC/EAN: 4028177928732
Weight:4.48 kg
Type:VX 8619.310

Product information for Rittal 8619310:

The Rittal VX 8619.310 is an adapter profile 48,3 cm ( 19 inch ) for mounting electronic components, module carriers, and other 48,3 cm ( 19 inch ) installations in VX control panels. It serves as a mounting element for standard 48,3 cm ( 19 inch ) devices within VX system enclosures, particularly in enclosures with a minimum width of 600 mm and a minimum height of 1800 mm. The profile is made of steel sheet with a thickness of 2 mm and provides a stable base for installing network or control technology. The packaging unit includes two pieces, and the product is delivered with mounting hardware.

Applications
This adapter profile is specifically designed for use in VX control panels with a width of at least 600 mm and a height of at least 1800 mm. It enables the integration of standard 48,3 cm ( 19 inch ) components, such as network switches, server modules, or control units, into enclosures that do not have standard 48,3 cm ( 19 inch ) mounting elements. Installation is carried out on the enclosure frame, with a mounting width for components of 482.6 mm (equivalent to 48,3 cm ( 19 inch )). When installed in an electronics enclosure, mounting is done on the rear side.

Functions and Equipment in Detail
The profile includes 38 height units (HE), corresponding to a total height of approximately 1670 mm, depending on the exact HE definition by the manufacturer. The mounting width of 482.6 mm (48,3 cm ( 19 inch )) is achieved when mounted on the frame of 600 mm wide enclosures. For partial installations, the profile can be easily shortened to match the desired height. Mounting is done using the included mounting hardware, designed for secure attachment to the enclosure frame.

Technology Explained Simply
The profile consists of a ribbed steel sheet profile attached to the enclosure frame, serving as a carrier for 48,3 cm ( 19 inch ) devices. The 48,3 cm ( 19 inch ) standard (482.6 mm) is the standard width for server and network equipment in IT and automation technology. The 2 mm steel sheet material provides sufficient strength for mounting medium-weight components. The ability to shorten the profile allows for flexible adaptation to different installation situations, especially in enclosures that are not fully occupied.

Compatibility and Accessories
The adapter profile is specifically designed for VX control panels with a width of at least 600 mm and a height of at least 1800 mm. For recessed mounting in 600 mm wide enclosures, system chassis 18 x 64 mm can be used, which are also available in the product range. These chassis allow offset mounting to optimize the depth of installed components. Compatibility is limited to VX and VX SE enclosure types.

Mounting and Installation
Installation is carried out on the enclosure frame. When installing in an electronics enclosure, the profile is mounted on the rear side. Mounting is done using the included hardware. The mounting width of 482.6 mm (48,3 cm ( 19 inch )) is standard for 600 mm wide enclosures. The profile can be shortened as needed to match the desired height. Installation requires no additional tools other than a screwdriver or suitable fastening tool.

Operational Advantages
The adapter profile enables flexible integration of 48,3 cm ( 19 inch ) components into VX control panels that do not normally offer 48,3 cm ( 19 inch ) mounting. The ability to shorten the profile provides flexibility in planning and installation. The use of 2 mm steel sheet ensures stable and durable mounting. Delivery with mounting hardware reduces installation effort, as no additional fastening elements need to be procured. Compatibility with system chassis 18 x 64 mm expands mounting options in deep enclosures.

General
MaterialSheet steel, 2 mm
Scope of deliveryIncluding mounting hardware
Height units38 HE
Installation dimensionsInstallation width for components: 482.6 mm, installation width for components: 19"
NoteThe 482.6 mm (19") dimension applies when mounted on the frame of 600 mm wide cabinets; offset installation in 600 mm wide cabinets possible via system chassis 18 x 64 mm; when installed in electronic cabinet: installation on rear side
Suitable forCabinet type: VX, width: = 600 mm, height: = 1,800 mm


Product data sheet
Datasheet for Rittal 8619310, EAN: 4028177928732

Questions & answers

What is the delivery time of Rittal 8619310 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1800 mm?

The article Rittal 8619310 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1800 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619310 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619310 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619310 VX adapter profile 48,3 cm ( 19 inch ), for min. enclosure height: 1800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
