Rittal 8609230 VX cover hood with door, height: 2000x600 mm

Your rating:
Average rating
product review for Rittal 8609230 VX cover hood with door, height: 2000x600 mm
( 4.6 / 5 ) 21 ratings
Rittal 8609230
This image may differ from the desired article.
Rittal 8609230Rittal 8609230Rittal 8609230
487,60 EUR 507,10 EUR
( 580,24 EUR incl. VAT )
≈ £408.12  |  ≈ $535.87
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8609230 VX cover hood with door, height: 2000x600 mm
Datasheet:file_download Download
Lieske Part No.:1440932
Mfg Part No: 8609230
UPC/EAN: 4028177921689
Weight:50.5 kg
Type:VX 8609.230

Product information for Rittal 8609230:

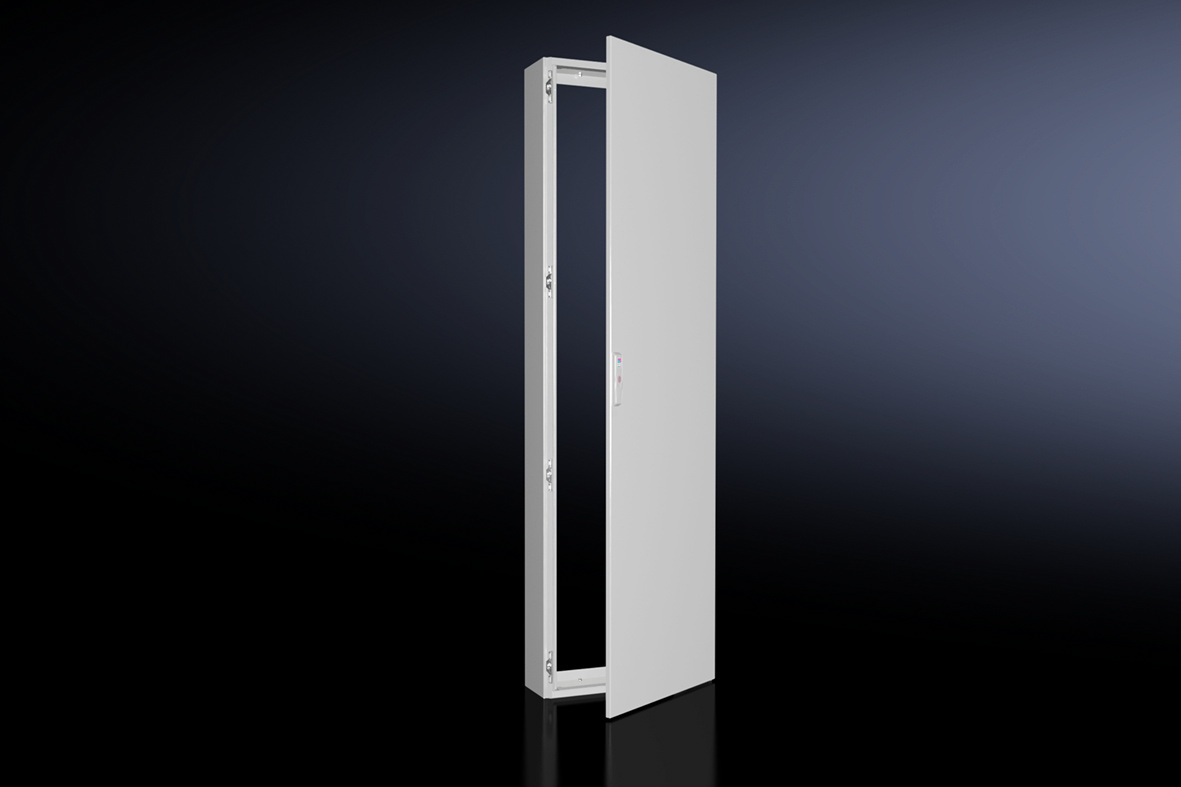

The Rittal VX 8609.230 is a cover hood with door, specifically designed for enclosures of the VX series with a height of 2,000 mm and a depth of 600 mm. It serves to protect and visually conceal connectors or other installations on the front side of the enclosure. The cover hood allows for optional cable entry from the top or bottom, enabling flexible installation at various positions within the enclosure. The construction from sheet steel ensures high mechanical stability and durability in industrial environments.

Applications

The cover hood is used in industrial plants where a closed and clean front side of the enclosure is required. It protects sensitive electrical components from dust, splashing water, and mechanical impacts. Its use in combination with VX enclosures ensures a uniform visual design and improves maintainability, as the front side remains closed while access to internal components is possible through the door. The protection class IP 55 in combination with VX enclosures makes it suitable for indoor applications where a certain level of protection against dust and splashing water is required. The NEMA 12 classification (in combination with VX and VX IT enclosures) meets the requirements for enclosed enclosures for indoor use with increased dirt and moisture exposure.

Functions and Equipment in Detail

The cover hood consists of a housing made of sheet steel with a wall thickness of 1.5 mm and a door made of sheet steel with a thickness of 2.0 mm. The surface is dip-primed and externally powder-coated, ensuring high corrosion resistance and a uniform, robust coating. The color corresponds to RAL 7035, a gray tone that integrates well in industrial environments. The door is equipped with a bar lock and a double-bar lock insert, enabling secure and reliable locking. Two cover plates for the top and bottom are included in the delivery scope to conceal the cable entry and complete the external appearance.

Technology Explained Simply

The dimensions of the cover hood are 202.7 mm in width, 1,998 mm in height, and 599 mm in depth, ensuring an exact fit for VX enclosures with the specified dimensions. The protection class IP 55 means that the cover hood is dust-tight and protected against splashing water from all directions, provided it is used in combination with a VX enclosure. The NEMA 12 classification corresponds to an enclosed enclosure protected against dust, splashing water, and liquid contaminants, which is typical for indoor applications in industrial environments. The use of sheet steel with a thickness of 1.5 mm for the cover hood and 2.0 mm for the door ensures sufficient strength to withstand mechanical loads.

Compatibility and Accessories

The cover hood is specifically designed for enclosures of the VX series with a height of at least 2,000 mm and a depth of at least 600 mm. Compatibility is therefore limited to these enclosure types. The combination with VX and VX IT enclosures enables the use of the NEMA 12 protection class.

Mounting and Installation

Installation is carried out on the front side of the VX enclosure. The door is secured using the bar lock and the double-bar lock insert. The cover plates for the top and bottom are attached at the cable entry points to conceal the wiring. The choice of cable entry (top or bottom) allows for application-specific adaptation.

Advantages in Operation

The cover hood improves the safety and maintainability of the enclosure by providing a closed front side that protects against dust and splashing water. The integrated door with locking mechanism allows access to internal components without having to open the entire front side. The powder-coated surface ensures long service life and resistance to corrosion. The uniform color design in RAL 7035 supports a professional and orderly appearance of the installation.

General
MaterialCover: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryCover hood, door with rod lock and double barb lock insert, 2 covers for top and bottom
Width202,7 mm
Height1.998 mm
Depth599 mm
Suitable forEnclosure type: VX, height: = 2.000 mm, depth: = 600 mm
Degree of protection IP according to IEC 60 529IP 55 in conjunction with VX series cabinets
NEMA degree of protectionNEMA 12 (in conjunction with cabinets of VX, VX IT series)
PCF/VE (Cradle-to-Gate)124.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8609230, EAN: 4028177921689

Questions & answers

What is the delivery time of Rittal 8609230 VX cover hood with door, height: 2000x600 mm?

The article Rittal 8609230 VX cover hood with door, height: 2000x600 mm is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8609230 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8609230 VX cover hood with door, height: 2000x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8609230 VX cover hood with door, height: 2000x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
