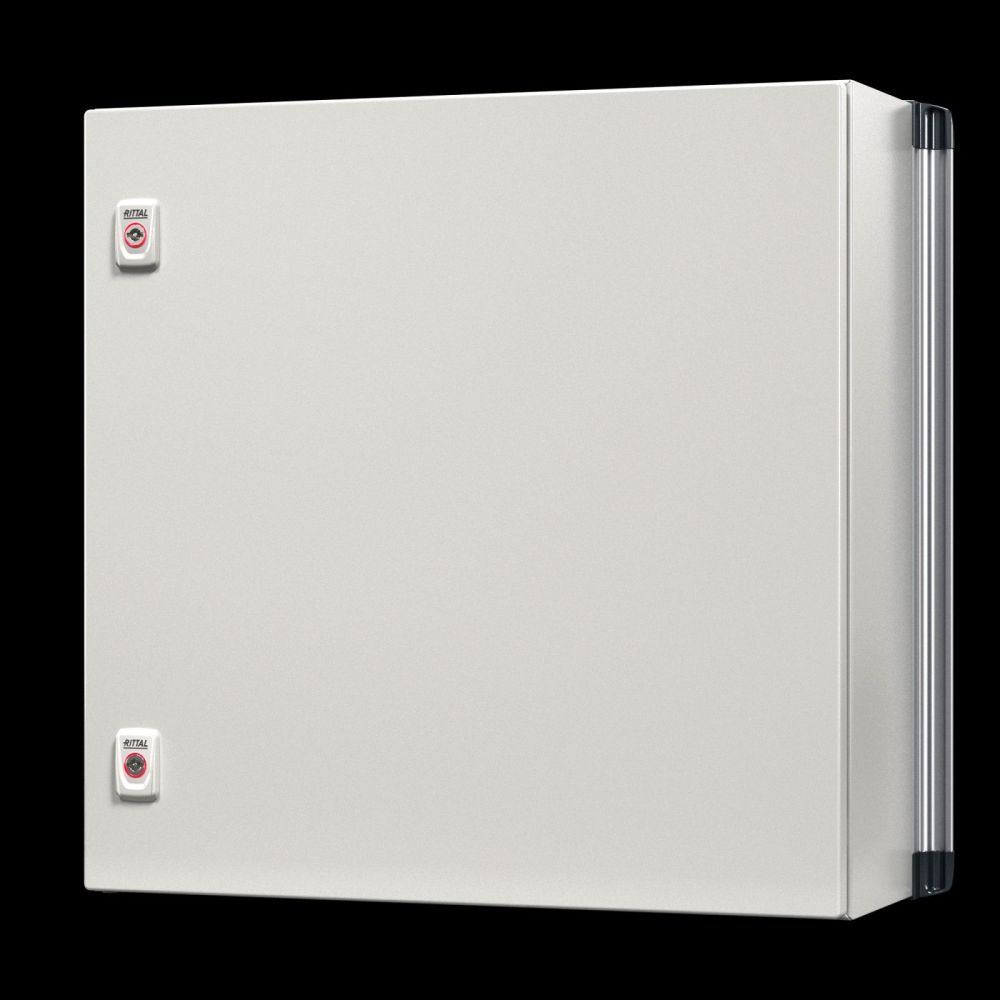

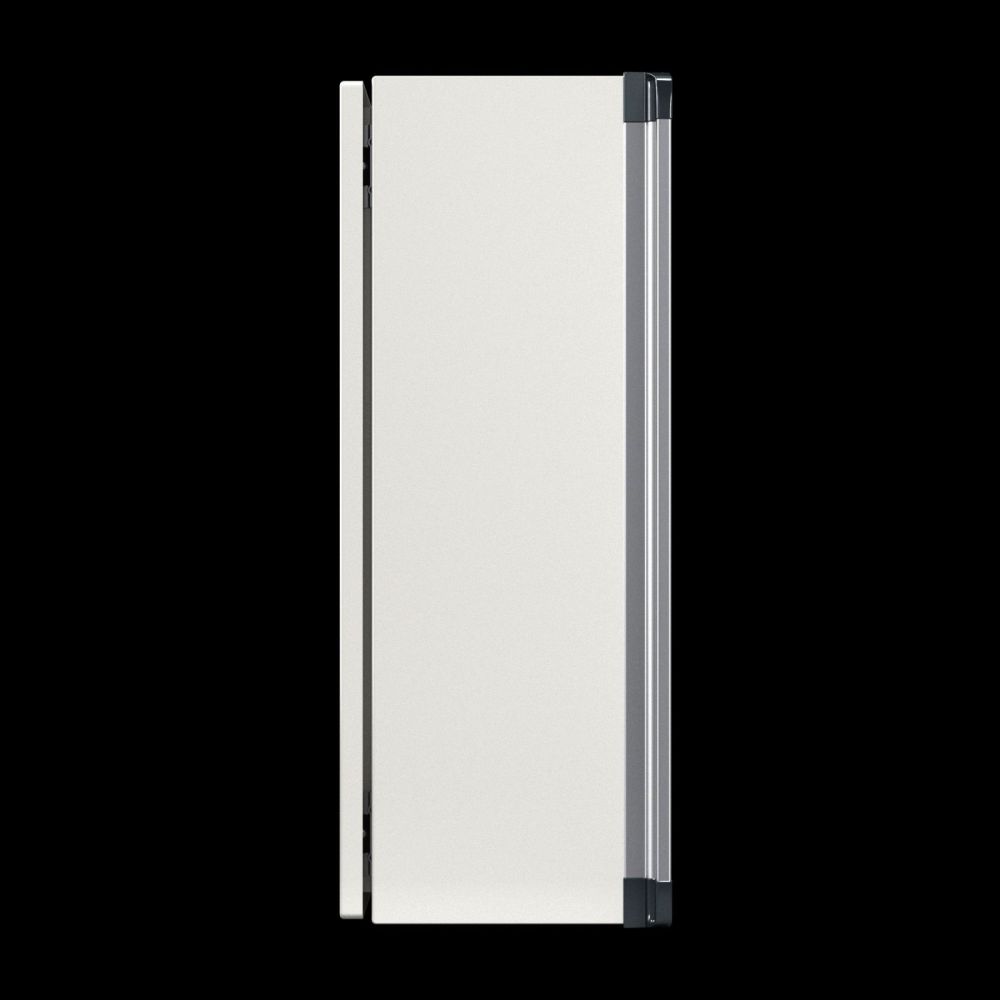

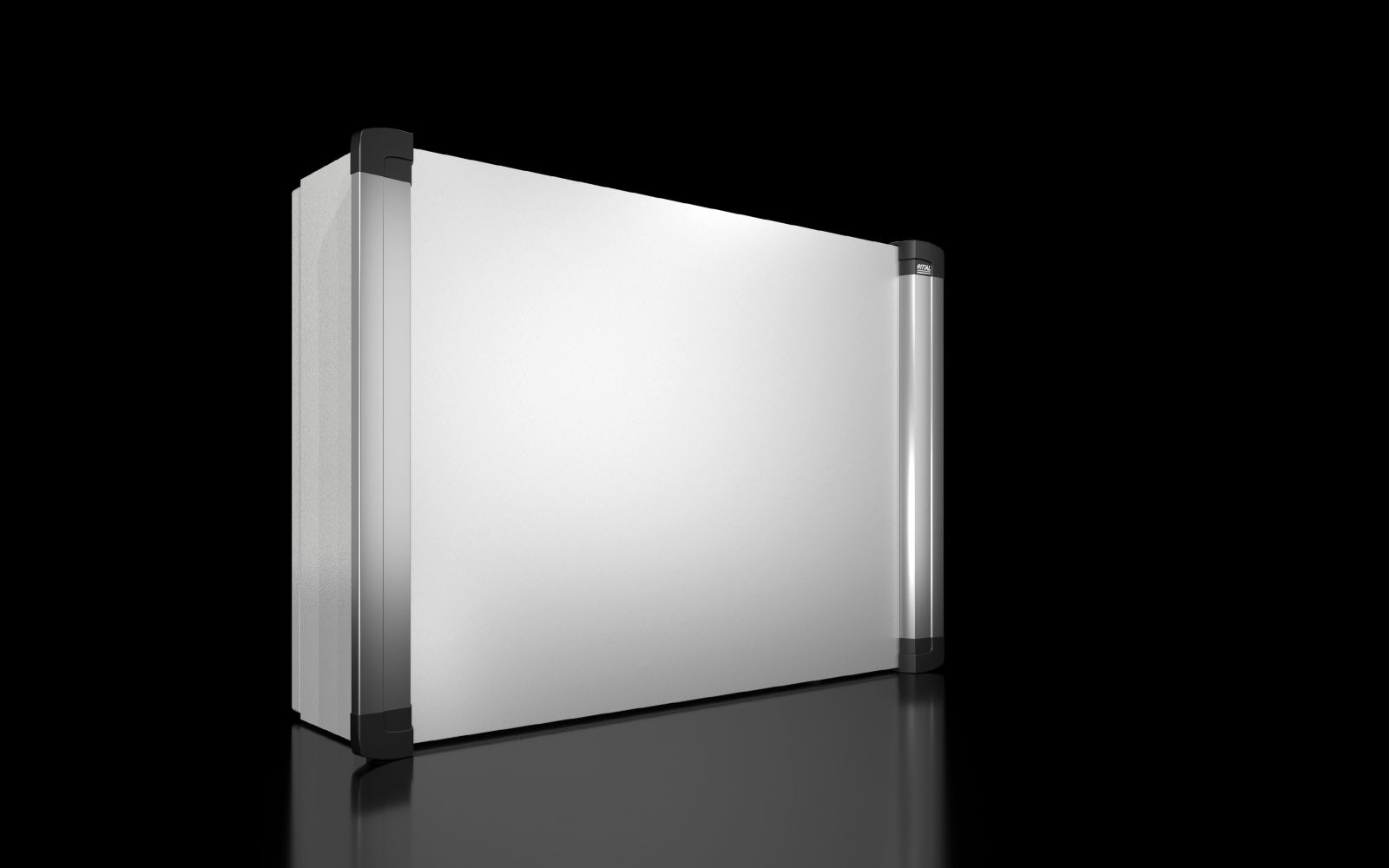

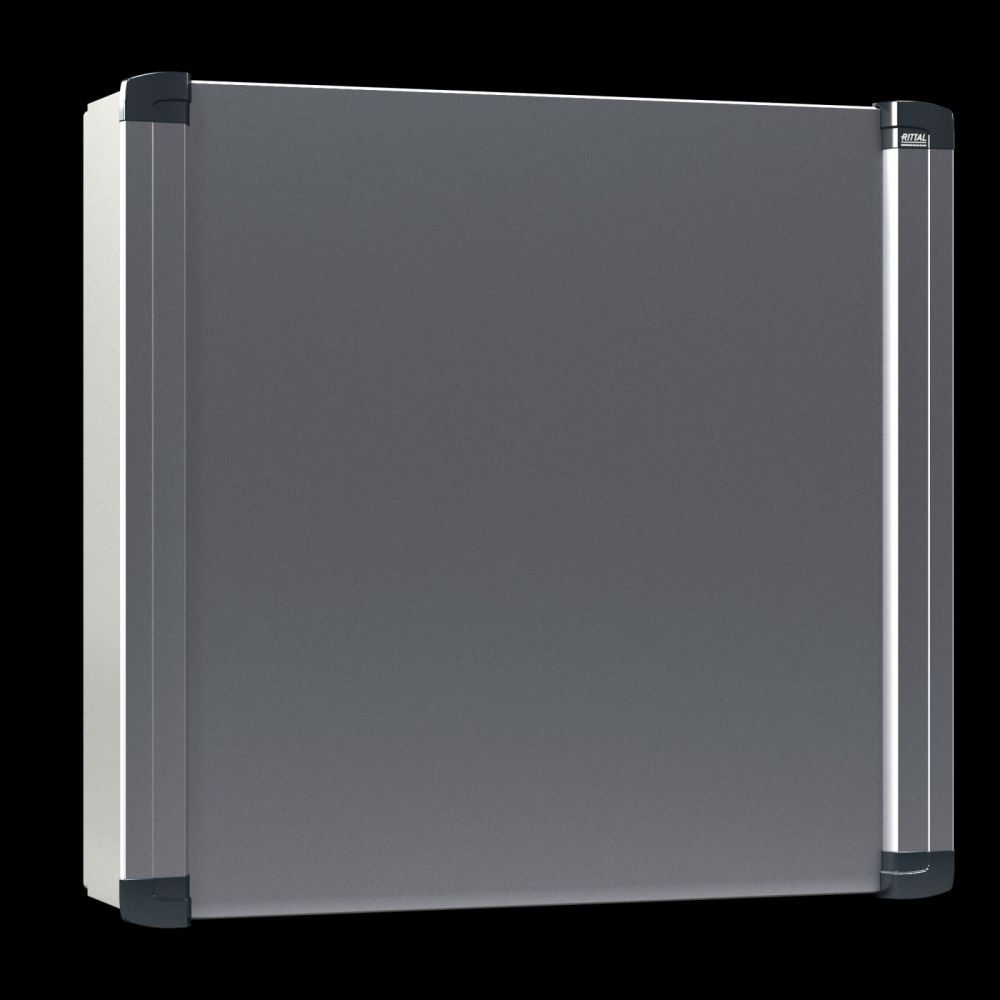

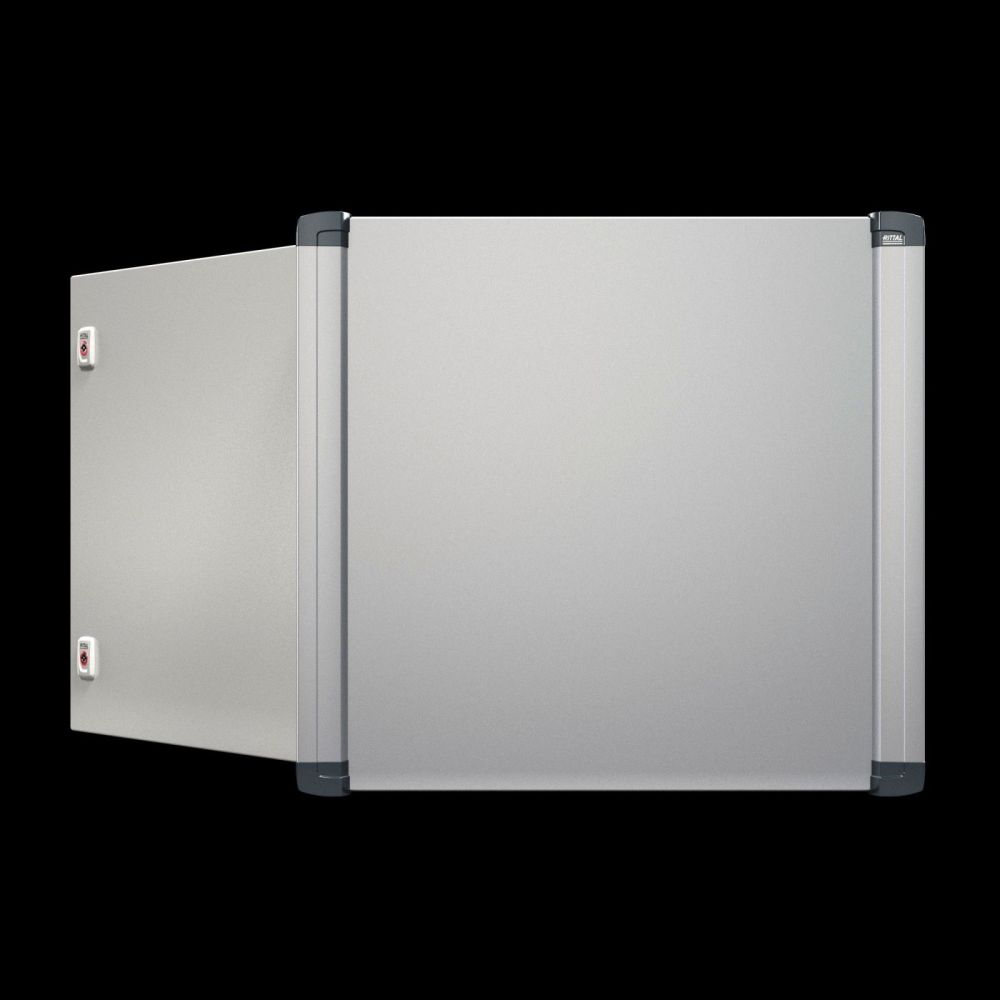

Rittal 6320150 AX command panel housing with grip strips, 650x450x155 mm, S

Your rating:
Average rating
product review for Rittal 6320150 AX command panel housing with grip strips, 650x450x155 mm, S
( 5 / 5 ) 2 ratings
Rittal 6320150
This image may differ from the desired article.
Rittal 6320150Rittal 6320150Rittal 6320150Rittal 6320150Rittal 6320150
-10% 276,00 EUR 305,08 EUR
( 328,44 EUR incl. VAT )
≈ £231.01  |  ≈ $303.32
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 6320150 AX command panel housing with grip strips, 650x450x155 mm, S
Datasheet:file_download Download
Lieske Part No.:841174
Mfg Part No: 6320150
UPC/EAN: 4028177977419
Weight:13.7 kg
Type:AX 6320150

Product information for Rittal 6320150:

The Rittal AX command panel housing with grip strips, type 6320150, is an industrially designed enclosure made of sheet steel, specifically conceived for use in machine and plant engineering. It features dimensions of 650 mm width, 450 mm height, and 155 mm depth, and is equipped with a mounting arm connection Ø 130 mm, compatible with the mounting arm system CP 60/120/180. The front side is fitted with a 3 mm aluminium front plate that is easy to work with, intended for mounting control elements or displays. Service access is from the rear, enabling safe and convenient maintenance. The enclosure surface is dip-primed and externally powder-coated with a structured lacquer in the colour RAL 7035, while the grip strips and front plate are naturally anodized. The end caps are made of plastic and are in a colour similar to RAL 7024.

Applications
This command panel housing is suitable for use in industrial environments where a robust and easy-to-install cover for control units is required. It is particularly suitable for machine controls, plant control panels, or as a protective housing for electronic components in machine engineering. The protection rating IP 55 ensures high protection against dust and splashing water, enabling use in outdoor environments or moist production areas. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry and damp indoor environments as well as environments with slight contamination risk.

Functions and Equipment in Detail
The housing is equipped with side aluminium grip strips, providing a secure and ergonomic grip. The grip strips are fitted with end caps that enhance the aesthetic appearance and simultaneously protect the edges. The internal mounting angle is shaped and features system perforation, enabling flexible mounting of internal units. The latch lock with a 3 mm double-barrel lock insert ensures secure closure. The ability to change the mounting arm connection and door hinge by rotating the housing offers flexibility during installation. Optionally, the mounting arm connection can be pre-formed off-centre in the reinforcement plate and easily drilled out.

Technology Explained Simply
The protection rating IP 55 means the housing is dust-tight and protected against splashing water, making it suitable for use in production halls or outdoor environments. The IK08 rating indicates that the housing is protected against mechanical impacts such as shocks or vibrations up to a certain energy level. The powder-coated surface in RAL 7035 offers high corrosion resistance and a uniform, structured surface finish. The aluminium front plate is easy to work with, allowing individual adaptation for mounting control elements.

Compatibility and Accessories
The housing is compatible with the mounting arm system CP 60/120/180, enabling flexible integration into existing mounting systems. As accessories, lock inserts made of zinc die-cast with a length of 27 mm are available, suitable for replacing the latch lock. Additionally, keyboard trays with depths from 128 to 228 mm can be mounted, as well as mounting brackets for internal installation. The AS Multitool AX/VX 4052000 can be used as a tool for installation and maintenance.

Mounting and Installation
Mounting is done via the pre-formed mounting arm connection Ø 130 mm, which can be directly connected to the mounting arm system. The side grip strips facilitate handling and positioning of the housing. The system perforation in the internal mounting angle allows flexible fastening of internal units. The aluminium front plate can be easily removed to enable processing for control elements. The locking systems are interchangeable, so depending on requirements, a mini comfort handle AX or other lock inserts can be used.

Advantages in Operation
The housing offers high mechanical stability and reliable protection for the components mounted inside. The IP 55 protection rating and IK08 rating ensure a long service life even in demanding environments. The modular construction with interchangeable locking systems and the ability to change the mounting arm connection increases flexibility during installation. The easy-to-work-with front plate allows individual adaptation to specific control requirements. The powder-coated surface in RAL 7035 ensures an attractive appearance and simultaneous corrosion resistance.

General
ModelBracket connection Ø 130 mm
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal, front plate: aluminium, cover caps: plastic
Surface protectionEnclosure and door: dip primed, externally powder coated, textured lacquer, handle strip: natural anodized, front plate: natural anodized
Basic colourRAL 7035
ColourHousing and door: RAL 7035, handle strip: natural anodized, front plate: natural anodized, cover caps: similar to RAL 7024
Scope of deliveryHousing with cutout and reinforcement for mounting arm connection Ø 130 mm, front with max. cutout, covered by easily machinable 3 mm aluminium front plate, side grip rails with end caps, shaped internal mounting angle with system perforation, pre-ribbed latch with 3 mm double-barrel insert
Width650 mm
Height450 mm
Depth155 mm
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
NoteChange of mounting arm connection and door hinge possible by rotating the housing; optional: mounting arm connection Ø 130 mm, offset in the reinforcement plate, pre-formed, can be easily drilled out; locking systems for service access from rear: locking insert, interchangeable with Mini-Comfort handle AX, locking inserts 27 mm, type A; locking systems for service access from front: locking insert, interchangeable with locking inserts 27 mm, type A
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)59.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 6320150, EAN: 4028177977419

Questions & answers

What is the delivery time of Rittal 6320150 AX command panel housing with grip strips, 650x450x155 mm, S?

The article Rittal 6320150 AX command panel housing with grip strips, 650x450x155 mm, S is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6320150 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 6320150 AX command panel housing with grip strips, 650x450x155 mm, S always at the best possible price. We can give you a discount of 2% on Rittal 6320150 AX command panel housing with grip strips, 650x450x155 mm, S if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
