Rittal 6746000 CX stand console W x H x D: 600x970x490 mm sheet metal

Your rating:
Average rating
product review for Rittal 6746000 CX stand console W x H x D: 600x970x490 mm sheet metal
( 4.5 / 5 ) 2 ratings
Rittal 6746000
This image may differ from the desired article.
Rittal 6746000Rittal 6746000Rittal 6746000Rittal 6746000Rittal 6746000Rittal 6746000Rittal 6746000Rittal 6746000
477,25 EUR 496,34 EUR
( 567,93 EUR incl. VAT )
≈ £399.46  |  ≈ $524.50
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 6746000 CX stand console W x H x D: 600x970x490 mm sheet metal
Datasheet:file_download Download
Lieske Part No.:2145736
Mfg Part No: 6746000
UPC/EAN: 4028177983618
Weight:48.875 kg
Type:CX 6746000

Product information for Rittal 6746000:

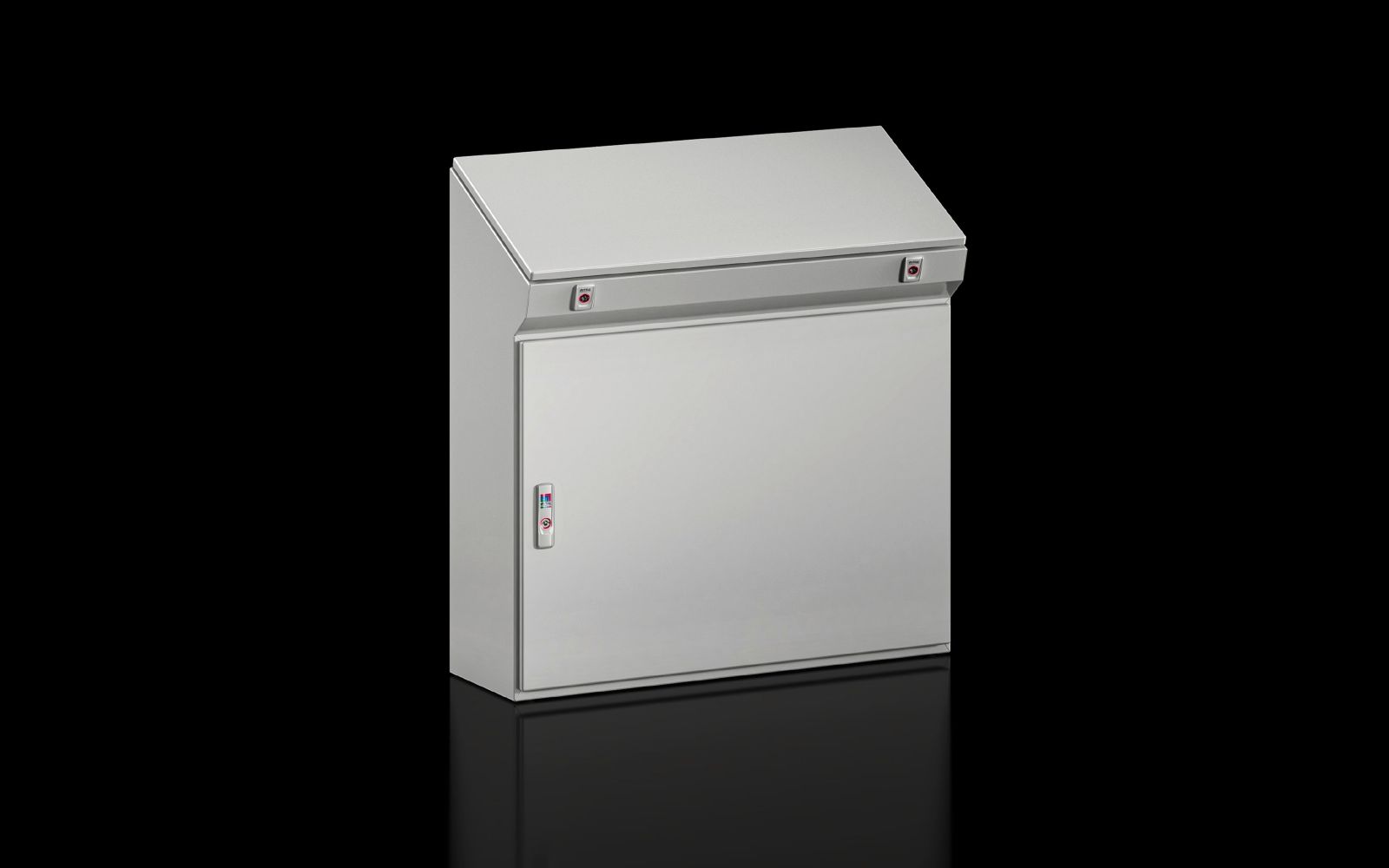

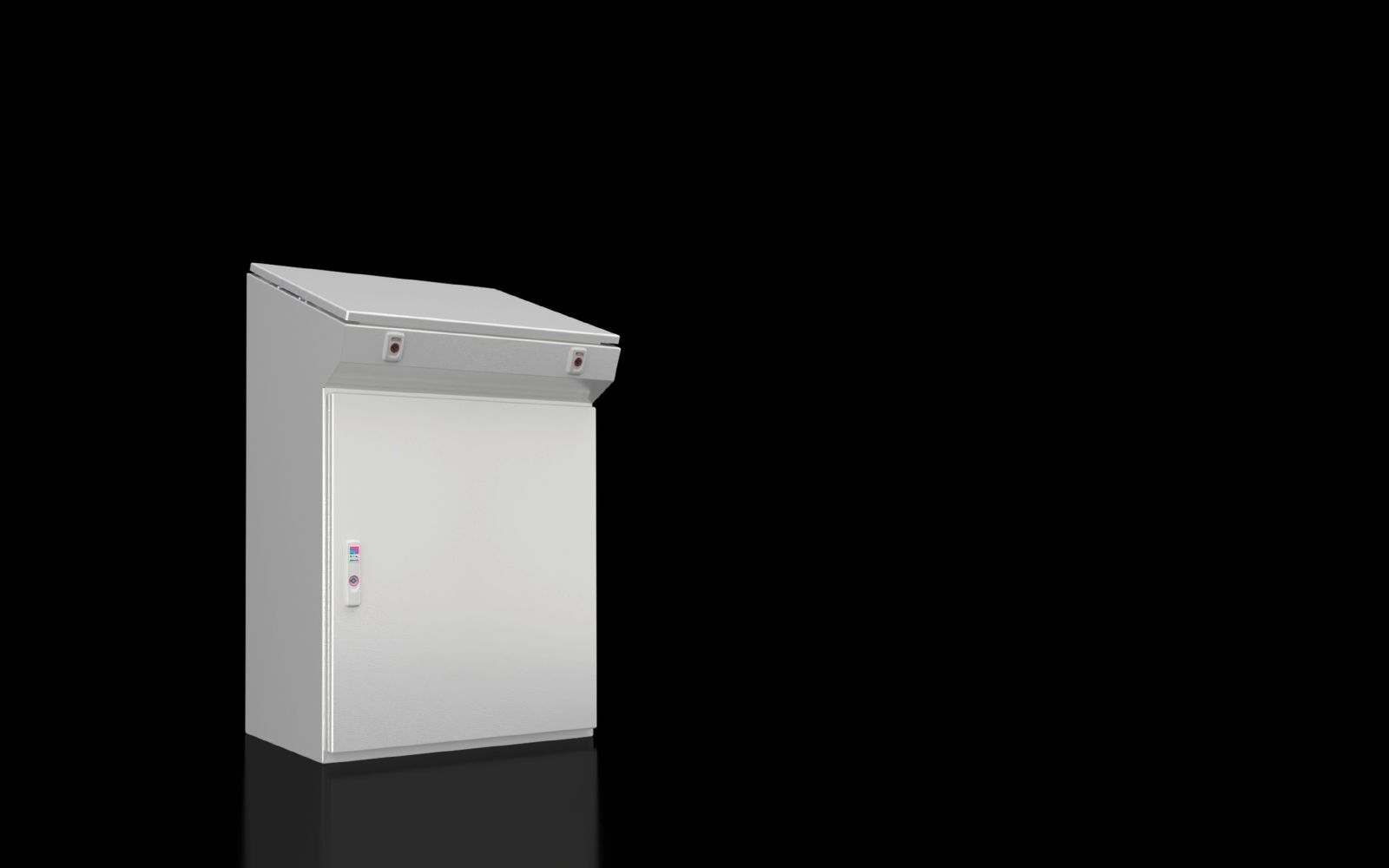

The Rittal CX 6746000 is a unified steel sheet stand console, designed for use in industrial environments where a robust and user-friendly operating and monitoring unit is required. The housing has dimensions W x H x D 600 mm × 970 mm × 400 mm and offers a large mounting surface for electrical assemblies, enclosures or control panels. The steel sheet construction ensures high mechanical stability, with the housing made from 1.5 mm thick steel sheet, the door and console lid from 2.0 mm thick steel sheet, and the mounting plate from 2.5 mm thick steel sheet. The surface is dip-primed and externally powder-coated with a textured finish in the colour RAL 7035, providing high corrosion resistance and an attractive visual appearance. The mounting plate is galvanized to provide additional protection against corrosion.

Applications
This stand console is suitable for use in production plants, manufacturing halls, machine controls and other industrial applications where a secure and easily accessible operating console is required. The high protection rating IP 55 protects against dust and splashing water, making it suitable for outdoor areas or humid indoor environments. The protection ratings NEMA 1 and NEMA 12 correspond to American standards for protection against contact and for environments with dusty and humid conditions. The IK code IK10 guarantees high mechanical protection against impact and shock, which is important for environments with high mechanical stress.

Functions and Equipment in Detail

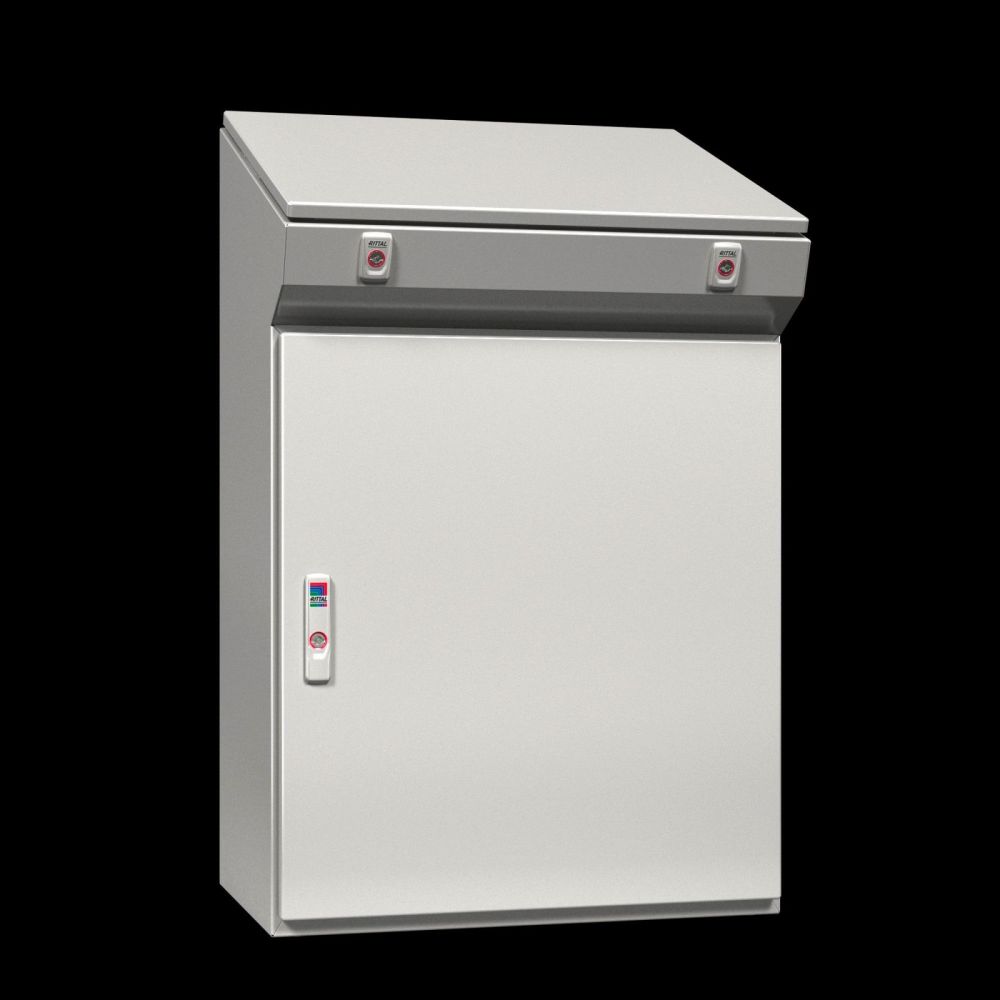

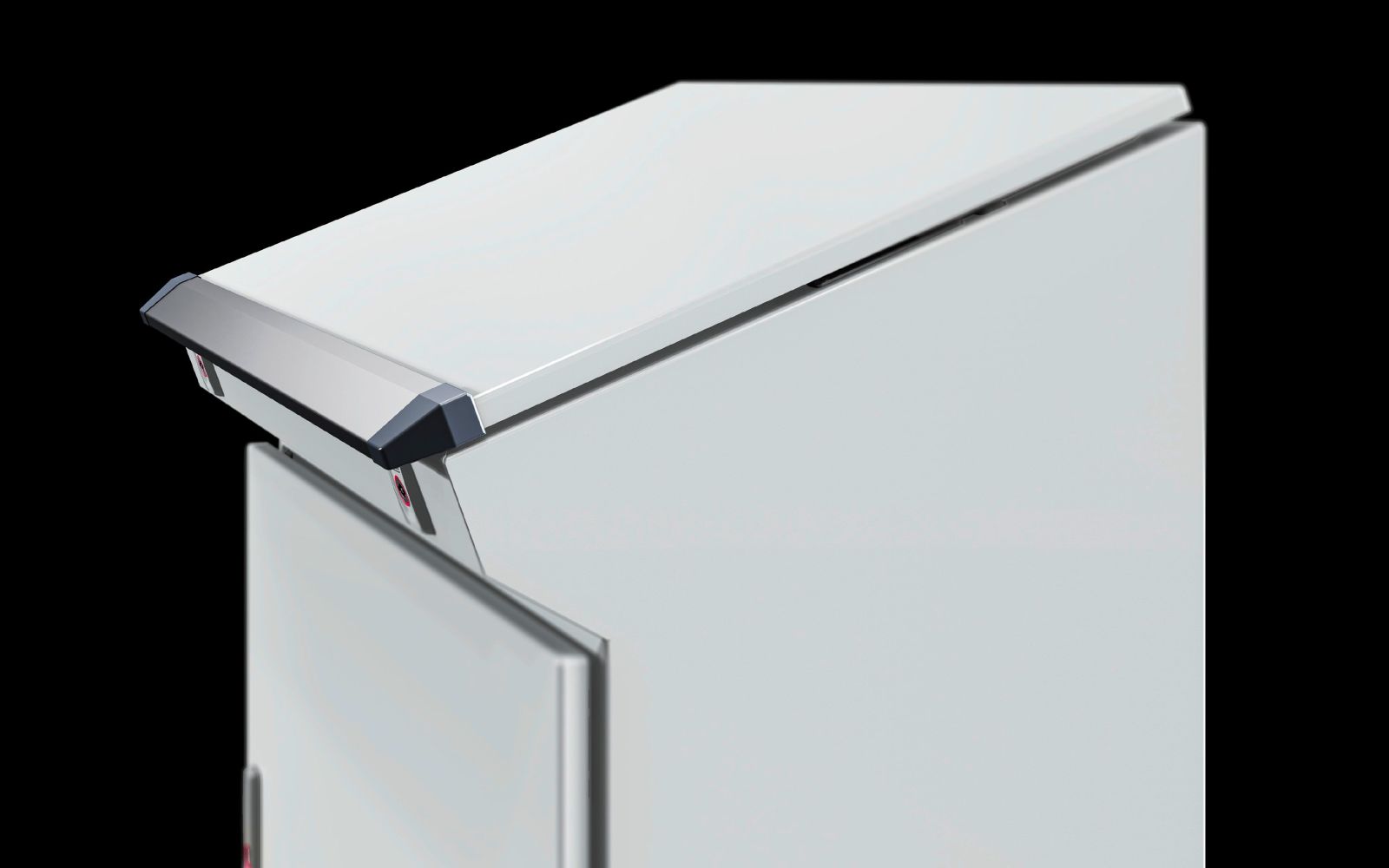

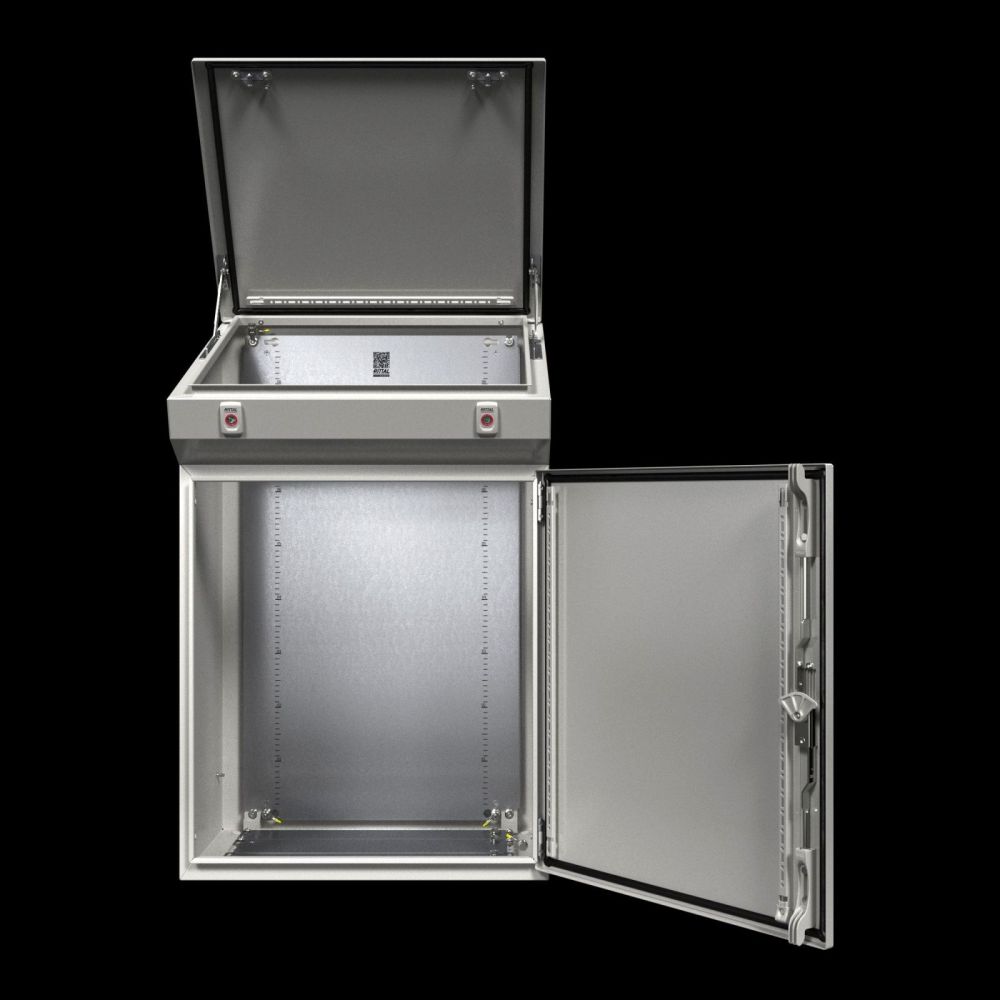

The console features a front door with a 3-point locking system, ensuring secure and stable latching. The lid is hinged at the rear and equipped with pre-latching locks, providing secure coverage of the upper area. Two stands with automatic locking ensure stable stability, with unlocking on the left side automatic and on the right side manual. A base sheet is also included in the delivery scope, enabling a complete enclosure construction. The circumferential foamed PU seal ensures a tight seal and prevents ingress of dust and moisture.

Technology Explained Simply
The protection rating IP 55 means that the housing is dust-tight and protected against splashing water from any direction. This makes the stand console suitable for locations where moisture or dust exposure is present. The protection ratings NEMA 1 and NEMA 12 complement these protection functions according to American standards, with NEMA 1 for general indoor environments and NEMA 12 for environments with dust and liquid contaminants. The IK code IK10 describes mechanical strength and protects against an impact with an energy of 10 joules, equivalent to high shock resistance. The mounting plate with dimensions 520 mm × 900 mm provides sufficient space for mounting enclosures, control panels or other electrical components.

Compatibility and Accessories
Various accessories are available for this stand console, extending its functionality. These include rails for internal installation, adjustable cross-braces, plinth trim panels and corner pieces, cable entry plates, system chassis, and a circuit diagram pocket. These components allow individual adaptation of the console to specific requirements, such as integration of cable management systems, additional mounting surfaces or improved cable routing. The accessories are specifically designed for a depth of 400 mm and thus fit perfectly into the housing.

Mounting and Installation

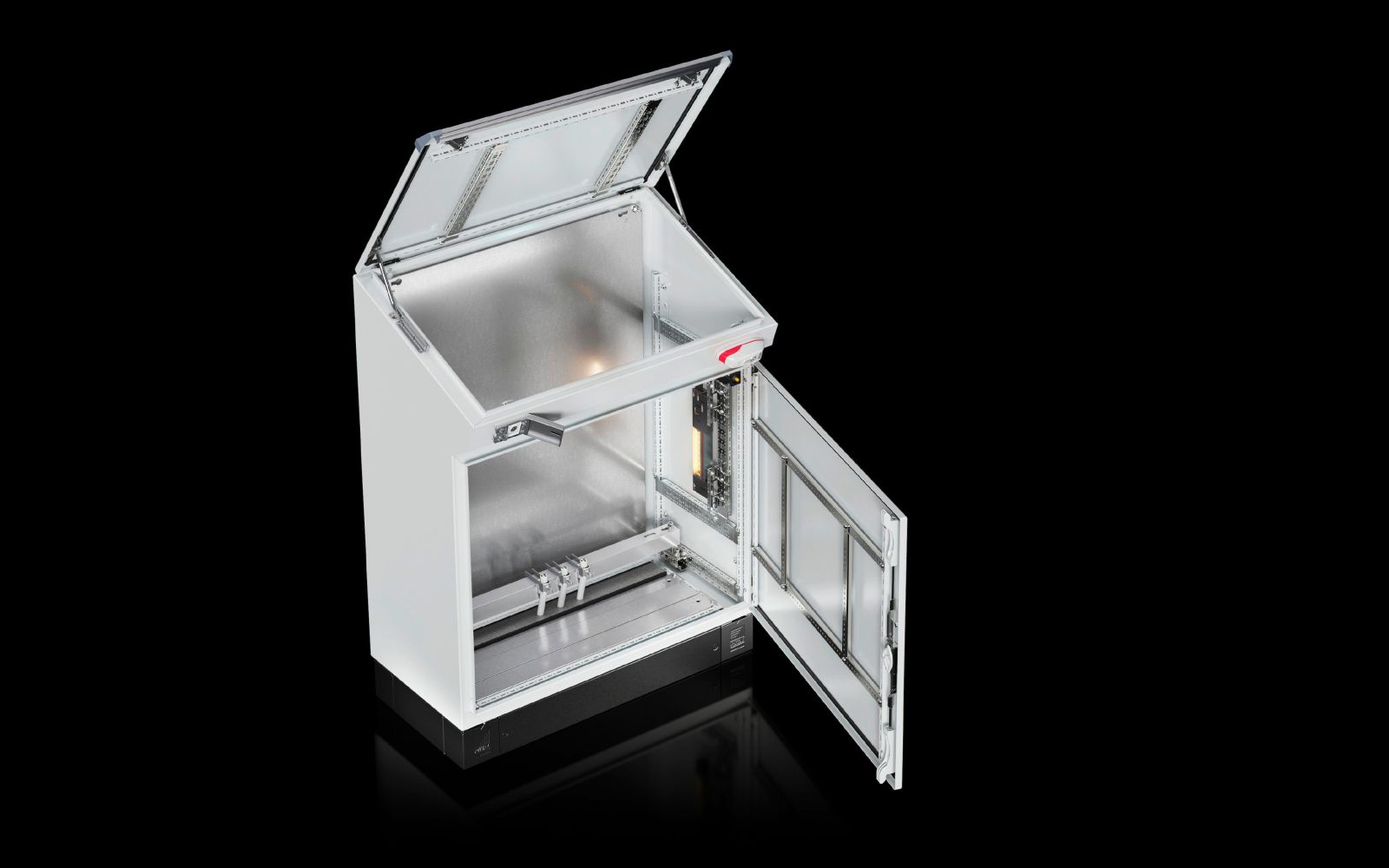

Mounting is done via the provided stands, ensuring stable positioning. The mounting plate is included in the delivery scope and allows direct fixation of electrical assemblies. The front door and lid are equipped with locks that enable secure and easy operation. The automatic locking of the stands simplifies installation, as no additional tools are required. The depth of the housing is 400 mm, with the upper depth being 495 mm, enabling optimal component placement.

Advantages in Operation
The Rittal CX 6746000 offers high mechanical and electrical safety due to its robust steel sheet construction and high protection ratings IP 55, NEMA 1 and NEMA 12. The large mounting surface and various accessory options allow flexible adaptation to different applications. The automatic locks and easy mounting reduce installation time and increase operational safety. The use of steel sheet and textured finish ensures long service life and low maintenance requirements. The combination of functionality, safety and flexibility makes the stand console a reliable solution for industrial applications.

General
ModelConsole
MaterialEnclosure: steel sheet 1.5 mm, door and panel cover: steel sheet 2.0 mm, continuous foamed PU seal, mounting plate: steel sheet, 2.5 mm
Surface protectionHousing, cover and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryEnclosure, rear and side closed, door or double door front, with 3-point locking system, mounting plate, lid with pre-press locks, hinged at rear, 2 stands with automatic locking. Unlocking left automatic, right manual., base sheet, lock: 3 mm double bar
Width600 mm
Height970 mm
Depth400 mm
Mounting plate dimensions (W x H)520 mm x 900 mm
Depth top495 mm
Depth bottom400 mm
Number of doors1
IK codeIK10
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Base materialsteel sheet


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 6746000, EAN: 4028177983618

Questions & answers

What is the delivery time of Rittal 6746000 CX stand console W x H x D: 600x970x490 mm sheet metal?

The article Rittal 6746000 CX stand console W x H x D: 600x970x490 mm sheet metal is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6746000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 6746000 CX stand console W x H x D: 600x970x490 mm sheet metal always at the best possible price. We can give you a discount of 2% on Rittal 6746000 CX stand console W x H x D: 600x970x490 mm sheet metal if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
