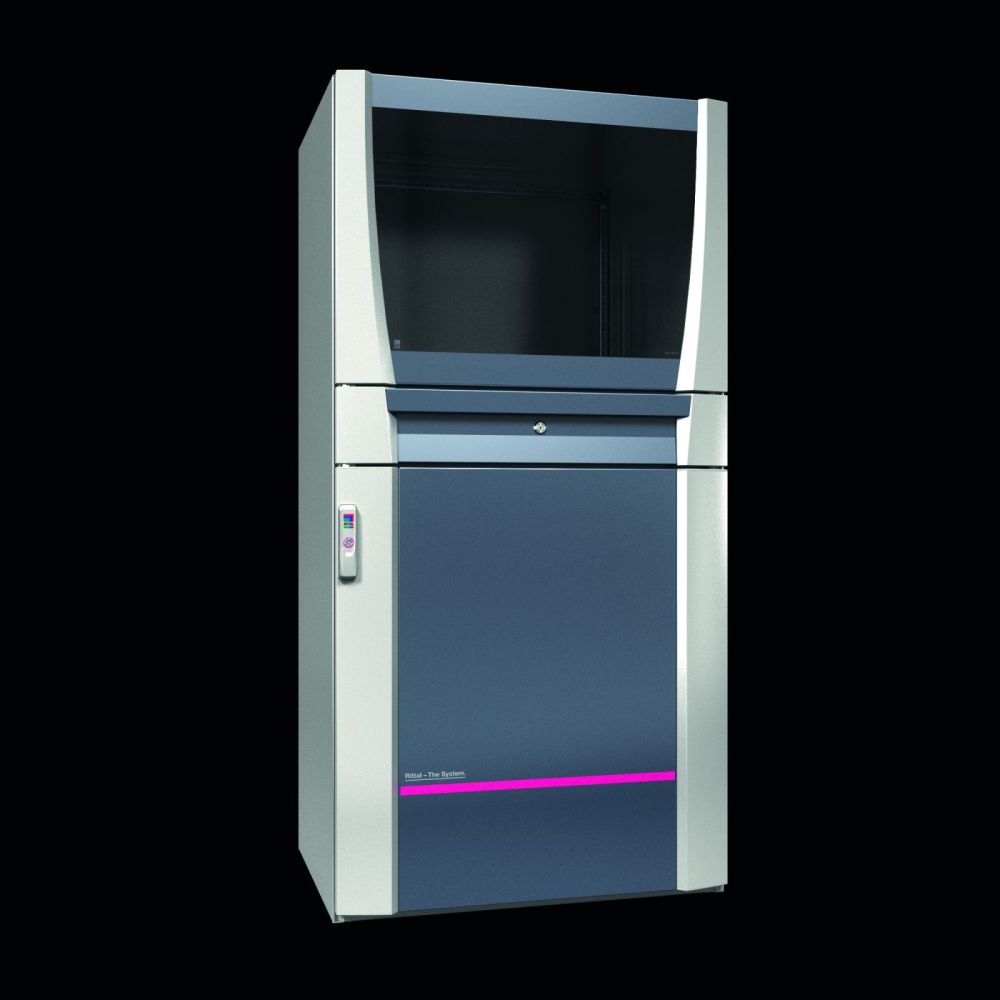

Rittal 5386050 PC enclosure system 800x1600x600 viewing door keyboard drawer (freight shipping)

Your rating:
Average rating
product review for Rittal 5386050 PC enclosure system 800x1600x600 viewing door keyboard drawer (freight shipping)
( 4 / 5 ) 3 ratings
Rittal 5386050
This image may differ from the desired article.
Rittal 5386050Rittal 5386050Rittal 5386050Rittal 5386050Rittal 5386050Rittal 5386050
-8% 1.797,45 EUR 1.946,69 EUR
( 2.138,97 EUR incl. VAT )
≈ £1,504.47  |  ≈ $1,975.40
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 5386050 PC enclosure system 800x1600x600 viewing door keyboard drawer (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1101055
Mfg Part No: 5386050
UPC/EAN: 4028177959477
Weight:115.8 kg
Type:PC 5386050

Product information for Rittal 5386050:

The Rittal PC enclosure system type 5386050 is a closed enclosure made of sheet steel, specifically designed for the safe and user-friendly housing of PC components, including monitor, computer, and keyboard. The system offers integrated operating comfort and modern design, with all elements consolidated in a robust enclosure that protects against moisture, dirt, temperature fluctuations, and unauthorized access. Dimensions are 800 mm width, 1600 mm height, and 636 mm depth, with the enclosure equipped with a viewing door on top, a keyboard drawer, and a fixed component shelf.

Applications
This enclosure system is suitable for use in industrial environments, office installations, technical control centers, or other areas where a protected and accessible workstation for computer operation is required. The protection rating IP 55 according to IEC 60 529 ensures high protection against dust and splashing water, making it suitable for outdoor use or in damp indoor areas. The NEMA classification NEMA 12 and the type rating according to UL 50E (Type 1 and Type 12) confirm suitability for industrial applications with increased environmental requirements.

Functions and Equipment in Detail
The enclosure features a viewing door on top, secured internally with a frame and hinged on the right side. The door is fitted with vertical plastic decor panels providing an aesthetic appearance. The viewing window is made of single-pane safety glass, allowing clear visibility of the monitor without compromising safety. The keyboard drawer includes a pull-out section for the keyboard and a separate pull-out for the mouse pad. The front panel of the drawer features a grip strip that serves as a palm rest when the drawer is open. The drawer is equipped with a locking mechanism compatible with lock number 3524 E, enabling unlocking of the top viewing door. Maximum keyboard dimensions are 480 mm width, 70 mm height, and 260 mm depth.

Technology Explained Simply
The enclosure is made of sheet steel, offering high mechanical stability. The surface is dip-primed and externally powder-coated, using a textured paint that provides a robust and abrasion-resistant coating. The base color of the enclosure, door, decor panels, and shelves is RAL 7035, while the handles, monitor panel, and door center section are in RAL 7015. The lower door and rear door are also hinged on the right and feature a bar lock with double-bar lock insert, enabling secure locking. The floor plate is three-piece and made of galvanized sheet steel, providing high corrosion resistance.

Compatibility and Accessories
The enclosure system features a continuous system mounting grid with 25 mm spacing, enabling flexible and individual interior configuration. Additionally, two mounting levels are provided for space-saving system expansion. Compatible accessories include, among others, VX plinth corner pieces with plinth trim panels, paper extraction flaps, comfort handles in various designs, handle adapters, VX system chassis, partial mounting plates, and cable entry profiles. These components allow application-specific adaptation of the enclosure system to different requirements.

Mounting and Installation
The enclosure system is designed for standalone installation and features profiled mounting profiles on the side panels and roof, enabling secure mounting. The base group is welded in place, providing a stable foundation. Installation is carried out using the designated mounting points and the system mounting grid, allowing flexible adaptation to the specific environment.

Operational Advantages
The enclosure system provides a high protection standard for the PC components housed within. The integrated keyboard drawer and viewing door ensure optimal operating comfort, while the robust construction and IP 55 protection rating guarantee reliable performance even under demanding environmental conditions. The use of sheet steel and powder-coated surface ensures long service life and high resistance to mechanical stress and environmental influences. The modular design enables flexible expansion and adaptation to future requirements.

Scope of Delivery
The enclosure system is delivered with enclosure, door, rear door, floor plates, top viewing door, keyboard drawer, and component shelf. Components are pre-assembled, enabling quick and easy installation without additional mounting work.

General
Modelwith top sight door, keyboard drawer and equipment floor
MaterialCasing, door, rear door, mounting panel, shelves: sheet steel, handles, decorative panels: plastic, door panels: aluminium, viewing window: single-pane safety glass
Surface protectionHousing and door: dip primed, externally powder-coated, textured lacquer
Basic colourRAL 7035
ColourHousing, door, decorative panels, shelves: RAL 7035, handle: RAL 7015, monitor panel, door centre section: RAL 7015
Scope of deliveryHousing, door, rear door, base plates, vision door, top, keyboard drawer, equipment base
Width800 mm
Height1.600 mm
Depth636 mm
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 12
Type rating according to UL 50EType 1, Type 12
Max. keyboard dimensions (WxHxD)480 x 70 x 260 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)448.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5386050, EAN: 4028177959477
