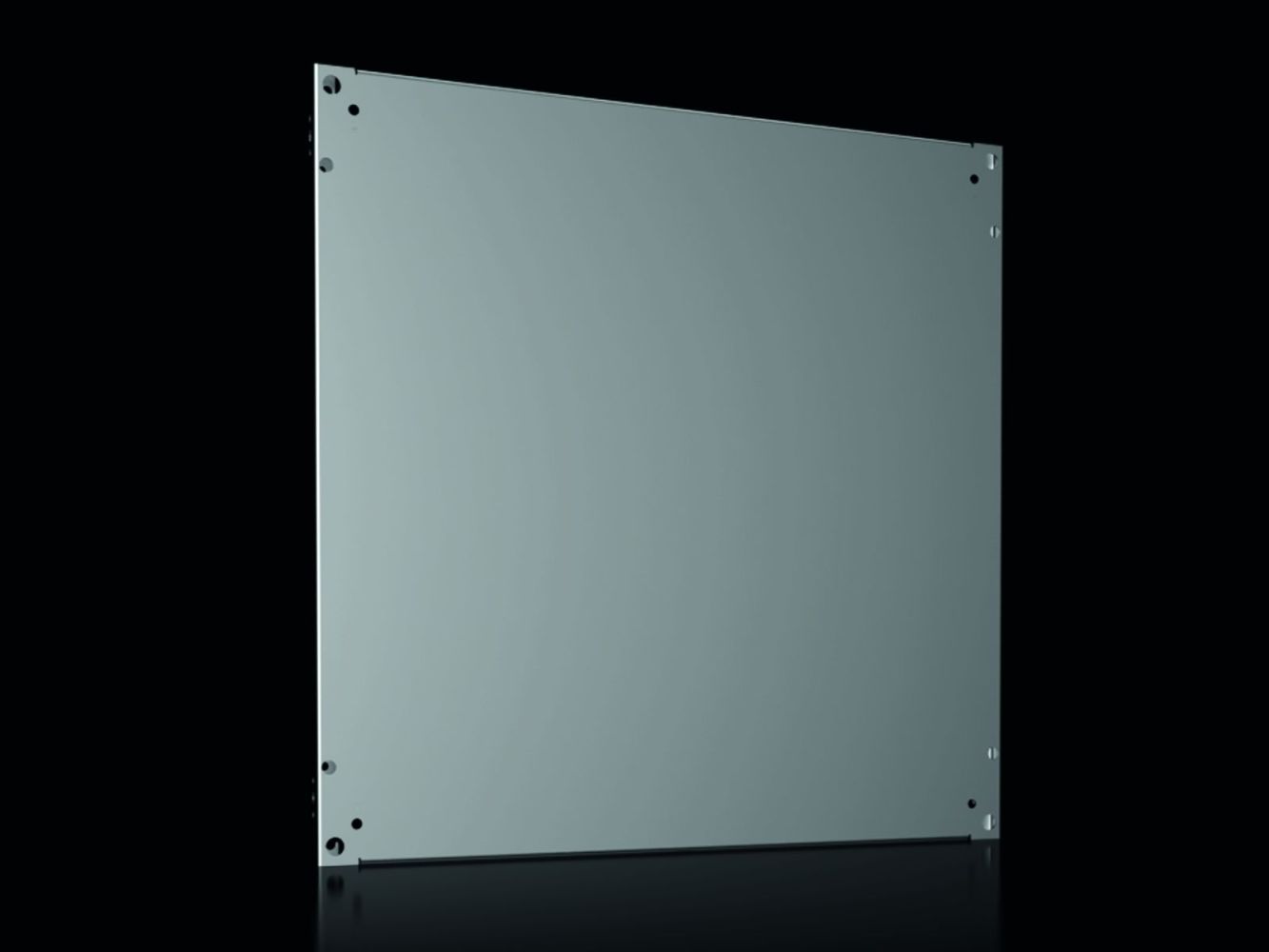

Rittal 8617580 VX partial mounting plate, W x H: 700x700 mm

Your rating:
Average rating
product review for Rittal 8617580 VX partial mounting plate, W x H: 700x700 mm
( 4.5 / 5 ) 14 ratings
Rittal 8617580
This image may differ from the desired article.
Rittal 8617580Rittal 8617580Rittal 8617580
-10% 68,31 EUR 76,21 EUR
( 81,29 EUR incl. VAT )
≈ £57.18  |  ≈ $75.07
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617580 VX partial mounting plate, W x H: 700x700 mm
Datasheet:file_download Download
Lieske Part No.:1440875
Mfg Part No: 8617580
UPC/EAN: 4028177919433
Weight:11.864 kg
Type:VX 8617.580

Product information for Rittal 8617580:

The Rittal VX 8617.580 is a partial mounting plate made of sheet steel with a thickness of 2.5 mm, designed for use in enclosures of type VX, VX SE and PC. The plate has dimensions of 700 mm width and 700 mm depth and is intended for mounting additional components within the enclosure. It enables flexible mounting and provides a stable platform for various applications in industrial environments.

Applications
The partial mounting plate is designed for enclosures with a door width of 800 mm and thus fits into housings with dimensions width 800 mm and depth 800 mm. It is used in enclosures of the VX, VX SE and PC series, where the VX adapter rail is required for installation in VX SE, PC and IW. The plate can be mounted both vertically and horizontally, allowing flexible use in various configurations.

Functions and Equipment in Detail
Mounting is done directly to the enclosure profile. In a recessed setup, fastening can be achieved via system chassis at any mounting level within the enclosure. For multi-level installations arranged in sequence, the plate can be supplied with a hinge mounting, enabling quick access to the levels behind. The surface is galvanized, providing a corrosion-resistant and durable coating. The delivery includes the fastening material required for installation.

Technology Explained Simply
The partial mounting plate consists of robust sheet steel with a thickness of 2.5 mm, suitable for high mechanical loads. The galvanized surface protects the material from corrosion and ensures a long service life, especially in industrial environments. The dimensions of 700 mm × 700 mm provide sufficient space for mounting assemblies, controls or other electrical components. The mounting options allow for adaptable integration into existing enclosure configurations.

Compatibility and Accessories
The plate is compatible with enclosure types VX, VX SE and PC. The VX adapter rail is required for installation in VX SE, PC and IW. Mounting is done directly to the enclosure profile, with fastening via system chassis possible for recessed setups. The plate can also be used in multi-level configurations, where the swivel version enables quick access to rear levels.

Mounting and Installation
Mounting is done directly to the enclosure profile. In a recessed setup, fastening can be achieved via system chassis at any mounting level within the enclosure. For multi-level installations arranged in sequence, the plate can be supplied with a hinge mounting. Fastening is done using the fastening material included in the delivery.

Advantages in Operation
The partial mounting plate provides a flexible and stable mounting surface for additional components within the enclosure. The galvanized surface ensures high corrosion resistance, and the robust sheet steel construction guarantees a long service life. The ability to mount the plate vertically or horizontally, as well as the swivel version for multi-level installations, increases flexibility and accessibility in operation. The installation flexibility and compatibility with various enclosure types make the plate a universally applicable component in industrial electrical engineering.

General
MaterialSheet steel, 2.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable for door width800 mm
NoteFor installation in VX SE, PC, IW, the VX adapter rail is required
Width700 mm
Depth700 mm
Suitable for housing typeVX, VX SE, PC
Suitable forCabinet type: VX, VX SE, PC, Width: = 800 mm, Depth: = 800 mm
PCF/VE (Cradle-to-Gate)45.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8617580, EAN: 4028177919433

Questions & answers

What is the delivery time of Rittal 8617580 VX partial mounting plate, W x H: 700x700 mm?

The article Rittal 8617580 VX partial mounting plate, W x H: 700x700 mm is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617580 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617580 VX partial mounting plate, W x H: 700x700 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617580 VX partial mounting plate, W x H: 700x700 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
