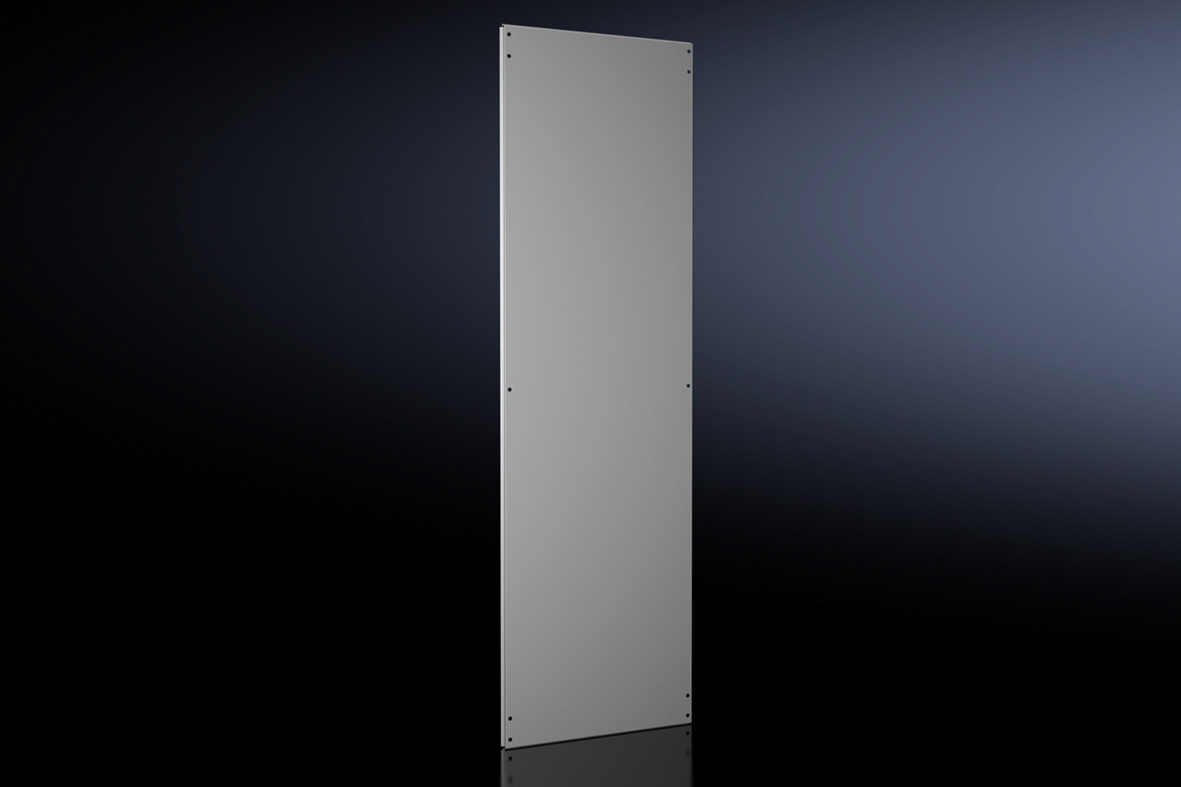

Rittal 8609202 VX partition panel, height: 1800x600 mm

Your rating:
Average rating
product review for Rittal 8609202 VX partition panel, height: 1800x600 mm
( 4.5 / 5 ) 12 ratings
Rittal 8609202
This image may differ from the desired article.
Rittal 8609202Rittal 8609202Rittal 8609202
87,29 EUR
( 103,88 EUR incl. VAT )
≈ £73.06  |  ≈ $95.93
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8609202 VX partition panel, height: 1800x600 mm
Datasheet:file_download Download
Lieske Part No.:1440943
Mfg Part No: 8609202
UPC/EAN: 4028177817760
Weight:12.5 kg
Type:VX 8609.202

Product information for Rittal 8609202:

The Rittal VX partition panel, type 8609.202, is a system accessory for enclosures of the VX housing type. It is used for compartmentalizing individual enclosure cells within an enclosure and enables a structured division of the interior space. The partition panel is specifically designed for enclosures with a height of 1,800 mm and a depth of 600 mm. Due to the symmetrical construction of the frame system, it can also be mounted on the rear side of the enclosure, enabling flexible use during installation of components such as frequency converters, whose heat sinks are oriented outward. In such cases, the partition panel can serve as an integrated mounting surface, with heat dissipation supported by the open rear side. An additional cover hood can be used for optical blending and protection of the component.

Partition panel
The partition panel is made of steel sheet with a thickness of 1.5 mm and is galvanized, ensuring high corrosion resistance and durability. The continuous, double hemming provides additional stability and allows for the installation of a seal to ensure effective compartmentalization between enclosure cells. Mounting is done on the outer mounting plane of the enclosure, leaving the inner plane free for further installations. This supports the modular expandability of the enclosure without affecting existing mounting points.

Applications
The partition panel is particularly suitable for industrial applications where a clear separation of electrical or electronic components is required. It is frequently used in enclosures for automation technology, power supply systems, or machine controls. The ability to mount the partition panel at the rear extends its application range, especially for components requiring direct heat dissipation. The protection rating IP 54 according to IEC 60 529 protects against dust and splashing water, making the partition panel suitable for use in indoor environments with moderate contamination risk.

Functions and equipment in detail
The partition panel is delivered including fastening materials, enabling direct mounting without additional tools or components. Fastening is done on the outer mounting plane, leaving the inner plane free for additional mounting elements. The double hemming ensures a stable structure and allows for the installation of a seal to ensure effective compartmentalization. The symmetrical construction allows mounting on the front or rear side of the enclosure, increasing flexibility in planning and installation.

Technology explained simply
The use of steel sheet with 1.5 mm thickness and galvanized surface ensures high mechanical strength and corrosion protection. The IP protection rating 54 means the partition panel is protected against dust and splashing water, making it suitable for use in industrial indoor environments. The double hemming at the edges increases stability and allows for the installation of a seal to ensure an airtight compartmentalization between enclosure cells. Mounting on the outer mounting plane leaves the inner plane free, enabling expansion of the enclosure without additional modifications.

Compatibility and accessories
The partition panel is specifically designed for VX-type enclosures with a height of 1,800 mm and a depth of 600 mm. For baying multiple enclosures in combination with a partition panel, additional components are required: the baying bracket inside (part number 8617500) or the baying connector outside (part number 8617502). These elements enable a secure and stable connection between enclosures.

Mounting and installation
Mounting is done on the outer mounting plane of the enclosure. The included fastening materials enable simple and secure installation. The inner mounting plane remains free for additional mounting elements or components. When baying multiple enclosures, the use of the baying bracket inside or the baying connector outside is required to ensure a stable connection. The partition panel can also be mounted on the rear side of the enclosure, which is advantageous when installing components with heat dissipation.

Operational advantages
The partition panel enables clear structuring of the enclosure interior, simplifying maintenance and servicing. Compartmentalizing individual cells reduces the risk of interference from electromagnetic emissions or thermal influences. The ability to mount the partition panel at the rear provides additional flexibility in planning and installation. The protection rating IP 54 ensures reliable operation in environments with moderate contamination risk. The modular construction supports the expandability of the enclosure without affecting existing mounting points.

General
MaterialSheet steel, 1.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable forCabinet type: VX, height: = 1.800 mm, depth: = 600 mm
Mounting optionsInstallation is on the outer mounting plane; the inner plane remains free for further expansion
Mounting noteFor mounting in combination with a partition, the mounting bracket inside 8617500 or the mounting connector outside 8617502 is required
Degree of protection IP according to IEC 60 529IP 54


Product data sheet
Datasheet for Rittal 8609202, EAN: 4028177817760

Questions & answers

What is the delivery time of Rittal 8609202 VX partition panel, height: 1800x600 mm?

The article Rittal 8609202 VX partition panel, height: 1800x600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8609202 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8609202 VX partition panel, height: 1800x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8609202 VX partition panel, height: 1800x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
