Rittal 8951010 VX disconnector hood, height: 2000x600 mm

Your rating:
Average rating
product review for Rittal 8951010 VX disconnector hood, height: 2000x600 mm
( 4.8 / 5 ) 8 ratings
Rittal 8951010
This image may differ from the desired article.
Rittal 8951010Rittal 8951010Rittal 8951010
388,47 EUR
( 462,28 EUR incl. VAT )
≈ £325.15  |  ≈ $426.93
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 8951010 VX disconnector hood, height: 2000x600 mm
Datasheet:file_download Download
Lieske Part No.:1440190
Mfg Part No: 8951010
UPC/EAN: 4028177920941
Weight:18 kg
Type:VX 8951.010

Product information for Rittal 8951010:

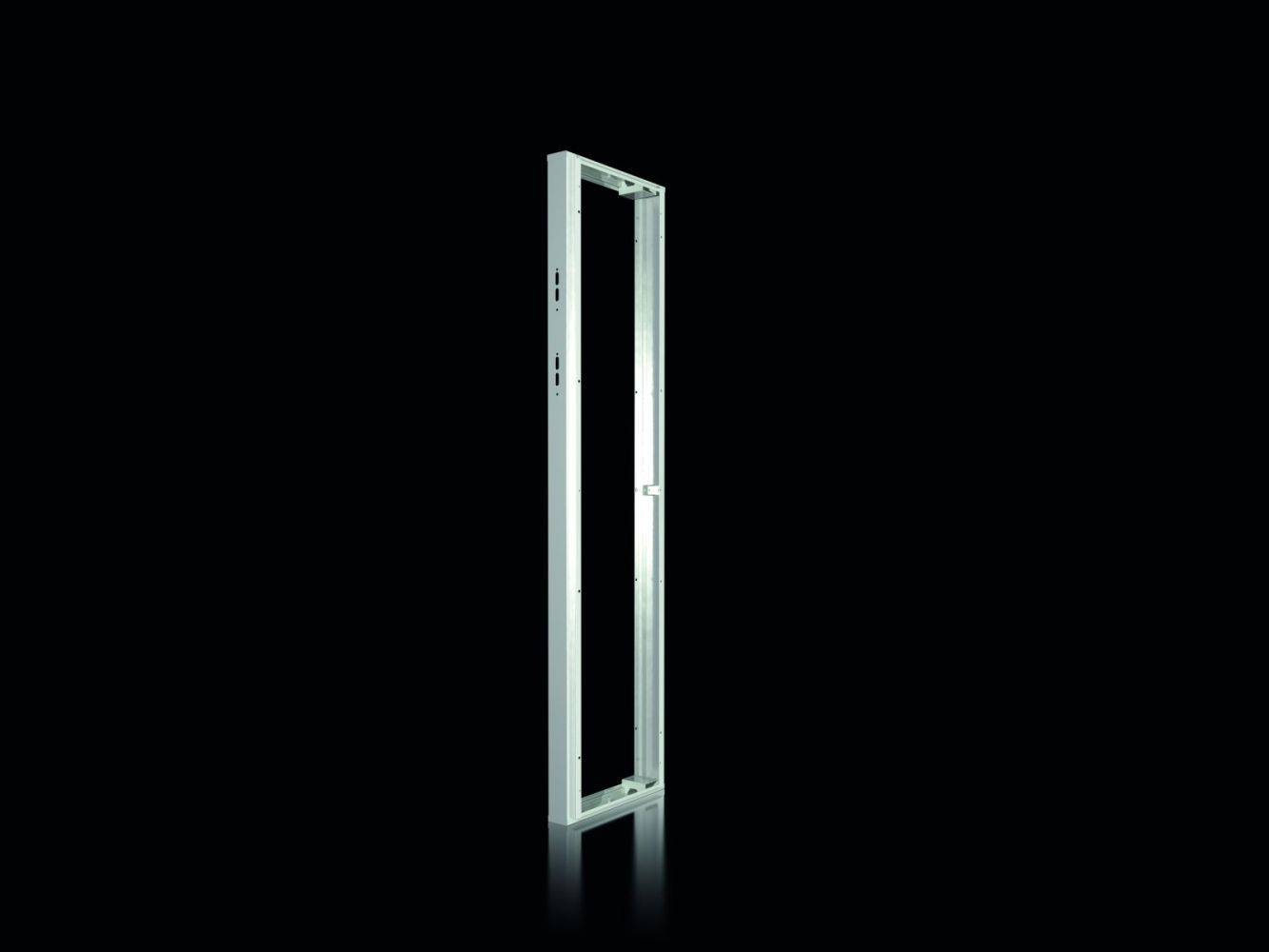

Rittal VX 8951.010 is a disconnector hood for enclosures of the VX series, designed to convert single-door bayed enclosures into disconnector enclosures. The product is made of steel sheet with a thickness of 1.5 mm and is powder-coated in the colour RAL 7035. Dimensions are 103 mm width, 2,000 mm height, and 600 mm depth. The hood is supplied with a main door locking mechanism, a cover plate, and the required mounting material. Installation is exclusively on a single-door enclosure with a door tube frame, and the hood can be mounted either on the left or right side of the enclosure. This ensures the full mounting area of the enclosure remains available.

Applications
The disconnector hood is intended for use in industrial electrical installations, particularly in combination with main switches from various manufacturers. It has been tested in conjunction with operating levers for switches from Allen Bradley, Square D, General Electric, Eaton, and Siemens. The hood meets the requirements of UL 508 A and is therefore suitable for use in installations complying with UL standards. In combination with auxiliary door locking, operating mechanisms, and push rods, even bayed combinations can meet the requirements.

Functions and Equipment in Detail
The hood features two cutouts on the front side, designed for the installation of operating levers at different heights. This allows for flexible adaptation to various switch types. The integrated main door locking mechanism ensures secure locking of the enclosure in accordance with UL standards. In combination with an integrable mounting plate intermediate piece, the mounting area of the main enclosure can be increased by up to 14 %, facilitating the installation of additional components.

Technology Explained Simply
The disconnector hood is made of robust steel sheet, providing high mechanical stability. The powder coating in RAL 7035 ensures an even surface and corrosion protection. The protection rating IP 55, in combination with VX enclosures, means the hood is dust-tight and protected against water jets, making it suitable for use in industrial environments. The NEMA protection rating 12 (in combination with VX enclosures) corresponds to requirements for indoor use with light contamination and protection against splashing water.

Compatibility and Accessories
The hood is compatible with enclosures of the VX series and can be combined with various accessories. Suitable accessories include door locking mechanisms for bayed combinations, mounting plate intermediate pieces for VX and TS enclosures, and screwable side panels with a height of 2,000 mm and depth of 600 mm. These components allow for flexible adaptation to different requirements in enclosure construction.

Mounting and Installation
The hood is mounted on a single-door enclosure with a door tube frame. It can be installed either on the left or right side of the enclosure. Mounting is done using the included material. The integrated main door locking mechanism is connected to the enclosure during installation to ensure safety locking. The front side of the hood features two cutouts for operating levers, which can be positioned according to the switch height.

Operational Advantages
The disconnector hood enables the safe and standard-compliant conversion of single-door enclosures into disconnector enclosures. The expansion of the mounting area by up to 14 % through the mounting plate intermediate piece provides additional space for components. Compatibility with various switch manufacturers and compliance with UL 508 A standards increase flexibility and safety in operation. The robust construction and IP 55 protection rating ensure reliable performance in industrial environments.

General
MaterialSheet steel, 1.5 mm
Surface protectionPowder-coated
ColourRAL 7035
Scope of deliveryIncluding main door lock, cover plate and mounting material.
Width103 mm
Height2.000 mm
Depth600 mm
NoteMounting of hood only on single-door cabinet with door frame
Type rating according to UL 50EType 1, Type 12
Degree of protection IP according to EN 60 529IP 55 in conjunction with VX series cabinets
NEMA degree of protectionNEMA 12 (in combination with VX series cabinets)


Product data sheet
Datasheet for Rittal 8951010, EAN: 4028177920941

Questions & answers

What is the delivery time of Rittal 8951010 VX disconnector hood, height: 2000x600 mm?

The article Rittal 8951010 VX disconnector hood, height: 2000x600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8951010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8951010 VX disconnector hood, height: 2000x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8951010 VX disconnector hood, height: 2000x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 8951010 VX disconnector hood, height: 2000x600 mm

Rittal 4912000 Door locking for baying combinations, actuation Rittal LogoRittal 4912000 Door locking for baying combinations, actuation For extending the door locking of commercially available master switches to bayed suites TS. Adjacent doors cannot be opened until the main door has been opened.
Packs of: 1 pc(s).
EAN: 4028177113961 ...

Lieske Part No.: 111426
Mfg Part No: 4912000
Type: TS 4912000
38,53 EUR 39,70 EUR
Rittal 4912000 plus VAT
≈ £32.25  |  ≈ $42.34
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 4911000 Door locking for baying combinations, secondary doorve Rittal LogoRittal 4911000 Door locking for baying combinations, secondary doorve The Rittal TS 4911000 is a side door locking mechanism, specifically developed for use in bayed combinations of enclosures. It ensures secure locking of side doors in single-door enclosures, enabling ...

Lieske Part No.: 196127
Mfg Part No: 4911000
Type: TS 4911000
31,17 EUR 31,94 EUR
Rittal 4911000 plus VAT
≈ £26.09  |  ≈ $34.26
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 4591700 Mounting plate intermediate piece for VX, TS, for H: 2000 Rittal LogoRittal 4591700 Mounting plate intermediate piece for VX, TS, for H: 2000 For a continuous mounting surface in bayed suites where the mounting plate is set forward.
Material: Sheet steel, 2.0 mm
Surface finish: Zinc-plated
Supply includes: Assembly parts
Packs of: 1 pc(s).

Lieske Part No.: 621484
Mfg Part No: 4591700
Type: TS 4591700
57,77 EUR
Rittal 4591700 plus VAT
≈ £48.35  |  ≈ $63.49
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 4911100 door locking for baying combinations, secondary doorve Rittal LogoRittal 4911100 door locking for baying combinations, secondary doorve Rittal TS 4911100 is a side door interlock for double-door enclosures, specifically developed for use in bayed combinations. It ensures secure interlocking of the side door in an adjacent enclosure, ...

Lieske Part No.: 686461
Mfg Part No: 4911100
Type: TS 4911100
34,85 EUR
Rittal 4911100 plus VAT
≈ £29.17  |  ≈ $38.30
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8106245 Side panel VX H x D 2000x600 mm screwable 2 pcs Rittal LogoRittal 8106245 Side panel VX H x D 2000x600 mm screwable 2 pcs Rittal VX 8106.245 is a screw-mounted side panel for enclosures of the VX system, designed for an enclosure height of 2,000 mm and a depth of 600 mm. The component is made of steel sheet with a ...

Lieske Part No.: 1440661
Mfg Part No: 8106245
Type: VX 8106.245
144,33 EUR 150,11 EUR
Rittal 8106245 plus VAT
≈ £120.80  |  ≈ $158.62
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
