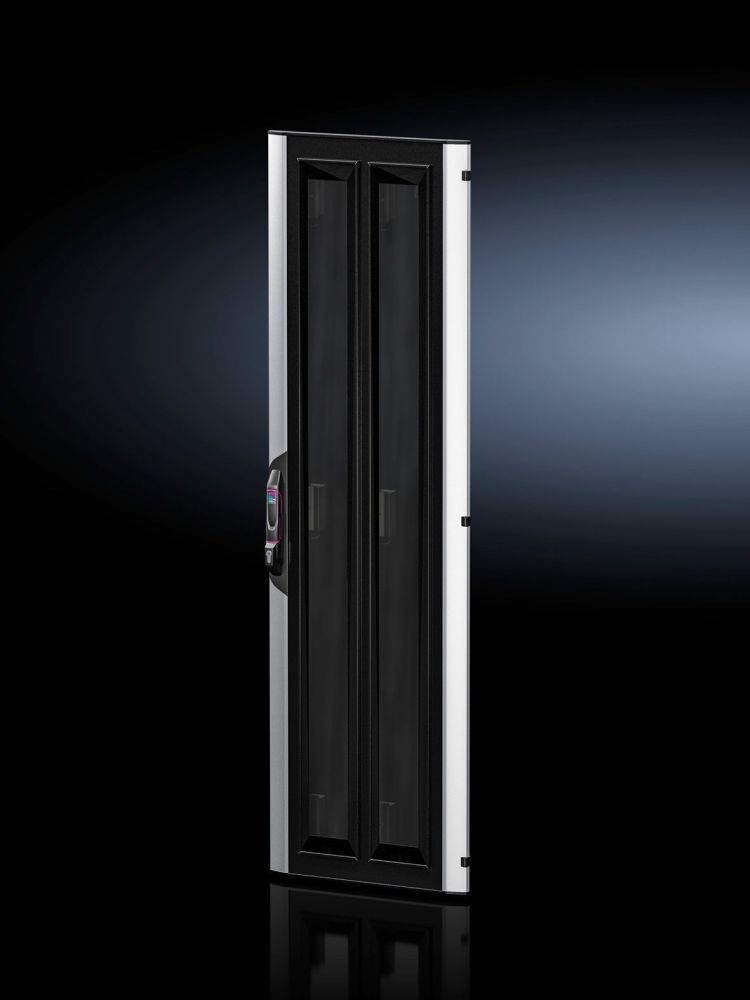

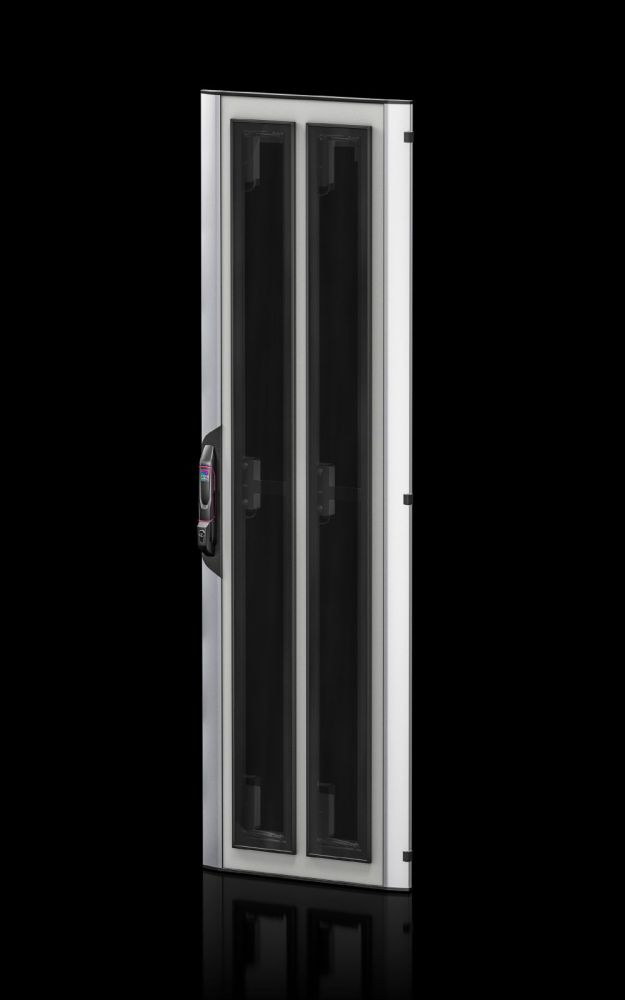

Rittal 7030262 viewing door VX IT with emergency ventilation, W x H: 600x2000 mm
|
-7% 1.478,44 EUR 1.589,23 EUR |
|
|
( 1.759,34 EUR incl. VAT ) ≈ £1,237.45 | ≈ $1,624.81 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 593705 |
| Mfg Part No: | 7030262 |
| UPC/EAN: | 4028177925861 |
| Weight: | 35.5 kg |
| Type: | VX 7030262 |
Product information for Rittal 7030262:
Applications
The viewing door is intended for use in IT enclosures, particularly in environments where emergency cooling or direct supply of fire suppressant gas into the enclosure is required. The automatic opening of the ventilation flaps during power failure or alarm condition enables efficient use of room air for cooling or direct supply of fire suppressant gas. The door is designed for indoor use and meets protection class IP 20 with closed ventilation flaps.
Functions and Equipment in Detail

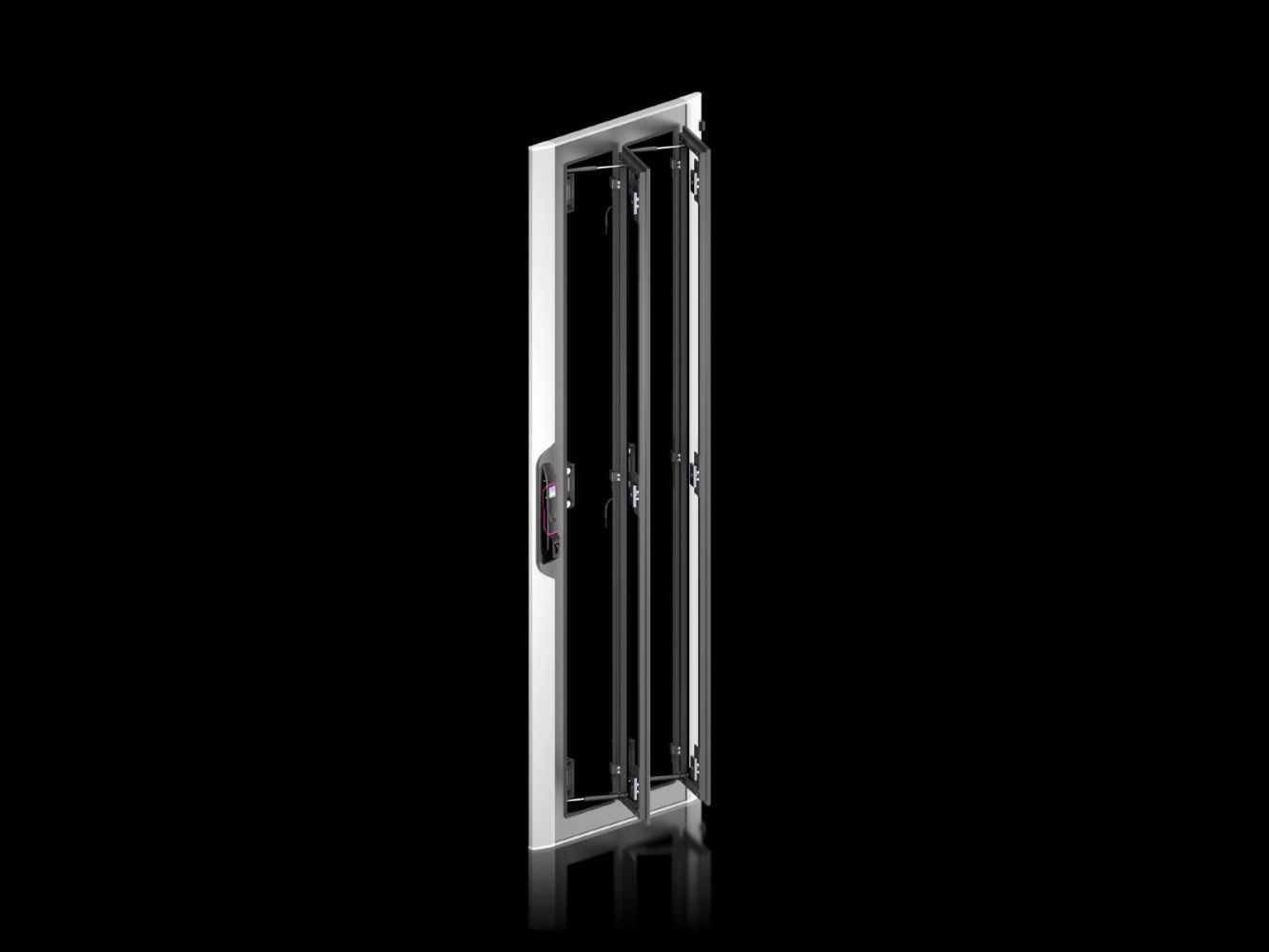

The integrated vertical ventilation flaps open automatically in an emergency when the power supply fails or an alarm is triggered. The flaps are held closed by six electric magnets and open in the de-energized state. The opening is facilitated by six spring dampers, which open the flaps gently and controlled. Additionally, six mechanical springs are integrated to enhance the opening force, overcoming any underpressure at the door. The ventilation flaps extend 200 mm into the escape route when open, while the mechanism protrudes 52.5 mm inward.
Technology Explained Simply
The door is controlled via the CMC III Door Control Module (DCM). Power supply is provided by the DCM, with a rated voltage of 24 V DC and a rated current of 780 mA (0.78 A). The control enables remote operation via the CMC III system. The door is designed for operation in a temperature range of -5 °C to +45 °C and relative humidity of 5 % to 95 % (non-condensing). The door hinge direction is standard right-hand, but can be changed from right to left for single doors.
Compatibility and Accessories
The viewing door is intended for mounting on VX IT racks. Operation requires connection to the Door Control Module 7030.501. The door is equipped with a comfort handle for half cylinder with safety lock 3524 E. Suitable accessories include, for example, earthing straps M8-M8, comfort handles in various versions, enclosure keys, profile rails, and safety locking devices. The use of front and rear doors of the ADO system is always required.
Mounting and Installation
The door is mounted on VX IT racks and requires connection to the CMC III Door Control Module. The connection cable has a length of 2.5 m from the door hinge. Mounting is performed without modifying the existing lock system. Manual opening of the door does not affect the function of the ventilation flaps.
Operational Advantages
The automatic opening of the ventilation flaps in an emergency enables a rapid response to disruptions in cooling or fire suppression system operation. The use of room air for emergency cooling or direct supply of fire suppressant gas into the enclosure enhances the safety and reliability of the IT infrastructure. The robust construction from aluminium extruded profile and single-pane safety glass ensures high stability and safety. The door is suitable for use in IT environments with high requirements for safety and reliability.
| General | |
| Model | Vision windows: single-pane safety glass, tinted, spring dampers for flap opening, magnets for securing flaps, flaps open in de-energised state, vision door: 2x single-pane safety glass, tinted, single-piece, with ventilation flaps, frame: aluminium extruded profile |
| Technical data | Ventilation flap construction outward: 200 mm (in open position), Mechanism construction inward: 52.5 mm, Door hinge: right (for single doors, hinge position changeable from right to left), Cable connection from door hinge: 2.5 m |
| Function principle | Controlled via CMC III Door Control Module (DCM), Integrated vertical ventilation flaps open automatically in emergency – in case of cooling system failure or activation of fire suppression system – air in the room is used for emergency cooling depending on room volume and temperature, or fire suppressant gas can directly enter IT cabinets, Front and rear doors of the ADO system must always be used |
| Material | Frame: aluminium extruded profile, vision panels: single-pane safety glass, tinted |
| Scope of delivery | Vision door with comfort handle for profile half-cylinder with security locking 3524 E |
| At DC | 0,78 A |
| Width | 600 mm |
| Height | 2.000 mm |
| Degree of protection IP according to IEC 60 529 | IP 20 with closed ventilation flaps |
