Rittal 6380410 command panel housing Optipanel, front plate 520x400 mm, mounting
|
380,19 EUR |
|
|
( 452,43 EUR incl. VAT ) ≈ £318.22 | ≈ $417.83 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 360208 |
| Mfg Part No: | 6380410 |
| UPC/EAN: | 4028177663169 |
| Weight: | 10.311 kg |
| Type: | CP 6380410 |
Product information for Rittal 6380410:
Low weight coupled with high stability
Compatible with all Rittal stand and support arm systems
Material: Enclosure: Extruded aluminium section
Corner pieces: Die-cast zinc
Corner protectors: Plastic
Colour: Enclosure: Natural anodised.
Corner pieces: RAL 7035
Corner protectors: similar to RAL 7024
Protection category IP to IEC 60 529: IP 65

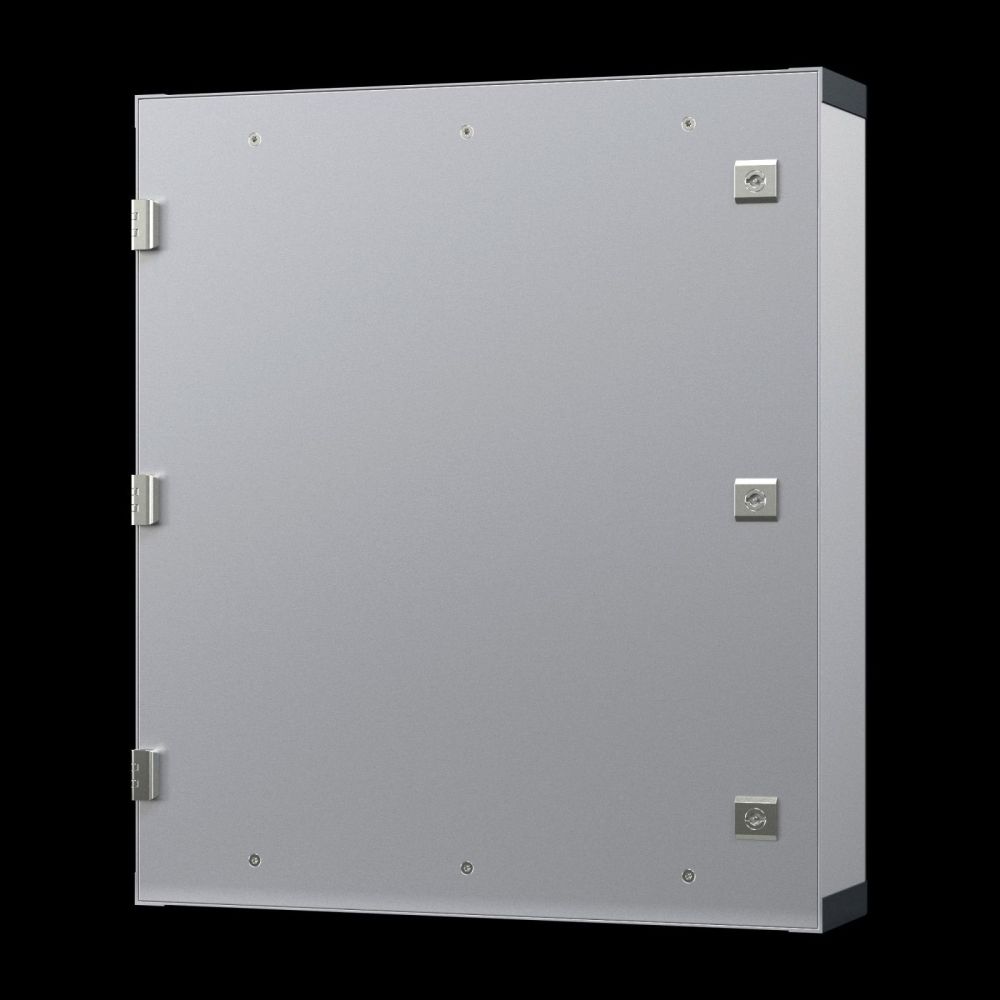

Supply includes: Enclosure with hinged rear panel
Seals
Seals and assembly parts for front panels.
Note: The support arm connection may be swapped over by rotating the enclosure
3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C

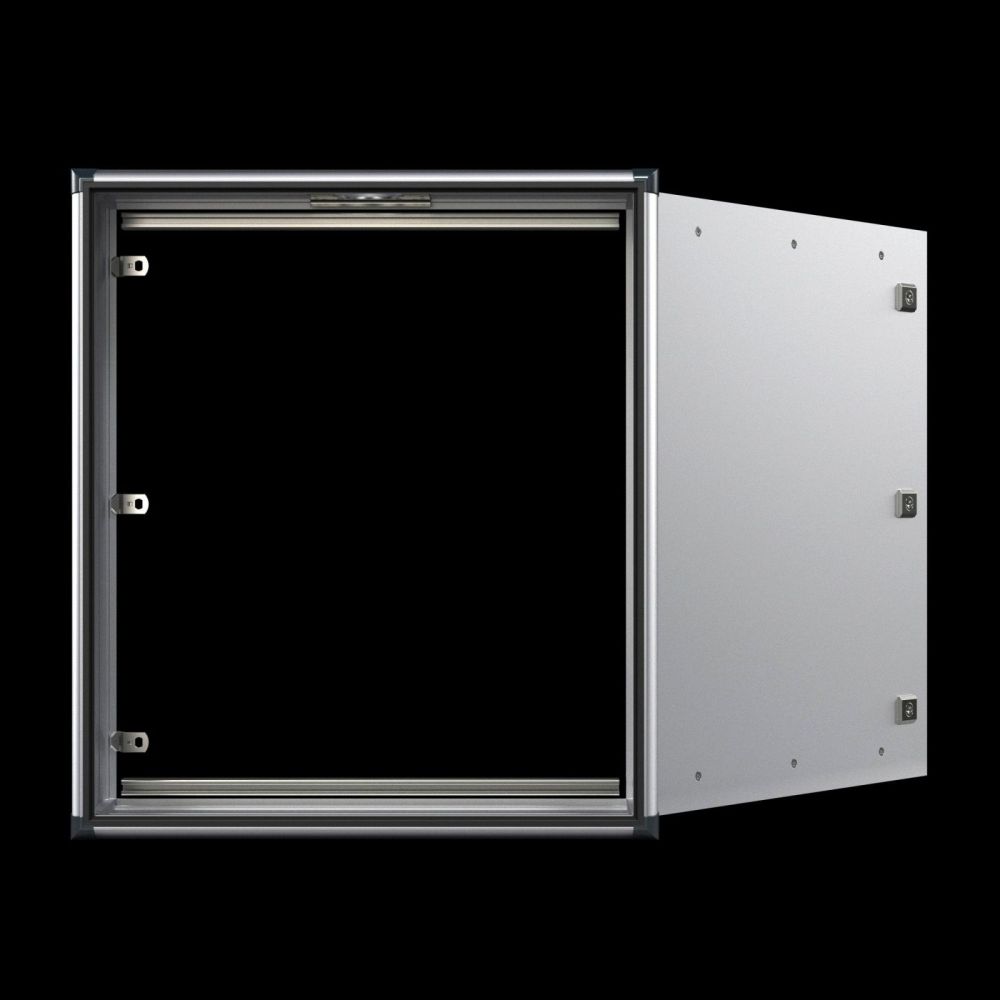

Hinging of the rear panel on the longest enclosure side
Packs of: 1 pc(s).
EAN: 4028177663169
Customs tariff number: 94039010
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504
Design: Support arm connection Ø 130 mm
For the configuration of subracks: To fit front panel width: 520 mm
Installation depth: 150 mm
To fit front panels: with width: 520 mm
with height: 400 mm
Lock version: Cam
Number of locks: 2
Lock insert: 3 mm double-bit
Weight/pack: 7.3 kg
| General | |
| Model | Bracket connection Ø 130 mm |
| Material | Housing: aluminium extruded profile, corner pieces: zinc die-cast, protective corners: plastic |
| Basic colour | natural anodized |
| Colour | Housing: natural anodized, end pieces: RAL 7035, protection corners: similar to RAL 7024 |
| Scope of delivery | Cabinet with hinged rear panel, including seals, including seals and mounting material for front panels |
| Built-in depth | 150 mm |
| Degree of protection IP according to IEC 60 529 | IP 65 |
| Suitable for front panel width | 520 mm |
| Suitable for front panel height | 400 mm |
| Note | changing of mounting arm connection by rotating the housing possible, 3 mm double-barrel locking insert, interchangeable with locking inserts 41 mm, plastic handles and knob handles, type C, rear panel hinged on the longest housing side |
| Base material | Aluminium |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
