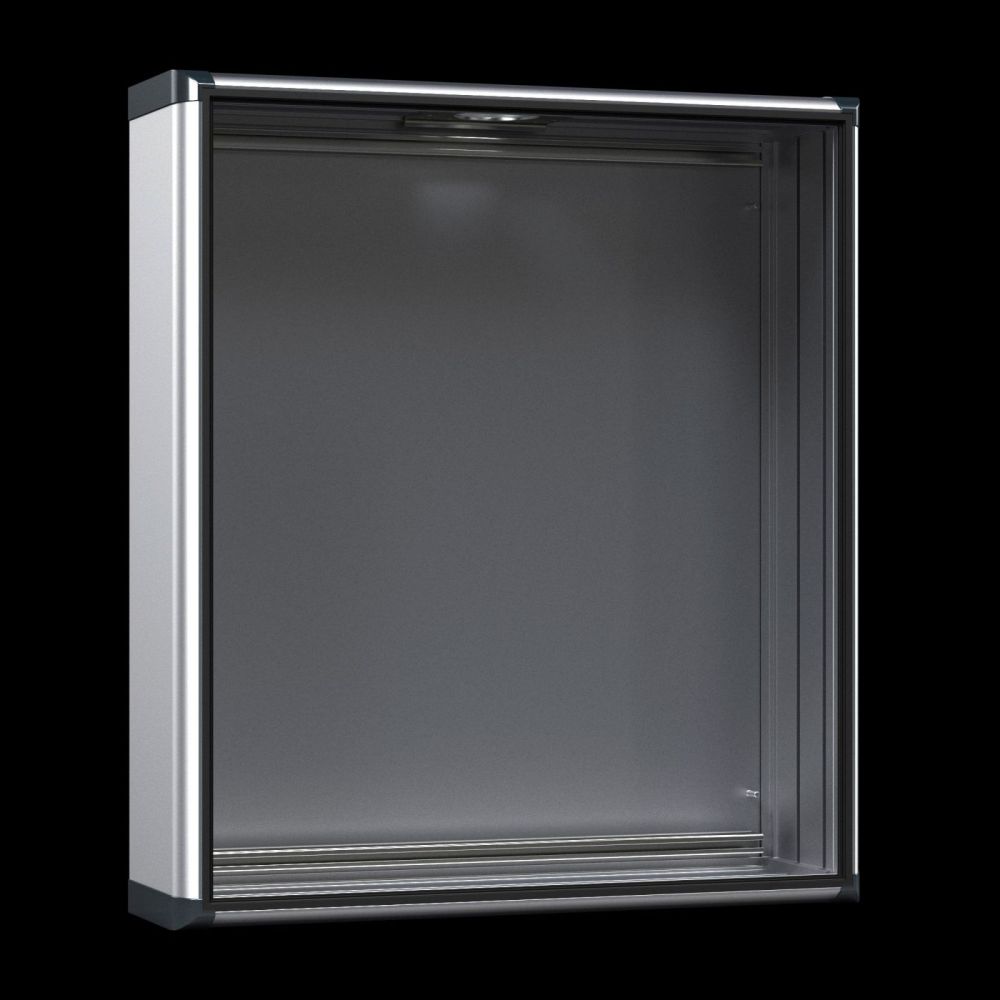

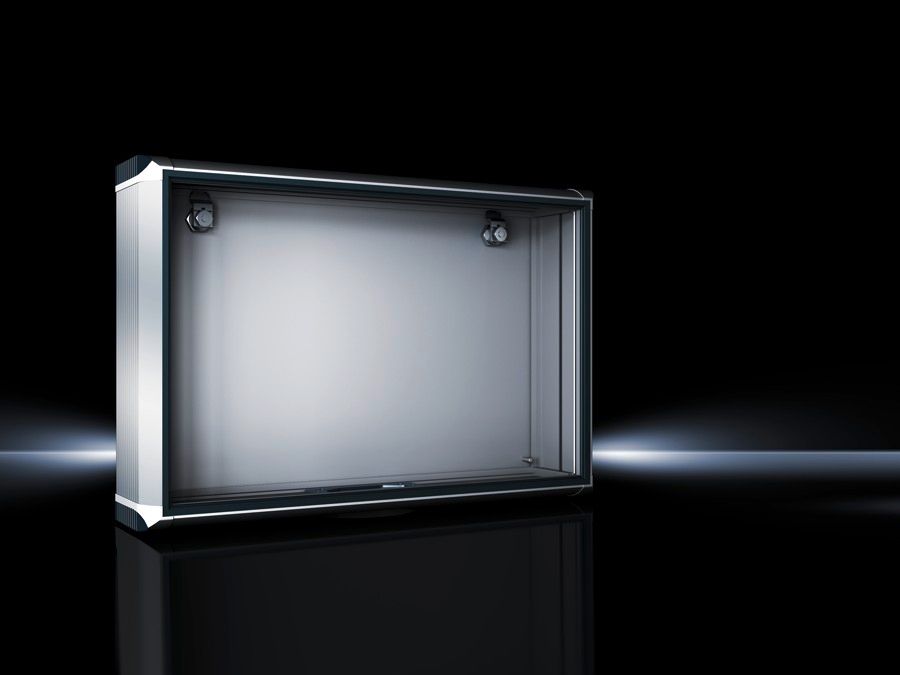

Rittal 6380020 command panel housing Optipanel, front plate 430x343 mm, mounting

Your rating:
Average rating
product review for Rittal 6380020 command panel housing Optipanel, front plate 430x343 mm, mounting
( 4.5 / 5 ) 163 ratings
Rittal 6380020
This image may differ from the desired article.
Rittal 6380020Rittal 6380020Rittal 6380020Rittal 6380020Rittal 6380020Rittal 6380020
284,86 EUR
( 338,98 EUR incl. VAT )
≈ £238.43  |  ≈ $313.06
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 6380020 command panel housing Optipanel, front plate 430x343 mm, mounting
Datasheet:file_download Download
Lieske Part No.:595686
Mfg Part No: 6380020
UPC/EAN: 4028177429079
Weight:6.208 kg
Type:CP 6380020

Product information for Rittal 6380020:

Benefits: Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation.
Low weight coupled with high stability
Compatible with all Rittal stand and support arm systems
Material: Enclosure: Extruded aluminium section
Corner pieces: Die-cast zinc
Corner protectors: Plastic
Colour: Enclosure: Natural anodised.
Corner pieces: RAL 7035
Corner protectors: similar to RAL 7024
Protection category IP to IEC 60 529: IP 65

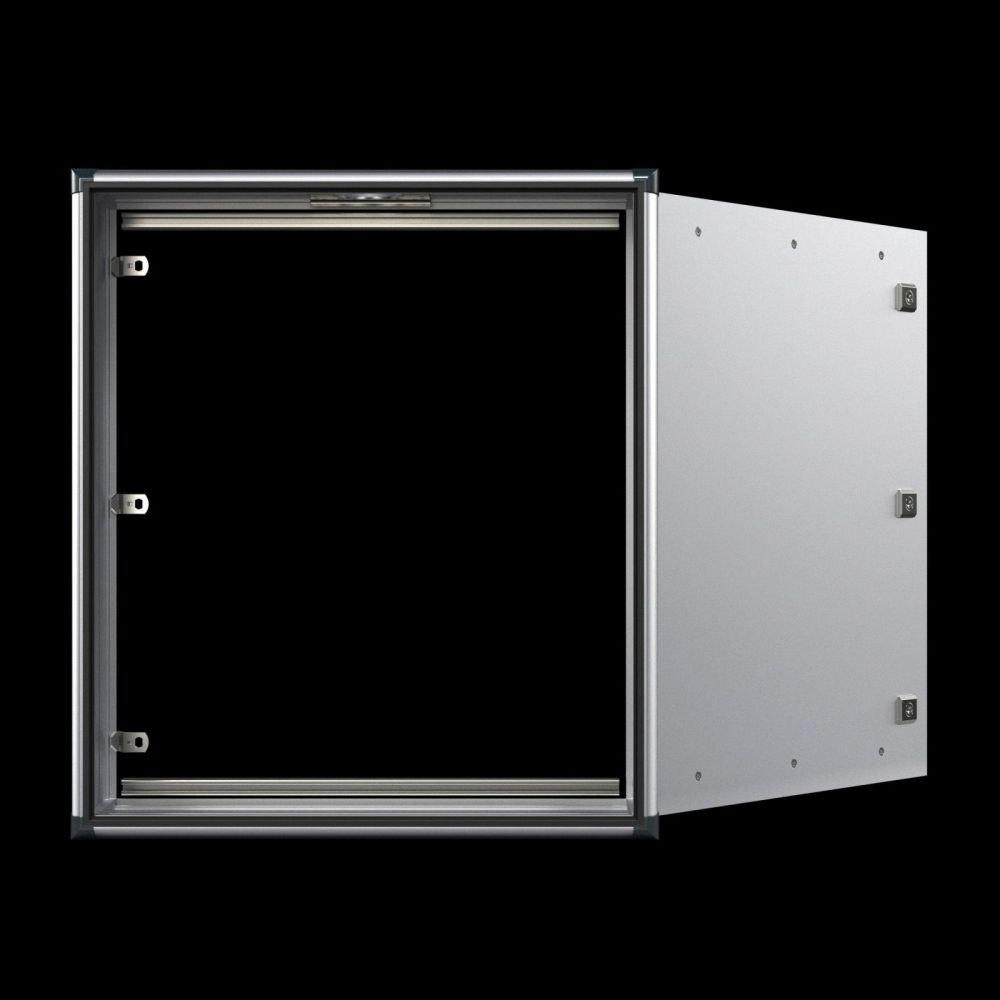

Supply includes: Enclosure with hinged rear panel
Seals
Note: The support arm connection may be swapped over by rotating the enclosure
3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C

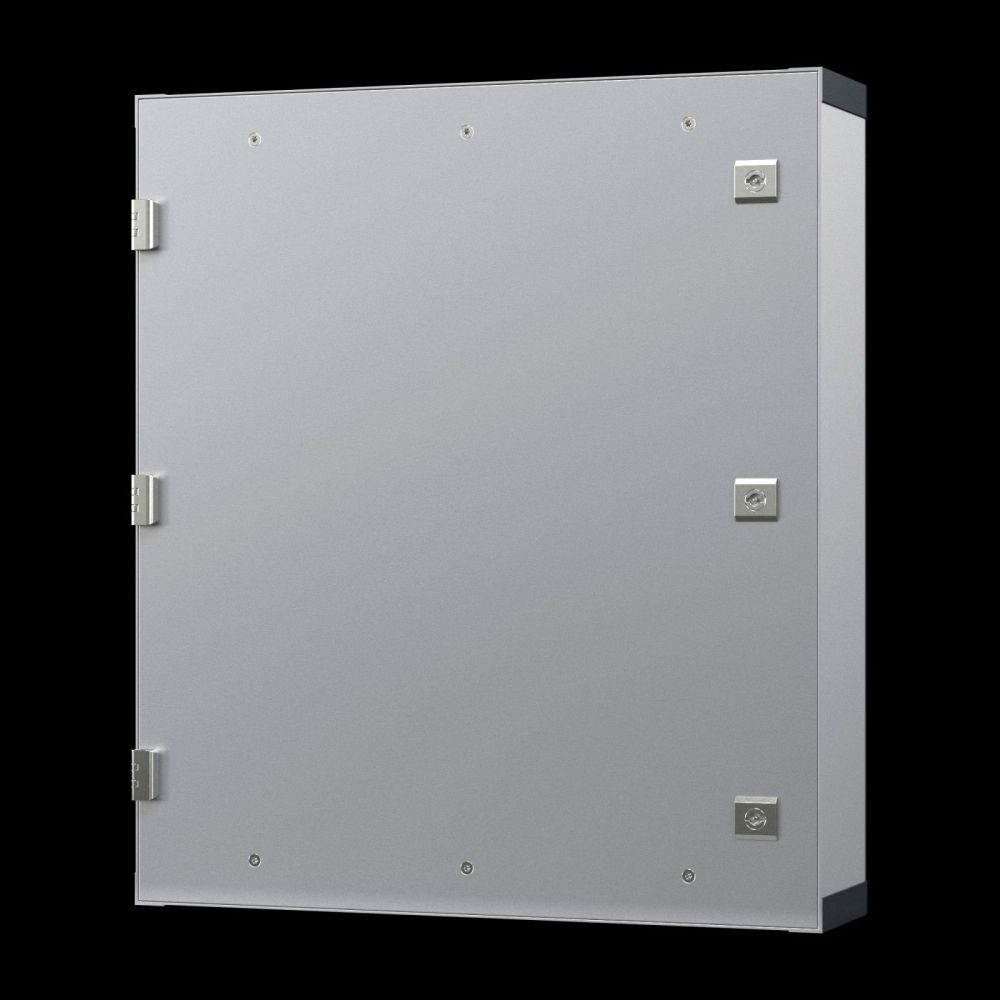

Hinging of the rear panel on the longest enclosure side
Packs of: 1 pc(s).
EAN: 4028177429079
Customs tariff number: 94032080
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504

Design: Support arm connection, rectangular 120 x 65 mm
to fit TFT monitor
For the configuration of subracks: To fit front panel width: 430 mm
Installation depth: 100 mm
To fit front panels: with width: 430 mm
with height: 343 mm
Lock version: Cam
Number of locks: 2
Lock insert: 3 mm double-bit
Weight/pack: 5.3 kg

General
Modelbracket connection square 120 x 65 mm
MaterialHousing: aluminium extruded profile, corner pieces: zinc die-cast, protective corners: plastic
Basic colournatural anodized
ColourHousing: natural anodized, end pieces: RAL 7035, protection corners: similar to RAL 7024
Scope of deliveryEnclosure with hinged rear panel, including seals
Width474 mm
Height387 mm
Depth110 mm
Built-in depth100 mm
Degree of protection IP according to IEC 60 529IP 65
Suitable for front panel width430 mm
Suitable for front panel height343 mm
Notechanging of mounting arm connection by rotating the housing possible, 3 mm double-barrel locking insert, interchangeable with locking inserts 41 mm, plastic handles and knob handles, type C, rear panel hinged on the longest housing side
Base materialAluminium
LockClosure type: latch, number of closures: 2, closure insert: 3 mm double barb


Product data sheet
