Rittal 6450070 TFT monitor VGA + DVI 15 inch with touch USB

Your rating:
Average rating
product review for Rittal 6450070 TFT monitor VGA + DVI 15 inch with touch USB
( 4.4 / 5 ) 11 ratings

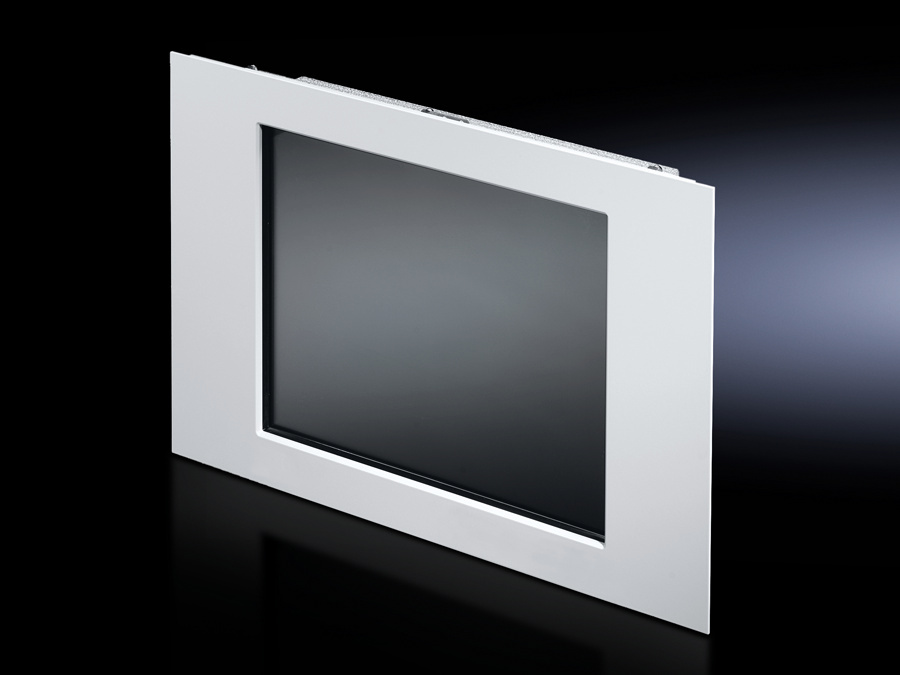

Rittal 6450070
This image may differ from the desired article.
Rittal 6450070Rittal 6450070
2.155,10 EUR 2.188,11 EUR
( 2.564,57 EUR incl. VAT )
≈ £1,803.82  |  ≈ $2,368.45
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 6450070 TFT monitor VGA + DVI 15 inch with touch USB
Datasheet:file_download Download
Lieske Part No.:1262316
Mfg Part No: 6450070
UPC/EAN: 4028177510333
Weight:2.1 kg
Type:SM 6450070

Product information for Rittal 6450070:

The Rittal SM 6450070 is a TFT monitor in built-in version, specifically designed for use in command panel housings and surface mounting. With a diagonal of 15 inches and a resolution of 1024 x 768 pixels, it offers a clear display for industrial applications. The version as a touchscreen with resistive technology enables precise operation, while the USB interface ensures the connection to the control computer. The dimensions are 430 mm width and 343 mm height, allowing compact integration into existing systems.

Applications

The monitor is designed for use in industrial environments where a robust and reliable operating interface is required. It is particularly suitable for machine controls, process visualizations, and operator panels in production facilities. The built-in depth of 45 mm reduces space requirements within the enclosure and simplifies installation. The operating temperature range of 0 °C to 50 °C and the storage temperature range of -40 °C to 85 °C ensure functionality under various environmental conditions.

Functions and equipment in detail

The monitor features a brightness of 400 cd/m² and a contrast ratio of 700:1, ensuring good readability even in daylight. The viewing angles left/right are 80 °, enabling flexible placement in the work area. The on-screen display function is controlled via operating buttons on the rear, facilitating operation during use. The rated power is 15 W under DC operation, ensuring efficient power supply. The operating time exceeds 50,000 hours, highlighting the high service life and reliability of the device.

Technology explained simply

The resistive touch technology works by pressure applied to the surface, detecting the position. This technology is particularly robust and suitable for environments with high mechanical loads. The interfaces VGA (D-SUB HD 15-pin) and DVI-D enable connection to various graphics cards and control devices. The controller resolution supports VGA, SVGA, and XGA, ensuring compatibility with different systems.

Compatibility and accessories

The monitor is equipped with VGA and DVI-D, enabling broad compatibility with industrial and PC-based control systems. As accessories, a mounting kit for Optipanel with M5 thread is offered, facilitating installation in specific enclosures. The delivery includes a gasket, hex nuts for surface mounting, a VGA cable, M5 threaded bolts for rear mounting, and for touch variants, an integrated connection cable and a driver CD-ROM.

Mounting and installation

The built-in version is intended for direct mounting in surfaces or command panel housings. The integrated front frame made of aluminium, powder-coated in RAL 7035, ensures a robust and aesthetically pleasing appearance. The hex nuts and M5 threaded bolts facilitate fastening. The very low built-in depth of 45 mm reduces installation effort and space requirements within the enclosure. Additional ventilation is not required, as the device is designed for use in enclosed enclosures.

Advantages in operation

The monitor offers a high-quality industrial version with reduced installation effort thanks to the integrated front frame. The long operating time of over 50,000 hours and the robust construction ensure high availability. The touch function with USB interface enables intuitive operation, while the VGA and DVI-D connections ensure flexible connection to various systems. The powder-coated surface in RAL 7035 provides a protective and uniform finish, proven in industrial environments.

General
ModelTouch, resistive, USB
MaterialFront frame: aluminium
Surface protectionPowder-coated
ColourRAL 7035
Scope of deliverySealing, hexagon nuts (for mounting on surfaces), VGA cable, M5 threaded bolts, for rear mounting, touch variants additionally with integrated cable and driver CD-ROM
Width430 mm
Height343 mm
InterfacesVGA (D-SUB HD 15-pin), DVI-D
Operating temperature range0 °C...50 °C
Storage temperature range-40 °C...85 °C
Display brightness400 cd/m²
Contrast ratio700 : 1
Diagonal15"
Operating time> 50.000 h
On Screen Display (OSD)Control buttons at rear
Reading angle left/right80 °
Display resolution1024 x 768 pixels
Note on part numberWith VGA + DVI
Rated power PelAt DC: 15 W
H-Sync. (min./max.)31.4 ‐ 80 kHz
V-Sync. (min./max.)60 ‐ 75 Hz
Number of colours16,2
Controller resolutionVGA, SVGA, XGA


Product data sheet
Datasheet for Rittal 6450070, EAN: 4028177510333
