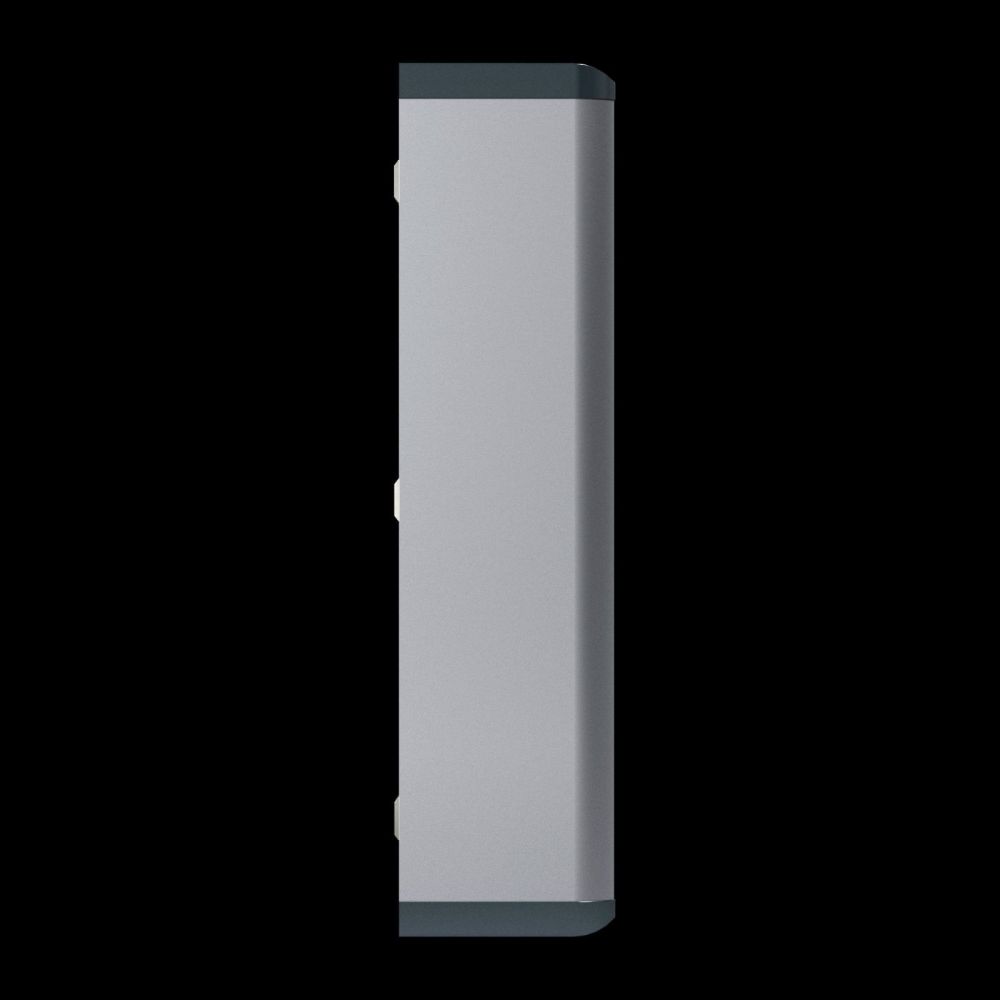

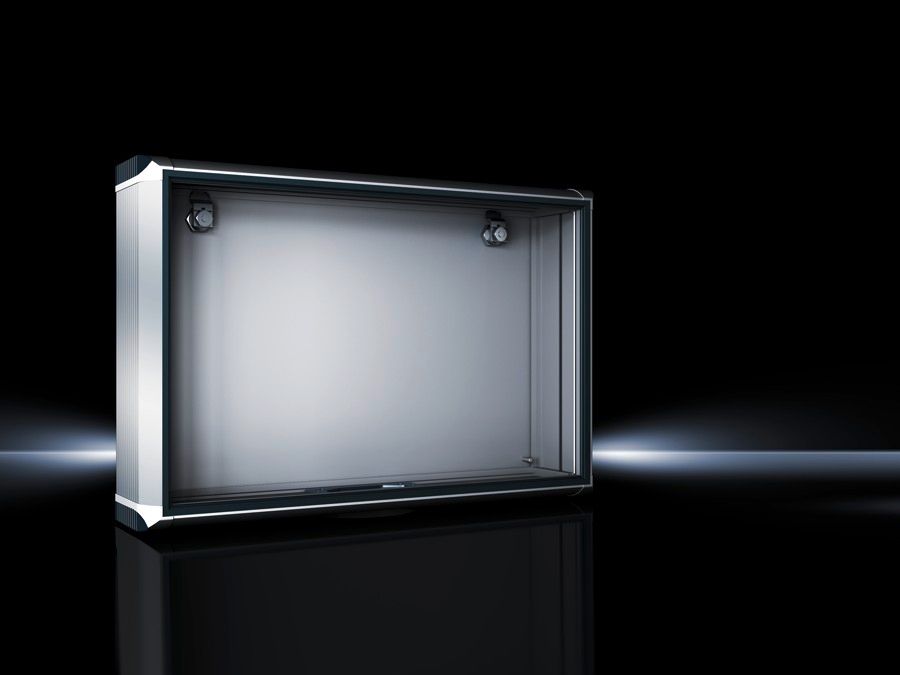

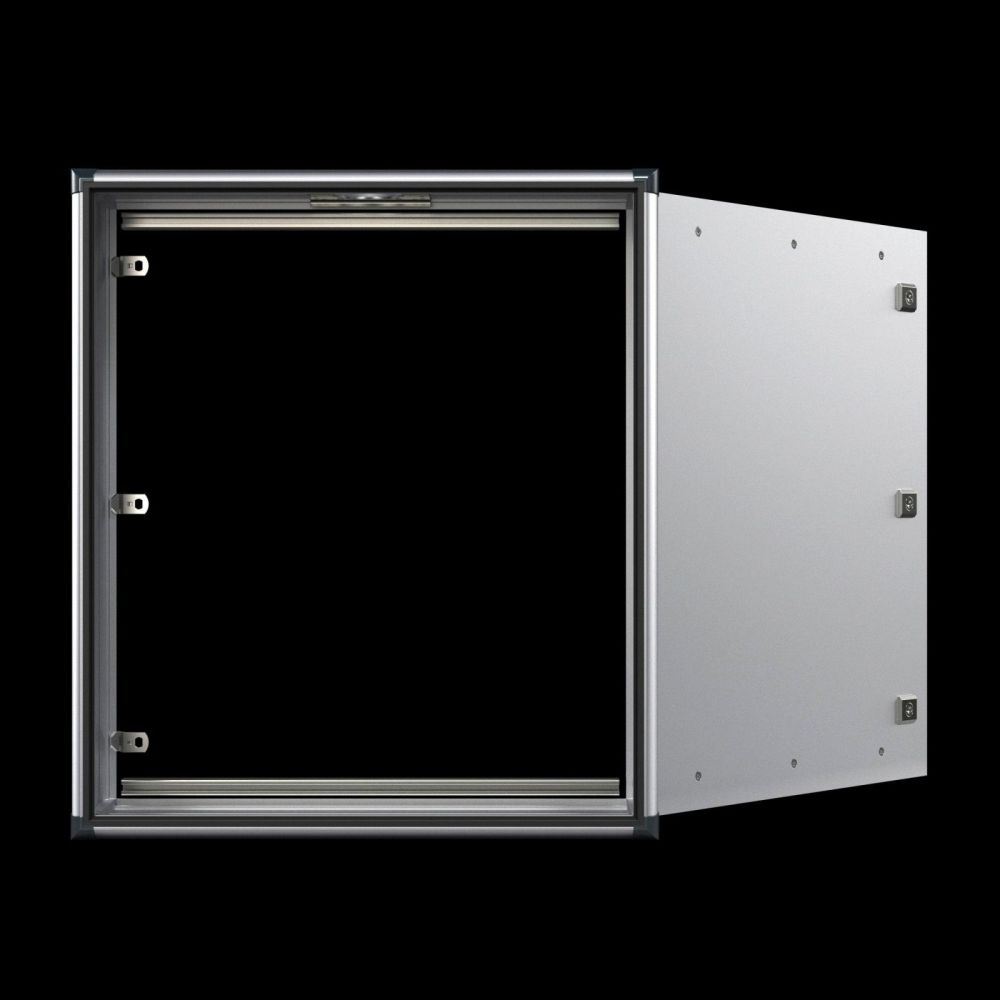

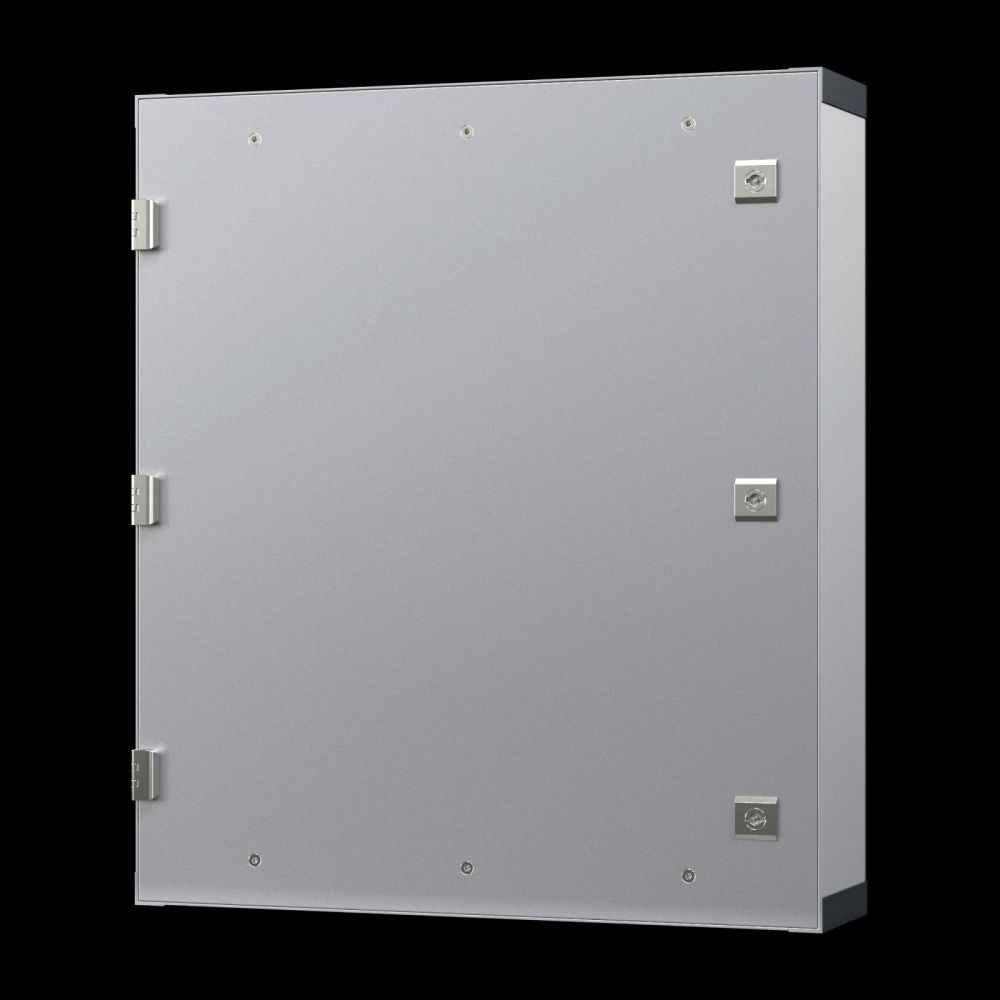

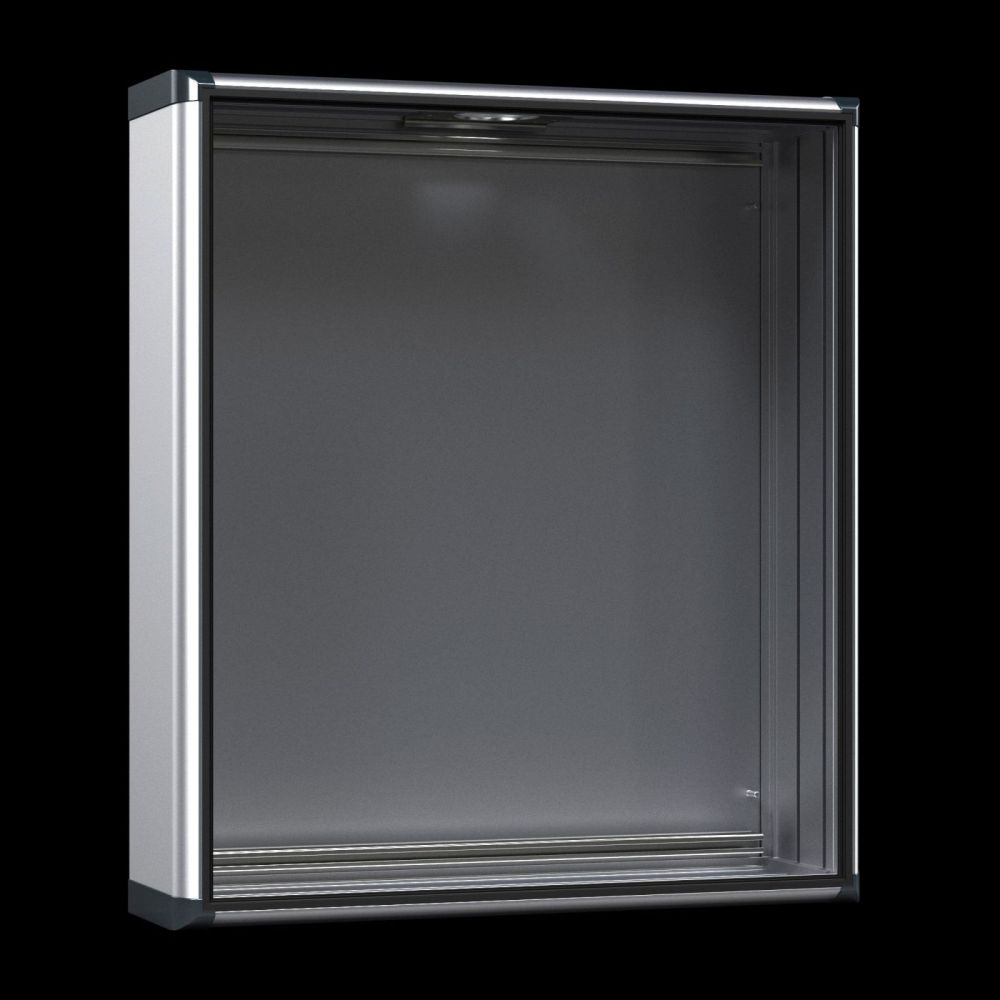

Rittal 6380040 command panel housing Optipanel, front plate 482.6x354.8 mm
|
288,65 EUR 292,45 EUR |
|
|
( 343,49 EUR incl. VAT ) ≈ £241.60 | ≈ $317.23 plus delivery charges: 100,00 € |
|
| Made to order · Expected to be available from 24.11.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 142415 |
| Mfg Part No: | 6380040 |
| UPC/EAN: | 4028177429093 |
| Weight: | 6.388 kg |
| Type: | CP 6380040 |
Product information for Rittal 6380040:
| General | |
| Model | bracket connection square 120 x 65 mm |
| Material | Housing: aluminium extruded profile, corner pieces: zinc die-cast, protective corners: plastic |
| Basic colour | natural anodized |
| Colour | Housing: natural anodized, end pieces: RAL 7035, protection corners: similar to RAL 7024 |
| Scope of delivery | Enclosure with hinged rear panel, including seals |
| Width | 526,6 mm |
| Height | 398,8 mm |
| Depth | 110 mm |
| Built-in depth | 100 mm |
| Degree of protection IP according to IEC 60 529 | IP 65 |
| Suitable for front panel width | 482,6 mm |
| Suitable for front panel height | 354,8 mm |
| Note | changing of mounting arm connection by rotating the housing possible, 3 mm double-barrel locking insert, interchangeable with locking inserts 41 mm, plastic handles and knob handles, type C, rear panel hinged on the longest housing side |
| Base material | Aluminium |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
Questions & answers
What is the delivery time of Rittal 6380040 command panel housing Optipanel, front plate 482.6x354.8 mm?
The article Rittal 6380040 command panel housing Optipanel, front plate 482.6x354.8 mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6380040 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 6380040 command panel housing Optipanel, front plate 482.6x354.8 mm always at the best possible price. We can give you a discount of 2% on Rittal 6380040 command panel housing Optipanel, front plate 482.6x354.8 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
