Rittal 8618821 VX EMC base plate, W: 800 mm

Your rating:
Average rating
product review for Rittal 8618821 VX EMC base plate, W: 800 mm
( 4.5 / 5 ) 37 ratings
Rittal 8618821
This image may differ from the desired article.
Rittal 8618821Rittal 8618821
92,75 EUR
( 110,37 EUR incl. VAT )
≈ £77.63  |  ≈ $101.93
plus delivery charges: 55,00 €
in stockinfo_outline
In Stock: >50 pieces
1x Rittal 8618821 VX EMC base plate, W: 800 mm
Datasheet:file_download Download
Lieske Part No.:1440885
Mfg Part No: 8618821
UPC/EAN: 4028177929890
Weight:2.72 kg
Type:VX 8618.821

Product information for Rittal 8618821:

The Rittal VX 8618.821 is an EMV base plate for enclosures of type VX with a width of 800 mm. It is designed for secure and low-impedance grounding of shielded cables in the enclosure base area, where the shielding is directly connected to the housing to minimize electromagnetic interference. The product is specifically designed for use in industrial applications where reliable EMV protection is required.

Applications
This base plate is intended for enclosures with a depth of 400, 500, 600, or 800 mm and is used in conjunction with standard base plates. It is particularly suitable for installations where shielded cables with a maximum diameter of 20 mm are installed, for example in automation technology, process control, or power supply technology. The combination of cable fixation and EMV grounding enables an efficient and maintenance-friendly installation.

Functions and Equipment in Detail
The EMV base plate is made of sheet steel with a zinc-coated surface, ensuring high corrosion resistance and mechanical strength. The delivery includes a base plate with hammerhead punching, a sliding base plate, and two EMV seals. The hammerhead punching allows secure fastening in the enclosure, while the sliding base plate enables flexible adaptation to different cable arrangements. The seals ensure a tight connection between cable shield and plate, guaranteeing a low-impedance connection.

Technology Explained Simply
The EMV grounding is achieved through a combined solution of cable fixation and metallic connection. The seals press the cable shield directly against the base plate, creating an electrical contact that minimizes interference in the frequency range. The maximum cable diameter limit of 20 mm ensures reliable grounding without mechanical damage. The zinc-coated surface protects the plate from environmental influences such as moisture or minor corrosion.

Compatibility and Accessories
The base plate is exclusively designed for enclosures of type VX with a width of 800 mm. It is suitable for all standard depths from 400 to 800 mm, but only in combination with the manufacturer's standard base plates. Use with other housing types or widths is not intended. The EMV seals are specifically designed for connection with shielded cables and cannot be used for other applications.

Installation and Mounting
Installation is carried out by inserting the base plate into the enclosure base, where it is fastened at the designated mounting points using the hammerhead punching. The sliding base plate can be positioned according to the cable arrangement to enable optimal cable routing. The EMV seals are placed around the cables and inserted into the designated openings, creating a secure and conductive connection. Installation requires no additional tools or components.

Operational Advantages
The low-impedance connection between cable shield and housing reduces the risk of electromagnetic interference, which could impair the function of electronic devices. The robust construction from zinc-coated sheet steel ensures long service life under industrial conditions. The integrated cable fixation reduces the risk of cable displacement and simplifies maintenance. Use in combination with standard base plates ensures uniform and standardized installation.

Note: The use of this base plate does not meet standard IP protection ratings, as the EMV seals do not provide complete weather or dust tightness. For applications requiring an IP protection rating, alternative solutions are necessary.

General
Materialsteel sheet
Surface protectionZinc-plated

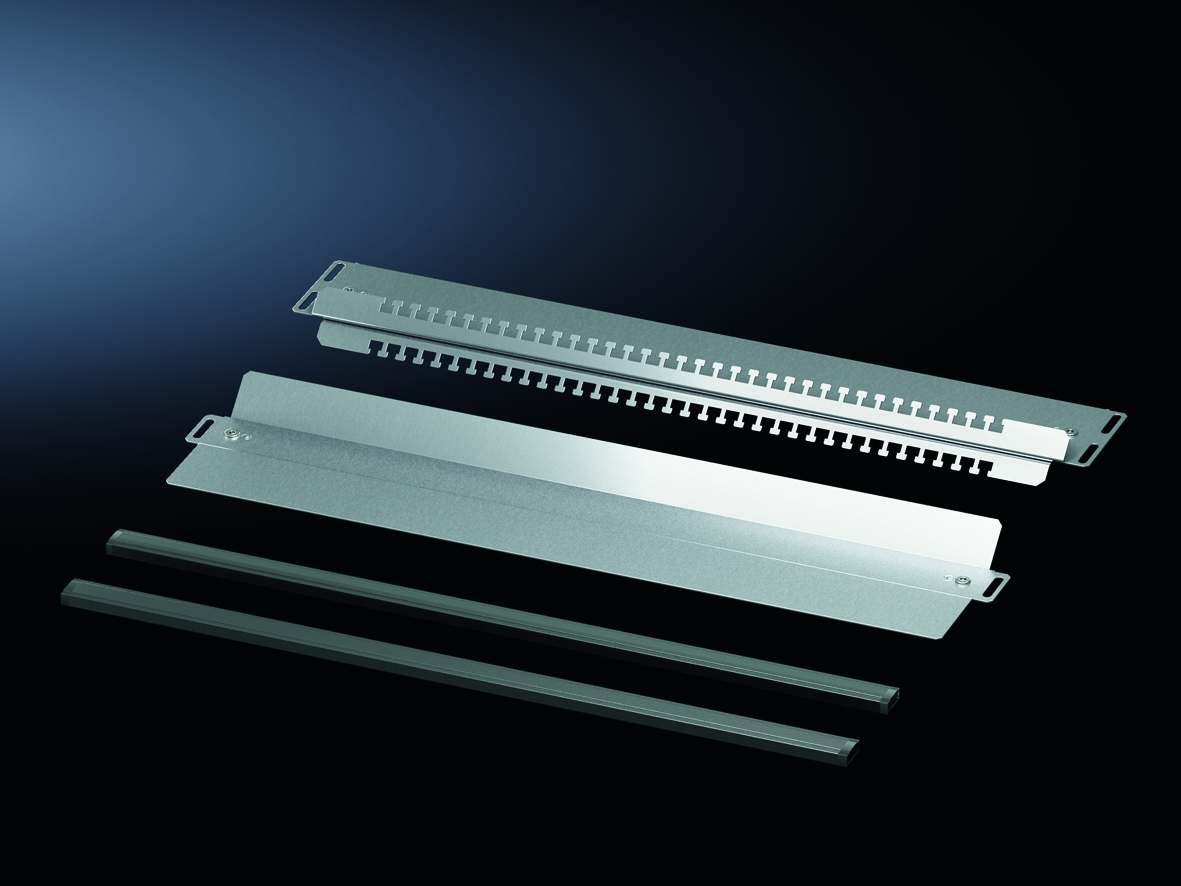

Scope of delivery1 base plate with hammerhead punching, 1 sliding base plate, 2 EMI seals
Suitable forEnclosure type: VX, width: = 800 mm
NoteNo standard IP protection rating possible


Product data sheet
Datasheet for Rittal 8618821, EAN: 4028177929890
