Rittal 1466000 Plastic enclosure AX W x H x D 600x600x200 mm IP66

Your rating:
Average rating
product review for Rittal 1466000 Plastic enclosure AX W x H x D 600x600x200 mm IP66
( 5 / 5 ) 2 ratings

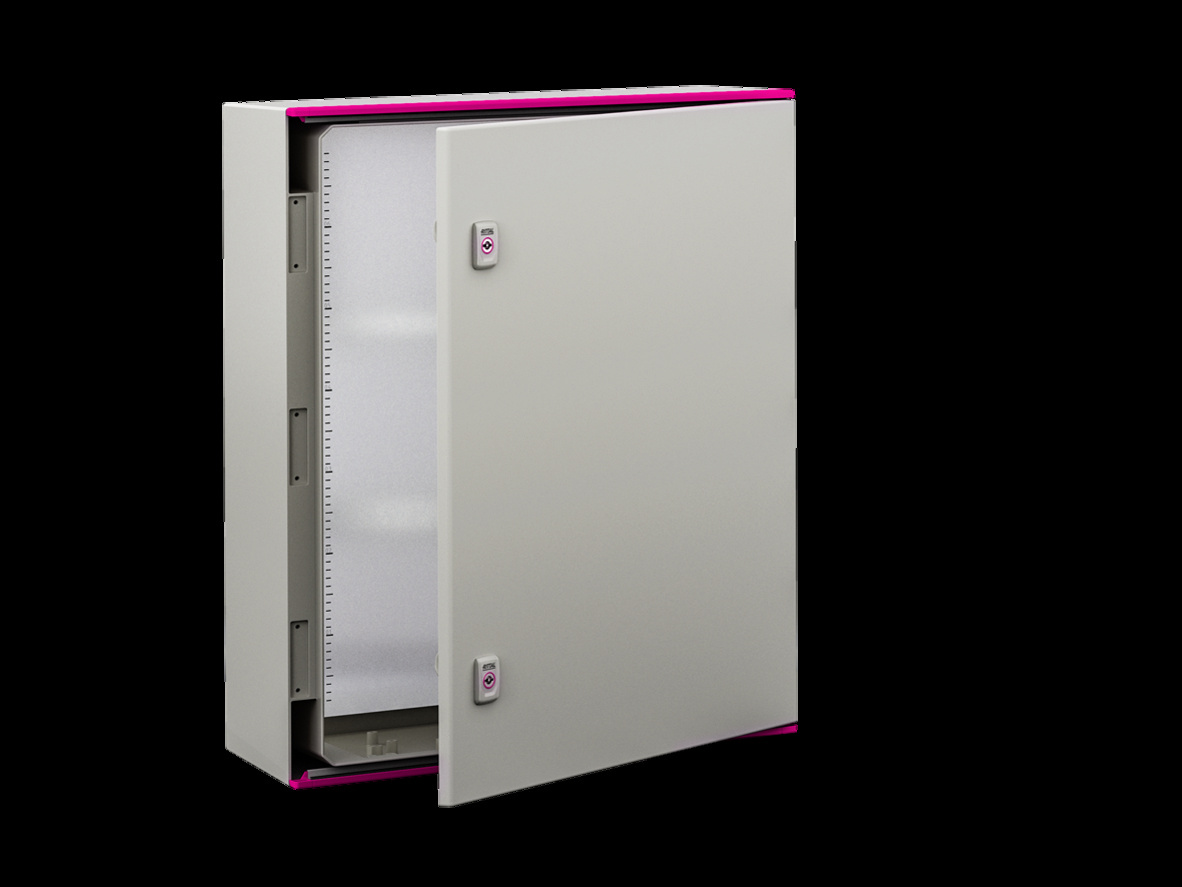

Rittal 1466000
This image may differ from the desired article.
Rittal 1466000Rittal 1466000Rittal 1466000Rittal 1466000Rittal 1466000Rittal 1466000Rittal 1466000
259,56 EUR 261,51 EUR
( 308,88 EUR incl. VAT )
≈ £217.25  |  ≈ $285.26
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 1466000 Plastic enclosure AX W x H x D 600x600x200 mm IP66
Datasheet:file_download Download
Lieske Part No.:1910557
Mfg Part No: 1466000
UPC/EAN: 4028177006829
Weight:17.5 kg
Type:AX 1466000

Product information for Rittal 1466000:

The Rittal AX 1466000 is a plastic enclosure from the AX series, designed for use in demanding environments. The enclosure has dimensions of 600 mm width, 600 mm height, and 200 mm depth and is made of glass-fibre-reinforced, unsaturated polyester (GFK). The surface is not post-treated and is pigmented, with the colour corresponding to RAL 7035. The door is fitted with a continuously foamed PU seal and features a 130° stainless steel hinge mechanism, which can be reversed to the left. The mounting plate is made of galvanised steel sheet with a material thickness of 3 mm and dimensions of 505 mm × 525 mm. The enclosure is fully enclosed and features a 3 mm double-lip lock, as well as a double seal at the top and bottom edges of the door, which functions as an integrated rain shield.

Applications
This enclosure is suitable for use in ambient temperature ranges from -30 °C to +75 °C. The specified temperatures may be limited by installed components. Due to its IP 66 protection rating according to EN 60 529, the enclosure is dust-tight and waterproof, even against heavy splashing water, making it suitable for outdoor use. The NEMA protection rating includes categories 1, 3R, 3RX, 4, 4X, and 12, demonstrating high resistance to dust, water, splashing water, and dirt. The Type rating according to UL 50E corresponds to categories Type 1, 3R, 3RX, 4, 4X, and 12. Protection class II (at 1000 V AC) ensures a double-insulated design without additional earthing. The IK code IK09 indicates high mechanical strength against mechanical impacts.

Functions and Equipment in Detail
The enclosure is equipped with numerous mounting domes, enabling individual internal installation on a 25 mm grid. Screws for internal installation are required. Universal brackets allow mounting of components such as system chassis or rails. The door features an integrated stop rail at the bottom, ensuring secure positioning when open. A QR code is printed on the body, mounting plate, door, and type plate to enable unique identification and traceability of individual parts.

Technology Explained Simply
The GFK material offers high mechanical strength, weather resistance, and is self-extinguishing according to UL 94-V0. It is halogen-free, improving fire behaviour characteristics. The IP 66 protection rating means the enclosure is protected against dust and heavy splashing water, making it suitable for outdoor use. The NEMA protection ratings 3R, 3RX, 4, 4X, and 12 cover various environmental conditions, including rain, splashing water, dust, and dirt. Compliance with the F1 Outdoor rating according to UL 746C confirms suitability for outdoor use under harsh environmental conditions.

Compatibility and Accessories
Various accessories are compatible with this enclosure, including lock inserts made of zinc die-cast, mounting brackets, mounting plates in various sizes, TS mounting rails, SZ internal doors, circuit diagram pockets, AX mini comfort handles, AS multitool, system lights LED 400, VX system chassis, and other mounting components. These enable flexible adaptation to specific requirements for internal installation.

Mounting and Installation
Installation is carried out using the designated mounting domes in the enclosure. The mounting plate is equipped with keyhole slots for earthing and dimension markings and is secured with Limbach nuts. The door hinge direction is standard right-hand, but can be changed to left-hand. The integrated rain shield at the top and bottom edges of the door provides additional protection against precipitation.

Operational Advantages
The enclosure offers high mechanical and chemical resistance, is resistant to UV radiation and moisture, and is suitable for outdoor use. The integrated mounting domes and 25 mm grid enable flexible and modular internal equipment. The IP 66 and NEMA protection ratings ensure reliable protection of installed components. The use of halogen-free material and the UL 94-V0 standard increase safety in fire hazards. The integrated rain shield and double seal provide effective protection against precipitation and moisture.

General
Modelwithout viewing window
MaterialHousing and door: glass-fibre-reinforced unsaturated polyester GFK, door: continuously foamed PU seal, mounting plate: sheet steel, flammability behaviour according to UL 94-V0, halogen-free
Surface protectionHousing and door: not post-treated, plastic pigmented, mounting plate: zinc-plated
ColourSimilar to RAL 7035
Scope of deliveryHousing with hinged door, fully enclosed, 3 mm double latch, door hinge on right, reversible to left, mounting plate, double sealing at top and bottom door edges as integrated rain protection strip
NoteWhen used under long-term exposure to UV radiation (sunlight) and rain, we recommend coating the surface with a PUR lacquer to avoid optical surface impairment. Price and delivery time on request.
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Protection classII (at 1000 V AC)
IK codeIK09
Width600 mm
Height600 mm
Depth200 mm
Mounting plate material thickness3 mm
Mounting plate dimensions (W x H)505 mm x 525 mm
Door opening angle130°
Number of locks2
Base materialPlastic
StandardsComplies with F1 Outdoor Rating per UL 746C
Mounting noteFor mounting components inside the enclosure, screws for internal installation are required. Using the universal angle, components can be mounted on a 25 mm grid, e.g. system chassis.


Product data sheet
Datasheet for Rittal 1466000, EAN: 4028177006829
