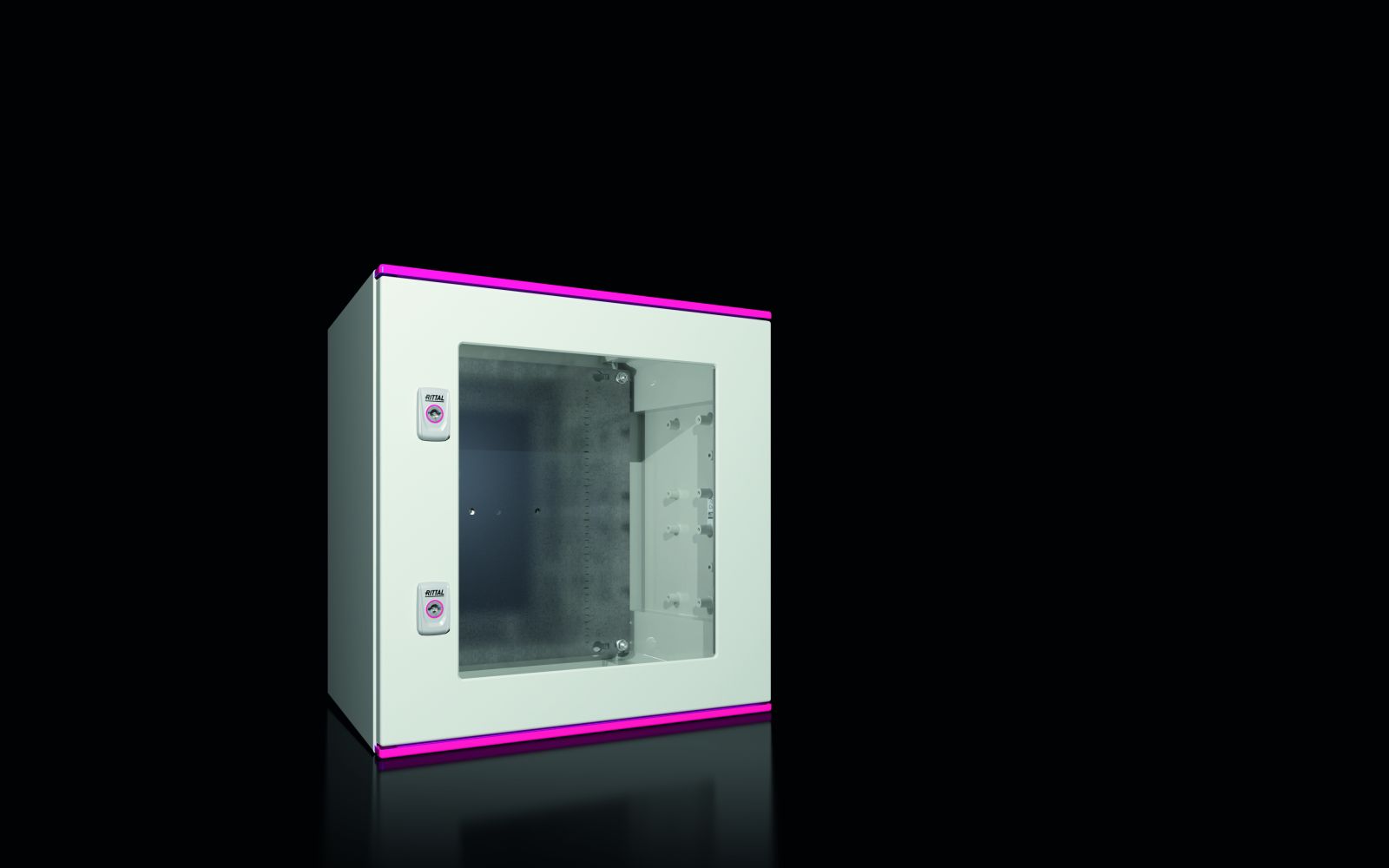

Rittal 1454000 AX plastic enclosure 500x500x300 mm with S.

Your rating:
Average rating
product review for Rittal 1454000 AX plastic enclosure 500x500x300 mm with S.
( 4.8 / 5 ) 5 ratings
Rittal 1454000
This image may differ from the desired article.
Rittal 1454000Rittal 1454000Rittal 1454000Rittal 1454000Rittal 1454000Rittal 1454000Rittal 1454000
-10% 392,15 EUR 433,47 EUR
( 466,66 EUR incl. VAT )
≈ £328.23  |  ≈ $430.97
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 1454000 AX plastic enclosure 500x500x300 mm with S.
Datasheet:file_download Download
Lieske Part No.:1714534
Mfg Part No: 1454000
UPC/EAN: 4028177006768
Weight:15.08 kg
Type:AX 1454000

Product information for Rittal 1454000:

The Rittal AX 1454000 is a plastic enclosure with a viewing window, designed for use in demanding environments. The enclosure is made of a single piece of glass-fibre-reinforced, unsaturated polyester (GFK), providing high mechanical stability and weather resistance. The surface is not post-treated and is integrally coloured, matching RAL 7035. The door is fitted with a continuously foamed PU seal, ensuring a tight seal. An integrated rain protection system at the top and bottom door edges protects against precipitation. The polycarbonate viewing window allows visual inspection of installed components without opening the door. The enclosure is fully enclosed and features a 3 mm double-lip lock. The door is standard right-hinged, but can be converted to left-hinged. The door opening angle is 130°.

Applications
This enclosure is suitable for use in ambient temperature ranges from -30 °C to +75 °C. The specified temperatures may be limited by installed devices. It is designed for indoor and outdoor applications, particularly in areas with increased mechanical stress or weather influences. The protection rating IP 56 according to EN 60 529 ensures protection against dust and splashing water. The protection ratings NEMA 1, 3R, 3RX, 4, 4X and 12, as well as the type rating according to UL 50E (Type 1, 3R, 3RX, 4, 4X, 12), confirm suitability for various environmental conditions. Protection class II (at 1000 V AC) and IK code IK09 indicate high mechanical strength. Compliance with the F1 Outdoor Rating according to UL 746C highlights suitability for outdoor applications.

Functions and Equipment in Detail
The enclosure features numerous mounting domes, enabling individual internal installation on a 25 mm grid. The steel sheet mounting plate, with a material thickness of 3 mm, is galvanised and provides a stable mounting surface. Its dimensions are 405 mm (W) × 425 mm (H). The mounting plate includes a grounding keyhole and dimension markings and is secured with Limbach nuts. A printed QR code on the enclosure, door, mounting plate, and nameplate enables unique identification and easy access to product information and documentation.

Technology Explained Simply
The GFK material (glass-fibre-reinforced, unsaturated polyester) offers high strength and weather resistance. The UL 94-V0 flammability classification indicates that the material is self-extinguishing. Halogen-free composition reduces the formation of toxic smoke gases when heated. The IP 56 protection rating means the enclosure is protected against dust and splashing water, making it suitable for outdoor use. The IK09 code indicates high mechanical strength against impact. The integrated rain protection strip at the door edges prevents precipitation from entering.

Compatibility and Accessories
Internal mounting screws are required to secure components within the enclosure. Universal brackets allow components to be mounted on a 25 mm grid, for example, system chassis. Compatible accessories include lock inserts, mounting brackets, mounting plates, AX Mini comfort handles, AS Multitool AX/VX 4052000, system lights LED 400, VX system chassis, AX mast mounting brackets, and AX door latches. These elements enable flexible adaptation to specific requirements.

Mounting and Installation
Mounting is done via the designated mounting domes in the enclosure. The mounting plate is secured with Limbach nuts. The door hinge direction is standard right, but can be changed to left. The door opens up to 130°. The integrated door bottom guide facilitates opening and closing. Mounting is done on a 25 mm grid, allowing flexible arrangement of components.

Operational Advantages
The enclosure offers high mechanical stability and weather resistance. The integrated rain protection strip and double sealing at the door edges ensure reliable protection against precipitation. The polycarbonate viewing window allows visual inspection without opening the door. The mounting plate with grounding keyhole and dimension markings simplifies installation. Compliance with the F1 Outdoor Rating according to UL 746C confirms suitability for outdoor applications. QR codes on individual parts enable easy traceability and access to documentation.

Note: For long-term exposure to UV radiation (sunlight) and rain, it is recommended to paint the surface with a PUR lacquer to avoid visual impairments. Price and delivery time on request.

General
Modelwith viewing window
MaterialCabinet and door: glass-fibre reinforced unsaturated polyester GFK, door: continuously foamed PU seal, mounting plate: sheet steel, viewing window: polycarbonate, flammability according to UL 94-V0, halogen-free
Surface protectionHousing and door: not post-treated, plastic pigmented, mounting plate: zinc-plated
ColourSimilar to RAL 7035
Scope of deliveryEnclosure with hinged door with viewing window, fully enclosed, 3 mm double-barrel lock, door hinge on right, reversible to left, mounting plate, double sealing at top and bottom of door as integrated rain protection strip
NoteWhen used under long-term exposure to UV radiation (sunlight) and rain, we recommend coating the surface with a PUR lacquer to avoid optical surface impairment. Price and delivery time on request.
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Degree of protection IP according to EN 60 529IP 56
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Protection classII (at 1000 V AC)
IK codeIK09
Width500 mm
Height500 mm
Depth300 mm
Mounting plate material thickness3 mm
Mounting plate dimensions (W x H)405 mm x 425 mm
Door opening angle130°
Number of locks2
Base materialPlastic
StandardsComplies with F1 Outdoor Rating per UL 746C
Mounting noteFor mounting components inside the enclosure, screws for internal installation are required. Using the universal angle, components can be mounted on a 25 mm grid, e.g. system chassis.
With viewing windowJa


Product data sheet
Datasheet for Rittal 1454000, EAN: 4028177006768
