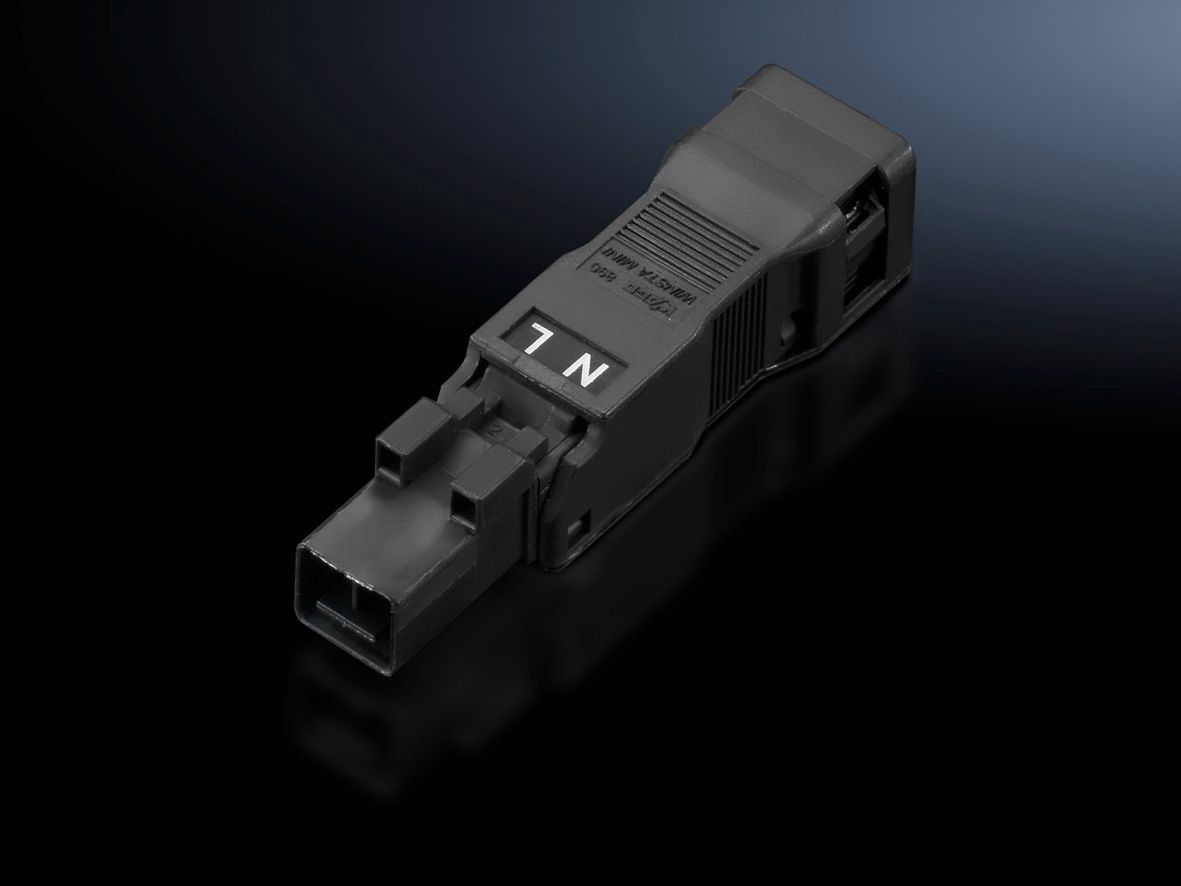

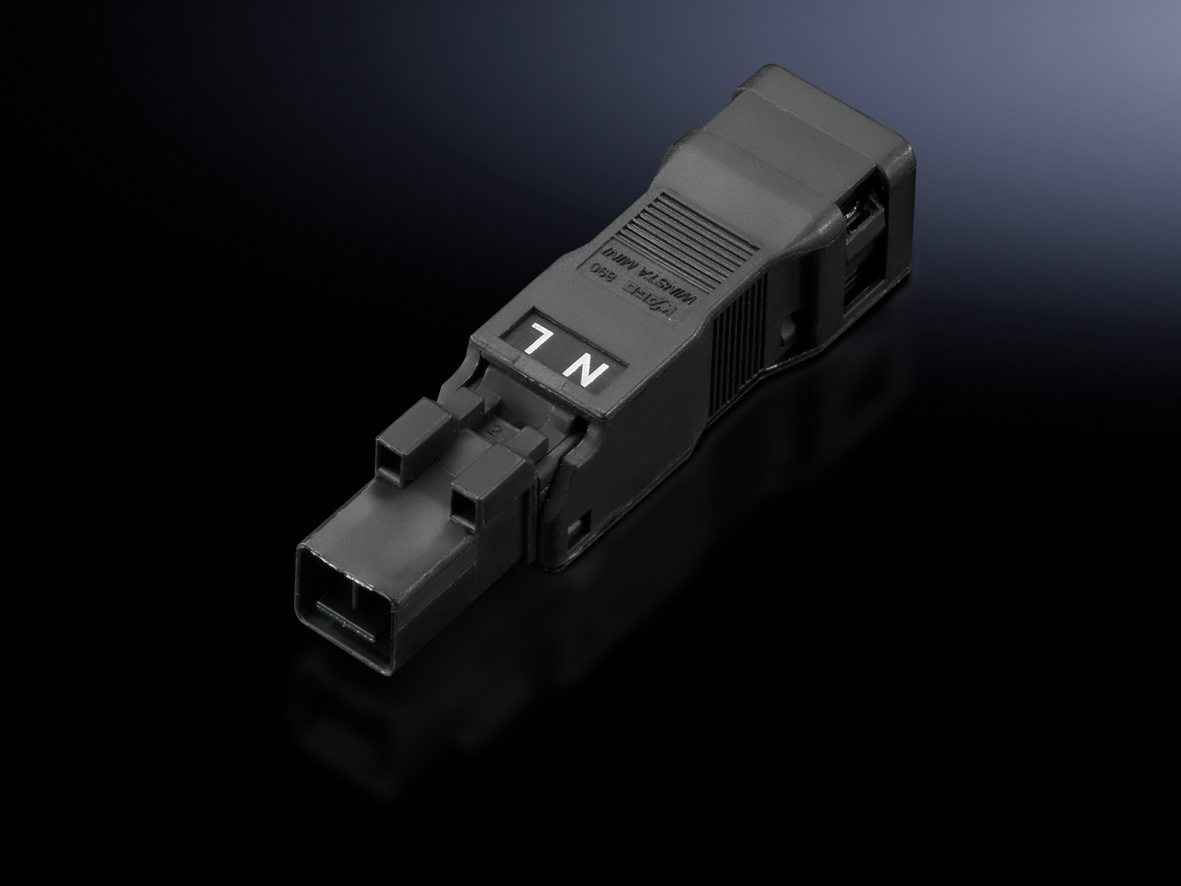

Rittal 2500650 Plug for through wiring, 2-pole, 100-240 V

Your rating:
Average rating
product review for Rittal 2500650 Plug for through wiring, 2-pole, 100-240 V
( 4 / 5 ) 1 ratings
Rittal 2500650
This image may differ from the desired article.
Rittal 2500650Rittal 2500650
-10% 31,28 EUR 34,89 EUR
( 37,22 EUR incl. VAT )
≈ £26.18  |  ≈ $34.38
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 2500650 Plug for through wiring, 2-pole, 100-240 V
Datasheet:file_download Download
Lieske Part No.:1907665
Mfg Part No: 2500650
UPC/EAN: 4028177918788
Weight:0.07 kg
Type:SZ 2500650

Product information for Rittal 2500650:

The Rittal SZ 2500650 is a 2-pole plug for individual termination of connection cables, particularly for through-wiring in enclosures and electrical systems. It serves as connection accessory for in-house termination, where cables are directly wired within the device or installation. The design is specifically intended for use in industrial and technical installations, where a secure and reliable connection is required.

Applications

The plug is primarily used in industrial electrical engineering, for example in wiring system lights such as LED lighting systems, or in other devices requiring through-wiring. It enables direct cable connection without additional connection components, simplifying assembly and structuring the wiring. It is used in enclosures, controls, and other electrical units where a firm and permanent connection is necessary.

Functions and Equipment in Detail

The SZ 2500650 is designed as a plug, 2-pole and allows connection of two conductors within a single component. The rated operating voltage is 100 V to 240 V, making it suitable for use in standard AC power networks. The nominal cross-section is 1.5 mm², indicating the maximum cable size that can be safely connected. Connection options include single-strand round conductors with cross-sections from 0.25 to 1.5 mm² (equivalent to AWG 16 to AWG 22) and multi-strand round conductors from 0.25 to 1 mm² (AWG 18 to AWG 22). These specifications ensure flexible use with various cable types.

Technology Explained Simply

The plug’s construction is designed for a secure and mechanically stable connection. Dimensions are 15.6 mm width, 13.2 mm height, and 61.6 mm depth, enabling compact integration into enclosures and electrical assemblies. Wiring is done by directly inserting the cables into the connection openings, with mechanical stability ensured by the design and material selection. The use of round conductors within the specified cross-section range ensures reliable electrical conduction without overheating or contact loss.

Compatibility and Accessories

The plug is specifically designed for in-house termination, where cables are directly wired within the device. Compatible accessories available in the product range include cable ties L150 mm, used for securing and organizing installed cables. These cable ties support structured cabling and prevent loose or disorganized wiring, which is particularly important in complex enclosure installations.

Mounting and Installation

Installation is done by directly inserting the cables into the plug’s connection openings. Wiring is part of the in-house termination process, where cables are cut and connected according to the specific requirements of the installation. The connection is mechanically stable and requires no additional connection elements. The packaging unit contains 5 pieces, enabling efficient installation in larger projects.

Operational Advantages

Using the Rittal SZ 2500650 enables structured and secure wiring in industrial installations. Direct through-wiring reduces the number of required connection components and minimizes potential error sources. The specific design for cross-sections up to 1.5 mm² and voltage up to 240 V makes it suitable for a wide range of applications. Its use in system lights and other electrical devices ensures reliable power supply and easy maintenance.

General
ModelPlug, 2-pole
Nominal cross-section1,5 mm²
Width15,6 mm
Height13,2 mm
Depth61,6 mm
Connection of stranded wires, solid0,25 ‐ 1,5 mm²
Connection of round conductors, solid AWGAWG 16 ‐ AWG 22
Connection of stranded wires, stranded0,25 ‐ 1 mm²
Rated operating voltage100 V - 240 V


Product data sheet
Datasheet for Rittal 2500650, EAN: 4028177918788
