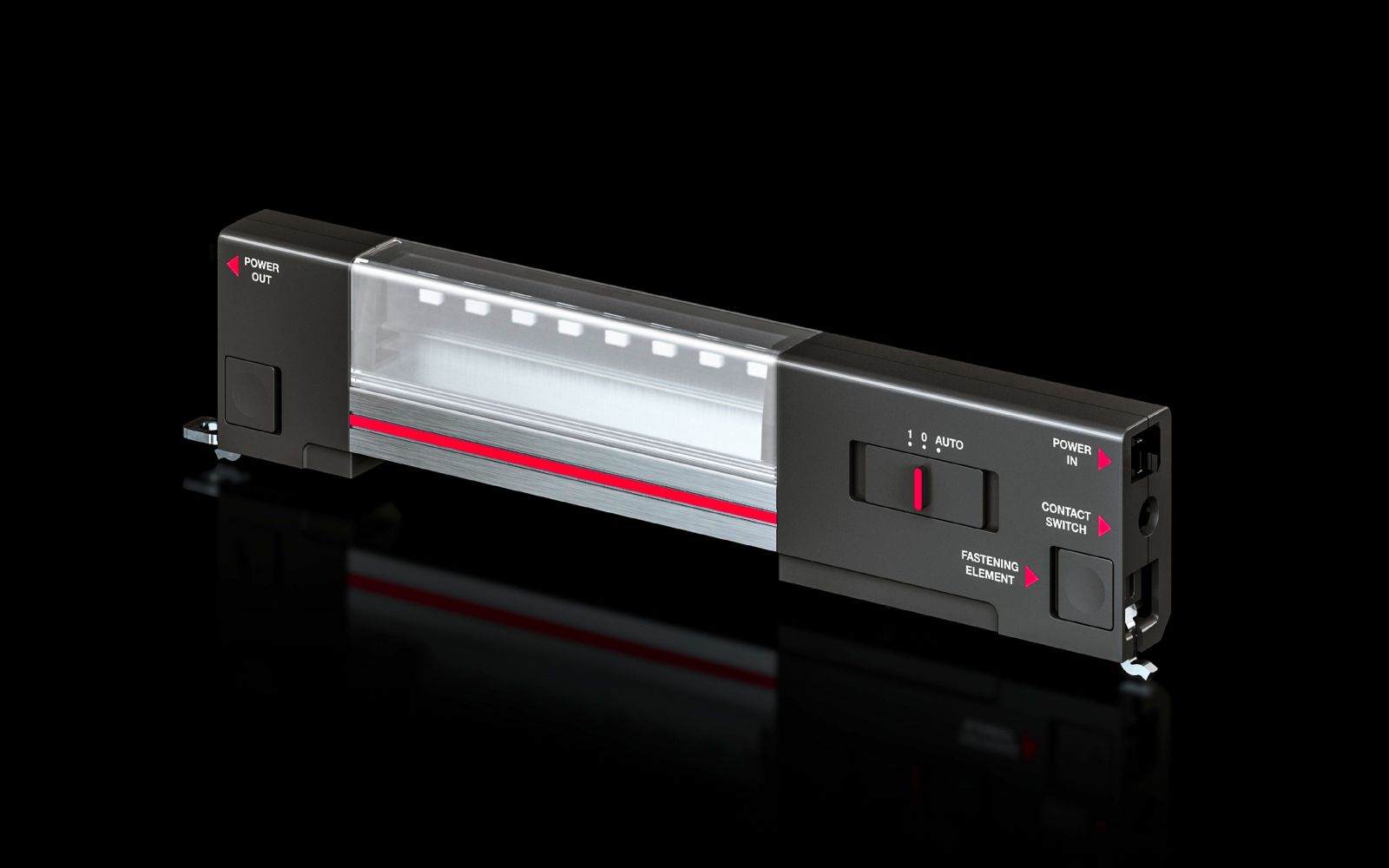

Rittal 2500104 System light LED 400, 100–240 V, L: 262 mm, UL
|
64,86 EUR |
|
|
( 77,18 EUR incl. VAT ) ≈ £54.29 | ≈ $71.28 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1907668 |
| Mfg Part No: | 2500104 |
| UPC/EAN: | 4028177920538 |
| Weight: | 0.287 kg |
| Type: | SZ 2500104 |
Product information for Rittal 2500104:
Applications
The light is primarily designed for use in enclosures, where uniform and sufficient illumination of the interior is required. It is particularly suitable for installations where clear visibility of switching devices, cable connections or displays is necessary. The version without a socket makes it a pure lighting unit, not intended for powering external devices.
Functions and equipment in detail

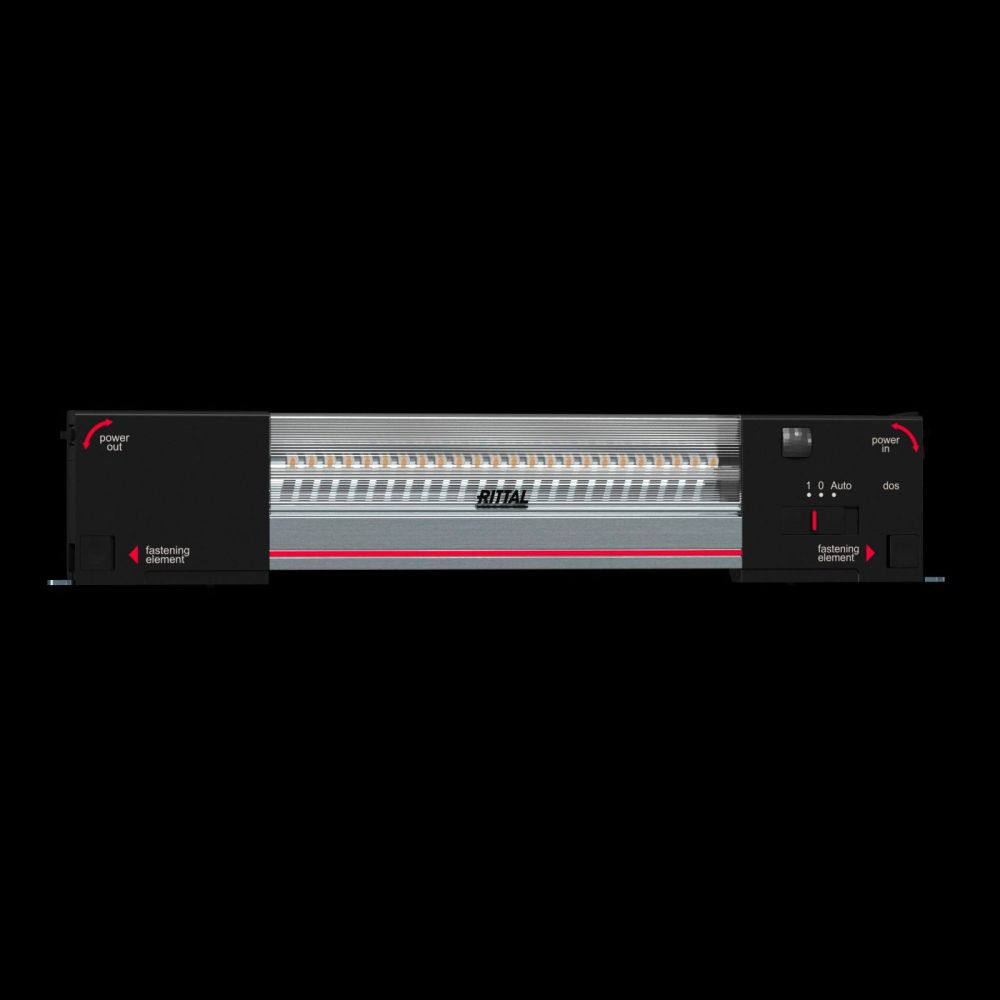

The light features multiple connection options: power input (2-pole), pass-through wiring (2-pole), and connection to a door position switch. These variants enable flexible integration into existing enclosure installations. The protection class II (double insulated) means the light can be operated without additional earthing, simplifying installation. The delivery includes mounting screws required for installation.
Technology explained simply

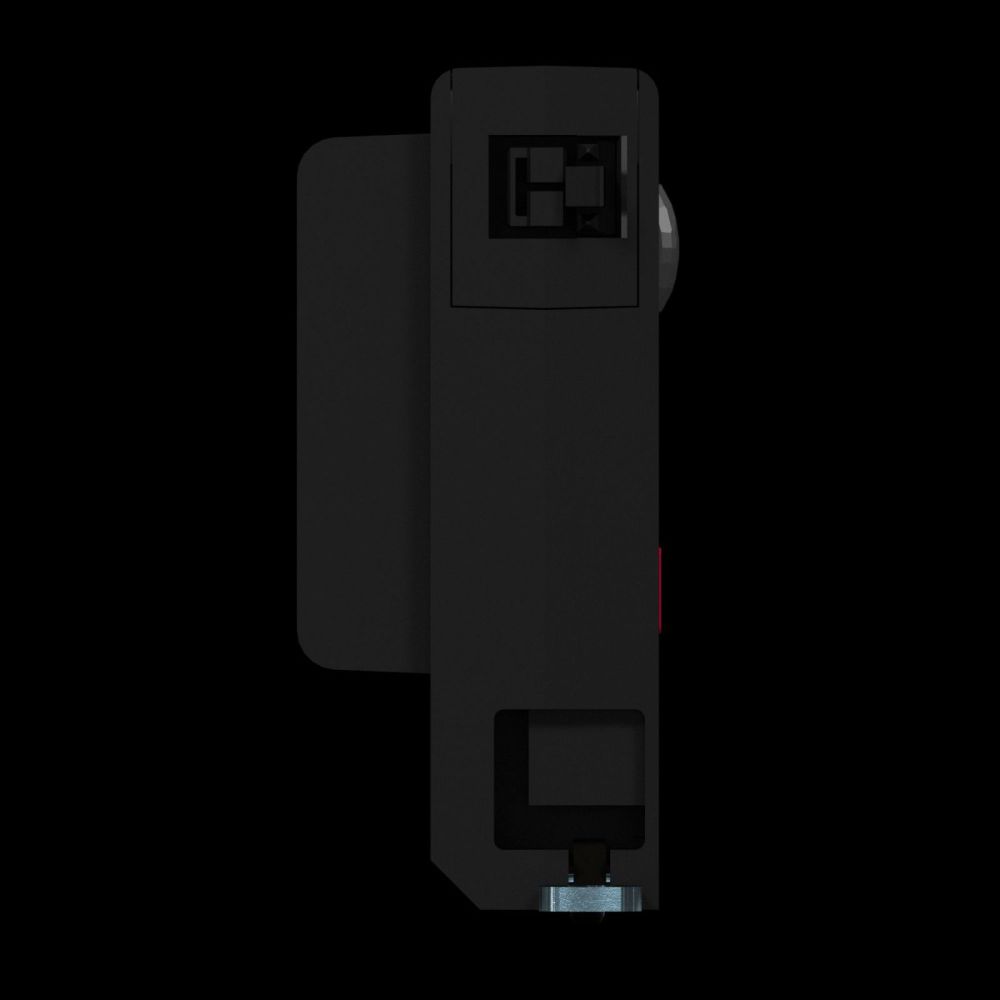

The light housing is made of extruded aluminium, ensuring high mechanical stability and good heat dissipation. The light cover is made of polycarbonate, a robust and transparent plastic that optimises light output. The ends of the light are made of PC-ABS, a material that withstands mechanical stress well. The dimensions are 262 mm (width), 55 mm (height), and 23 mm (depth), resulting in a compact design. Mounting can be done either by screwing, clip mounting, or using an optional magnetic mounting system.
Compatibility and accessories
For installation in compact enclosures of the AX series, additional components are required: the AX internal mounting rail and a mounting bracket. Suitable accessories include, among others, connection cables for power input and pass-through wiring, door position switches with cable, mounting brackets, and a mounting kit with magnet. These components allow application-specific adaptation of the light to various enclosure configurations.
Mounting and installation
Mounting is done either by screwing or clip mounting directly onto the enclosure wall. For magnetic mounting, a separate mounting kit is required. Installation is typically carried out on the inside of the enclosure door or on the enclosure wall, with positioning chosen to ensure uniform illumination of the entire interior space.
Advantages in operation
The LED technology of the light ensures high light output with low energy consumption. The long service life of the LEDs reduces maintenance requirements. The neutral white light colour enhances visual recognition of components and displays. The flexible mounting and connection options allow individual adaptation to different enclosure configurations. The protection class IP 20 is sufficient for use in enclosed enclosures, where no direct exposure to water or dust is expected.
The light is UL-approved, confirming compliance with the relevant safety standards in the USA and Canada. The product designation SZ 2500104 is unique and corresponds to the manufacturer's part number of manufacturer Rittal.
| General | |
| Model | without socket |
| Material | Luminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS |
| Colour | Housing: RAL 7016 |
| Scope of delivery | Including mounting screws |
| Nominal power | 5 W |
| Connection options | Power supply, 2-pole, through wiring, 2-pole, door position switch |
| Protection class | II (double insulated) |
| Luminaires mounting type | Screwing, clip mounting, magnetic mounting (accessory) |
| Mounting options | For installation in compact control cabinets AX, the internal mounting rail AX and mounting bracket are required |
| Luminous flux | 400 lm |
| Colour of light | 4000 K (neutral white) |
| Note | Connection accessories to be ordered separately |
| Width | 262 mm |
| Height | 55 mm |
| Depth | 23 mm |
| Operating temperature range | -20 °C...55 °C |
| Rated operating voltage | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| Degree of protection IP according to IEC 60 529 | IP 20 |
| PCF/VE (Cradle-to-Gate) | 7,2 |
