Rittal 2500620 Socket for feed-in and through-wiring, 2-

Your rating:
Average rating
product review for Rittal 2500620 Socket for feed-in and through-wiring, 2-
( 4.3 / 5 ) 9 ratings

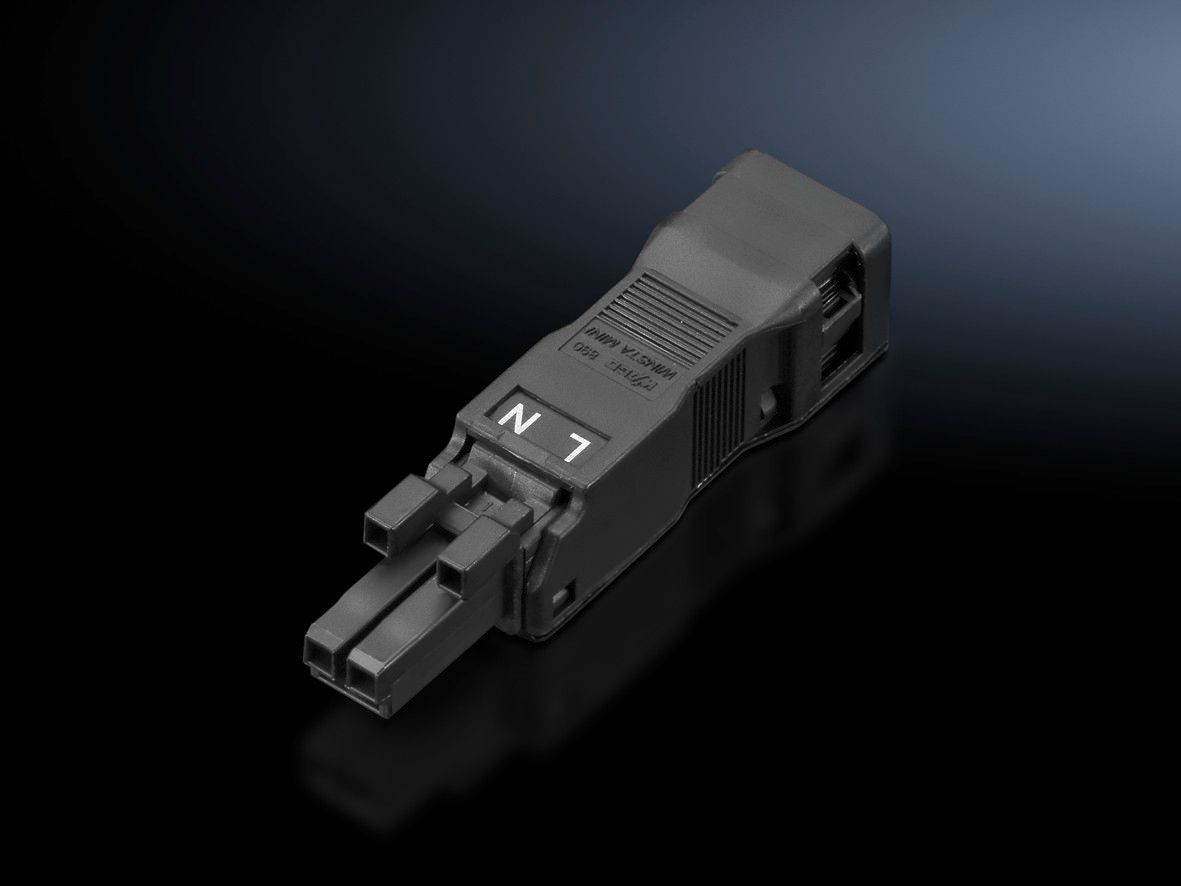

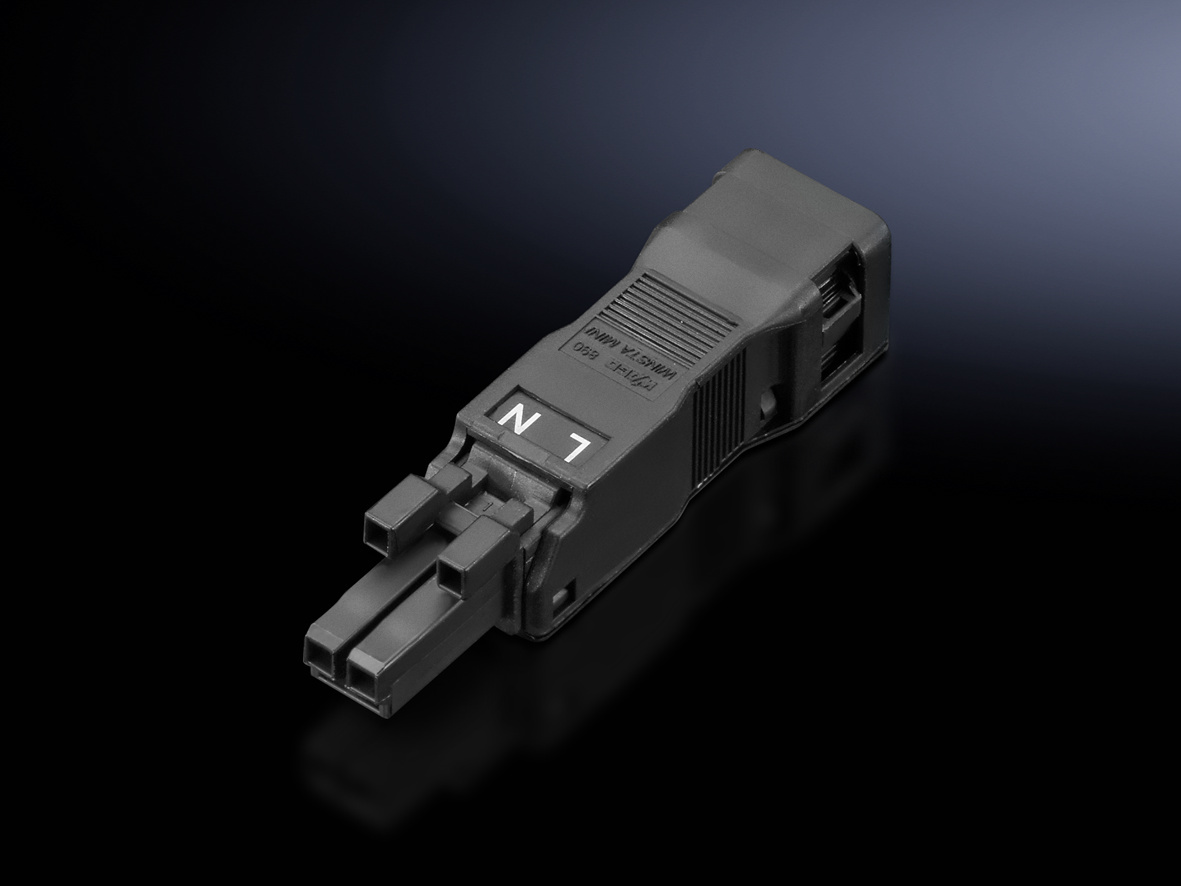

Rittal 2500620
This image may differ from the desired article.
Rittal 2500620Rittal 2500620
29,21 EUR
( 34,76 EUR incl. VAT )
≈ £24.45  |  ≈ $32.10
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2500620 Socket for feed-in and through-wiring, 2-
Datasheet:file_download Download
Lieske Part No.:1599179
Mfg Part No: 2500620
UPC/EAN: 4028177918757
Weight:0.067 kg
Type:SZ 2500620

Product information for Rittal 2500620:

Rittal SZ 2500620 is a 2-pole socket as connection accessory for custom assembly of connection cables, particularly for system lights such as LED lighting. It is used for power input and through-wiring in enclosures and electrical installations. The socket enables individual wiring, where the wiring is performed by the user, for example, when integrating lighting systems into industrial or technical facilities.

Applications
The SZ 2500620 is used in industrial electrical engineering where flexible and modular wiring is required. It is suitable for applications where cables must be directly introduced into enclosures or devices and routed further. The socket is designed for use in systems with an operating voltage of 100 V to 240 V, making it suitable for most standard mains voltages in Europe and other regions. It is typically used in combination with system lights, where the socket serves as a connection point for power supply.

Functions and Equipment in Detail
The socket is designed for connection of round conductors, with a rated cross-section of 1.5 mm². For single-core conductors, cross-sections from 0.25 to 1.5 mm² (corresponding to AWG 16 to AWG 22) are permitted. For multi-core conductors, the permissible cross-section is 0.25 to 1 mm² (AWG 18 to AWG 22). These specifications ensure a safe and reliable connection, even with varying conductor cross-sections. The socket is designed for use in enclosures, where it is inserted into designated mounting openings.

Technology Explained Simply
The socket is a passive connection point that does not offer electronic functions such as voltage regulation or protection functions. It serves solely for mechanical and electrical connection of cables. The rated operating voltage of 100 V to 240 V means the socket is designed for use in standard mains voltages without requiring additional protective measures. Dimensions (width 15.6 mm, height 13.2 mm, depth 61.6 mm) are adapted for integration into standard enclosure systems, ensuring secure fit in designated mounting openings.

Compatibility and Accessories
The socket is specifically designed for use with system lights and similar devices. As suitable accessory, a cable tie with a length of 150 mm is offered, which can be used to secure the connected cables. This supports orderly and secure wiring within the enclosure.

Mounting and Installation
Mounting is done by inserting the socket into the designated mounting openings in the enclosure or device. Wiring is performed manually by the user, where the conductors are placed into the socket and secured using an appropriate tool (e.g. screwdriver). The socket is not designed for automatic connection, but requires manual wiring. The use of cable ties to secure the cables is recommended to ensure orderly wiring.

Advantages in Operation
The SZ 2500620 offers a flexible solution for individual wiring in enclosures. The possibility to customize the socket allows tailored adaptation to specific requirements. Use in system lights and similar applications ensures reliable power supply. The socket is designed for high mechanical load capacity, ensuring long service life and stable connection. Dimensions are standardized, allowing easy integration into common enclosure systems.

General
ModelSocket, 2-pole
Nominal cross-section1,5 mm²
Width15,6 mm
Height13,2 mm
Depth61,6 mm
Connection of stranded wires, solid0,25 ‐ 1,5 mm²
Connection of round conductors, solid AWGAWG 16 ‐ AWG 22
Connection of stranded wires, stranded0,25 ‐ 1 mm²
Rated operating voltage100 V - 240 V


Product data sheet
Datasheet for Rittal 2500620, EAN: 4028177918757

Questions & answers

What is the delivery time of Rittal 2500620 Socket for feed-in and through-wiring, 2-?

The article Rittal 2500620 Socket for feed-in and through-wiring, 2- is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2500620 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2500620 Socket for feed-in and through-wiring, 2- always at the best possible price. We can give you a discount of 2% on Rittal 2500620 Socket for feed-in and through-wiring, 2- if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
