Rittal 2500114 System light LED 600, 100-240 V, L: 337 mm, UL

Your rating:
Average rating
product review for Rittal 2500114 System light LED 600, 100-240 V, L: 337 mm, UL
( 4.5 / 5 ) 2 ratings
Rittal 2500114
This image may differ from the desired article.
Rittal 2500114Rittal 2500114Rittal 2500114Rittal 2500114
72,11 EUR
( 85,81 EUR incl. VAT )
≈ £60.36  |  ≈ $79.25
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2500114 System light LED 600, 100-240 V, L: 337 mm, UL
Datasheet:file_download Download
Lieske Part No.:1907669
Mfg Part No: 2500114
UPC/EAN: 4028177920545
Weight:0.362 kg
Type:SZ 2500114

Product information for Rittal 2500114:

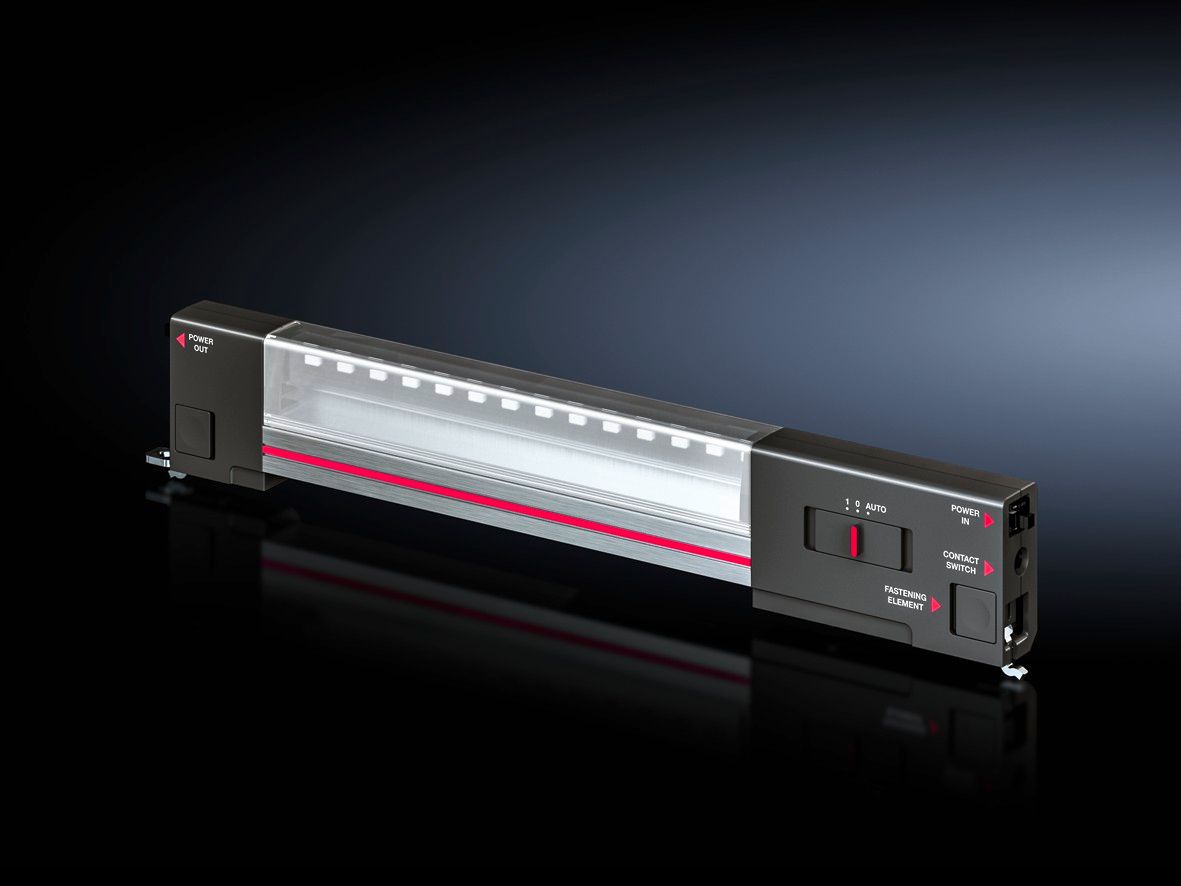

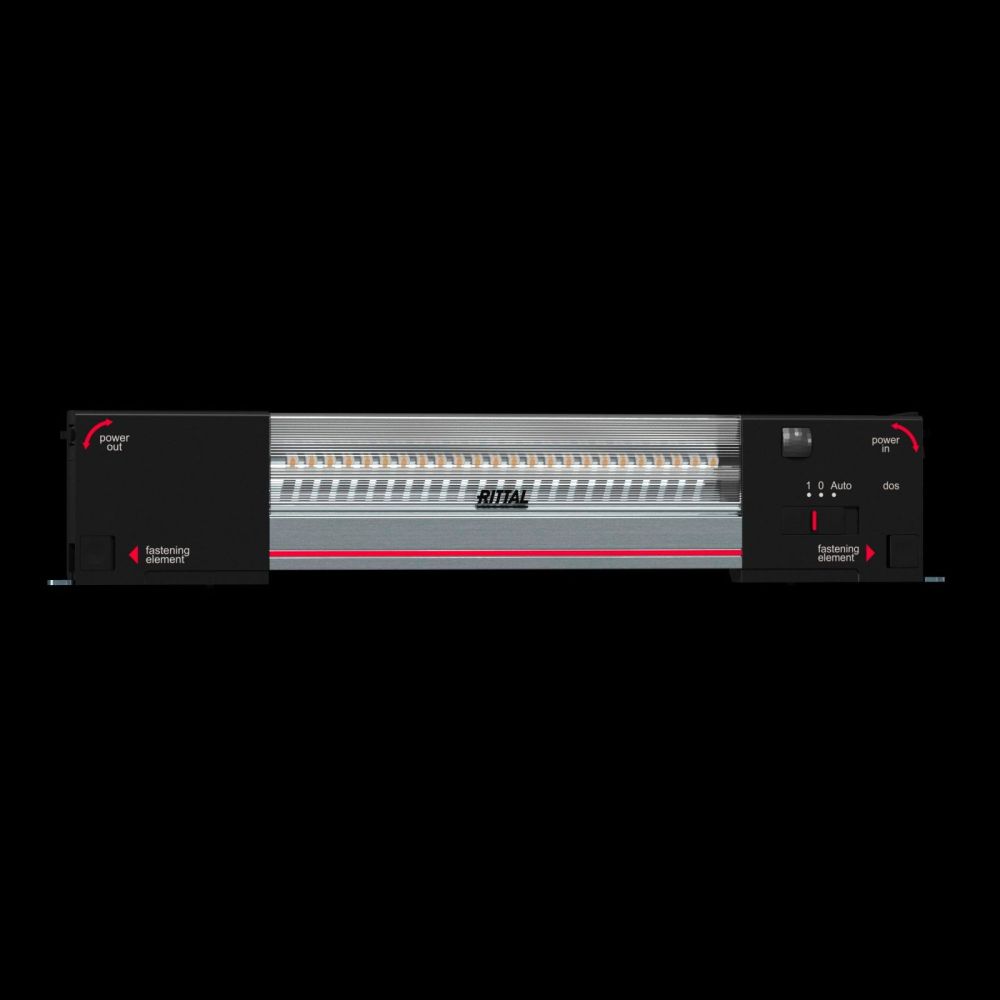

The Rittal SZ 2500114 is a system light LED for use in enclosures. It provides even and sufficient illumination of the entire enclosure interior to ensure good visibility during maintenance, inspections, or installation work. The device is specifically designed for industrial environments and offers a light output of 600 lumens at a colour temperature of 4000 K, corresponding to neutral white light. The light is available in the without socket outlet version and is supplied with mounting screws.

Applications

The light is intended for installation in compact enclosures of the AX series, for which the AX internal mounting rail and a mounting bracket are required. Alternatively, it can be mounted directly onto the enclosure profile, utilising the 25 mm grid of the profile. Mounting can be done by screwing, using a clip fastening, or with magnetic mounting, the latter being available as optional accessory. Thus, the light is flexibly applicable and adapts to different mounting situations.

Functions and equipment in detail

The SZ 2500114 has a rated power of 7 W and produces a luminous flux of 600 lumens. The colour temperature of 4000 K ensures clear, neutral white illumination suitable for technical working environments. The light is designed for an operating voltage of 100 V to 230 V, 1~, 50 Hz/60 Hz, enabling universal use in various electrical networks. Protection class II (double insulated) ensures safe use without an additional protective earth conductor. The protection rating IP 20 according to IEC 60 529 protects against finger contact and vertical dripping water, but is not suitable for outdoor use or in damp environments.

Technology explained simply

The light housing is made of extruded aluminium, ensuring high mechanical stability and good heat dissipation. The light cover is made of polycarbonate, a robust and transparent plastic that optimises light output and protects against mechanical damage. The ends of the light are made of PC-ABS material, offering high resistance to mechanical stress. The light is designed for an operating temperature range of -20 °C to 55 °C, enabling use in industrially diverse climatic conditions.

Compatibility and accessories

The light can be combined with various connection options: supply (2-pole), pass-through wiring (2-pole), and door position switch. These functions allow flexible integration into existing enclosure lighting systems. Separate connection accessories are required for connections, such as supply cables, plugs, sockets, or door position switches. Suitable accessories include, for example, cables for door position switches, mounting brackets, mounting kits with magnetic mounting, as well as sockets and plugs for pass-through wiring.

Mounting and installation

Mounting is done either directly onto the enclosure profile with 25 mm grid or via special mounting brackets and rails for compact enclosures AX. Fixing is done using screws, which are included in the delivery. Alternatively, the light can be mounted using a clip fastening or a magnetic mounting kit (accessory), enabling quick and tool-free installation. Dimensions are 337 mm (width), 55 mm (height), and 23 mm (depth), allowing seamless integration into standardised enclosures.

Advantages in operation

The LED technology of the SZ 2500114 offers high light output with low energy consumption. The long service life of the LEDs reduces maintenance effort and replacement costs. The flexible mounting and various connection options allow individual adaptation to the respective enclosure configuration. The use of high-quality materials such as extruded aluminium and polycarbonate ensures high robustness and longevity of the product. The light is thus a reliable and low-maintenance solution for interior lighting of enclosures.

General
Modelwithout socket
MaterialLuminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS
ColourHousing: RAL 7016
Scope of deliveryIncluding mounting screws
Nominal power7 W
Connection optionsPower supply, 2-pole, through wiring, 2-pole, door position switch
Protection classII (double insulated)
Luminaires mounting typeScrewing, clip mounting, magnetic mounting (accessory)
Mounting optionsFor installation in compact control cabinets AX, the AX internal mounting rail and mounting bracket are required; direct mounting on cabinet profile with 25 mm grid.
Luminous flux600 lm
Colour of light4000 K (neutral white)
NoteConnection accessories to be ordered separately
Width337 mm
Height55 mm
Depth23 mm
Operating temperature range-20 °C...55 °C
Rated operating voltage100 V - 230 V, 1~, 50 Hz/60 Hz
Degree of protection IP according to IEC 60 529IP 20
PCF/VE (Cradle-to-Gate)7,4


Product data sheet
Datasheet for Rittal 2500114, EAN: 4028177920545

Questions & answers

What is the delivery time of Rittal 2500114 System light LED 600, 100-240 V, L: 337 mm, UL?

The article Rittal 2500114 System light LED 600, 100-240 V, L: 337 mm, UL is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2500114 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2500114 System light LED 600, 100-240 V, L: 337 mm, UL always at the best possible price. We can give you a discount of 2% on Rittal 2500114 System light LED 600, 100-240 V, L: 337 mm, UL if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
