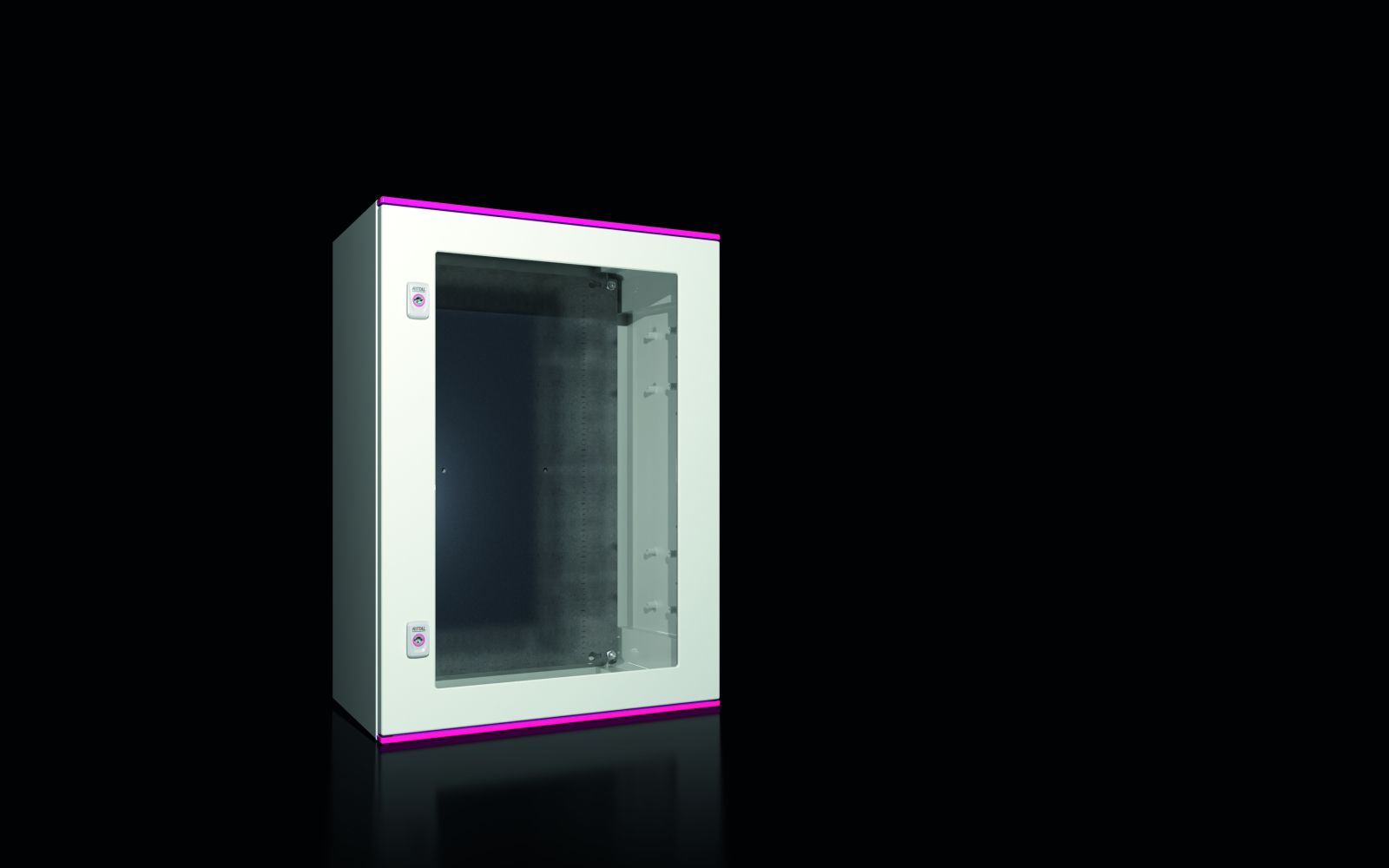

Rittal 1469000 AX plastic enclosure, 600x800x300 mm, with S.
|
495,65 EUR 504,67 EUR |
|
|
( 589,82 EUR incl. VAT ) ≈ £414.86 | ≈ $544.72 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910559 |
| Mfg Part No: | 1469000 |
| UPC/EAN: | 4028177006997 |
| Weight: | 24.44 kg |
| Type: | AX 1469000 |
Product information for Rittal 1469000:
Applications
This enclosure is suitable for use in ambient temperature ranges from -30 °C to +75 °C. However, the actual operating temperatures may be limited by the installed devices. Due to its protection rating IP 56 according to EN 60 529, the enclosure is dust-tight and protected against heavy splashing water, making it suitable for outdoor use. The NEMA protection ratings include categories 1, 3R, 3RX, 4, 4X, and 12, indicating high protection against dust, water, splashing water, and other environmental influences. The type rating according to UL 50E corresponds to categories Type 1, 3R, 3RX, 4, 4X, and 12. Protection class II (at 1000 V AC) ensures a double-insulated design without requiring additional grounding. The IK code IK09 indicates high mechanical resistance against mechanical impacts. The enclosure meets the F1 Outdoor Rating according to UL 746C, further confirming its suitability for outdoor applications.
Functions and Equipment in Detail
The enclosure is fully enclosed and features an integrated rain shield along the top and bottom edges of the door, achieved through a double sealing system. The viewing window is made of polycarbonate and allows visual inspection of the interior without opening the door. The door is equipped with a 3 mm double-barrel lock, ensuring secure locking. The number of locks is two. The mounting plate is fitted with mounting domes, enabling internal installation on a 25 mm grid. Numerous mounting domes within the enclosure support individual component arrangements, such as system chassis or rails. A QR code is printed on the enclosure body, mounting plate, door, and type plate, enabling unique identification and traceability of parts.
Technical Explanation
The GFK material (glass-fiber-reinforced, unsaturated polyester) offers high mechanical strength and weather resistance. The self-extinguishing property according to UL 94-V0 reduces fire risk. The halogen-free manufacturing minimizes the formation of toxic gases when heated. The IP 56 protection rating means the enclosure is protected against dust and heavy splashing water, making it suitable for outdoor use. The NEMA protection ratings 3R, 3RX, 4, 4X, and 12 cover various environmental conditions, including protection against rain, splashing water, and dust. The IK09 classification indicates that the enclosure is resistant to mechanical impacts such as shocks or vibrations with an energy of up to 5.3 J. Protection class II means the device can operate without additional grounding, as it is double-insulated.
Compatibility and Accessories
Internal mounting screws are required for securing components within the enclosure. Universal brackets allow components to be mounted on a 25 mm grid, such as system chassis. Compatible accessories include lock inserts made of zinc die-cast, mounting brackets, mounting plates with screw fastening (small and large), TS mounting rails, SZ internal door, circuit diagram pockets, AX mini comfort handle, AS multitool, LED system light, VX system chassis in various sizes. These components enable flexible and individual customization of the enclosure.
Mounting and Installation
Mounting is performed using the designated mounting domes in the enclosure and on the mounting plate. The mounting plate features grounding keyhole slots and dimension markings. Fastening is done with Limbach nuts. The door hinge direction is standard on the right side but can be changed to the left. The 130° door opening provides good access. The integrated rain shield along the top and bottom edges of the door provides additional protection against precipitation.
Operational Advantages
The enclosure offers high mechanical and weather-resistant protection, making it suitable for outdoor use. The viewing window allows visual inspection without opening the door. The integrated rain shield and double sealing ensure effective protection against precipitation. The mounting domes on a 25 mm grid enable flexible and individual internal configuration. Protection class II reduces grounding requirements. The F1 Outdoor Rating approval according to UL 746C confirms suitability for outdoor use. QR codes on the parts facilitate identification and documentation.
Note: For long-term exposure to UV radiation (sunlight) and rain, it is recommended to paint the surface with a PUR lacquer to avoid visual impairments. Price and delivery time on request.
| General | |
| Model | with viewing window |
| Material | Cabinet and door: glass-fibre reinforced unsaturated polyester GFK, door: continuously foamed PU seal, mounting plate: sheet steel, viewing window: polycarbonate, flammability according to UL 94-V0, halogen-free |
| Surface protection | Housing and door: not post-treated, plastic pigmented, mounting plate: zinc-plated |
| Colour | Similar to RAL 7035 |
| Scope of delivery | Enclosure with hinged door with viewing window, fully enclosed, 3 mm double-barrel lock, door hinge on right, reversible to left, mounting plate, double sealing at top and bottom of door as integrated rain protection strip |
| Note | When used under long-term exposure to UV radiation (sunlight) and rain, we recommend coating the surface with a PUR lacquer to avoid optical surface impairment. Price and delivery time on request. |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 56 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12 |
| Protection class | II (at 1000 V AC) |
| IK code | IK09 |
| Width | 600 mm |
| Height | 800 mm |
| Depth | 300 mm |
| Mounting plate material thickness | 3 mm |
| Mounting plate dimensions (W x H) | 505 mm x 725 mm |
| Door opening angle | 130° |
| Number of locks | 2 |
| Base material | Plastic |
| Standards | Complies with F1 Outdoor Rating per UL 746C |
| Mounting note | For mounting components inside the enclosure, screws for internal installation are required. Using the universal angle, components can be mounted on a 25 mm grid, e.g. system chassis. |
| With viewing window | |
