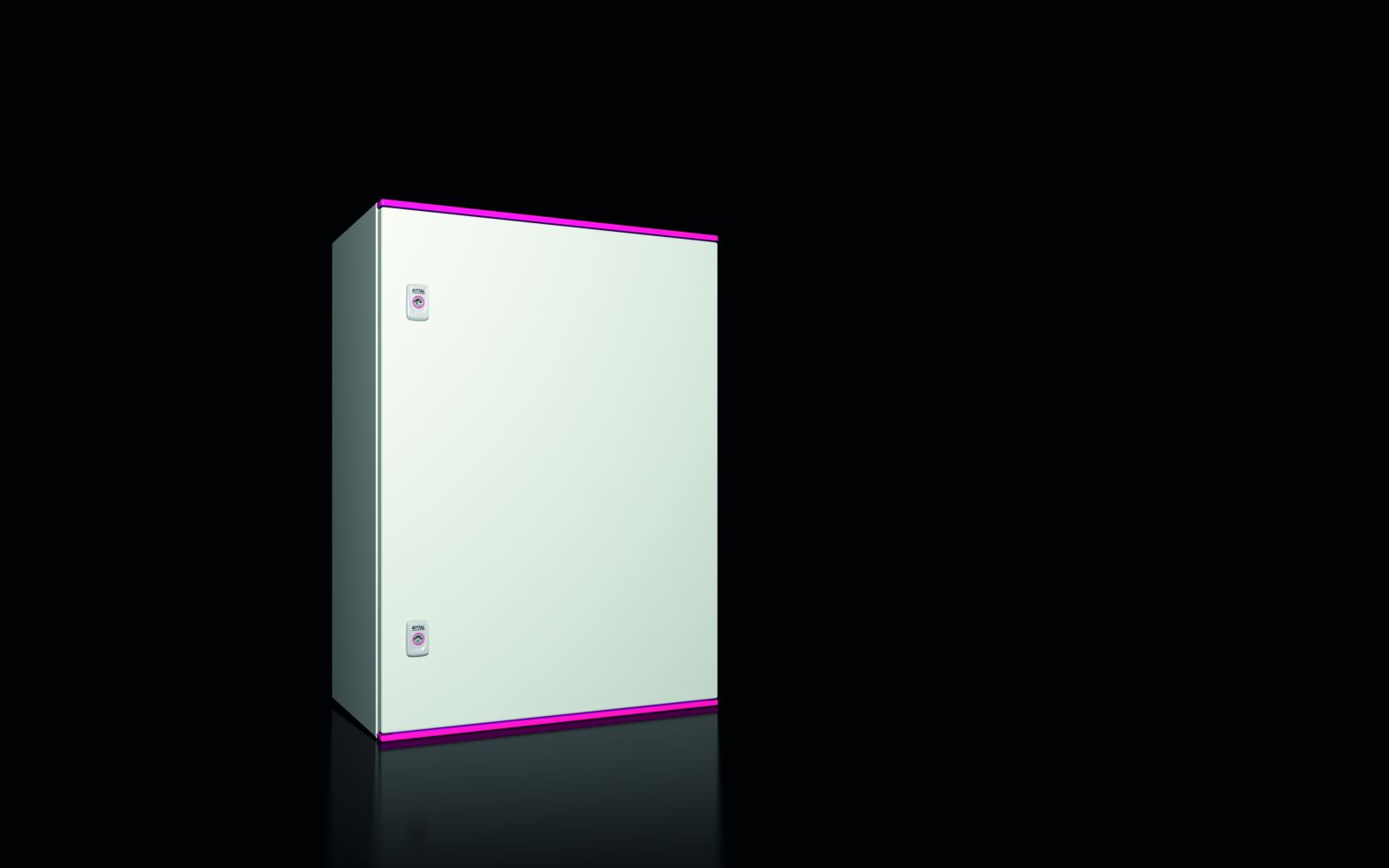

Rittal 1468000 AX plastic enclosure 600x800x300 mm without door
|
385,25 EUR 392,15 EUR |
|
|
( 458,45 EUR incl. VAT ) ≈ £322.45 | ≈ $423.39 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910558 |
| Mfg Part No: | 1468000 |
| UPC/EAN: | 4028177006928 |
| Weight: | 25.38 kg |
| Type: | AX 1468000 |
Product information for Rittal 1468000:
Applications
This enclosure is suitable for use in industrial and outdoor installations where high mechanical loads, moisture, or dirt are present. The IP 66 protection rating according to EN 60 529 ensures dust-tight and water-tight protection, even against heavy splashing water. The NEMA 4X and Type 4X protection rating according to UL 50E makes it suitable for outdoor use, particularly in damp or corrosive environments. The IK09 rating indicates high mechanical resistance against impact. Compliance with the F1 Outdoor rating according to UL 746C confirms suitability for outdoor use under long-term weather exposure. Protection Class II (at 1000 V AC) means the enclosure is double insulated and does not require earthing.
Functions and Equipment in Detail
The enclosure is designed as a single-piece, impact-resistant plastic housing, self-extinguishing according to UL 94-V0 and halogen-free. Integrated mounting domes inside allow for custom internal installation on a 25 mm grid. Universal brackets can be used to mount components such as system chassis or rails. The mounting plate features keyhole slots for earthing and dimension markings, and is secured with Limbach nuts. A QR code is printed on the enclosure, door, mounting plate, and type label, enabling unique identification and traceability of individual parts, as well as easy access to relevant product information and documentation.
Technology Explained Simply
The IP 66 protection rating means the enclosure is completely protected against dust and resistant to heavy splashing water from all directions. The NEMA 4X protection rating corresponds to a high level of protection against water, dust, and corrosion, making it especially suitable for outdoor use. The IK09 rating indicates that the enclosure is resistant to impact with an energy of up to 5.3 J. The UL 94-V0 approval for flammability means the material is self-extinguishing and produces only limited flame when ignited. The halogen-free composition reduces the formation of toxic gases in the event of fire.
Compatibility and Accessories
Various accessories are available for extending and adapting the enclosure. These include lock inserts made of zinc die-cast, mounting brackets for internal installation, mounting plates in various sizes, TS mounting rails for internal mounting levels, SZ internal doors, circuit diagram pockets, AX mini comfort handles, AS multitools, system lights, and VX system chassis. These components allow for flexible adaptation to specific requirements in enclosure construction.
Mounting and Installation
Mounting is done via the integrated mounting domes in the enclosure. Screws for internal installation are required to fix components inside. The mounting plate features keyhole slots for earthing and dimension markings, and is secured with Limbach nuts. The door pivot is standard right-hand, but can be converted to left-hand. The door opens to 130°, providing good access to the interior. The integrated rain shield at the top and bottom edges of the door provides additional protection during precipitation.
Operational Advantages
The enclosure offers high mechanical and chemical resistance, is weather-resistant, and is suitable for outdoor use. The integrated mounting domes and 25 mm grid enable flexible and custom internal equipment. The double-insulated design (Protection Class II) reduces the need for additional earthing. The double sealing on the door ensures reliable protection against moisture and dirt. The integrated QR codes simplify identification and documentation of individual components.
| General | |
| Model | without viewing window |
| Material | Housing and door: glass-fibre-reinforced unsaturated polyester GFK, door: continuously foamed PU seal, mounting plate: sheet steel, flammability behaviour according to UL 94-V0, halogen-free |
| Surface protection | Housing and door: not post-treated, plastic pigmented, mounting plate: zinc-plated |
| Colour | Similar to RAL 7035 |
| Scope of delivery | Housing with hinged door, fully enclosed, 3 mm double latch, door hinge on right, reversible to left, mounting plate, double sealing at top and bottom door edges as integrated rain protection strip |
| Note | When used under long-term exposure to UV radiation (sunlight) and rain, we recommend coating the surface with a PUR lacquer to avoid optical surface impairment. Price and delivery time on request. |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12 |
| Protection class | II (at 1000 V AC) |
| IK code | IK09 |
| Width | 600 mm |
| Height | 800 mm |
| Depth | 300 mm |
| Mounting plate material thickness | 3 mm |
| Mounting plate dimensions (W x H) | 505 mm x 725 mm |
| Door opening angle | 130° |
| Number of locks | 2 |
| Base material | Plastic |
| Standards | Complies with F1 Outdoor Rating per UL 746C |
| Mounting note | For mounting components inside the enclosure, screws for internal installation are required. Using the universal angle, components can be mounted on a 25 mm grid, e.g. system chassis. |
Questions & answers
What is the delivery time of Rittal 1468000 AX plastic enclosure 600x800x300 mm without door?
The article Rittal 1468000 AX plastic enclosure 600x800x300 mm without door is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1468000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1468000 AX plastic enclosure 600x800x300 mm without door always at the best possible price. We can give you a discount of 2% on Rittal 1468000 AX plastic enclosure 600x800x300 mm without door if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
