Rittal 5301518 VX IT roller module for W 800 mm, load 1000 kg
|
281,64 EUR |
|
|
( 335,15 EUR incl. VAT ) ≈ £235.73 | ≈ $309.52 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910594 |
| Mfg Part No: | 5301518 |
| UPC/EAN: | 4028177952515 |
| Weight: | 12.12 kg |
| Type: | VX 5301518 |
Product information for Rittal 5301518:
Applications
This roller module is specifically designed for enclosures of type VX with a width of 800 mm as well as for VX IT systems. It is particularly suitable in production environments, during maintenance work, or during commissioning of plants, where temporary mobility of the enclosure is required. Installation is carried out directly on the enclosure base, with the base area at the mounting points needing to be open to ensure secure fastening.
Functions and equipment in detail

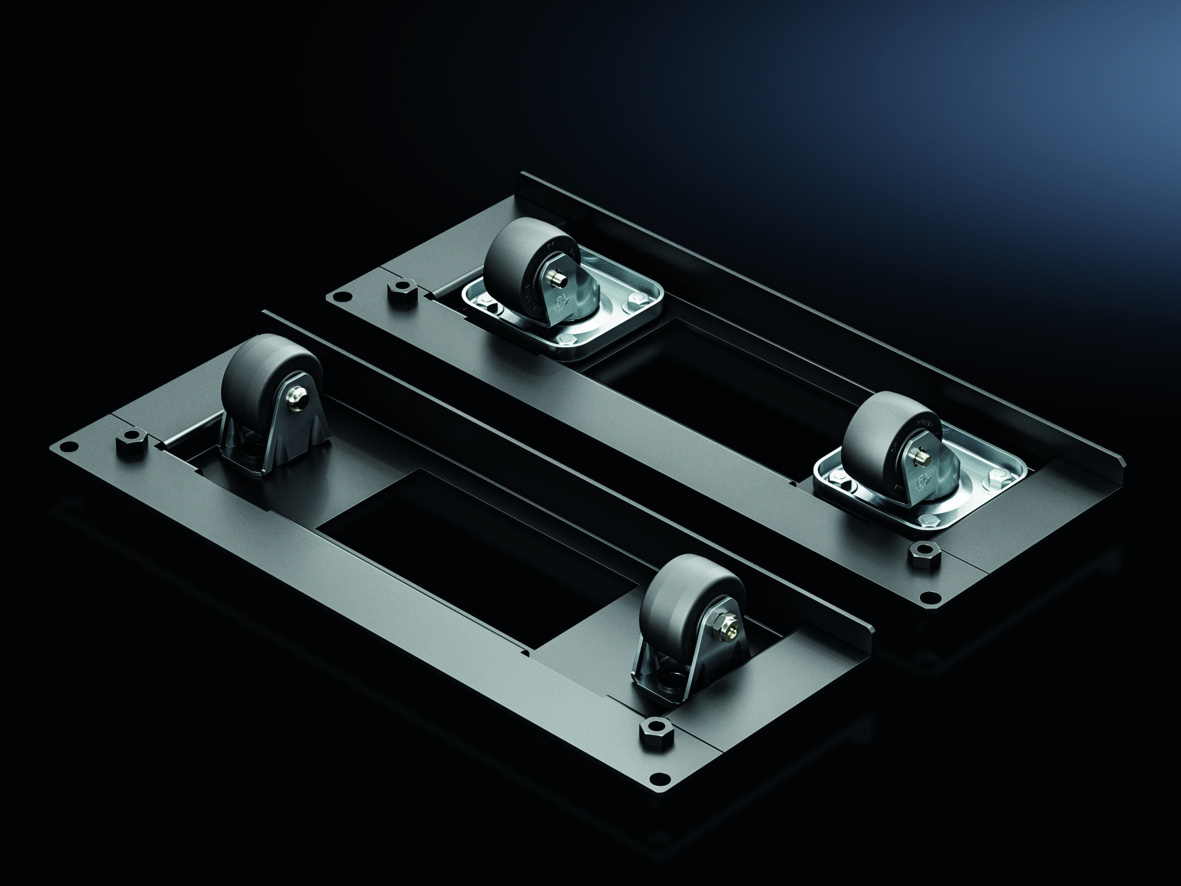

The delivery includes two transport modules: one module with two steering castors and one module with two fixed transport castors. Both modules are supplied with the necessary mounting hardware to enable secure installation on the enclosure. The steering castors ensure flexible maneuverability, while the fixed castors support stability and straight-line movement during transport. The overall height of the module is 82.5 mm, with the mounted height of the castor being 62.5 mm.
Technology explained simply
The load capacity of the roller module is specified for static and dynamic loads. The maximum static load is 15000 N, equivalent to a static load of approximately 1530 kg. The dynamic load capacity is 10000 N, equivalent to a moving load of approximately 1020 kg. This specification refers to transport on level ground. The construction is therefore designed for use in industrial environments where heavy enclosures need to be moved. The dimensions of the module are 756 mm (width), 82.5 mm (height), and 79 mm (depth).
Compatibility and accessories
The roller module is specifically developed for enclosures of type VX with a width of 800 mm as well as for VX IT systems. As suitable accessories, the VX IT levelling feet with internal adjustment 5301326 are offered, which can be used for fine adjustment of the enclosure positioning. The combination of roller module and levelling feet enables precise and stable positioning of the enclosure after transport.
Installation and mounting
Mounting is carried out directly on the enclosure base. The base area must be open at the mounting points to allow the mounting screws to be inserted. Fastening is done using the included hardware. Installation is tool-assisted and does not require additional tools. The roller modules are positioned symmetrically on the enclosure base to ensure even load distribution.
Advantages in operation
The roller module enables easy and safe movement of enclosures at the installation site without requiring additional transport equipment. Direct mounting on the enclosure reduces installation time and increases flexibility in placement. The high load capacity ensures safe use even with heavy enclosures. The combination of steering and fixed castors ensures both maneuverability and stability during transport.
| General | |
| Scope of delivery | 1 transport module with 2 swivel casters, 1 transport module with 2 fixed transport casters, including mounting material |
| Width | 756 mm |
| Height | 82,5 mm |
| Depth | 79 mm |
| Mounting note | The floor area must be open at the mounting points |
| Suitable for | Housing type: VX: = 800 mm, housing type: VX IT |
| Load capacity | Max. permissible load: static 15000 N, Max. permissible load: dynamic 10000 N |
| Note | The maximum permissible dynamic load of 10000 N refers to rolling transport on level ground. |
Questions & answers
What is the delivery time of Rittal 5301518 VX IT roller module for W 800 mm, load 1000 kg?
The article Rittal 5301518 VX IT roller module for W 800 mm, load 1000 kg is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5301518 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5301518 VX IT roller module for W 800 mm, load 1000 kg always at the best possible price. We can give you a discount of 2% on Rittal 5301518 VX IT roller module for W 800 mm, load 1000 kg if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
