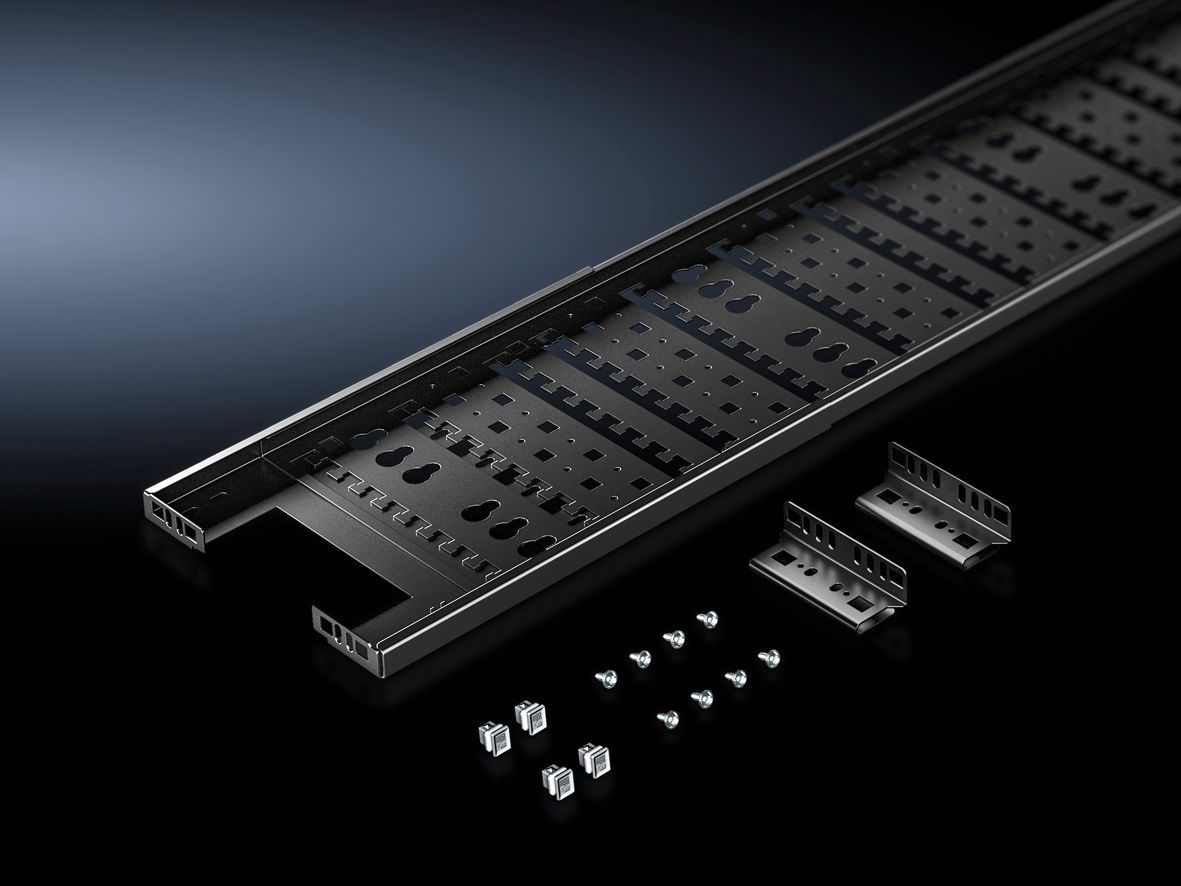

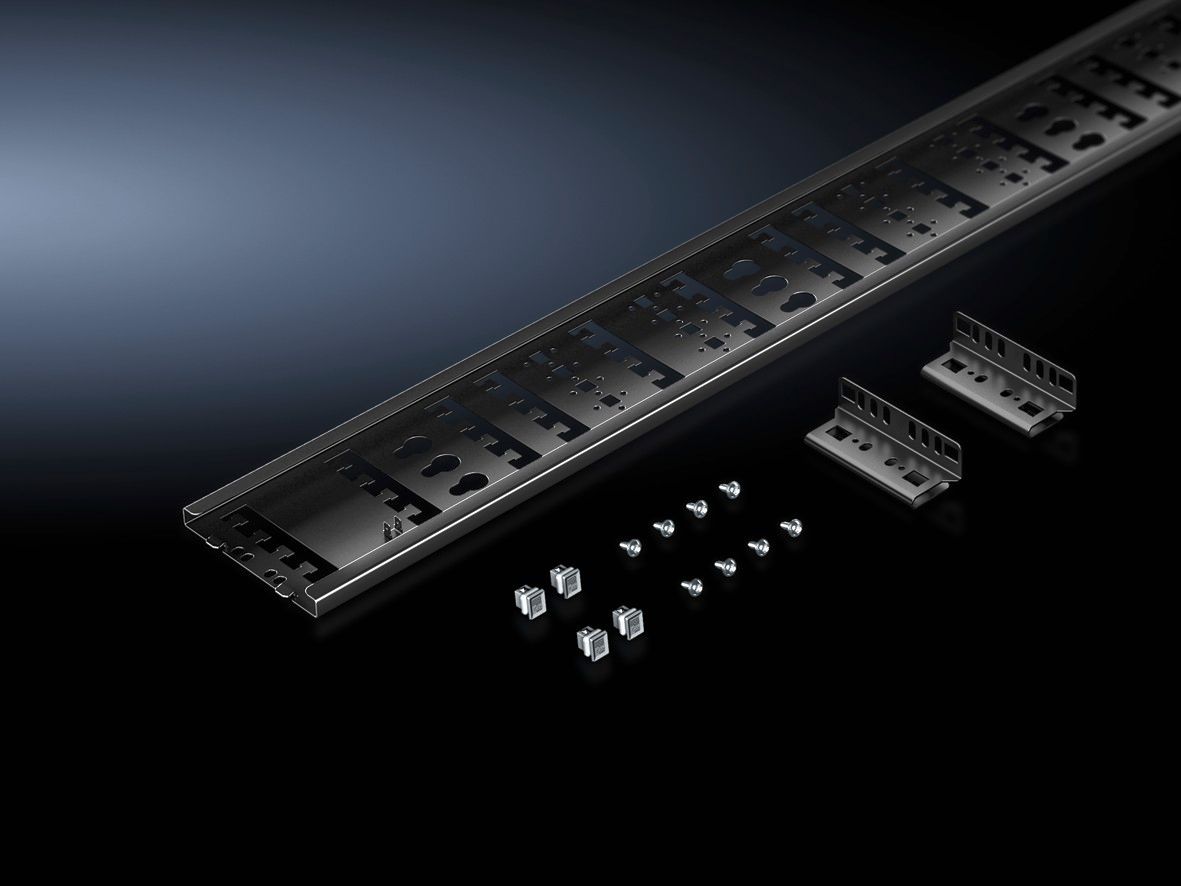

Rittal 5302120 Cable tray for VX IT, 145 x 2000 mm, RAL 9005

Your rating:
Average rating
product review for Rittal 5302120 Cable tray for VX IT, 145 x 2000 mm, RAL 9005
( 4.5 / 5 ) 2 ratings
Rittal 5302120
This image may differ from the desired article.
Rittal 5302120Rittal 5302120Rittal 5302120Rittal 5302120Rittal 5302120Rittal 5302120Rittal 5302120
97,98 EUR
( 116,60 EUR incl. VAT )
≈ £82.01  |  ≈ $107.68
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5302120 Cable tray for VX IT, 145 x 2000 mm, RAL 9005
Datasheet:file_download Download
Lieske Part No.:1910616
Mfg Part No: 5302120
UPC/EAN: 4028177952713
Weight:4.56 kg
Type:VX 5302120

Product information for Rittal 5302120:

The cable tray VX 5302120 from Rittal is a system accessory for enclosures of type VX and VX IT, specifically designed for vertical cable routing and strain relief in network and server applications. The product is made of sheet steel and is painted in RAL 9005, ensuring a robust and uniform surface for use in industrial environments. The cable tray has a width of 145 mm and a height of 2,000 mm, making it suitable for enclosures with a minimum height of 2,000 mm. Installation is tool-free via a quick-fastening system on the frame structure of the enclosure, with fastening across the entire enclosure depth. For 800 mm wide VX IT racks, additional screwing to the depth braces of the 48,3 cm ( 19 inch ) expansion is possible to ensure stable fixation. The delivery includes the mounting hardware required for installation.

Applications

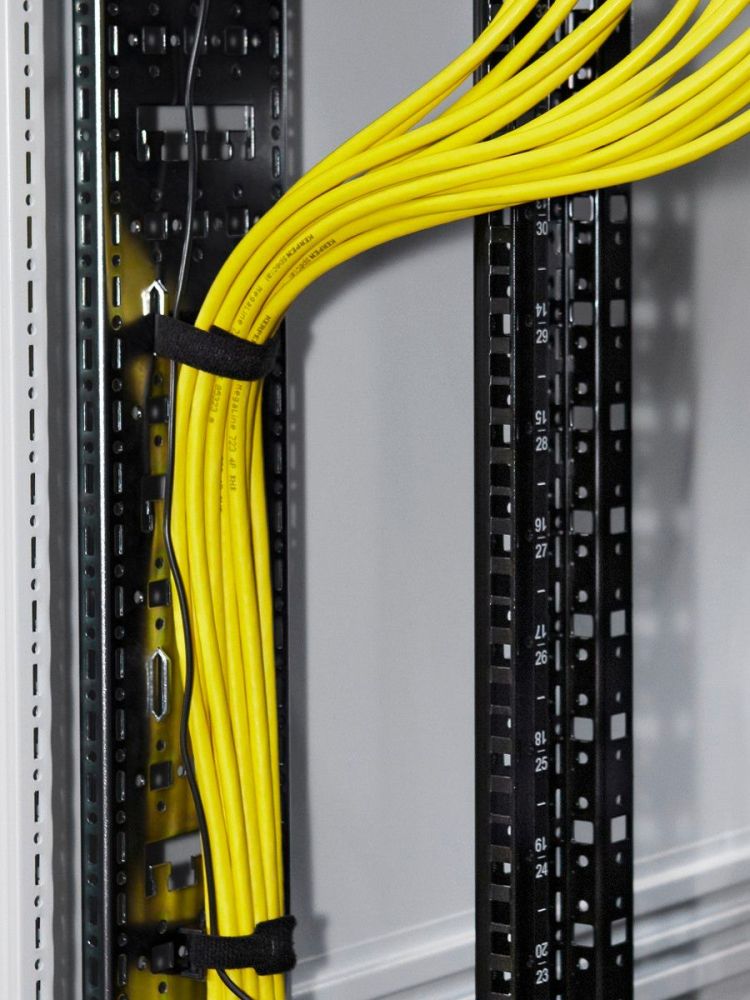

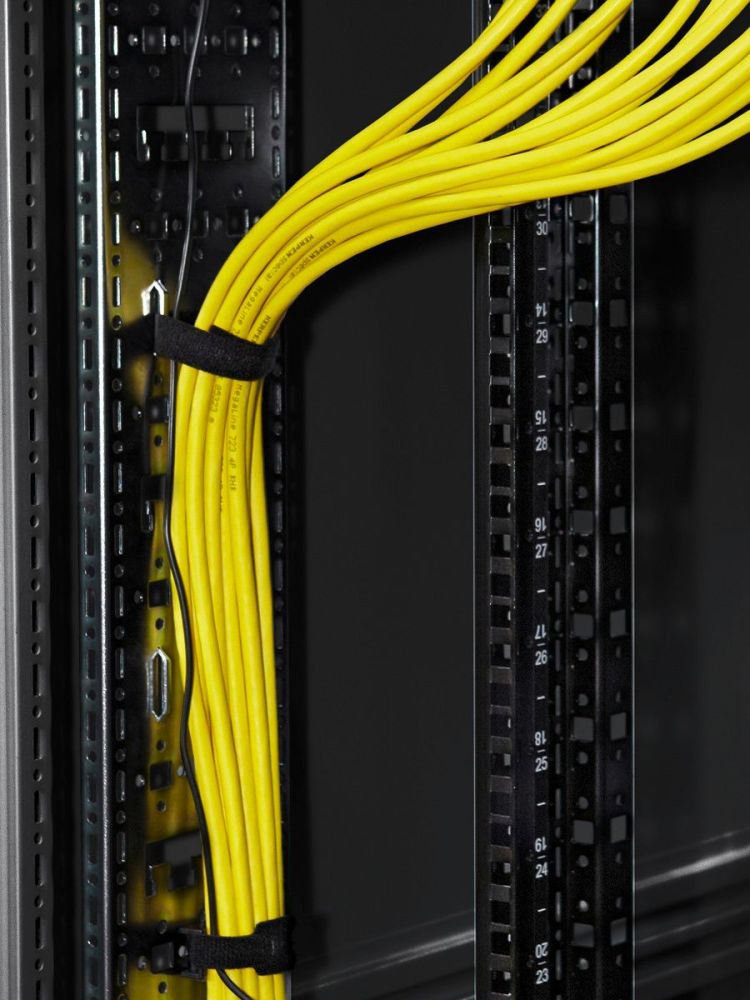

The cable tray is primarily intended for use in IT infrastructures, particularly in network and server environments, where structured and secure cable routing is required. It serves to organize cables, prevents strain on connections, and supports maintenance through a clear arrangement of wiring. Use in VX and VX IT enclosures enables an integrated solution that seamlessly integrates into existing systems.

Functions and Equipment in Detail

The cable tray features an integrated multifunctional perforation, allowing various cable routing elements such as cable ladders or hook-and-loop tape holders to be directly mounted on the tray. This perforation is designed to enable flexible adaptation to different requirements. Additionally, a mounting perforation is provided, specifically designed for mounting PDUs in a 7 HE grid. This keyhole mounting allows precise and secure fixation of PDUs, simplifying the installation and maintenance of power distribution units.

Technology Explained Simply

The construction from sheet steel ensures high mechanical stability and durability, even under industrial conditions. The RAL 9005 paint finish provides a uniform, dirt-repellent surface finish that visually integrates into typical IT and industrial environments. The tool-free quick-fastening system reduces installation time and minimizes the need for additional tools. The integrated multifunctional perforation enables modular expansion of cable routing, allowing the tray to be flexibly adapted to different requirements.

Compatibility and Accessories

The cable tray is specifically designed for enclosures of type VX and VX IT and conforms to the standard dimensions of these enclosures. Suitable accessories include hook-and-loop tape holders (DK 5502155) and cable ladders in various sizes (4 HE and 1 HE), which can be directly mounted on the multifunctional perforation. These elements support structured cable routing and fixation, increasing clarity within the enclosure.

Installation and Mounting

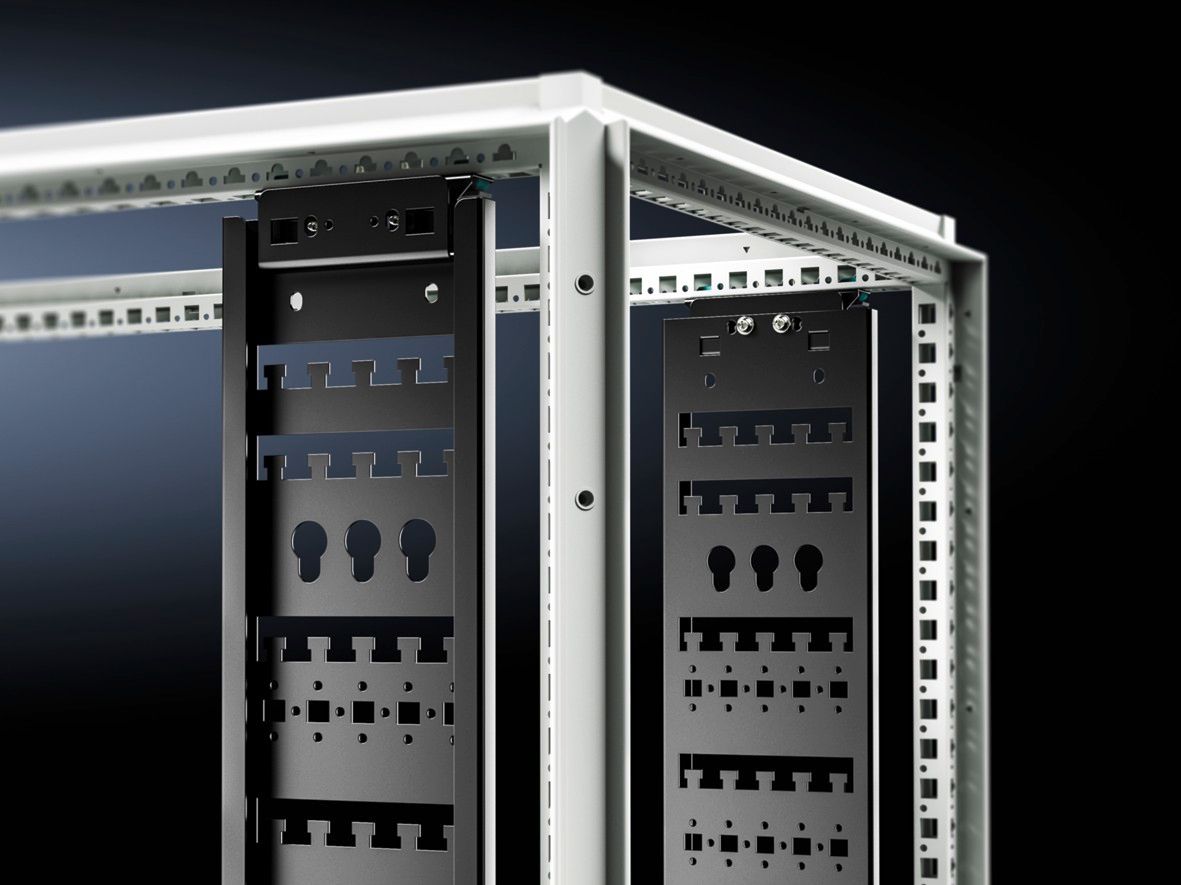

Mounting is performed on the frame structure of the enclosure between the roof and base frames, with the tray installed continuously across the entire depth of the enclosure. The tool-free quick-fastening system enables fast and secure installation. For 800 mm wide VX IT racks, additional screwing to the depth braces of the 48,3 cm ( 19 inch ) expansion is possible to increase stability. The included mounting hardware is sufficient for installation.

Operational Advantages

The cable tray reduces mechanical stress on cables and connections through strain relief, extending the service life of the cabling. The integrated multifunctional perforation and the ability to mount PDUs in a 7 HE grid increase flexibility and efficiency during installation. The clear structuring of cables improves maintainability and simplifies identification of wiring. The robust construction from sheet steel and the painted surface ensure long service life even in demanding environments.

General
ApplicationsFor vertical cable routing and strain relief in network and server applications
Materialsteel sheet
Surface protectionPainted
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Mounting optionsIn VX IT frame structure between top and bottom frame, continuous; in 800 mm wide VX IT racks, alternatively screwing between upper and lower depth brace is possible
Mounting noteMounting is carried out across the entire cabinet depth on the frame structure using quick fastening. When mounting in 800 mm wide cabinets, additional fastening to the depth rails of the 19" extension is possible.
Width145 mm
Suitable forEnclosure type: VX, VX IT, Height: = 2.000 mm
PCF/VE (Cradle-to-Gate)18.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302120, EAN: 4028177952713

Questions & answers

What is the delivery time of Rittal 5302120 Cable tray for VX IT, 145 x 2000 mm, RAL 9005?

The article Rittal 5302120 Cable tray for VX IT, 145 x 2000 mm, RAL 9005 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302120 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302120 Cable tray for VX IT, 145 x 2000 mm, RAL 9005 always at the best possible price. We can give you a discount of 2% on Rittal 5302120 Cable tray for VX IT, 145 x 2000 mm, RAL 9005 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
