Rittal 3183135 SK SK absorber mat IP55 for filter fan 3243.3/7/9xx/3244, pack of 5

Your rating:
Average rating
product review for Rittal 3183135 SK SK absorber mat IP55 for filter fan 3243.3/7/9xx/3244, pack of 5
( 4.3 / 5 ) 3 ratings

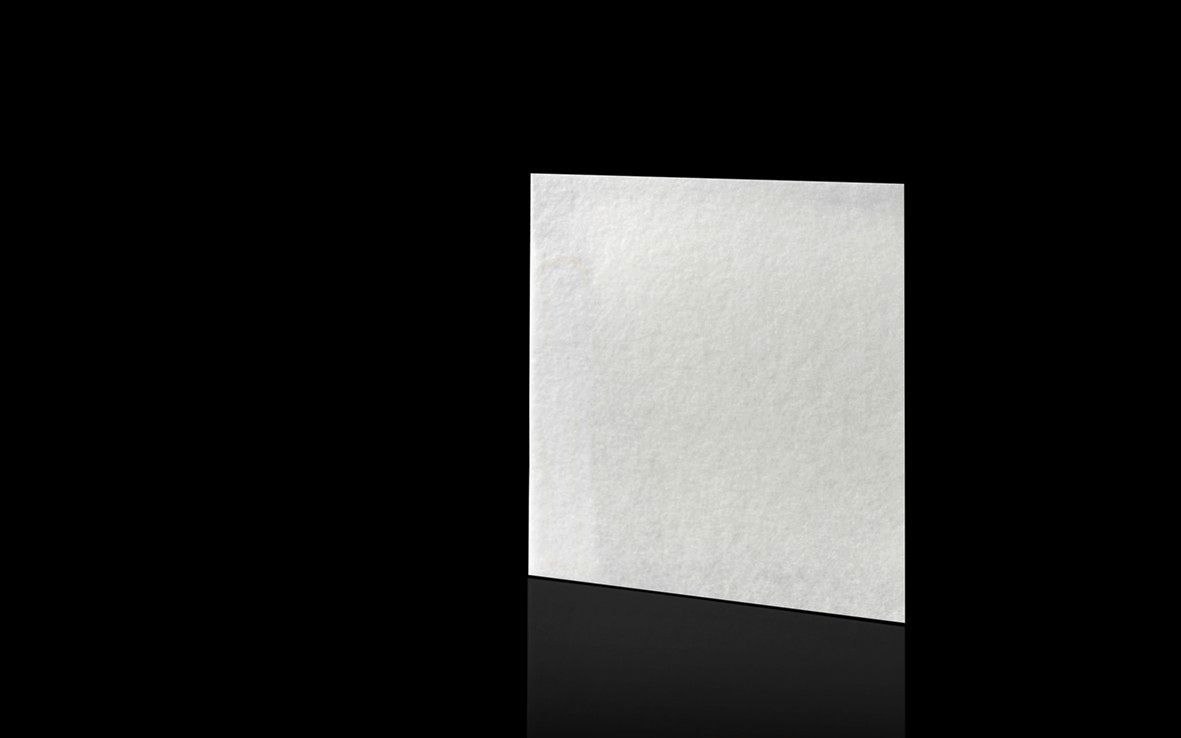

Rittal 3183135
This image may differ from the desired article.
Rittal 3183135Rittal 3183135
62,91 EUR 65,61 EUR
( 74,86 EUR incl. VAT )
≈ £52.66  |  ≈ $69.14
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
Sales unit: 5 pieces
1x Rittal 3183135 SK SK absorber mat IP55 for filter fan 3243.3/7/9xx/3244, pack of 5
Datasheet:file_download Download
Lieske Part No.:1571618
Mfg Part No: 3183135
UPC/EAN: 4028177042773
Weight:0.087 kg
Type:SK 3183135

Product information for Rittal 3183135:

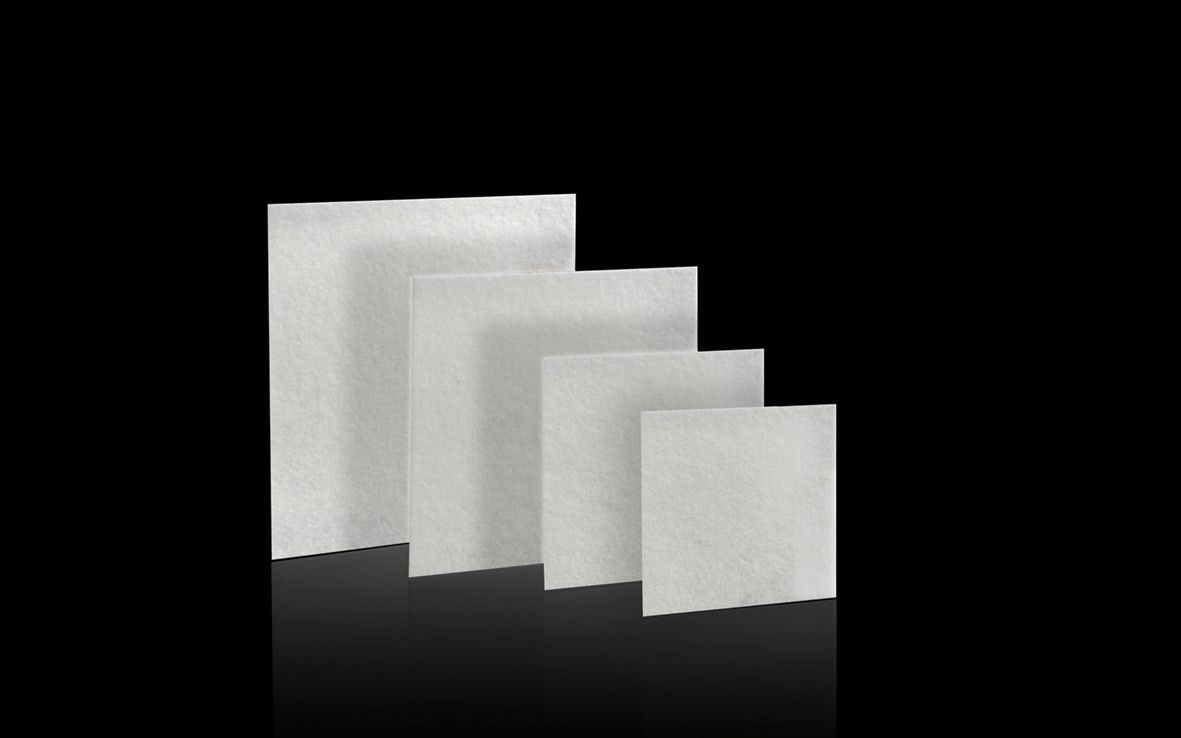

The SK 3183135 is an absorber mat from Rittal, specifically developed for use in pleated filters of filter fans. It serves as an additional protection filter to ensure the protection rating IP 55 when combined with the corresponding Blue e+ filter fans. The mat is made of 100 % polyester and is available in white. Its dimensions are 289 mm width, 289 mm height, and 2.9 mm depth, enabling a precise fit for the specified filter fan models.

Applications
The absorber mat is used in industrial enclosures where a high level of protection against dust and splashing water is required. It is intended for filter fans with article numbers 3243.3xx, 3243.7xx, 3243.900, 3244.7xx, 3244.900, and 3245.9xx. When used with filter fans of the 3245.xxx series, a protection rating of IP 55 is achieved. The mat is not suitable for EMC filter fans, as these have a different construction and filter technology.

Functions and Equipment in Detail
The absorber mat is made of fine polyester material that effectively retains dust particles and fine contaminants. The white color facilitates visual inspection of the contamination level. The precise fit ensures a tight seal within the filter housing, preventing air leaks. The use of the mat is essential to achieve the specified protection ratings IP 55 or IP 55, as the performance data and approvals of the devices are only guaranteed when used with original Rittal filter mats.

Technology Explained Simply
The protection rating IP 55 means the device is protected against dust and splashing water from all directions. This is particularly important in industrial environments where enclosures are exposed to dust, fine dirt, and occasional splashing water. The absorber mat acts as an additional filter, cleaning the air before it enters the enclosure. The protection rating IP 55, achieved when used with 3245.xxx filter fans, protects against dust and vertical splashing water. The IP classification according to IEC 60 529 is internationally recognized and provides a clear reference for environmental resistance.

Compatibility and Accessories
The absorber mat is designed exclusively for the specified filter fan models. Compatibility is limited to article numbers 3243.3xx, 3243.7xx, 3243.900, 3244.7xx, 3244.900, and 3245.9xx. When used with 3245.xxx models, a protection rating of IP 55 is achieved. The mat is not intended for EMC filter fans, as these require a different filter technology. The use of original Rittal filter mats is necessary to ensure full performance data and approvals of the devices.

Installation and Mounting
The absorber mat is inserted into the pleated filter of the respective filter fan. Installation is done by simply placing it into the designated position in the filter housing. The precise fit ensures a secure and tight seal. No special mounting instructions or tools are required, as the mat fits directly into the filter housing. Installation is carried out during maintenance or replacement of the filter system.

Operational Advantages
The use of the absorber mat ensures the required protection rating, increasing the reliability and service life of the enclosure climate control. The filtering function protects internal components from contamination, extending maintenance intervals and enhancing operational safety. The easy handling and precise fit simplify maintenance and replacement procedures. The use of original Rittal filter mats ensures compliance with all technical specifications and approvals.

The item price shown refers to 5 pieces Rittal 3183135
General
Modelfor pleated filters
MaterialAbsorber mat: 100 % polyester
ColourWhite
NoteThe performance data, degree of protection and approvals of the devices are only guaranteed in combination with original Rittal filter mats.
Suitable for part no.3243.3xx, 3243.7xx, 3243.900, 3244.7xx, 3244.900, 3245.9xx
Absorber mat dimensionsWidth: 289 mm, Height: 289 mm, Depth: 2.9 mm
Degree of protection IP according to IEC 60 529IP 55 in combination with the pleated filter
Degree of protectionDegree of protection in combination with filter fan/exhaust filter 3245.xxx is IP 52
Note on part numberNot suitable for use in EMC filter fans.


Product data sheet
Datasheet for Rittal 3183135, EAN: 4028177042773

Questions & answers

What is the delivery time of Rittal 3183135 SK SK absorber mat IP55 for filter fan 3243.3/7/9xx/3244, pack of 5?

The article Rittal 3183135 SK SK absorber mat IP55 for filter fan 3243.3/7/9xx/3244, pack of 5 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3183135 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3183135 SK SK absorber mat IP55 for filter fan 3243.3/7/9xx/3244, pack of 5 always at the best possible price. We can give you a discount of 2% on Rittal 3183135 SK SK absorber mat IP55 for filter fan 3243.3/7/9xx/3244, pack of 5 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Rittal 3183135 SK SK absorber mat IP55 for filter fan 3243.3/7/9xx/3244, pack of 5 is offered by us in a sales unit of 5 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
