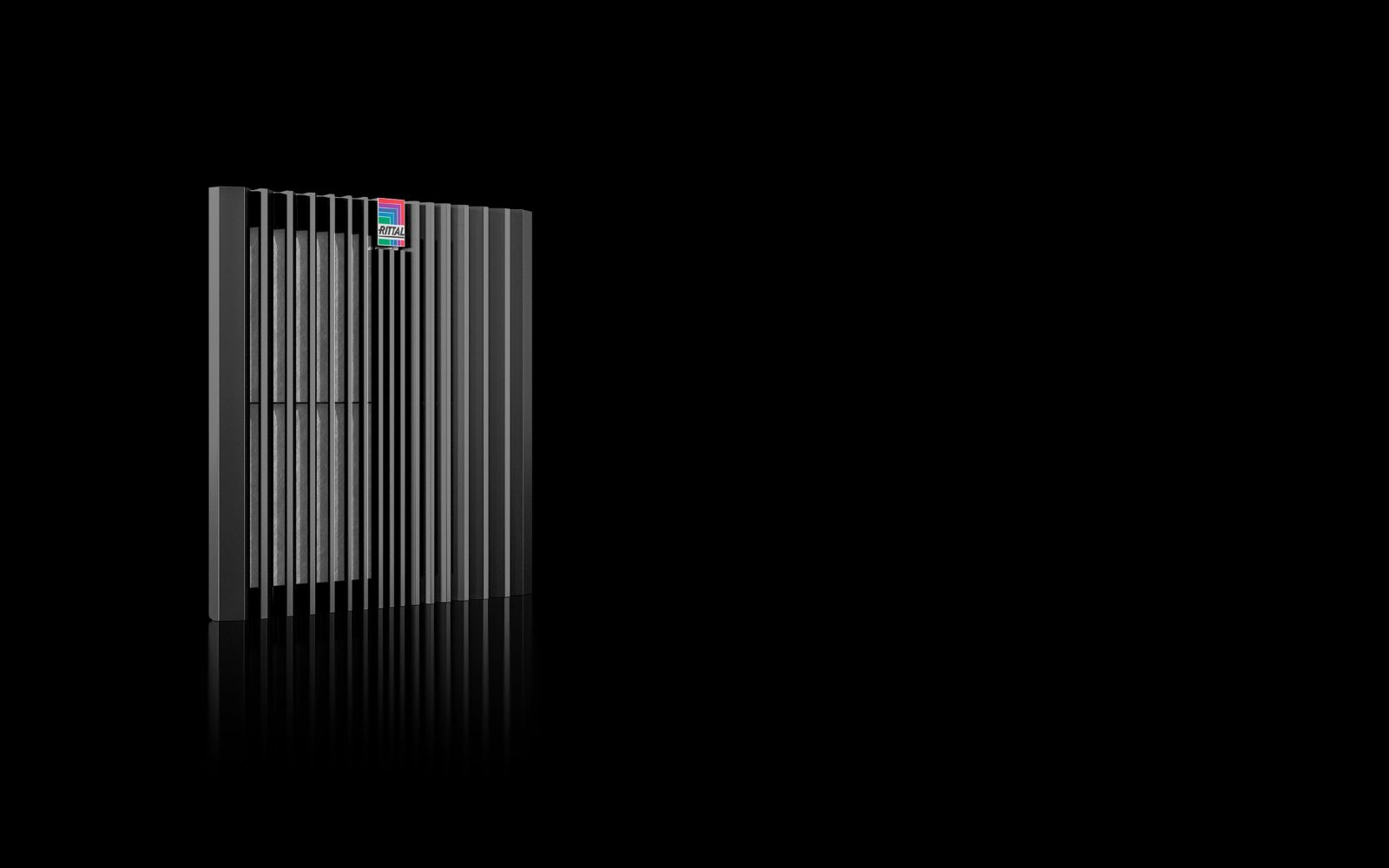

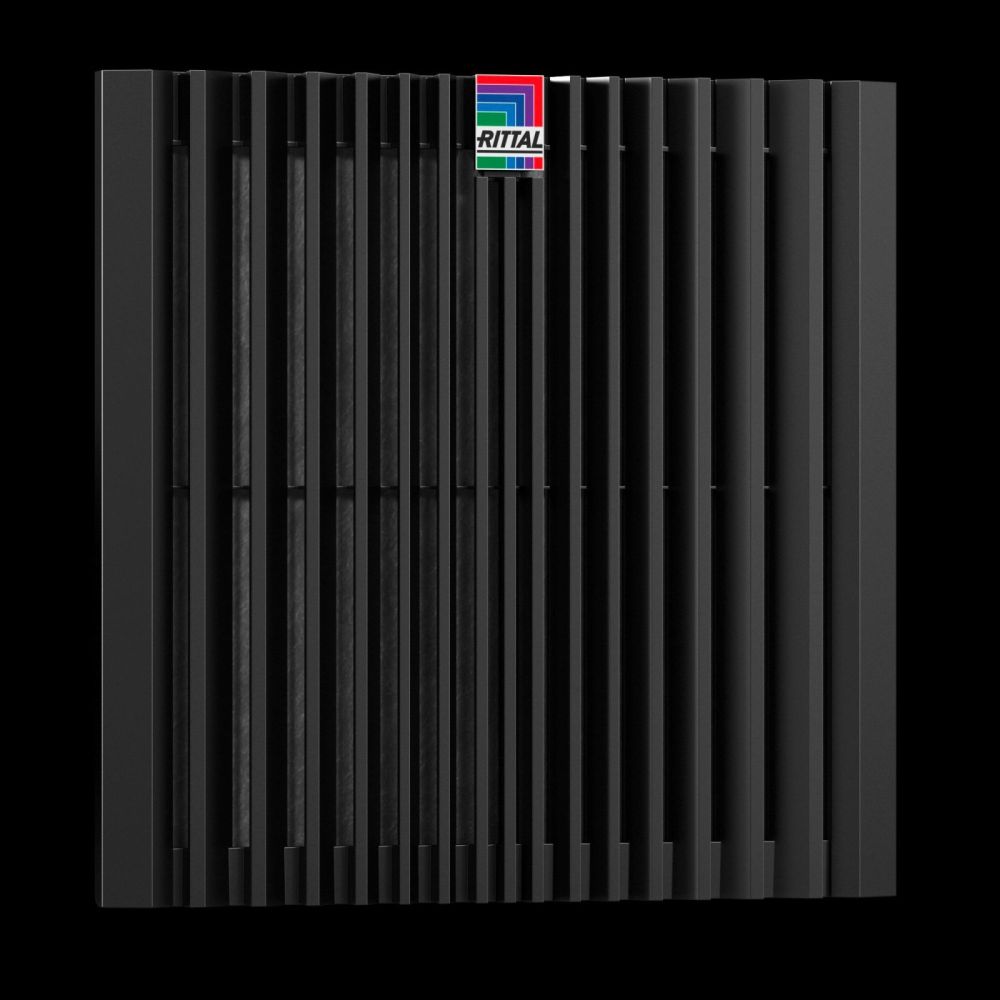

Rittal 3243308 Blue e+ outlet filter, RAL 9005

Your rating:
Average rating
product review for Rittal 3243308 Blue e+ outlet filter, RAL 9005
( 4.3 / 5 ) 3 ratings
Rittal 3243308
This image may differ from the desired article.
Rittal 3243308Rittal 3243308Rittal 3243308Rittal 3243308Rittal 3243308Rittal 3243308Rittal 3243308Rittal 3243308
42,67 EUR
( 50,78 EUR incl. VAT )
≈ £35.71  |  ≈ $46.89
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3243308 Blue e+ outlet filter, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683858
Mfg Part No: 3243308
UPC/EAN: 4028177998322
Weight:0.95 kg
Type:SK 3243.308

Product information for Rittal 3243308:

The Rittal SK 3243.308 is an outlet filter for filter fans of the SK 3243.7xx, 3243.9xx, 3244.7xx, 3244.9xx and 3245.9xx series. It serves air purification in the exhaust area of enclosures and ensures continuous filtration, protecting indoor air from dust particles. The unit is designed for wall mounting and is made of plastic in the colour RAL 9005. Dimensions are 323 mm width and 323 mm height, with the mounting cutout requiring a clearance of 292 mm width and 292 mm height. The filter depth is 44.7 mm.

Applications

The outlet filter is used in industrial environments where controlled airflow and protection against contamination are required. It is specifically designed for enclosures equipped with filter fans to regulate internal temperature while maintaining air quality. Typical applications include production plants, machine controls, or environments with high dust exposure.

Functions and Equipment in Detail

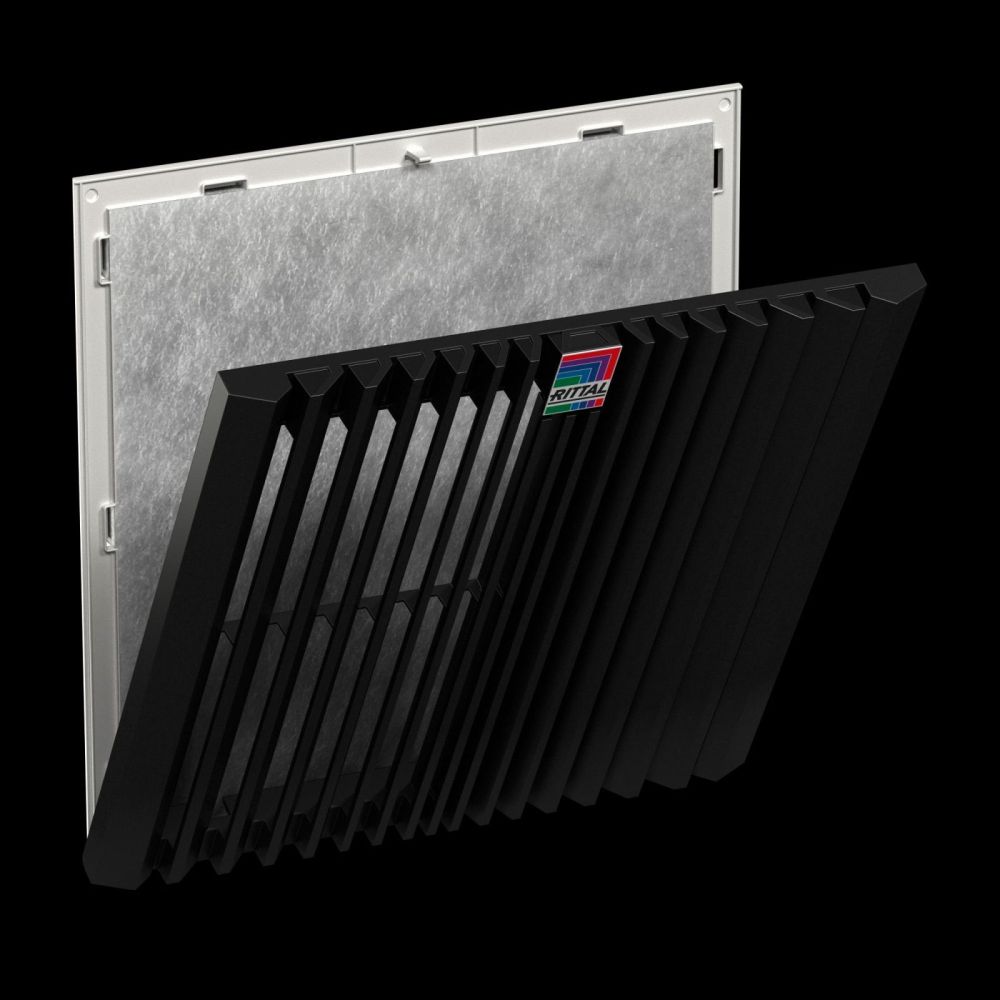

The filter features an opening mechanism on the louver grille, simplifying filter replacement. Mounting to the enclosure is tool-free and enabled by optimised snap hooks, ensuring quick and secure installation. The delivery includes the outlet filter and a pleated filter. This combination ensures efficient particle separation and supports air purification within the enclosure.

Technology Explained Simply

The filtration technology is based on a pleated filter, which provides a large filter surface in a compact design. This increases filtration performance and extends the filter’s service life. Protection rating IP 54 is achieved when the filter is used with a non-woven or pleated filter. When used with a pleated filter and an absorber mat, the protection rating increases to IP 54. With an additional spray water hood, the filter reaches IP 54. NEMA protection ratings include Type 12 with non-woven or pleated filter, and Type 3, 3R, 4, and 4X when the filter is used with non-woven or pleated filter and spray water hood. These protection ratings are suitable for use in humid, dusty, or splash-water environments.

Compatibility and Accessories

The outlet filter is specifically designed for filter fan models SK 3243.7xx, 3243.9xx, 3244.7xx, 3244.9xx and 3245.9xx. As accessories, replacement filter mats (available in packs of 5 or 50) are available to maintain filtration performance. A spray water hood made of stainless steel increases the protection rating and is suitable for use in wet environments. A blind cover for the mounting cutout is also available if the filter is not installed. Additionally, special pleated filters for IP 54 and IP 54 and an absorber mat for IP 54 are available to further enhance filtration performance and protection rating.

Mounting and Installation

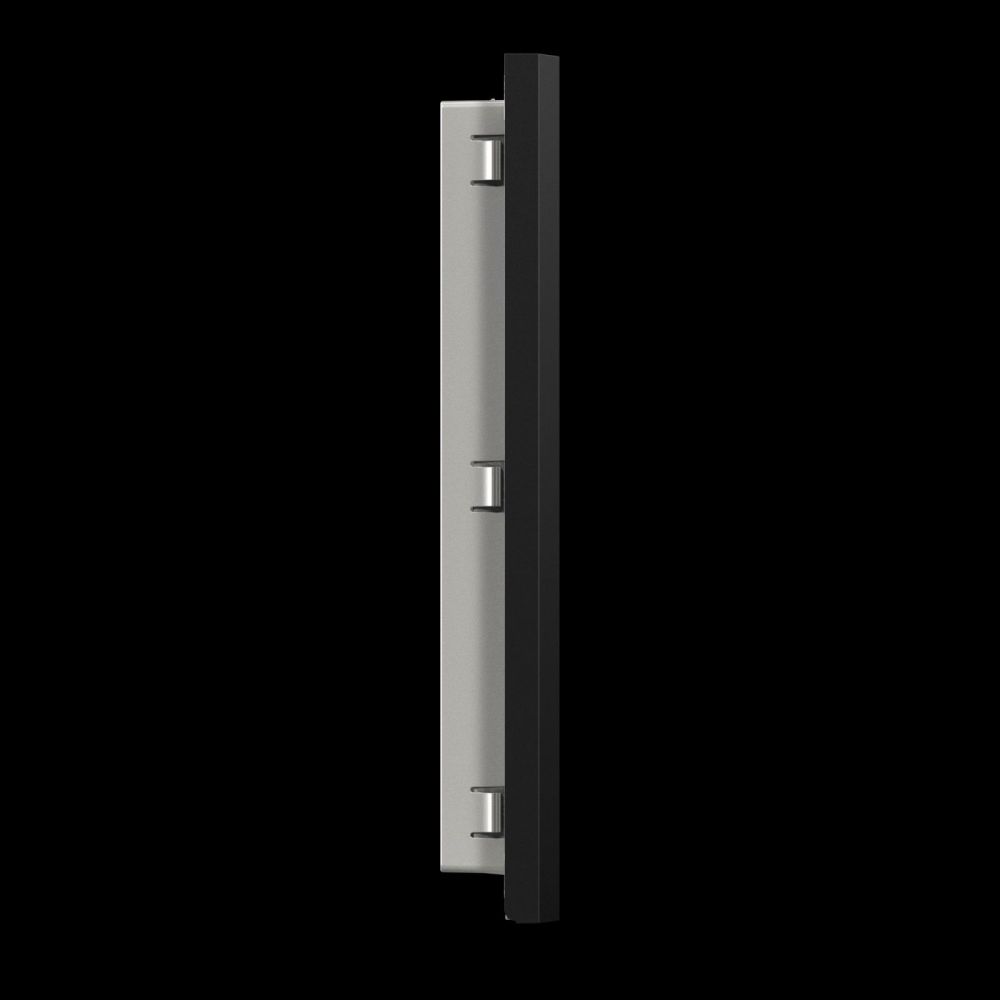

Installation is tool-free at the designated location in the enclosure. The snap hooks allow for quick and secure fastening. The mounting cutout of 292 mm × 292 mm must be provided in the enclosure. Installation is performed after removing the old filter, inserting the new filter into the holder and locking it in place.

Operational Advantages

The filter offers easy maintenance through tool-free replacement and the integrated opening mechanism. The combination of pleated filter and absorber mat enables a higher protection rating, expanding application possibilities in demanding environments. Using replacement filters ensures continuous air purification and extends the service life of the entire ventilation system. The RAL 9005 colour matches standard enclosure colours aesthetically.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryOutlet filter, pleated filter
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Suitable for part no.SK 3243.7xx/3243.9xx/3244.7xx/3244.9xx/3245.9xx
Width323 mm
Height323 mm
Depth44,7 mm
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood


Product data sheet
Datasheet for Rittal 3243308, EAN: 4028177998322

Questions & answers

What is the delivery time of Rittal 3243308 Blue e+ outlet filter, RAL 9005?

The article Rittal 3243308 Blue e+ outlet filter, RAL 9005 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3243308 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3243308 Blue e+ outlet filter, RAL 9005 always at the best possible price. We can give you a discount of 2% on Rittal 3243308 Blue e+ outlet filter, RAL 9005 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
