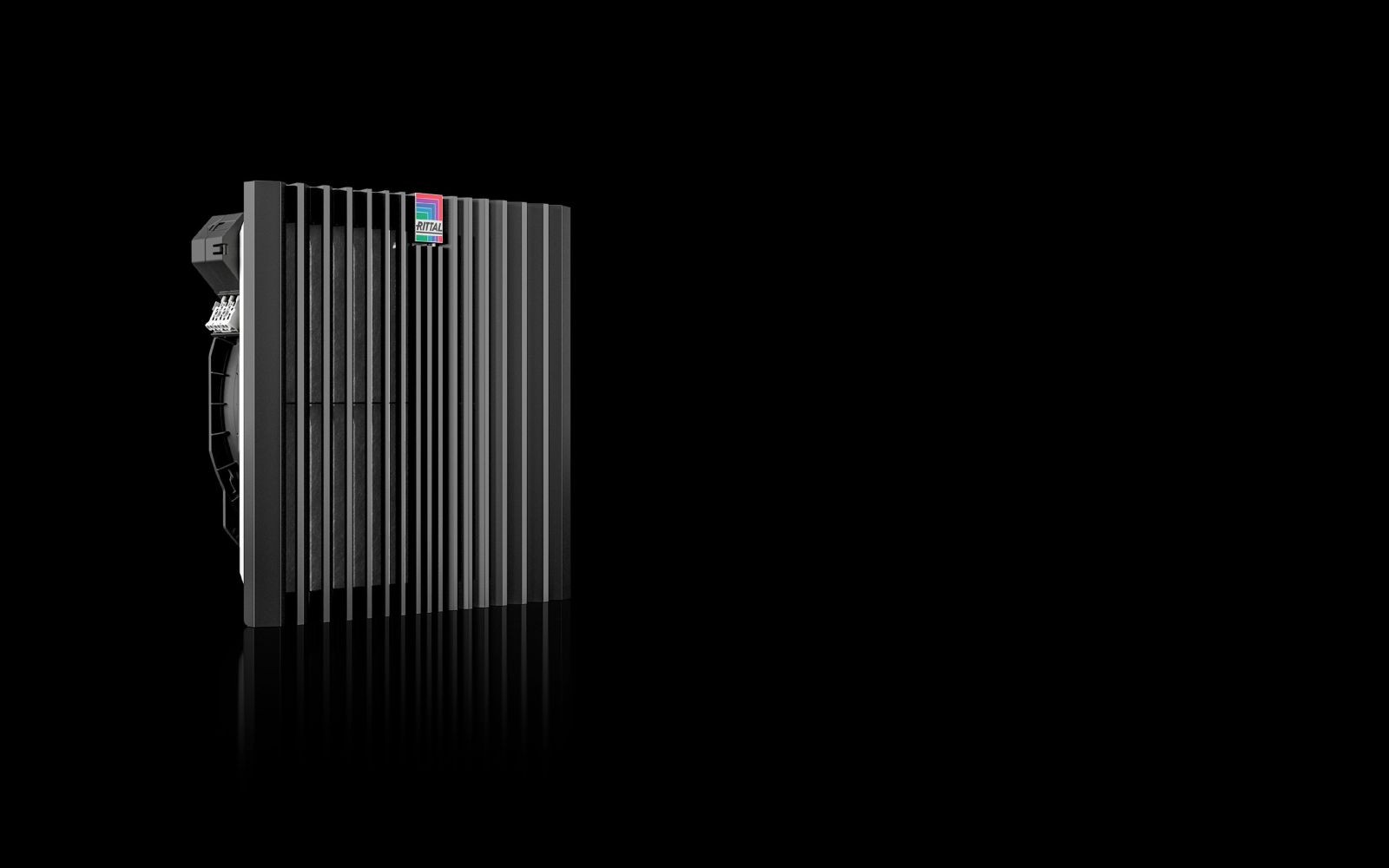

Rittal 3244708 Blue e+ filter fan 867/910 m³/h, 230 V, RAL 9005

Your rating:
Average rating
product review for Rittal 3244708 Blue e+ filter fan 867/910 m³/h, 230 V, RAL 9005
( 4.5 / 5 ) 2 ratings
Rittal 3244708
This image may differ from the desired article.
Rittal 3244708Rittal 3244708Rittal 3244708Rittal 3244708Rittal 3244708
184,69 EUR
( 219,78 EUR incl. VAT )
≈ £154.59  |  ≈ $202.97
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 3244708 Blue e+ filter fan 867/910 m³/h, 230 V, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683871
Mfg Part No: 3244708
UPC/EAN: 4028177997905
Weight:5.002 kg
Type:SK 3244.708

Product information for Rittal 3244708:

The Rittal SK 3244.708 is a filter fan for enclosure climate control, designed as a wall-mounted unit. The device serves for controlled ventilation of enclosures, regulating internal temperature and protecting installed components from overheating. It is finished in RAL 9005 and made of plastic, making it lightweight and robust. The unit is fully ready for installation and includes in the delivery scope a pleated filter, already mounted. Installation is tool-free via optimized snap hooks, accelerating mounting on the enclosure.

Applications include industrial plants, control and distribution enclosures, and other closed housings where continuous air circulation is required. The fan is suitable for use in environments with dust, humid air, or minor splashing water, with protection rating varying according to additional equipment. Standardly, the device offers a protection rating IP 54 with fleece filter or pleated filter, which is dust- and splash-proof. With an additional absorber mat, it reaches IP 55, and with a spray water hood, the protection rating can be increased to IP 56. According to NEMA standards, the unit corresponds to Type 12 with fleece or pleated filter, as well as Type 3, 3R, 4, 4X when using a spray water hood.

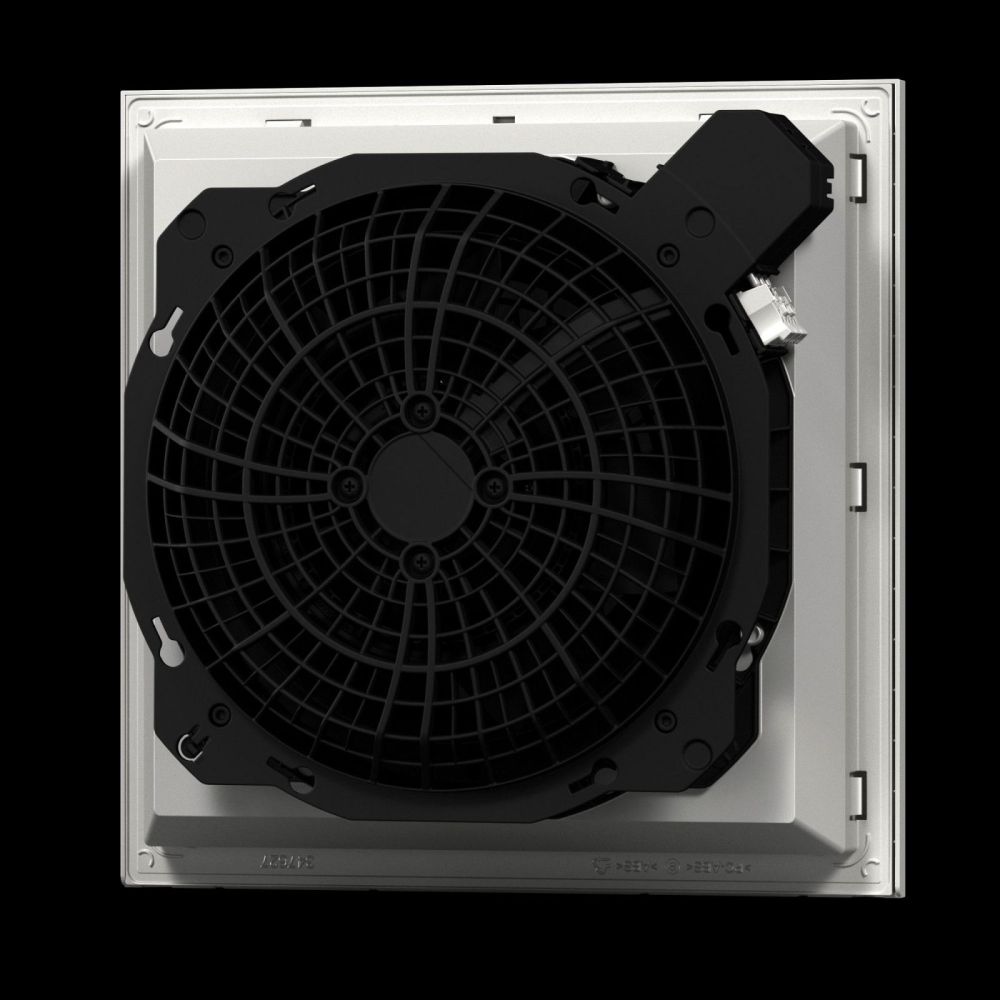

Functions and equipment in detail include diagonal fan technology with a 1~ capacitor motor, ensuring higher pressure stability and more uniform air distribution within the enclosure. The diagonal exhaust direction ensures consistent airflow and even cooling of installed components. Airflow is 867 m³/h at 50 Hz and 910 m³/h at 60 Hz with the included pleated filter. When using a fleece filter, free-blowing airflow reduces to 700 m³/h at 50 Hz and 770 m³/h at 60 Hz. With an associated outlet filter, airflow further decreases to 720 m³/h at 50 Hz and 745 m³/h at 60 Hz with pleated filter, and to 537 m³/h at 50 Hz and 587 m³/h at 60 Hz with fleece filter. Rated power is 114.4 W at 50 Hz and 153.5 W at 60 Hz, with maximum rated current at 0.51 A at 50 Hz and 0.68 A at 60 Hz. Rated operating voltage is 230 V, 1~, 50 Hz/60 Hz.

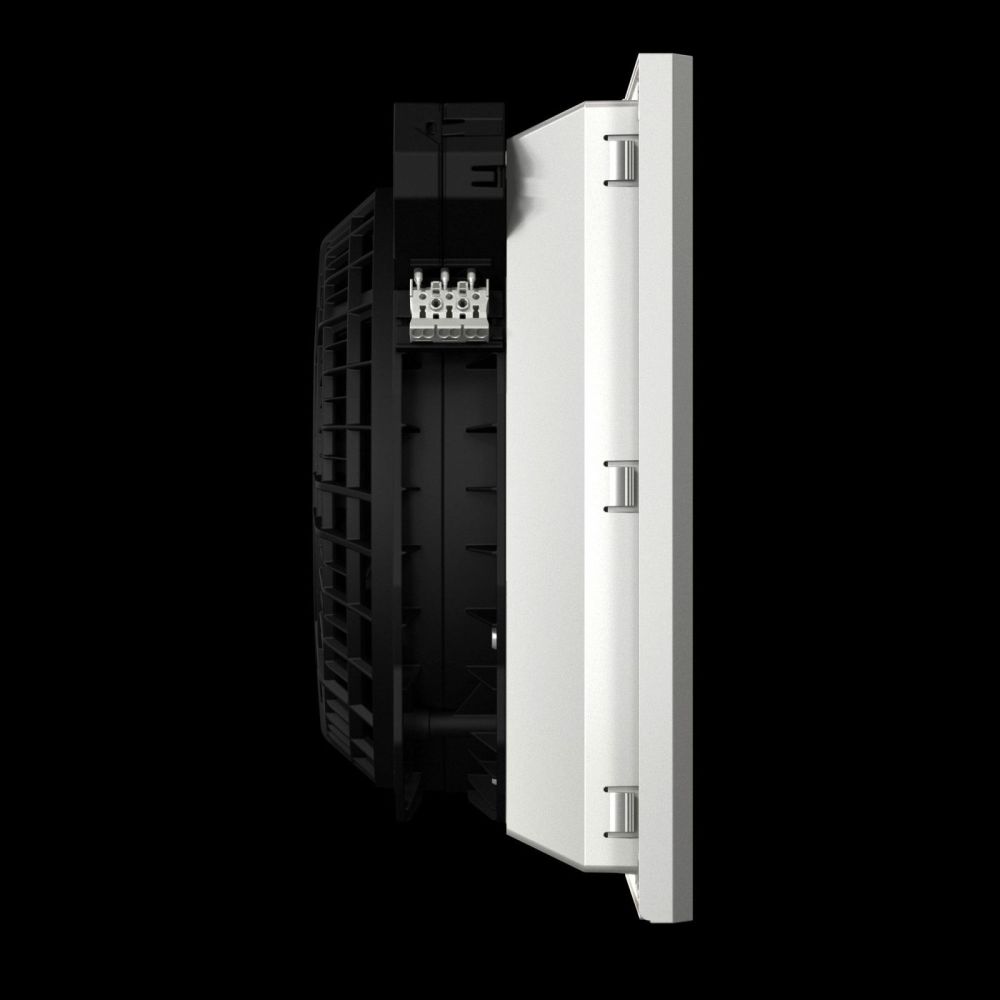

Technology explained simply shows that the fan features a spring clamp terminal for electrical connection, enabling quick and secure wiring. Airflow is managed by the diagonal fan, ensuring uniform air distribution in the enclosure. Integrated filter technology ensures dust and particles are filtered from incoming air, extending the lifespan of installed electronic components. Sound pressure level is 64 dB(A) at 50 Hz and 66 dB(A) at 60 Hz, representing acceptable noise emissions for industrial environments. Operating temperature range is between -30 °C and 55 °C, storage temperature range between -30 °C and 70 °C.

Compatibility and accessories include various options for adapting to specific requirements. Suitable accessories include, for example, Blue e+ outlet filters in RAL 9005, thermostats for internal temperature control, speed controllers for filter fans, replacement filter mats in various quantities, hygrostats, spray water hoods made of stainless steel, blanking plates for mounting cutouts, pleated filters IP 54, and absorber mats IP 54. These components allow for enhanced protection ratings and more precise temperature control.

Mounting and installation are tool-free via integrated snap hooks. The mounting cutout measures 292 mm width and 292 mm height, with an installation depth of 136 mm. The device dimensions are 323 mm width, 323 mm height, and 156 mm depth. The pre-fuse is rated at 4 A, ensuring electrical safety.

Operational advantages include high airflow, easy installation, tool-free filter replacement via a new opening mechanism on the louver grille, and high reliability due to diagonal fan technology. Integrated filtration ensures clean air supply to the enclosure, enhancing operational safety. The unit is designed for industrial environments where continuous and reliable climate control is required.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanDiagonal, 1~ capacitor motor
Airflow free blowing (with pleated filter)At 50 Hz: 867 m³/h, At 60 Hz: 910 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 720 m³/h, At 60 Hz: 745 m³/h
Airflow free-blowing (with filter)At 50 Hz: 700 m³/h, At 60 Hz: 770 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 537 m³/h, At 60 Hz: 587 m³/h
Rated operating voltage230 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 114.4 W, At 60 Hz: 153.5 W
Rated current max.At 50 Hz: 0.51 A, At 60 Hz: 0.68 A
Width323 mm
Height323 mm
Depth156 mm
Built-in depth136 mm
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 4 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-30 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 64 dB(A), At 60 Hz: 66 dB(A)


Product data sheet
Datasheet for Rittal 3244708, EAN: 4028177997905

Questions & answers

What is the delivery time of Rittal 3244708 Blue e+ filter fan 867/910 m³/h, 230 V, RAL 9005?

The article Rittal 3244708 Blue e+ filter fan 867/910 m³/h, 230 V, RAL 9005 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3244708 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3244708 Blue e+ filter fan 867/910 m³/h, 230 V, RAL 9005 always at the best possible price. We can give you a discount of 2% on Rittal 3244708 Blue e+ filter fan 867/910 m³/h, 230 V, RAL 9005 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
