Rittal 3183125 Pleated filter IP55 for filter fan/outlet filter

Your rating:
Average rating
product review for Rittal 3183125 Pleated filter IP55 for filter fan/outlet filter
( 5 / 5 ) 3 ratings
Rittal 3183125

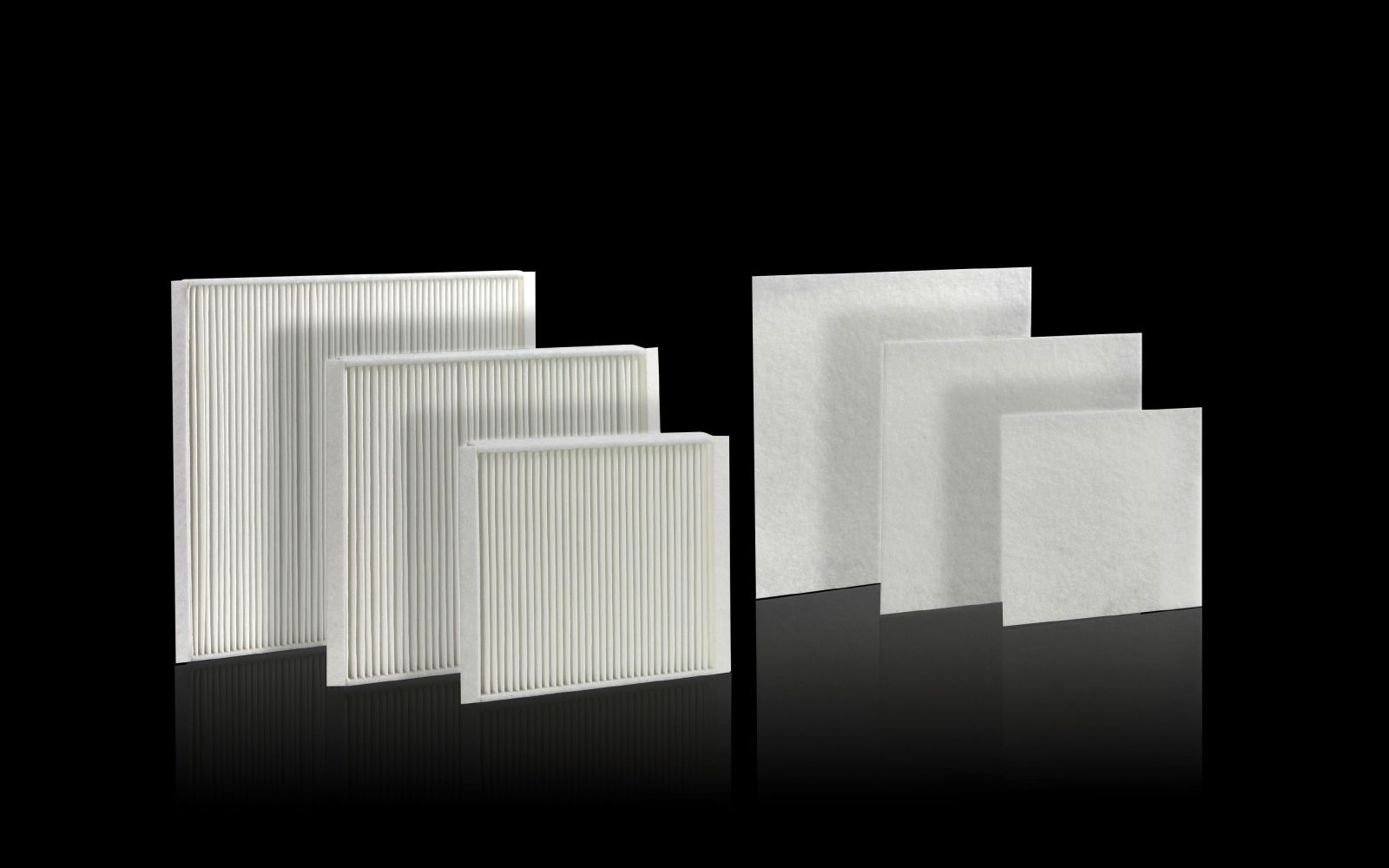

This image may differ from the desired article.
Rittal 3183125Rittal 3183125
71,51 EUR 71,53 EUR
( 85,10 EUR incl. VAT )
≈ £59.85  |  ≈ $78.59
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 3183125 Pleated filter IP55 for filter fan/outlet filter
Datasheet:file_download Download
Lieske Part No.:1101876
Mfg Part No: 3183125
UPC/EAN: 4028177969087
Weight:0.62 kg
Type:SK 3183125

Product information for Rittal 3183125:

The article SK 3183125 from Rittal is a pleated filter for filter fans and outlet filters, specifically designed for use in industrial enclosures and climate control systems. It serves for air purification and dust separation in the airflow, ensuring the internal hygiene of the enclosure and extending the service life of installed components. The filter mat is white in colour and consists of a pleated filter with a polyester base and a meltblown layer made of polycarbonate, supplemented by an absorber mat made of 100 % polyester. This material combination enables efficient particle separation and stable airflow.

Applications
The filter is intended for filter fans and outlet filters with article numbers 3243.3xx, 3243.7xx, 3243.900, 3244.7xx, 3244.900 and 3245.9xx. It is not suitable for EMC filter fans. The application is in industrial environments where continuous air purification is required, for example in production plants, automation systems or climate control units for enclosures. The filter technology reduces dust loading inside the enclosure, extending maintenance intervals and increasing operational reliability.

Functions and Equipment in Detail
The pleated filter offers optimised filtration performance through its special pleated structure, which allows a higher volume flow compared to conventional nonwoven filters. This leads to improved cooling performance of connected devices and reduced energy consumption. The absorber mat additionally binds fine particles and contaminants. Dimensions are 280 mm width, 282 mm height and 21 mm depth. The absorber mat has dimensions of 289 mm width, 289 mm height and 2.9 mm depth. The filter mat is available in a packaging unit of 5 pieces.

Technology Explained Simply
The pleated filter technology increases the filter surface area compared to flat nonwoven filters, enabling better air permeability and simultaneously more efficient particle separation. The meltblown layer made of polycarbonate ensures fine filtration, while the absorber mat made of polyester is specifically designed for binding fine dust particles. The protection rating IP 55 is achieved when mounted in a filter fan or outlet filter, which is dust-tight and splash-proof, making it suitable for outdoor use or humid environments. When used with filter fans of the 3245.xxx series, the protection rating is IP 55, which is dust-tight and protected against vertically falling water droplets.

Compatibility and Accessories
The filter is specifically designed for the mentioned Rittal filter fans and outlet filters. The performance data, protection rating and approvals of the devices are only guaranteed when used with original Rittal filter mats. Compatibility is limited to article numbers 3243.3xx, 3243.7xx, 3243.900, 3244.7xx, 3244.900 and 3245.9xx. Use in EMC filter fans is not intended.

Installation and Mounting
Mounting is done directly into the designated filter fans and outlet filters. The filter mat is inserted into the designated holders. Installation requires no additional tools or components. The filters are designed for easy replacement to simplify maintenance.

Operational Advantages
Improved filtration performance and higher volume flow increase the cooling performance of connected devices. The longer service life of the filter mat reduces maintenance costs and operational downtime. The IP 55 protection rating ensures high reliability in demanding environments. Using original Rittal filter mats guarantees compliance with specified performance data and approvals.

General
Modelfor filter fans/exhaust filters
MaterialFolding filter: base polyester, meltblown polycarbonate, absorber mat: 100 % polyester
ColourWhite
NoteThe performance data, degree of protection and approvals of the devices are only guaranteed in combination with original Rittal filter mats.
Suitable for part no.3243.3xx, 3243.7xx, 3243.900, 3244.7xx, 3244.900, 3245.9xx
Width280 mm
Height282 mm
Depth21 mm
Absorber mat dimensionsWidth: 289 mm, Height: 289 mm, Depth: 2.9 mm
Degree of protection IP according to IEC 60 529IP 55 when mounted in filter fan/exhaust filter
Degree of protectionDegree of protection in combination with filter fan/exhaust filter 3245.xxx is IP 52
Note on part numberNot suitable for use in EMC filter fans.


Product data sheet
Datasheet for Rittal 3183125, EAN: 4028177969087

Questions & answers

What is the delivery time of Rittal 3183125 Pleated filter IP55 for filter fan/outlet filter?

The article Rittal 3183125 Pleated filter IP55 for filter fan/outlet filter is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3183125 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3183125 Pleated filter IP55 for filter fan/outlet filter always at the best possible price. We can give you a discount of 2% on Rittal 3183125 Pleated filter IP55 for filter fan/outlet filter if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
