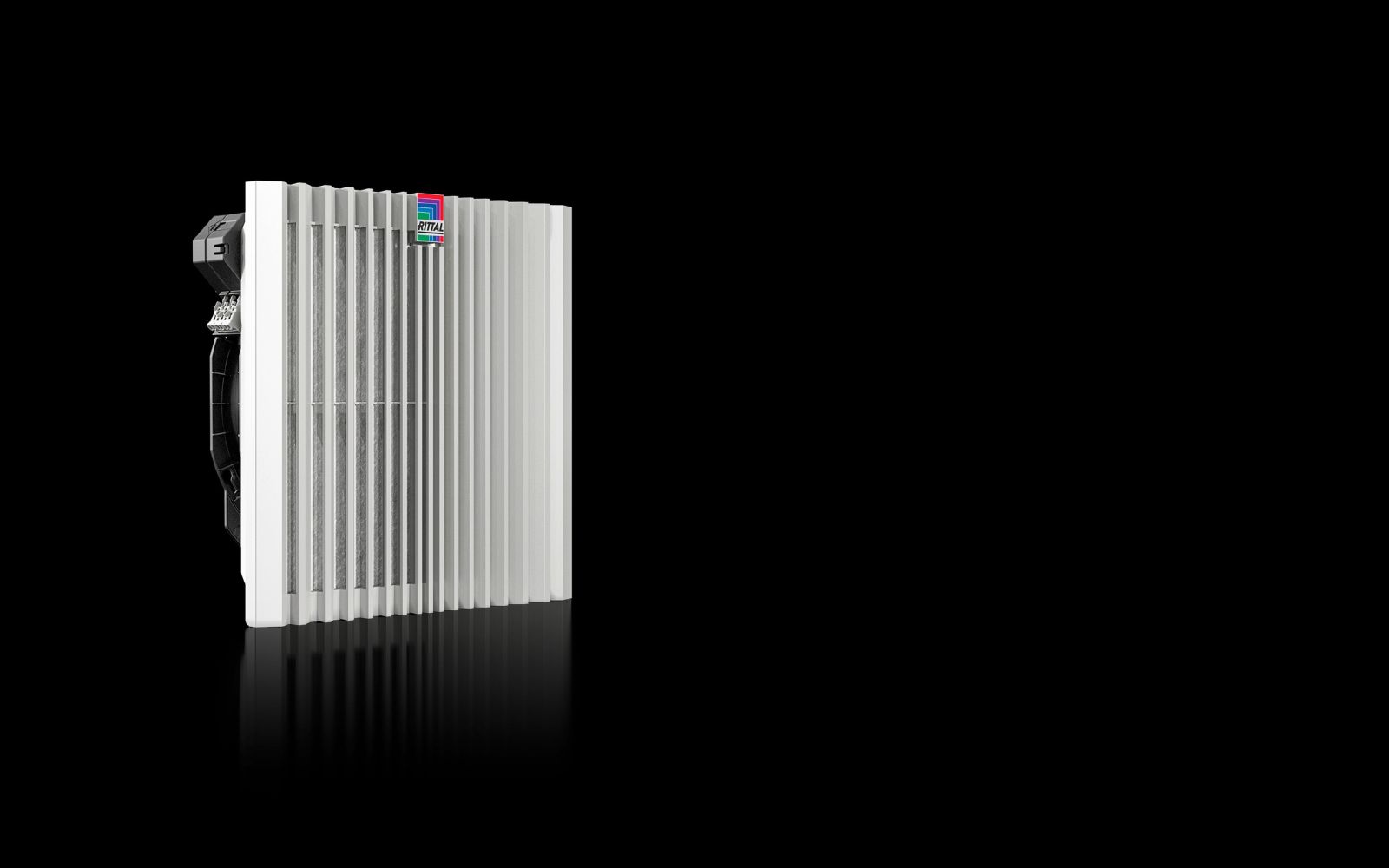

Rittal 3243710 Blue e+ filter fan 625/716 m³/h, 115 V, RAL 7035
|
166,29 EUR |
|
|
( 197,89 EUR incl. VAT ) ≈ £139.18 | ≈ $182.75 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683863 |
| Mfg Part No: | 3243710 |
| UPC/EAN: | 4028177997967 |
| Weight: | 4.292 kg |
| Type: | SK 3243.710 |
Product information for Rittal 3243710:
Applications
This filter fan is designed for use in industrial environments where continuous ventilation is required to maintain operating temperature within acceptable limits inside the enclosure. It is suitable for applications in manufacturing, power supply, automation technology, and other fields where electronic components must be protected from overheating. The protection rating IP 54 (with felt or pleated filter) provides protection against dust and splashing water, making the fan usable in slightly contaminated or humid environments. With additional components such as an absorber mat or a spray water hood, the protection rating can be increased to IP 54 or IP 54, enabling use in even more demanding environments. The corresponding NEMA protection ratings (Type 12, 3, 3R, 4, 4X) highlight its suitability for industrial applications in various regions.
Functions and Equipment in Detail

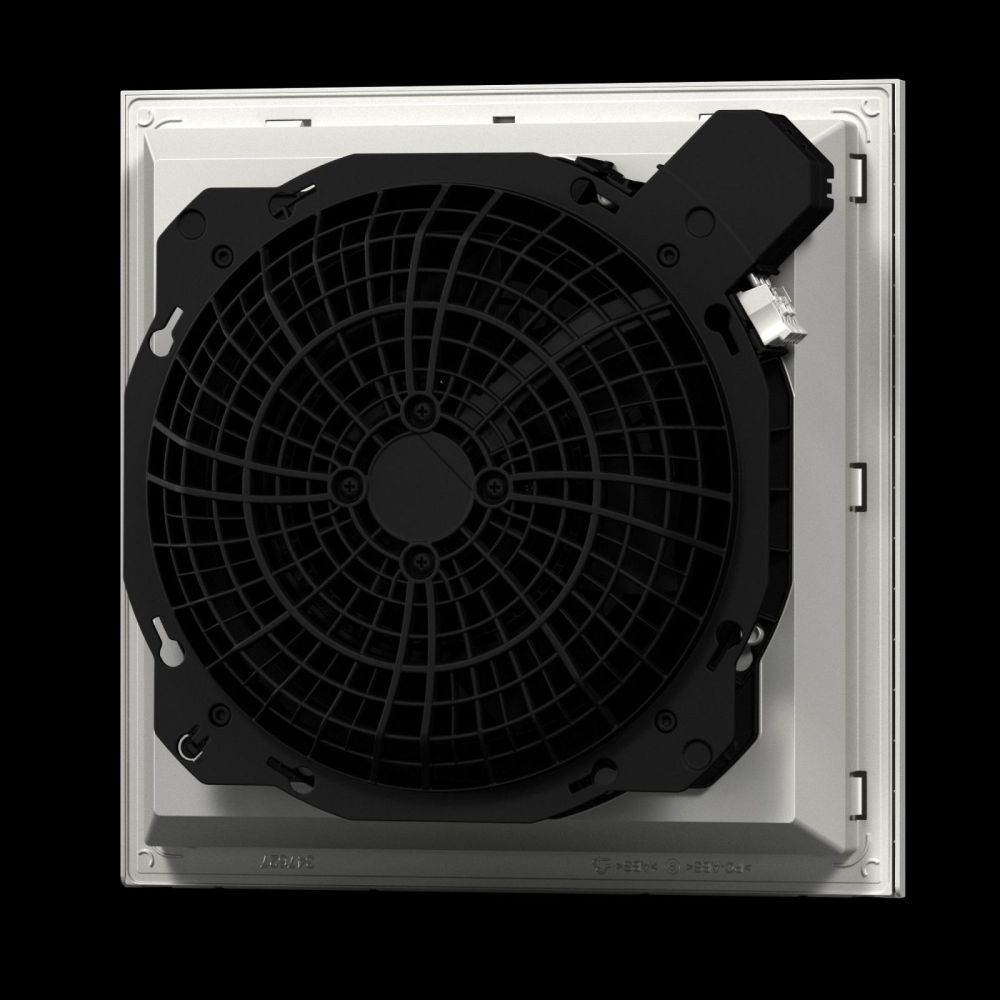

The fan is equipped with a diagonal fan based on a 1~ capacitor motor. The air performance is 625 m³/h at 50 Hz and 716 m³/h at 60 Hz when operating freely with the pleated filter installed. With a felt filter, the air performance reduces to 540 m³/h (50 Hz) and 590 m³/h (60 Hz). Air performance further decreases when an outlet filter is mounted, with values of 565 m³/h (50 Hz) and 645 m³/h (60 Hz) when using the pleated filter. The rated power is 78.7 W (50 Hz) and 102.8 W (60 Hz), with a rated current of max. 0.81 A (50 Hz) and 0.9 A (60 Hz). The rated operating voltage is 115 V, 1~, and the fan is designed for operation at 50 Hz and 60 Hz. The operating temperature range is between -30 °C and +55 °C, allowing use in regions with varying climates. The sound pressure level is 62 dB(A) at 50 Hz and 65 dB(A) at 60 Hz, representing acceptable noise emissions for industrial applications.
Technology Explained Simply
The diagonal fan technology ensures that air flows diagonally rather than vertically from the unit. This results in more uniform air distribution within the enclosure, enabling efficient heat dissipation and avoiding hotspots. The integrated pleated filter provides effective particle filtration, protecting internal components from contamination. Tool-free mounting is achieved via optimized latching hooks, enabling quick and secure attachment to the enclosure wall. Filter replacement is simplified by a new opening mechanism on the louver grille, making maintenance easier. Electrical connection is made via 2 individual wires (approx. 300 mm length) on the unit, allowing flexible cabling. The unit is made of plastic and is available in RAL 7035, enabling visual harmonization with other enclosure components.
Compatibility and Accessories
The filter fan can be combined with various accessories to adjust protection rating and functionality. These include outlet filters in RAL 7035, replacement filter mats (in packs of 5 or 50), absorber mats for IP 54, spray water hoods for IP 54, as well as thermostats and speed controllers for temperature and airflow regulation. A hygrostat can be used for humidity control. The blanking cover serves as a cover for the mounting cutout when the fan is not installed. Combining the fan with a digital temperature display and control enables precise regulation of enclosure temperature.
Mounting and Installation
Mounting is tool-free to the enclosure wall. The required mounting cutout is 292 mm (width) × 292 mm (height). The installation depth is 124 mm, and the overall dimensions of the unit are 323 mm (width) × 323 mm (height) × 144.5 mm (depth). Installation is quick and easy, as the latching hooks ensure secure fastening. Electrical connection is made via the two individual wires on the unit, providing flexible connection options. The unit is designed for use in flat surfaces, allowing it to fit even in compact enclosures.
Operational Advantages
The Rittal SK 3243.710 offers high air performance with low energy consumption and acceptable noise levels. Tool-free mounting and easy filter replacement reduce maintenance time. The diagonal fan technology ensures uniform air distribution, increasing cooling efficiency. The high protection rating IP 54 (standard) and the possibility to increase it to IP 54 or IP 54 via accessories make the fan suitable for a wide range of industrial applications. Compatibility with various control elements such as thermostats and speed controllers allows flexible adaptation to specific operating conditions. The operating temperature range of -30 °C to +55 °C allows use in regions with varying climates. The use of plastic and the RAL 7035 color ensure robust and visually uniform integration into enclosure systems.
| General | |
| Model | Wall surface mounted |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including pleated filter |
| Fan | Diagonal, 1~ capacitor motor |
| Airflow free blowing (with pleated filter) | At 50 Hz: 625 m³/h, At 60 Hz: 716 m³/h |
| Airflow with associated exhaust filter including pleated filter | At 50 Hz: 565 m³/h, At 60 Hz: 645 m³/h |
| Airflow free-blowing (with filter) | At 50 Hz: 540 m³/h, At 60 Hz: 590 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 444 m³/h, At 60 Hz: 498 m³/h |
| Rated operating voltage | 115 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 78.7 W, At 60 Hz: 102.8 W |
| Rated current max. | At 50 Hz: 0.81 A, At 60 Hz: 0.9 A |
| Width | 323 mm |
| Height | 323 mm |
| Depth | 144,5 mm |
| Built-in depth | 124 mm |
| Mounting cutout | Cutout width: 292 mm, Cutout height: 292 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood |
| NEMA degree of protection | Type 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood |
| Fuse | Circuit breaker/fuse: 6 A |
| Note | For the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal. |
| Operating temperature range | -30 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 62 dB(A), At 60 Hz: 65 dB(A) |
