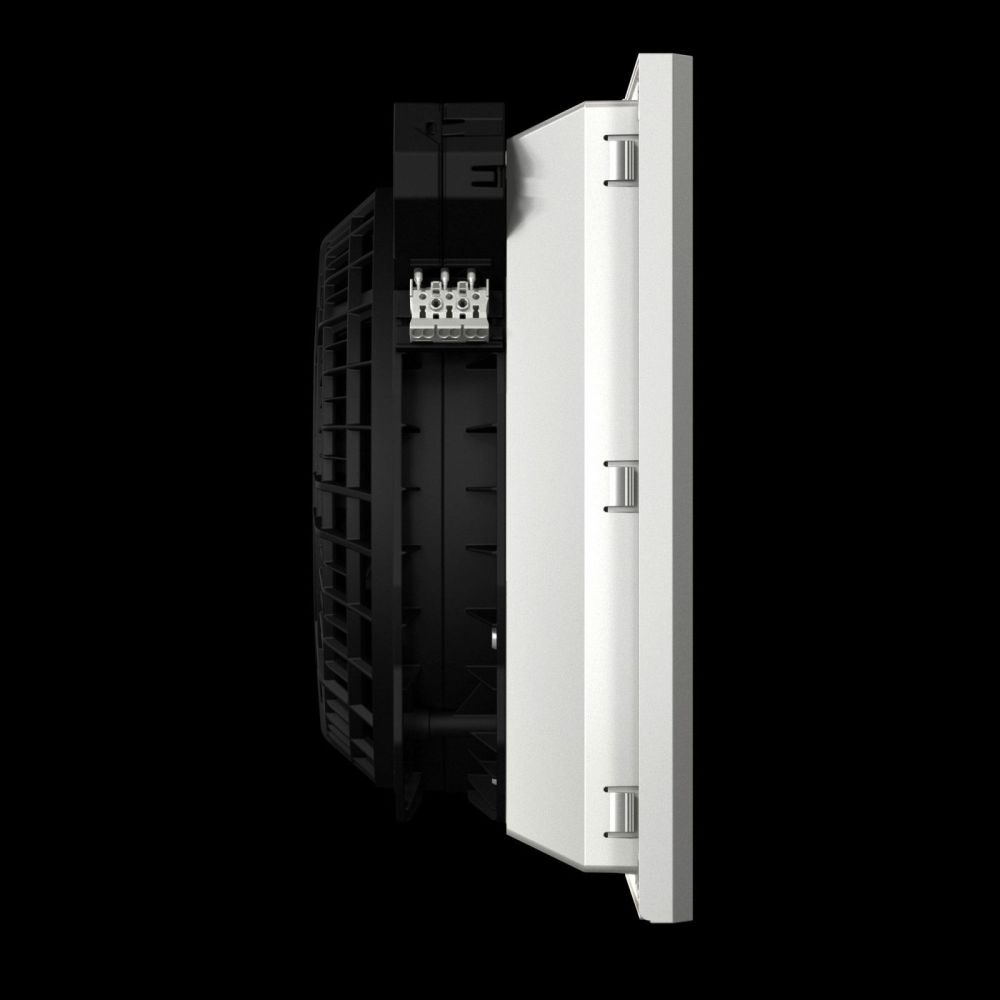

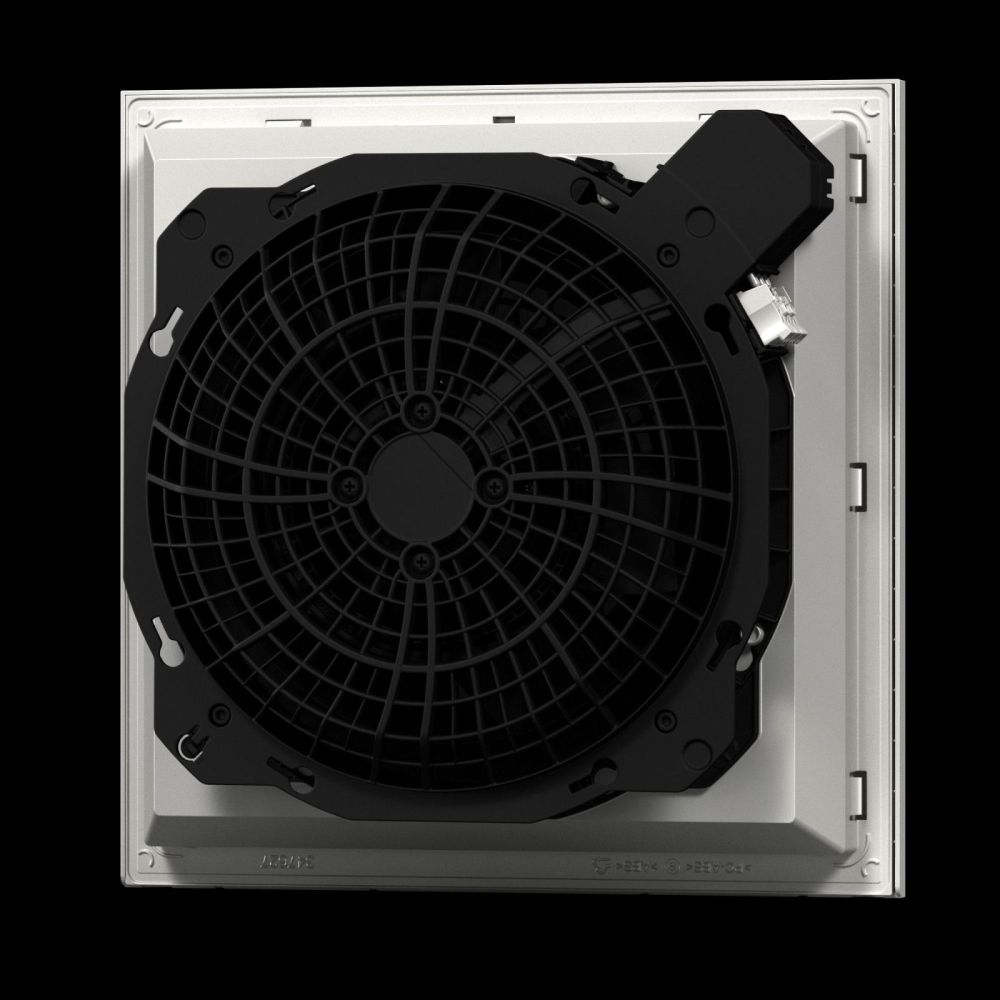

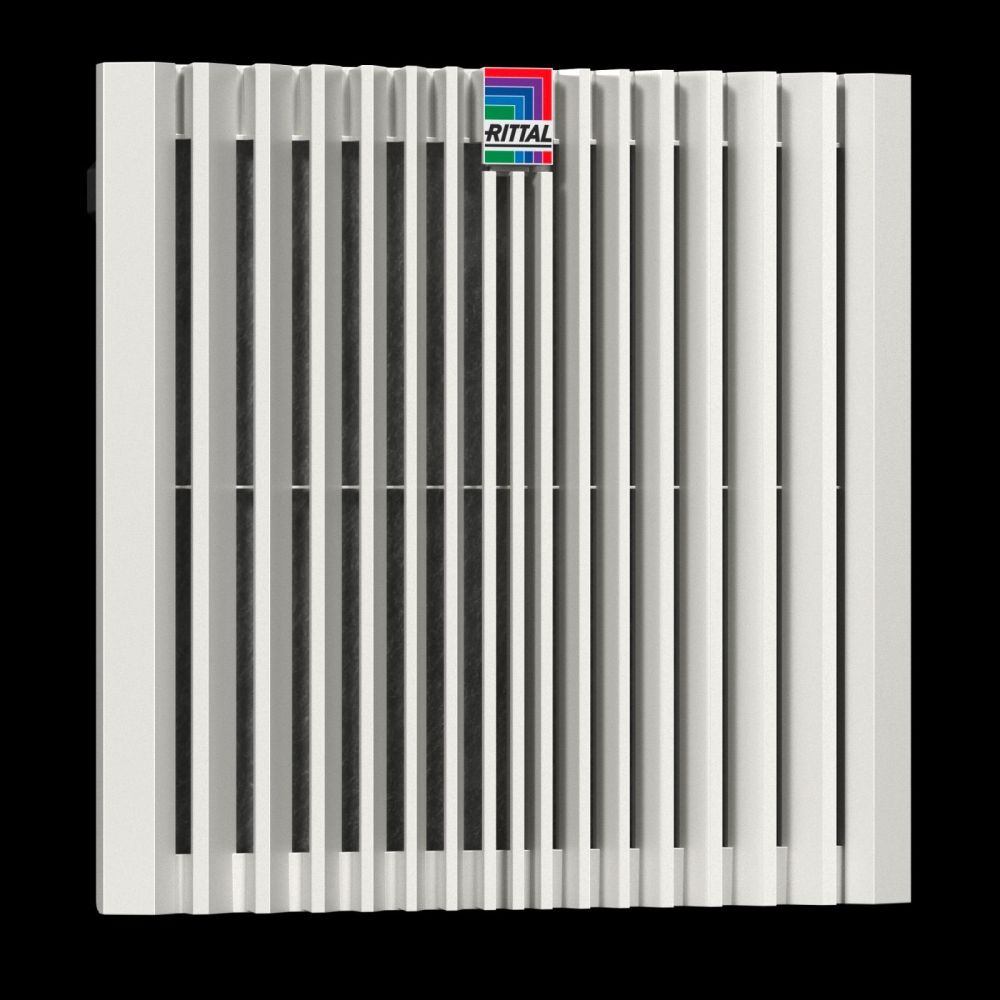

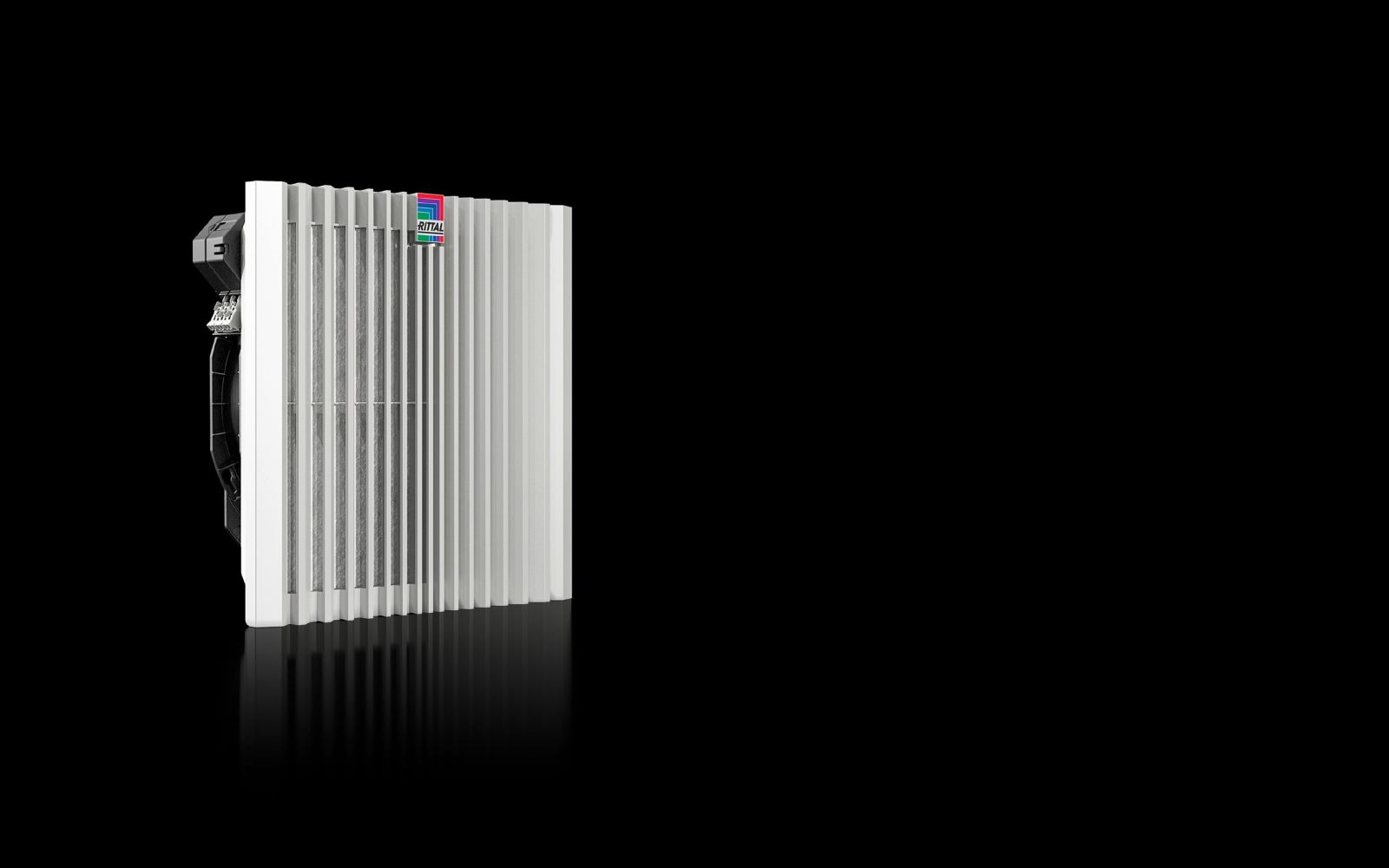

Rittal 3244710 Blue e+ filter fan 867/910 m³/h, 115 V, RAL 7035

Your rating:
Average rating
product review for Rittal 3244710 Blue e+ filter fan 867/910 m³/h, 115 V, RAL 7035
( 4 / 5 ) 5 ratings
Rittal 3244710
This image may differ from the desired article.
Rittal 3244710Rittal 3244710Rittal 3244710Rittal 3244710Rittal 3244710
180,44 EUR
( 214,72 EUR incl. VAT )
≈ £151.03  |  ≈ $198.30
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 3244710 Blue e+ filter fan 867/910 m³/h, 115 V, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683872
Mfg Part No: 3244710
UPC/EAN: 4028177997899
Weight:5.011 kg
Type:SK 3244.710

Product information for Rittal 3244710:

The Rittal SK 3244.710 is a filter fan for enclosure climate control, designed as a wall-mounted unit. It is used for controlled ventilation of enclosures to ensure even cooling of installed electronic components. The device is made of plastic and is available in the colour RAL 7035. The delivery includes a fully ready-to-install unit including pleated filter, which can be directly mounted on the enclosure wall. Installation is tool-free via optimised snap hooks, which speeds up and simplifies the process.

Applications

The filter fan is designed for use in industrial environments where continuous and reliable ventilation of enclosures is required. It is particularly suitable for installations operating in rooms with high dust loads or in areas with occasional splashing water. The integrated filter technology ensures that only cleaned air enters the enclosure, thus extending the service life of electronic components. The unit is designed for operation in a temperature range of -30 °C to 55 °C, making it suitable for use in environments with varying climatic conditions.

Functions and equipment in detail

The fan features diagonal fan technology with a 1~ capacitor motor, providing higher pressure stability and more consistent airflow. The diagonal discharge direction ensures more even cooling of the enclosure, preventing heat accumulation in specific areas. The airflow rate is 867 m³/h (free blowing with pleated filter) at 50 Hz and 910 m³/h at 60 Hz. When used with a matching outlet filter, the airflow rate drops to 720 m³/h (50 Hz) or 745 m³/h (60 Hz). The unit is equipped with a pleated filter, which is pre-installed at delivery and offers a high filtration grade. A new opening mechanism on the louver grille allows for easy and quick filter replacement.

Technology explained simply

The rated operating voltage is 115 V, 1~, and is designed for frequencies of 50 Hz and 60 Hz. The rated power is 120.7 W (50 Hz) or 166.1 W (60 Hz), with a maximum rated current of 1.06 A (50 Hz) or 1.47 A (60 Hz). The protection rating IP 54 is standard when using non-woven filters or pleated filters. With an additional absorber mat, the unit achieves IP 54, and with a spray hood, IP 54. The corresponding NEMA protection ratings are Type 12 (with non-woven filter/pleated filter) and Type 3, 3R, 4, 4X (with non-woven filter/pleated filter and spray hood). The sound pressure levels are 64 dB(A) (50 Hz) and 66 dB(A) (60 Hz), representing an acoustically acceptable operating noise level. The unit includes a pre-fuse rated at 6 A, which can be implemented as a fuse switch or a fuse.

Compatibility and accessories

The filter fan can be combined with various accessories to adjust protection rating or functionality. These include outlet filters in RAL 7035, replacement filter mats for filtration, spray hoods made of stainless steel, absorber mats for IP 54, and speed controllers for variable airflow. Thermostats and hygrostats can also be used for temperature and humidity control within the enclosure. Installation requires a cutout of 292 mm width and 292 mm height, with a mounting depth of 136 mm. The overall dimensions of the device are 323 mm (width) × 323 mm (height) × 156 mm (depth).

Installation and mounting

Mounting is tool-free onto the enclosure wall. The optimised snap hooks allow for quick and secure fastening. Electrical connection is made via spring clamp terminals; in other models (e.g. 3237.XXX), connection is via individual wires (approx. 300 mm length). The unit is designed for surface mounting and requires a corresponding cutout in the enclosure.

Operational advantages

The SK 3244.710 offers high airflow, maximised by the integrated pleated filter in the standard delivery configuration. The diagonal fan technology ensures even air distribution within the enclosure, improving cooling performance. Tool-free mounting and easy filter replacement reduce maintenance time. The high protection rating of IP 54 (standard) up to IP 54 (with accessories) makes the device suitable for a wide range of industrial applications. The operating temperature range of -30 °C to 55 °C extends its usability across different climatic zones. The integrated pre-fuse rated at 6 A protects the device and connected circuit from overloads.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanDiagonal, 1~ capacitor motor
Airflow free blowing (with pleated filter)At 50 Hz: 867 m³/h, At 60 Hz: 910 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 720 m³/h, At 60 Hz: 745 m³/h
Airflow free-blowing (with filter)At 50 Hz: 700 m³/h, At 60 Hz: 770 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 537 m³/h, At 60 Hz: 587 m³/h
Rated operating voltage115 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 120.7 W, At 60 Hz: 166.1 W
Rated current max.At 50 Hz: 1.06 A, At 60 Hz: 1.47 A
Width323 mm
Height323 mm
Depth156 mm
Built-in depth136 mm
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 6 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-30 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 64 dB(A), At 60 Hz: 66 dB(A)


Product data sheet
Datasheet for Rittal 3244710, EAN: 4028177997899
