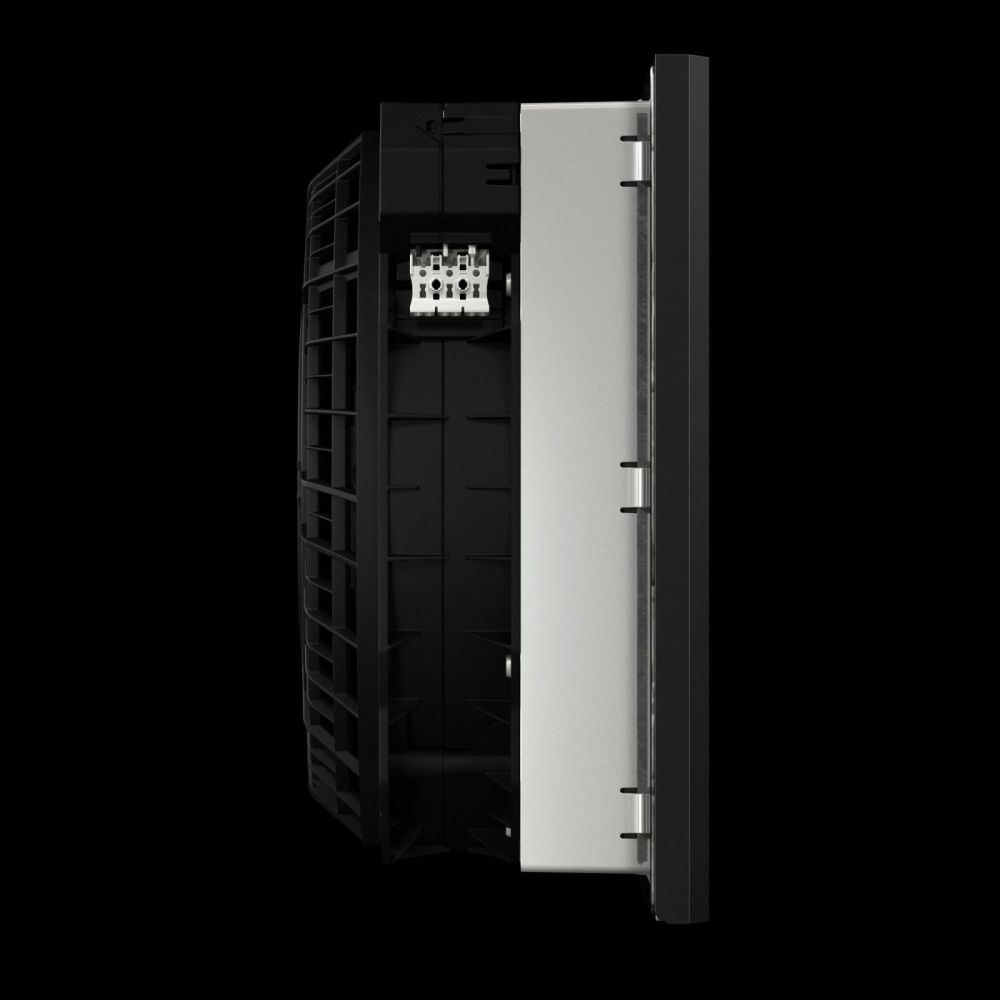

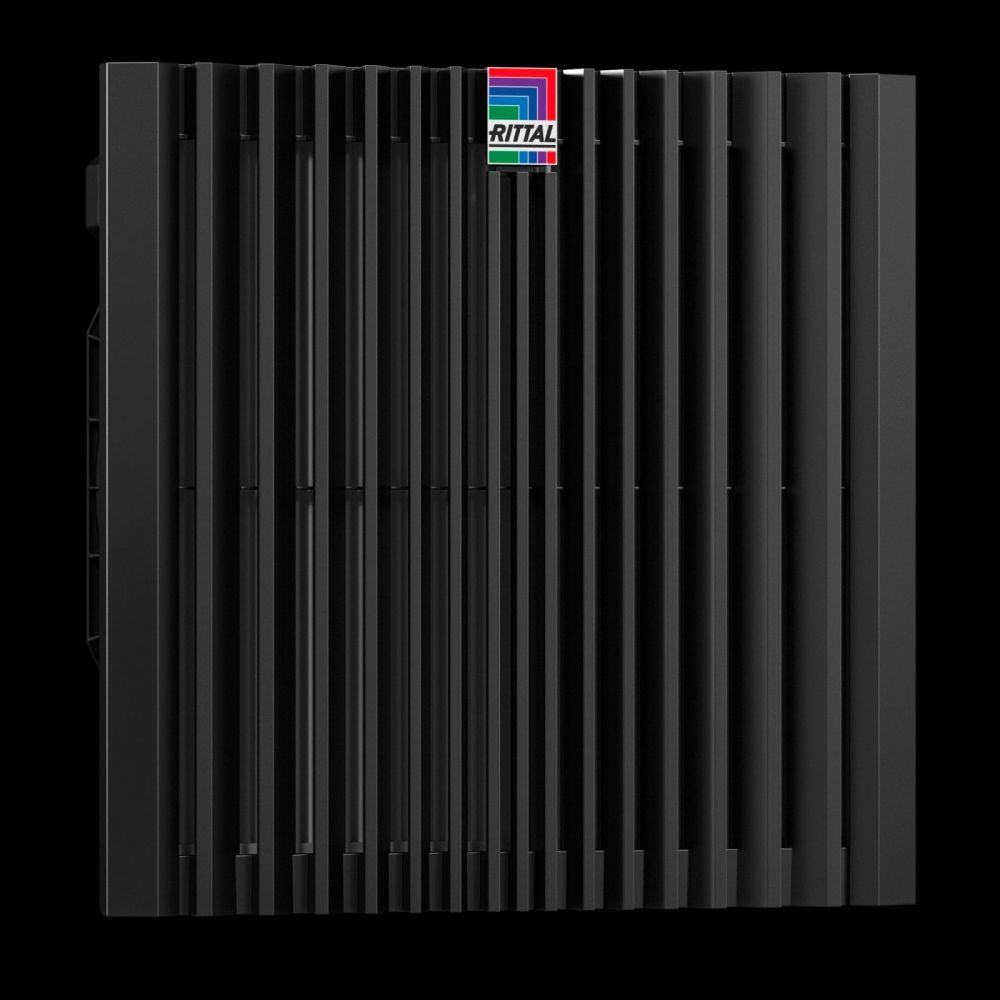

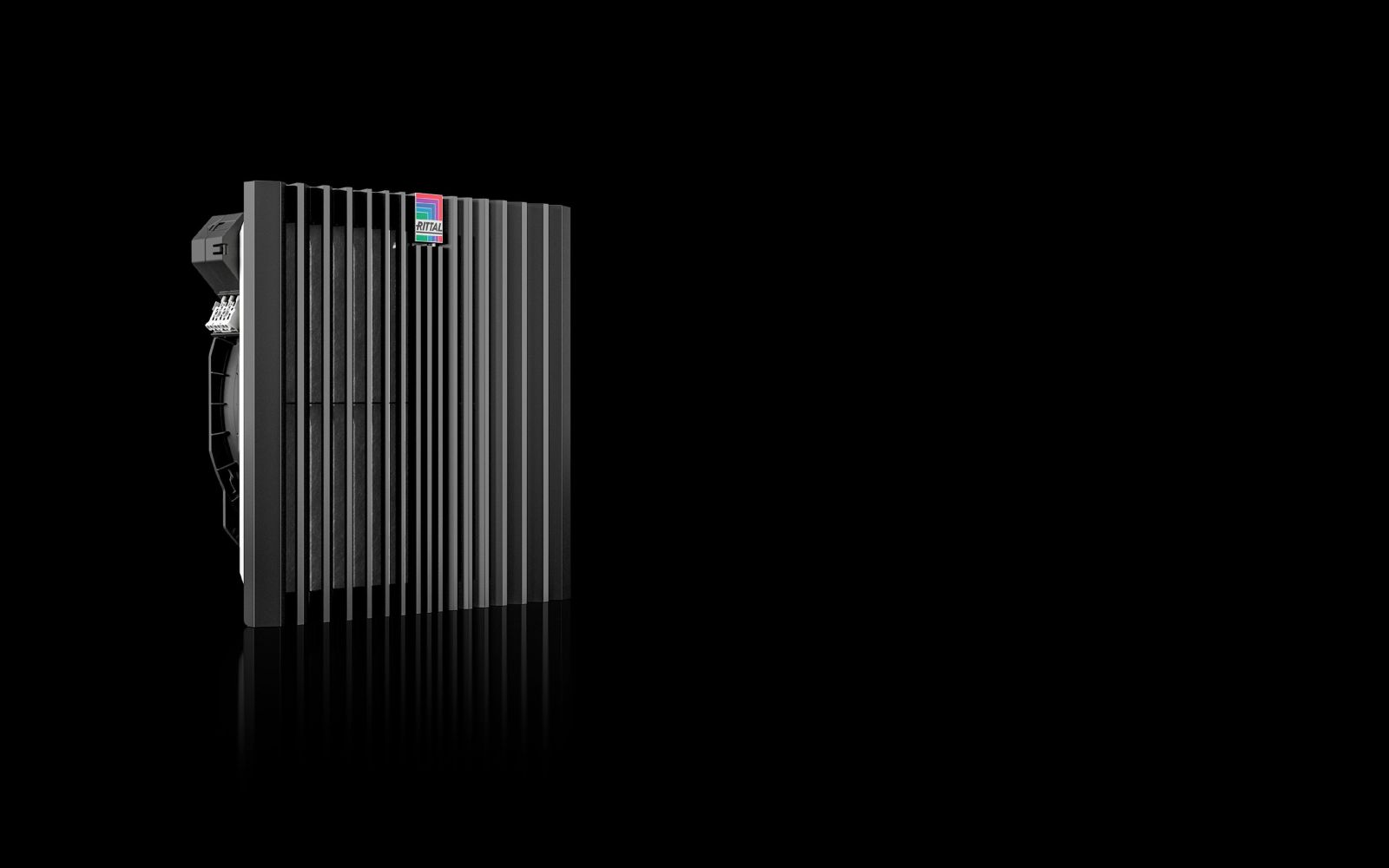

Rittal 3245918 Blue e+ filter fan EC 1161 m³/h, 100 V–130 V, RAL

Your rating:
Average rating
product review for Rittal 3245918 Blue e+ filter fan EC 1161 m³/h, 100 V–130 V, RAL
( 4.3 / 5 ) 4 ratings
Rittal 3245918
This image may differ from the desired article.
Rittal 3245918Rittal 3245918Rittal 3245918Rittal 3245918Rittal 3245918Rittal 3245918Rittal 3245918
397,90 EUR 413,82 EUR
( 473,50 EUR incl. VAT )
≈ £333.04  |  ≈ $437.29
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3245918 Blue e+ filter fan EC 1161 m³/h, 100 V–130 V, RAL
Datasheet:file_download Download
Lieske Part No.:683891
Mfg Part No: 3245918
UPC/EAN: 4028177997783
Weight:3.2 kg
Type:SK 3245.918

Product information for Rittal 3245918:

The Rittal SK 3245.918 is a filter fan with EC technology, specifically designed for enclosure climate control. It serves for controlled ventilation of enclosures to ensure optimal cooling of installed electronic components. The unit is designed for wall mounting and features a diagonal fan with an EC motor, enabling high airflow at low energy consumption. The color is RAL 9005, a dark gray plastic that integrates well in industrial environments. The unit is delivered as a fully ready-to-install unit, including pleated filter, allowing direct installation without additional preparation.

Applications

The filter fan is intended for use in industrial enclosures, particularly in environments where continuous cooling and filtration of incoming air are required. It is suitable for applications in manufacturing, automation technology, and other areas where electronic devices must be protected from overheating. The integrated filtration technology ensures that dust and particles are removed from the incoming air, extending the service life of enclosure components. The protection rating IP 51 with nonwoven filter or pleated filter provides protection against dust and vertically falling water, while the combination with an absorber mat increases the protection rating to IP 52. When used with a spray water hood, the unit achieves protection rating IP 56, making it suitable for areas with increased humidity or splashing water. According to NEMA standards, the unit corresponds to Type 1, 12 with nonwoven filter/pleated filter and Type 3, 3R with additional spray water hood.

Functions and Equipment in Detail

The fan features an airflow free blowing of 1,161 m³/h at 50 Hz and 60 Hz, ensuring high ventilation of the enclosure. When used with a matching outlet filter, the airflow reduces to 969 m³/h. The airflow with nonwoven filter is 931 m³/h free blowing, and with outlet filter and nonwoven filter 728 m³/h. These values demonstrate the fan’s performance under various filter configurations. The rated operating voltage is 100 V – 130 V, 1~, 50 Hz/60 Hz, making it suitable for a variety of supply voltages. The rated power is 174.6 W at 50 Hz, and the rated current is specified as 2.52 A. The installation depth is 136 mm, and the mounting cutout has a width and height of 292 mm each. The dimensions of the unit are 323 mm (W) × 323 mm (H) × 156 mm (D).

Technology Explained Simply

The EC technology (Electronically Commutated Motors) enables precise speed control and higher energy efficiency compared to conventional motors. The diagonal fan technology ensures more uniform and consistent air distribution within the enclosure, as it provides higher pressure stability. The pleated filters included in the delivery state ensure maximum airflow and efficient particle separation. The opening mechanism on the louver grille facilitates filter replacement, while the optimized latching hooks enable faster installation on the enclosure. The tool-free installation reduces installation effort. The interfaces include a 0 - 10 V/PWM input and a speed output, enabling external control and monitoring. The sound pressure level is 72 dB(A) at 50 Hz, which is acceptable for industrial applications. The operating temperature range is between -25 °C and 55 °C, and the storage temperature range is between -25 °C and 70 °C. The fuse is rated at 6 A.

Compatibility and Accessories

Various accessories are available for this filter fan to extend its functionality. These include Blue e+ outlet filters in RAL 9005, EC speed controller sensor for speed control, thermostat for internal temperature control, replacement filter mats in various quantities, digital temperature display and control, hygrostat, spray water hood made of stainless steel, blanking cover for mounting cutouts, pleated filters IP 51 and IP54, as well as absorber mats for increased protection ratings. The control unit SK 3235460 is also available to extend the fan’s functions.

Installation and Mounting

Installation is tool-free onto the enclosure wall. The unit is inserted into the designated mounting cutout (292 mm × 292 mm) and secured using the integrated latching hooks. The installation depth of 136 mm must be considered in the enclosure. The unit is designed for use in enclosures that have the corresponding mounting opening. Installation requires no additional tools, reducing installation time.

Operational Advantages

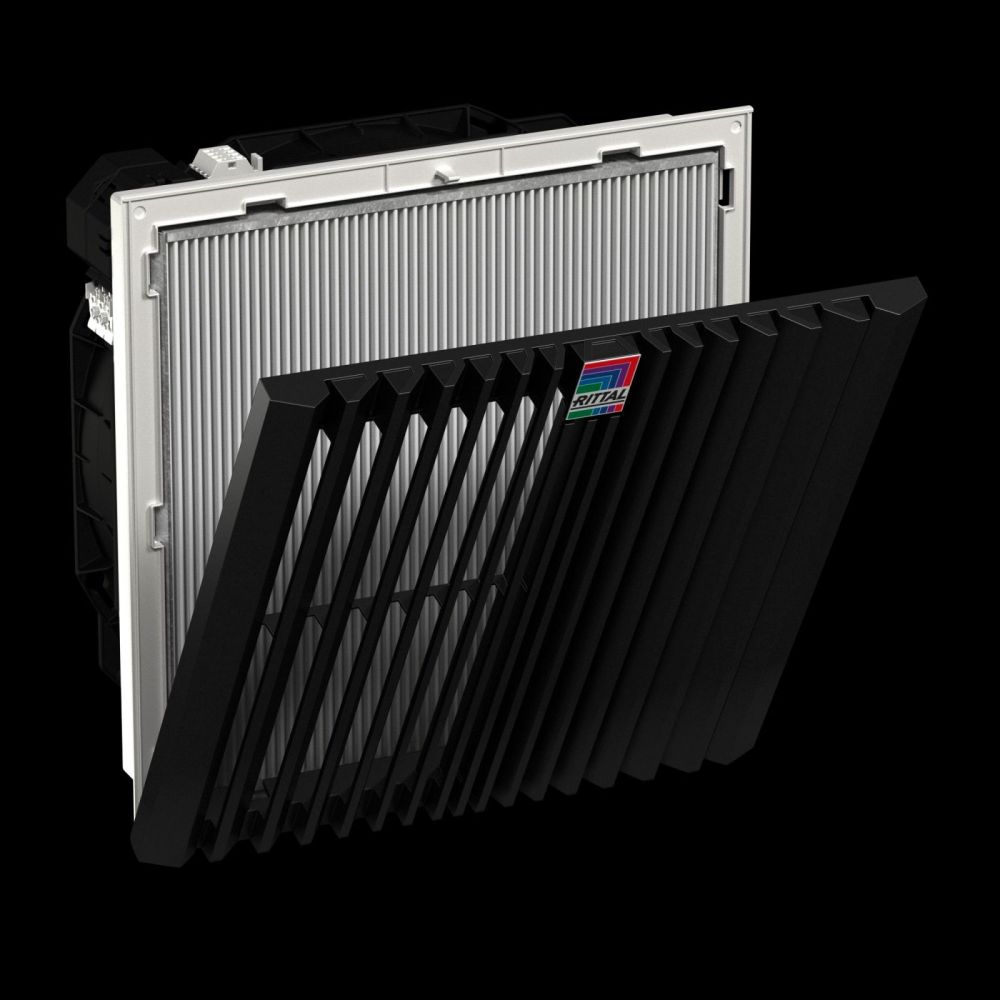

The Rittal SK 3245.918 offers high airflow due to the standard inclusion of pleated filters, maximizing cooling performance in the enclosure. The EC technology ensures energy-efficient operation. The tool-free installation and easy filter replacement reduce maintenance effort. The integrated interfaces enable flexible control and monitoring. The high protection rating when using additional components such as absorber mats or spray water hoods extends the application range in demanding environments. The unit is designed for operating temperatures from -25 °C to 55 °C, ensuring broad applicability.

General
Modelwall mounting, EC
MaterialPlastic
ColourRAL 9005
Scope of deliveryComplete ready-to-install unit, including pleated filter

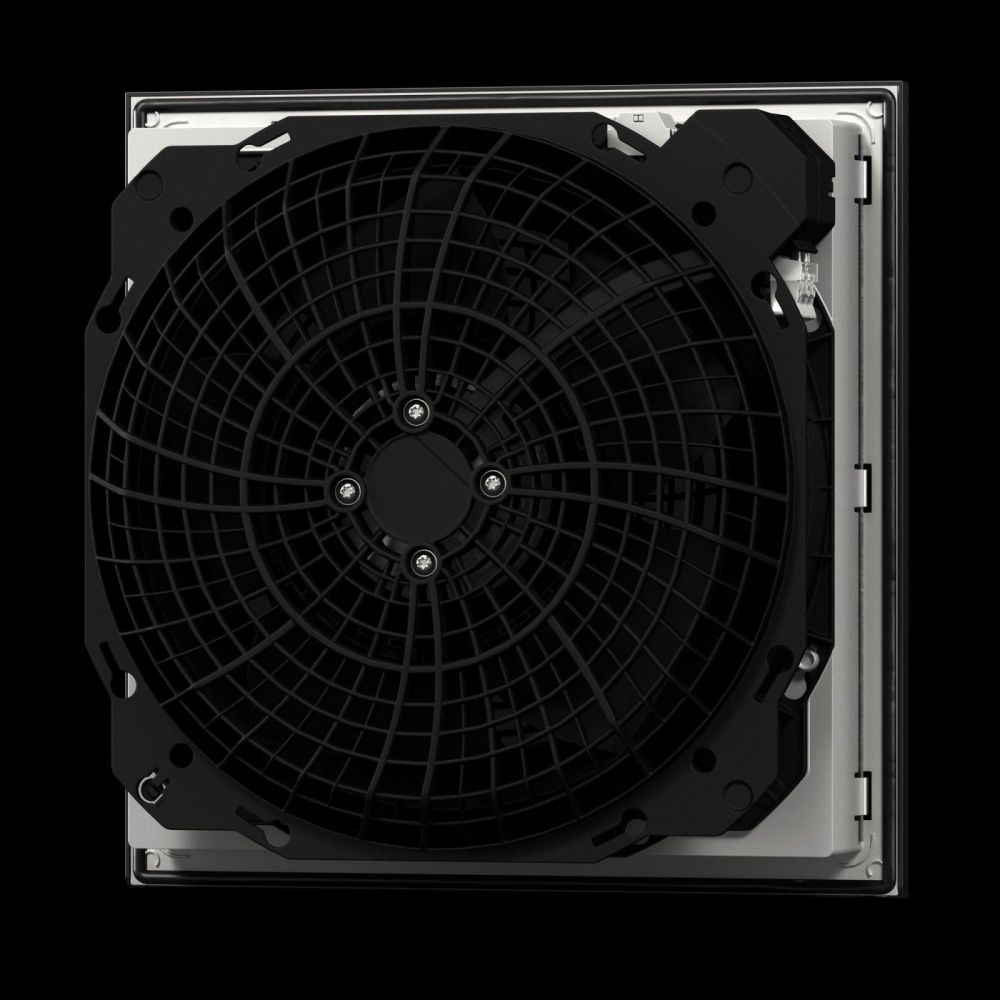

Fandiagonal, EC motor
Airflow free blowing (with pleated filter)At 50 Hz: 1,161 m³/h, At 60 Hz: 1,161 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 969 m³/h
Airflow free-blowing (with filter)At 50 Hz: 931 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 728 m³/h
Rated operating voltage100 V - 130 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 174.6 W
Rated current max.At 50 Hz: 2.52 A
Width323 mm
Height323 mm
Depth156 mm
Built-in depth136 mm
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Degree of protection IP according to IEC 60 529IP 51 with non-woven filter/pleated filter, IP 52 with pleated filter and absorber mat, IP 56 with non-woven filter/pleated filter and spray hood
NEMA degree of protectionType 1, 12 with felt filter/pleated filter, Type 3, 3R with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 6 A
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...70 °C
Sound pressure levelAt 50 Hz: 72 dB(A)
Interfaces0 - 10 V/PWM input, speed output


Product data sheet
Datasheet for Rittal 3245918, EAN: 4028177997783
