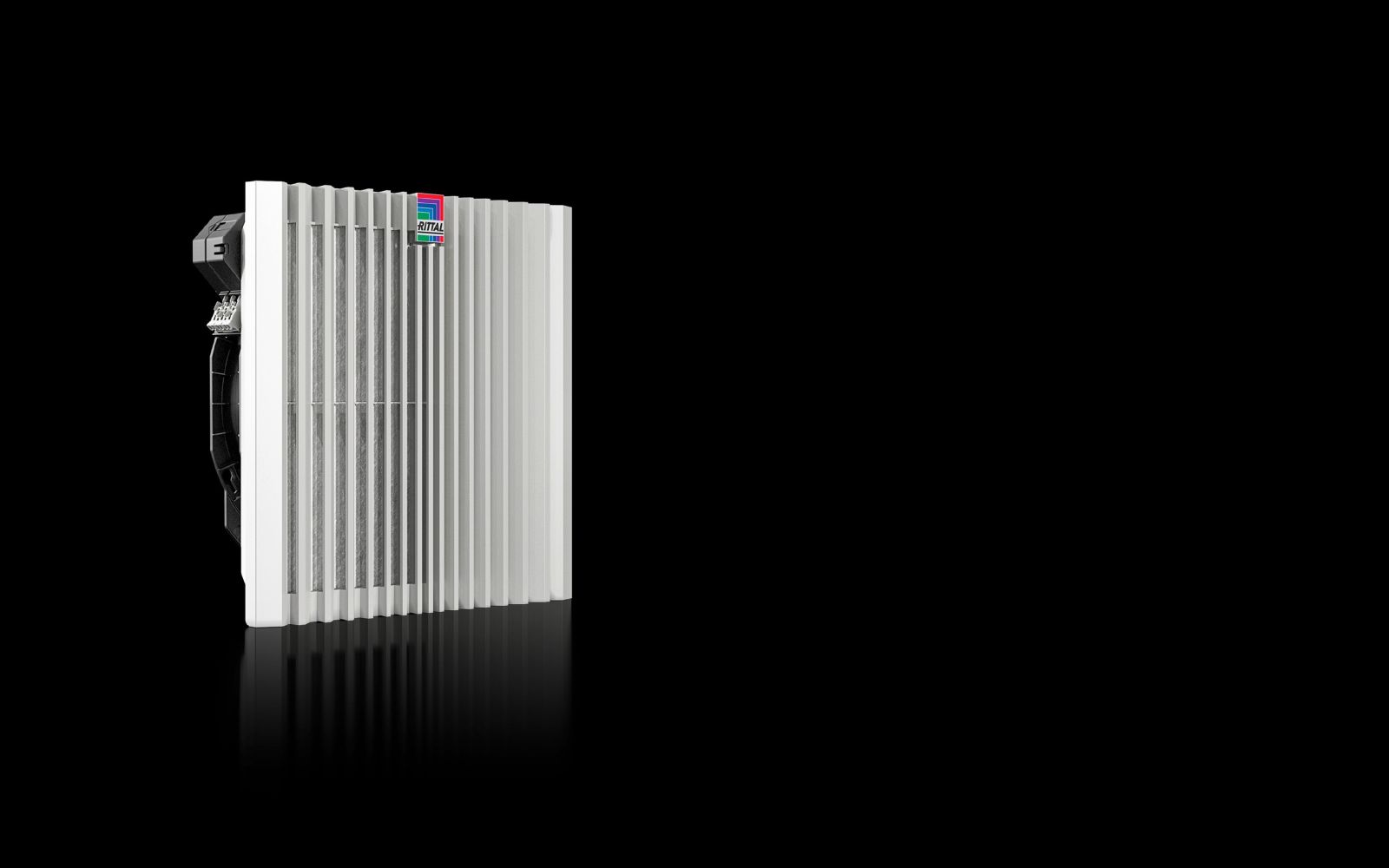

Rittal 3243700 Blue e+ filter fan 625/716 m³/h, 230 V, RAL 7035
|
150,77 EUR 151,17 EUR |
|
|
( 179,42 EUR incl. VAT ) ≈ £126.19 | ≈ $165.70 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683861 |
| Mfg Part No: | 3243700 |
| UPC/EAN: | 4028177997981 |
| Weight: | 4.28 kg |
| Type: | SK 3243.700 |
Product information for Rittal 3243700:
Applications
The filter fan is designed for use in industrial environments where continuous and reliable ventilation of enclosures is required. It is particularly suitable for installations in manufacturing, energy supply, or automation technology, where devices operate under variable environmental conditions. The protection rating IP 54 is standard, protecting the fan against dust and splashing water. When additional components such as an absorber mat or a spray water hood are used, the protection rating can be increased to IP 54 or IP 54. According to NEMA standards, the unit corresponds to Type 12 with a fleece or pleated filter, and Type 3, 3R, 4, and 4X when additional protective components are mounted.
Functions and Equipment in Detail

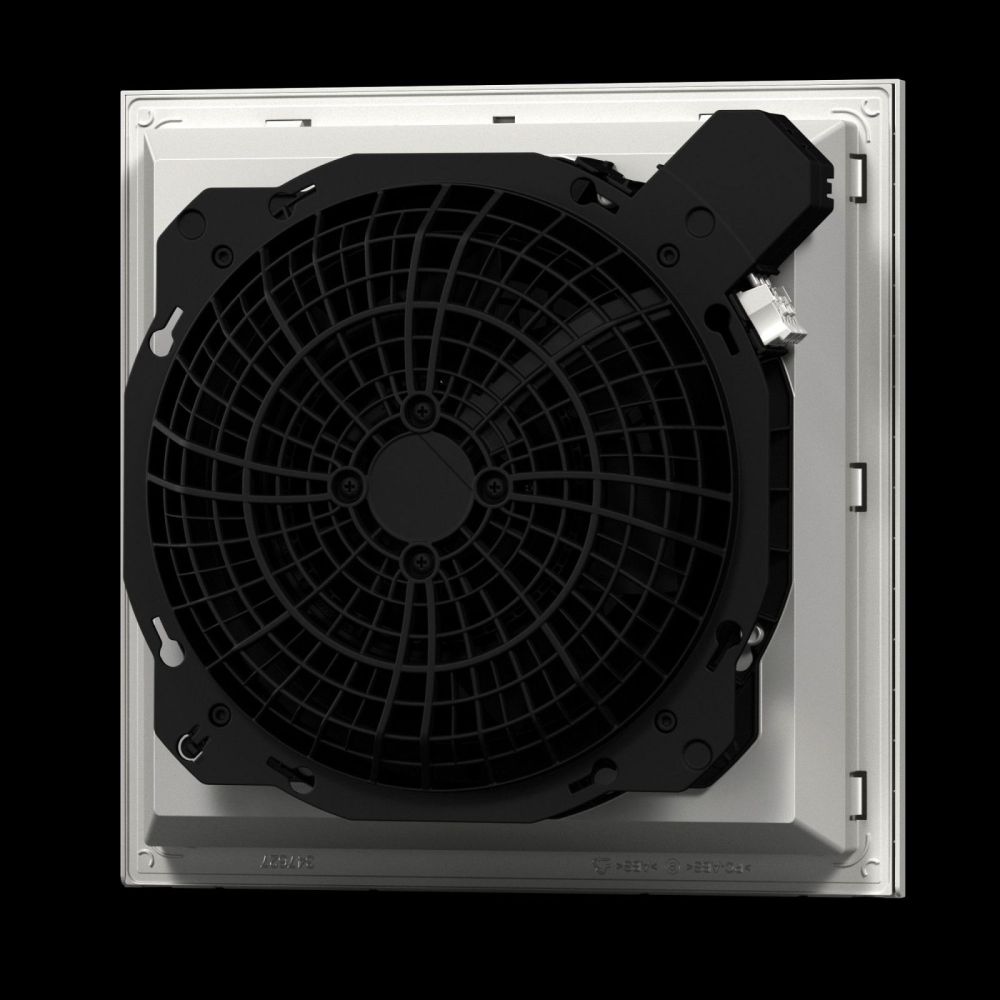

The fan features a diagonal fan with 1~ capacitor motor, providing higher pressure stability and thus ensuring a more constant airflow. The diagonal discharge direction ensures more even cooling of the enclosure. The airflow is 625 m³/h at 50 Hz and 716 m³/h at 60 Hz when the pleated filter is installed. When using a fleece filter, the airflow reduces to 540 m³/h (50 Hz) or 590 m³/h (60 Hz). The airflow further decreases when an outlet filter is mounted, to 565 m³/h (50 Hz) or 645 m³/h (60 Hz) with pleated filter, and to 444 m³/h (50 Hz) or 498 m³/h (60 Hz) with fleece filter. The rated power is 77.7 W at 50 Hz and 106.4 W at 60 Hz. The rated current is up to 0.39 A (50 Hz) or 0.47 A (60 Hz). The rated operating voltage is 230 V, 1~, and the fan is designed for operation at 50 Hz and 60 Hz.
Technology Explained Simply
The diagonal fan technology ensures that the airflow does not exit vertically, but diagonally from the unit. This leads to more even air distribution within the enclosure and prevents local overheating. The pleated filters included in the delivery offer high air permeability and ensure efficient particle filtration. Filter replacement is facilitated by a new opening mechanism on the louver grille. The tool-free mounting is achieved via optimized snap hooks, enabling quick attachment to the enclosure. The installation depth is 124 mm, and the mounting cutout measures 292 mm (width) × 292 mm (height). The operating temperature ranges from -30 °C to 55 °C, and the storage temperature from -30 °C to 70 °C. The sound pressure level is 62 dB(A) at 50 Hz and 65 dB(A) at 60 Hz, representing an acoustically acceptable operating noise level.
Compatibility and Accessories
Various accessories can be combined to extend protection rating and functionality. These include outlet filters in RAL 7035, absorber mats for IP 54, spray water hoods for IP 54, and fleece filters. For temperature control, thermostats and digital temperature display and control units are available. A speed controller allows adjustable airflow. Replacement filter mats are available in packs of 5 or 50 pieces. A blanking cover for the mounting cutout is also available in the range.
Mounting and Installation
Mounting is tool-free on the enclosure wall. The unit is inserted into the designated mounting cutout (292 mm × 292 mm) and secured via snap hooks. The installation depth is 124 mm. Electrical connection is made via spring clamp terminals, except for models of the 3237.XXX series, where two individual conductors (approx. 300 mm length) are provided at the unit. The fuse is rated at 4 A, protecting the unit against overload.
Advantages in Operation
The SK 3243.700 offers high airflow at low energy consumption and is suitable for use in various industrial environments. The tool-free mounting and easy filter replacement reduce maintenance time. The diagonal fan technology ensures even air distribution within the enclosure, increasing cooling efficiency. The combination of filter and fan in a single unit reduces the number of required components and simplifies installation. The unit is designed for operation over a wide temperature range, making it suitable for diverse operating conditions.
| General | |
| Model | Wall surface mounted |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including pleated filter |
| Fan | Diagonal, 1~ capacitor motor |
| Airflow free blowing (with pleated filter) | At 50 Hz: 625 m³/h, At 60 Hz: 716 m³/h |
| Airflow with associated exhaust filter including pleated filter | At 50 Hz: 565 m³/h, At 60 Hz: 645 m³/h |
| Airflow free-blowing (with filter) | At 50 Hz: 540 m³/h, At 60 Hz: 590 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 444 m³/h, At 60 Hz: 498 m³/h |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 77.7 W, At 60 Hz: 106.4 W |
| Rated current max. | At 50 Hz: 0.39 A, At 60 Hz: 0.47 A |
| Width | 323 mm |
| Height | 323 mm |
| Depth | 144,5 mm |
| Built-in depth | 124 mm |
| Mounting cutout | Cutout width: 292 mm, Cutout height: 292 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood |
| NEMA degree of protection | Type 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood |
| Fuse | Circuit breaker/fuse: 4 A |
| Note | For the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal. |
| Operating temperature range | -30 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 62 dB(A), At 60 Hz: 65 dB(A) |
Questions & answers
What is the delivery time of Rittal 3243700 Blue e+ filter fan 625/716 m³/h, 230 V, RAL 7035?
The article Rittal 3243700 Blue e+ filter fan 625/716 m³/h, 230 V, RAL 7035 is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3243700 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3243700 Blue e+ filter fan 625/716 m³/h, 230 V, RAL 7035 always at the best possible price. We can give you a discount of 2% on Rittal 3243700 Blue e+ filter fan 625/716 m³/h, 230 V, RAL 7035 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
