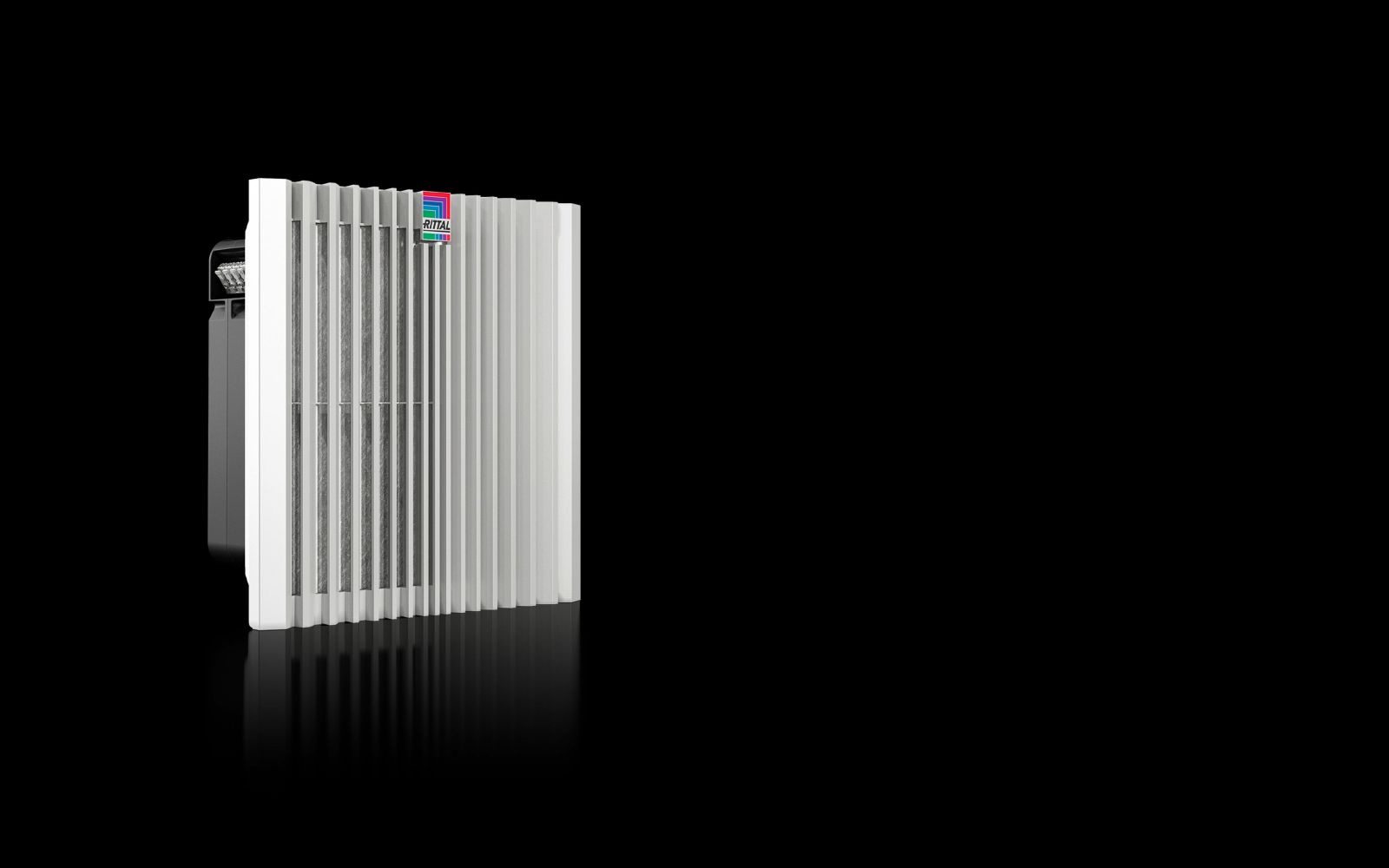

Rittal 3245910 Blue e+ filter fan EC 1161 m³/h, 100 V–130 V, RAL
|
373,06 EUR |
|
|
( 443,94 EUR incl. VAT ) ≈ £312.25 | ≈ $409.99 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683890 |
| Mfg Part No: | 3245910 |
| UPC/EAN: | 4028177997790 |
| Weight: | 4.18 kg |
| Type: | SK 3245.910 |
Product information for Rittal 3245910:
Applications

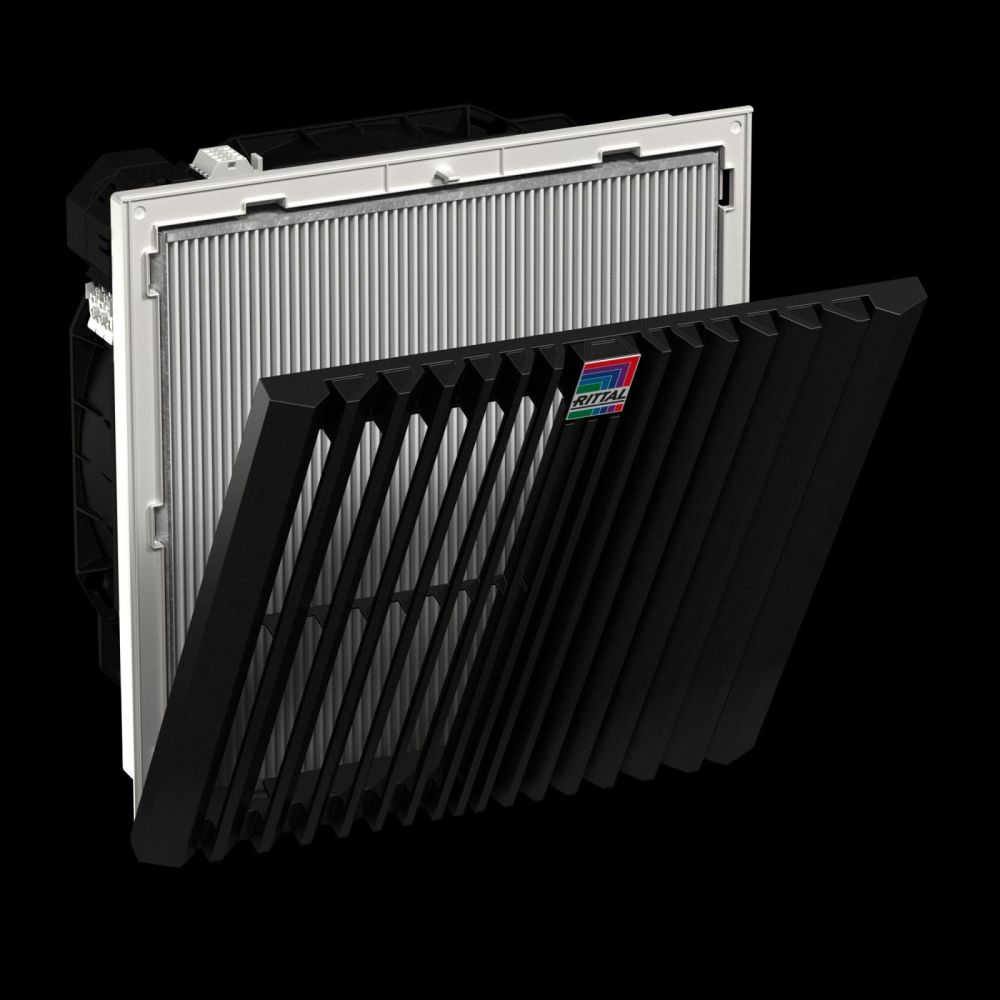

The filter fan is suitable for industrial applications requiring continuous and reliable ventilation of enclosures. It is particularly suitable for environments with high dust loads, as the integrated pleated filter retains fine particles. The protection rating IP 51 (with fleece or pleated filter) provides protection against dust and vertically falling water, while combining with an absorber mat increases the protection rating to IP 52. When used with a spray water hood, the unit achieves IP 56, making it suitable for areas with splashing water. According to NEMA standards, the unit corresponds to Type 1 and 12 with fleece or pleated filter, and Type 3 and 3R with spray water hood.
Functions and Equipment in Detail
The fan achieves an airflow rate of 1,161 m³/h free blowing at 50 Hz and 60 Hz, ensuring high ventilation. When using an outlet filter, the airflow rate drops to 969 m³/h. Using a fleece filter reduces the free blowing airflow to 931 m³/h, and with an outlet filter, to 728 m³/h. The rated operating voltage is between 100 V and 130 V, 1~, suitable for 50 Hz and 60 Hz. The rated power is 174.6 W at 50 Hz, and the maximum rated current is 2.52 A. The unit is equipped with a circuit breaker/fuse of 6 A.
Technology Explained Simply

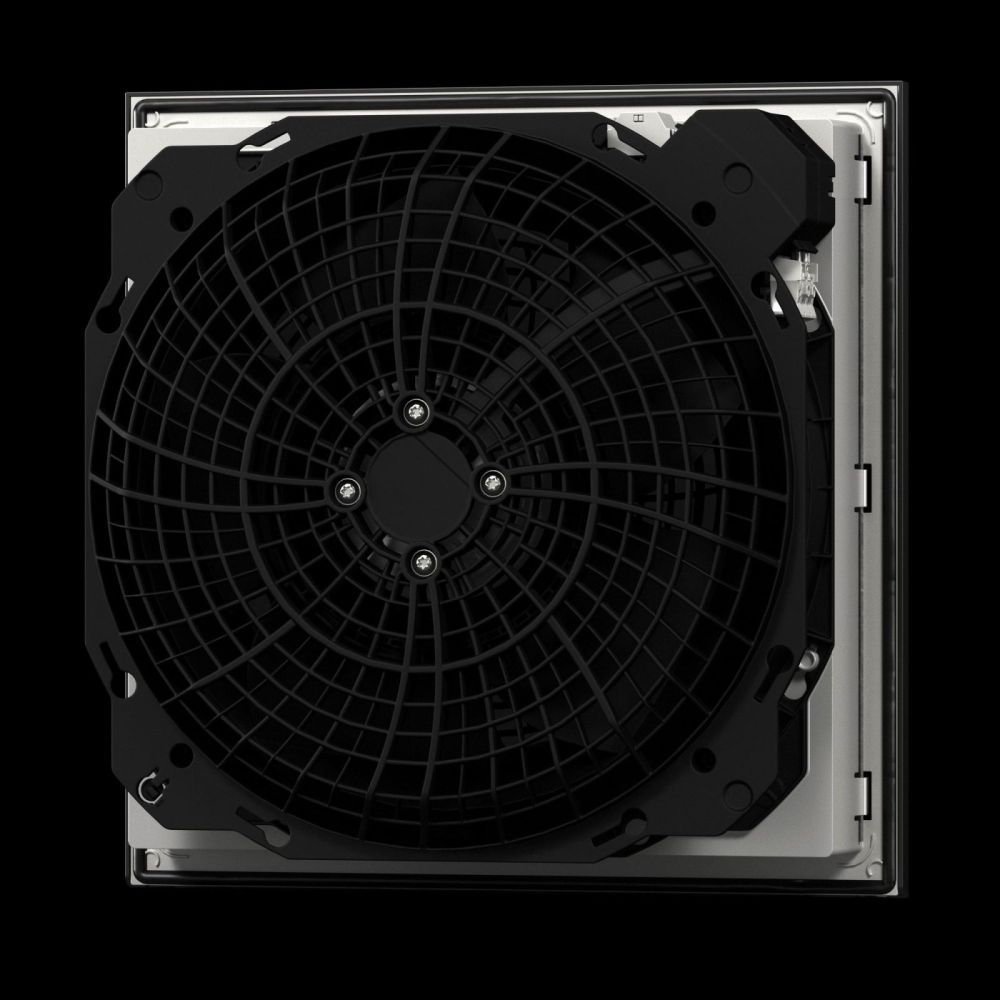

The EC technology (electronically commutated motors) enables energy-efficient and quiet operation. The speed can be controlled via a 0–10 V/PWM input, allowing adjustable ventilation according to load. A speed output enables monitoring of fan speed. The diagonal fan technology ensures even air distribution within the enclosure and minimizes pressure loss. Tool-free mounting is achieved via optimized latching hooks, enabling faster installation. The opening mechanism on the louver grille facilitates filter replacement.
Compatibility and Accessories
Various accessories are available to extend functionality. These include outlet filters in RAL 7035, EC fan speed controller sensor, thermostat for internal temperature control, digital temperature display and control, replacement filter mats (5 or 50 pcs), hygrostat, spray water hood made of stainless steel, blanking plate for mounting cutouts, pleated filters IP 51 and IP 51, and an absorber mat IP 51. A control unit for Blue e+ EC filter fans enables centralized control.
Mounting and Installation

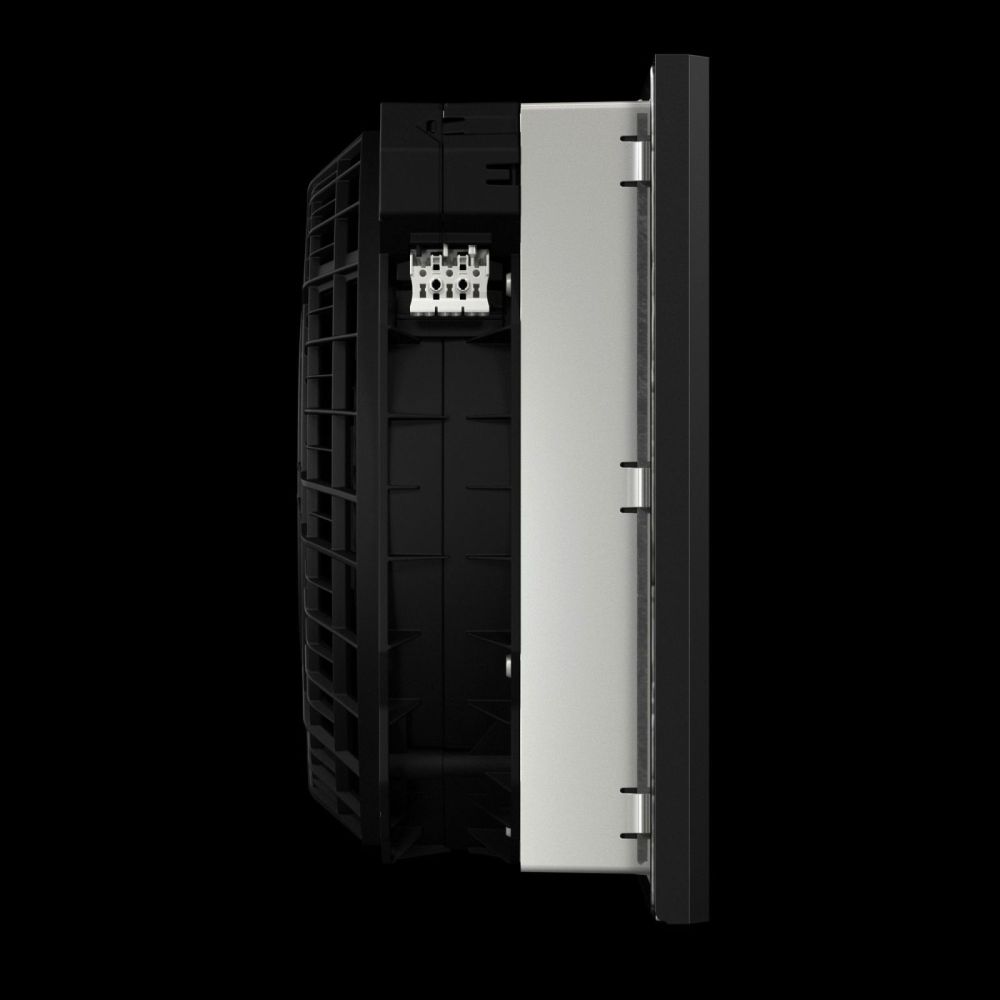

The unit is installed into a wall opening with a mounting cutout of 292 mm width and 292 mm height. The installation depth is 136 mm, and overall dimensions are 323 mm (width) × 323 mm (height) × 156 mm (depth). Mounting is tool-free, accelerating installation.
t
Operational Advantages
The filter fan is characterized by high airflow, energy-efficient EC technology, and easy maintenance. The integrated filter technology ensures clean air circulation within the enclosure. The operating temperature range is from -25 °C to 55 °C, and the storage temperature range is from -25 °C to 70 °C. The sound pressure level is 72 dB(A) at 50 Hz, representing an acoustically acceptable operating noise level. The IoT capability enables remote monitoring and control, increasing operational reliability.
| General | |
| Model | wall mounting, EC |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including pleated filter |
| Fan | diagonal, EC motor |
| Airflow free blowing (with pleated filter) | At 50 Hz: 1,161 m³/h, At 60 Hz: 1,161 m³/h |
| Airflow with associated exhaust filter including pleated filter | At 50 Hz: 969 m³/h |
| Airflow free-blowing (with filter) | At 50 Hz: 931 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 728 m³/h |
| Rated operating voltage | 100 V - 130 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 174.6 W |
| Rated current max. | At 50 Hz: 2.52 A |
| Width | 323 mm |
| Height | 323 mm |
| Depth | 156 mm |
| Built-in depth | 136 mm |
| Mounting cutout | Cutout width: 292 mm, Cutout height: 292 mm |
| Degree of protection IP according to IEC 60 529 | IP 51 with non-woven filter/pleated filter, IP 52 with pleated filter and absorber mat, IP 56 with non-woven filter/pleated filter and spray hood |
| NEMA degree of protection | Type 1, 12 with felt filter/pleated filter, Type 3, 3R with felt filter/pleated filter and spray water hood |
| Fuse | Circuit breaker/fuse: 6 A |
| Operating temperature range | -25 °C...55 °C |
| Storage temperature range | -25 °C...70 °C |
| Sound pressure level | At 50 Hz: 72 dB(A) |
| Interfaces | 0 - 10 V/PWM input, speed output |
