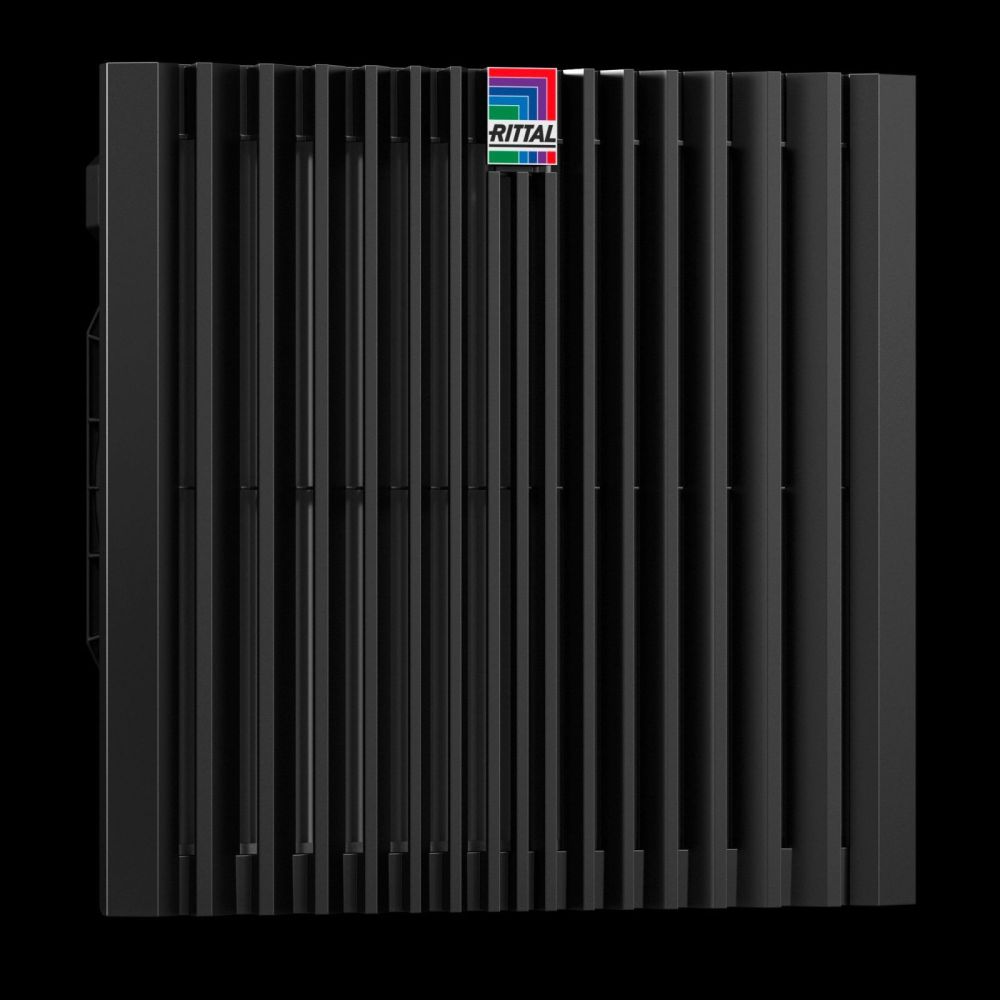

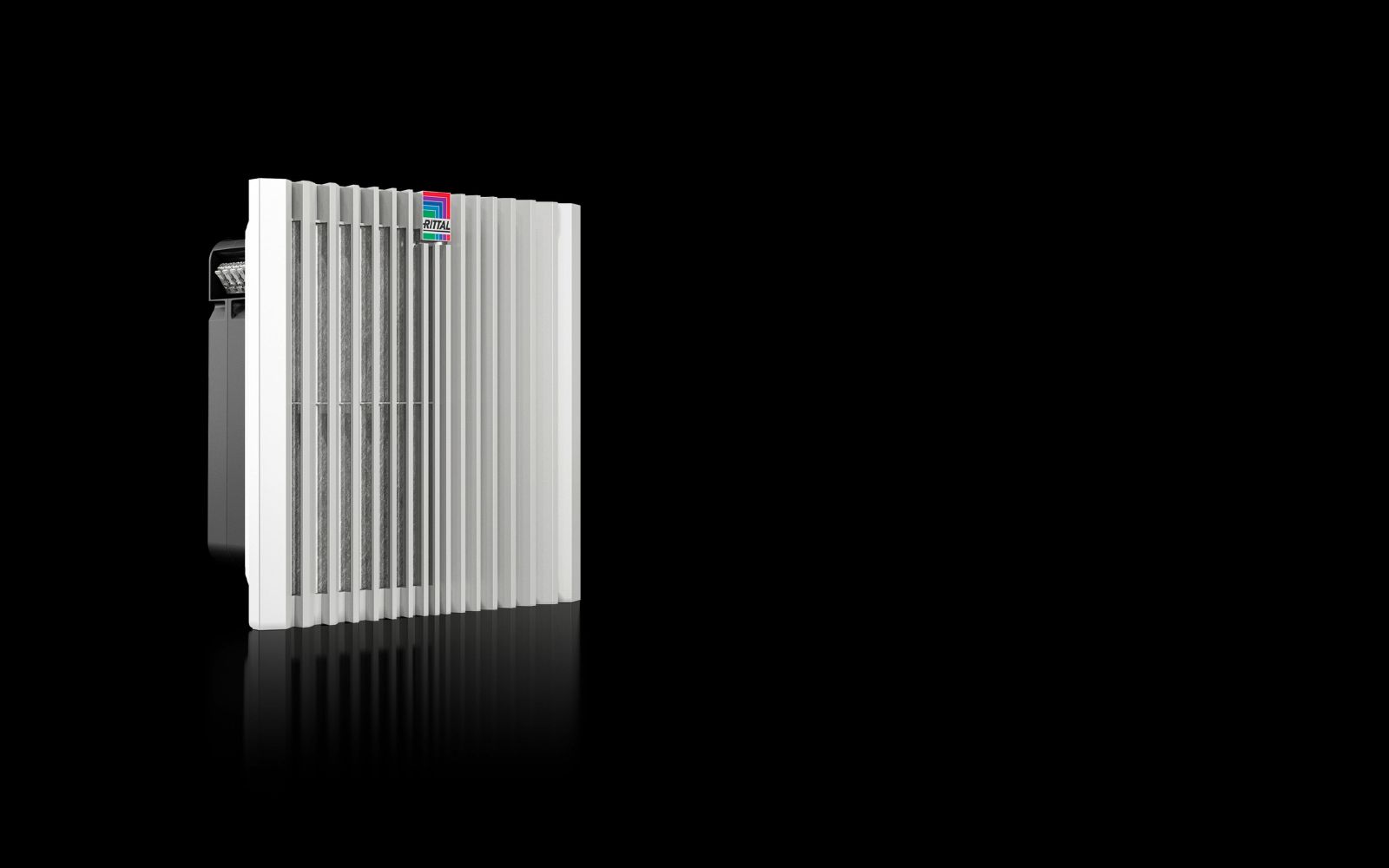

Rittal 3245900 Blue e+ filter fan EC 1161 m³/h, 200 V–240 V, RAL
|
341,78 EUR |
|
|
( 406,72 EUR incl. VAT ) ≈ £286.07 | ≈ $375.62 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683887 |
| Mfg Part No: | 3245900 |
| UPC/EAN: | 4028177997813 |
| Weight: | 4.241 kg |
| Type: | SK 3245.900 |
Product information for Rittal 3245900:
Applications
The filter fan is suitable for use in industrial environments where continuous and reliable cooling of enclosures is required. It is commonly used in machine building, automation technology, energy technology, and other industries where electronic components must be protected from overheating. The integrated filter technology ensures that the incoming air remains clean, extending the service life of installed devices. The protection rating IP 51 (with fleece or pleated filter) provides protection against dust and vertically falling water, making the fan suitable for use in slightly damp or dusty environments. With additional components such as an absorber mat or spray water hood, the protection rating can be increased to IP 51 or IP 51, enabling use in even more demanding environments.
Functions and Equipment in Detail

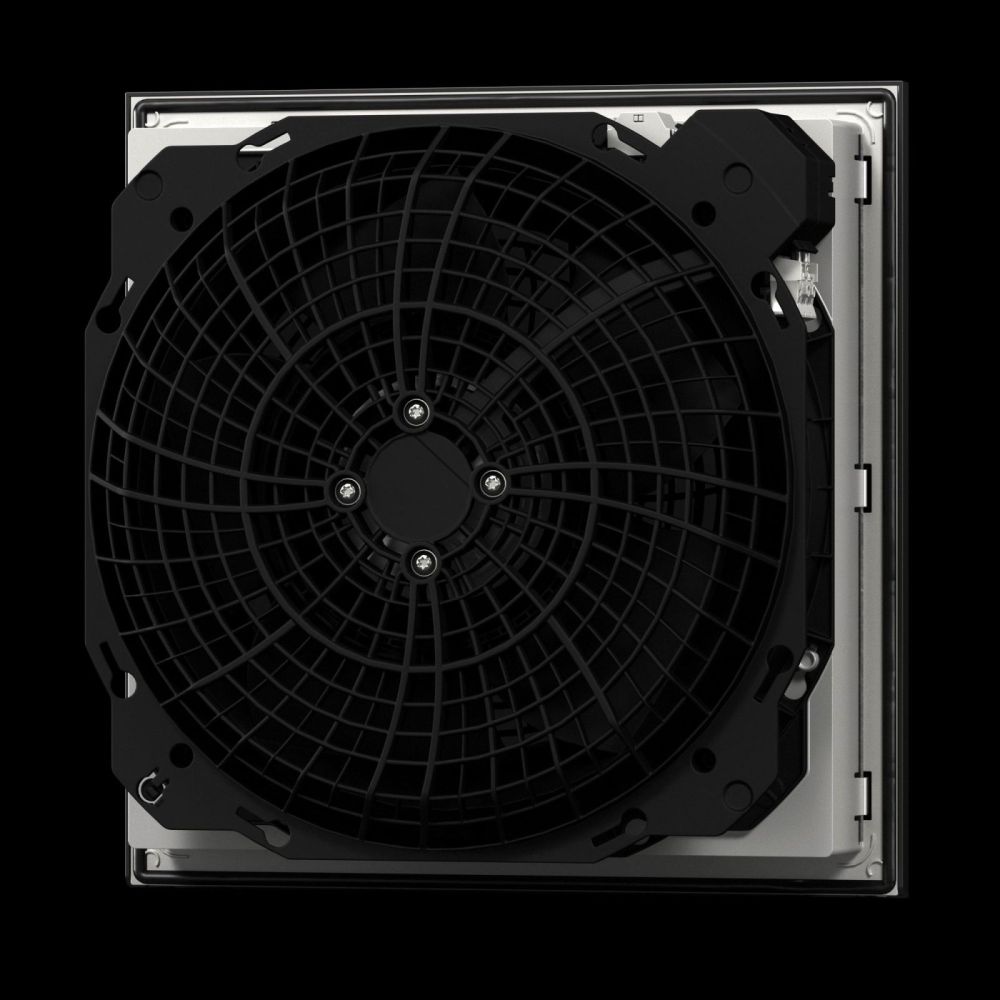

The fan features a diagonal fan with EC motor, which ensures high pressure stability and provides more uniform and consistent air circulation within the enclosure. The air performance is 1,161 m³/h free blowing (at 50 Hz and 60 Hz), while the actual performance under real conditions with an outlet filter reduces to 969 m³/h. The rated power is 173.5 W at 50 Hz, with a rated current of max. 1.38 A. The operating voltage is in the range 200 V – 240 V, 1~, 50 Hz/60 Hz, enabling universal use in various power networks. The operating temperature ranges from -25 °C to 55 °C, allowing use in climatically diverse regions or outdoor installations.
Technology Explained Simply
The EC technology (External Commutator) enables higher energy efficiency and longer motor life compared to conventional motors. Control is via an RS485 interface (ModBus), allowing operation and monitoring of the fan. Additionally, a 0–10 V/PWM input, a speed output, and a potential-free fault alarm contact are integrated. These interfaces allow integration into higher-level control systems, for example for speed control or fault indication. The IoT capability enables functions such as automatic filter cleaning, filter maintenance indication, and emergency cooling, optimizing maintenance and minimizing downtime. The sound pressure level is 72 dB(A) at 50 Hz, which is acceptable for industrial applications.
Compatibility and Accessories
The fan is compatible with various accessories to adapt functionality and protection rating to specific requirements. These include outlet filters in RAL 7035, EC speed controller Sensor, thermostats for internal temperature control, replacement filter mats (in packs of 5 or 50), SK ModBus adapter, hygrostats, spray water hoods made of stainless steel, blanking plates for mounting cutouts, pleated filters IP 51 IP 51, absorber mats, and IoT interfaces. These components expand the range of applications and allow individual adaptation to the respective environment.
Mounting and Installation

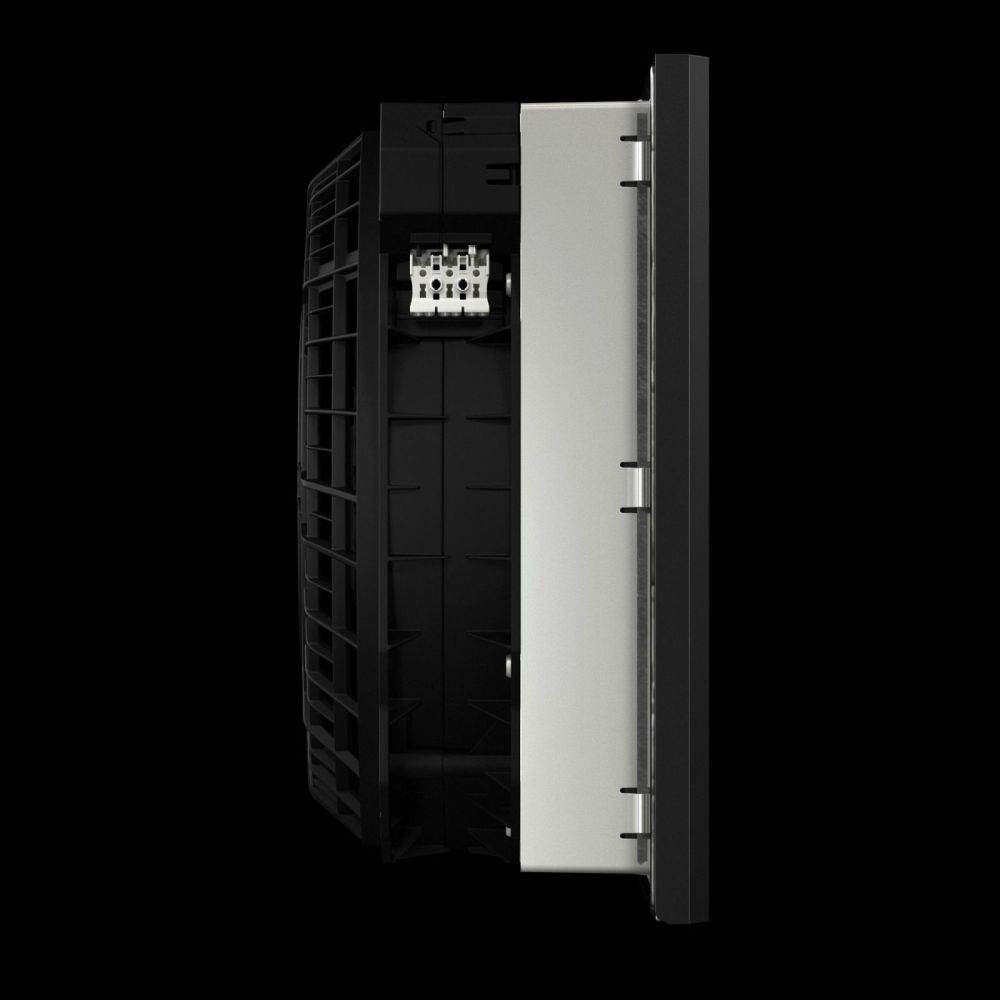

Mounting is tool-free via optimized snap hooks, enabling faster and easier attachment to the enclosure. The mounting cutout measures 292 mm (width) × 292 mm (height), with an installation depth of 141 mm. The unit dimensions are 323 mm (width) × 323 mm (height) × 161 mm (depth). The new opening mechanism on the louver grille simplifies filter replacement, making maintenance easier.
Advantages in Operation

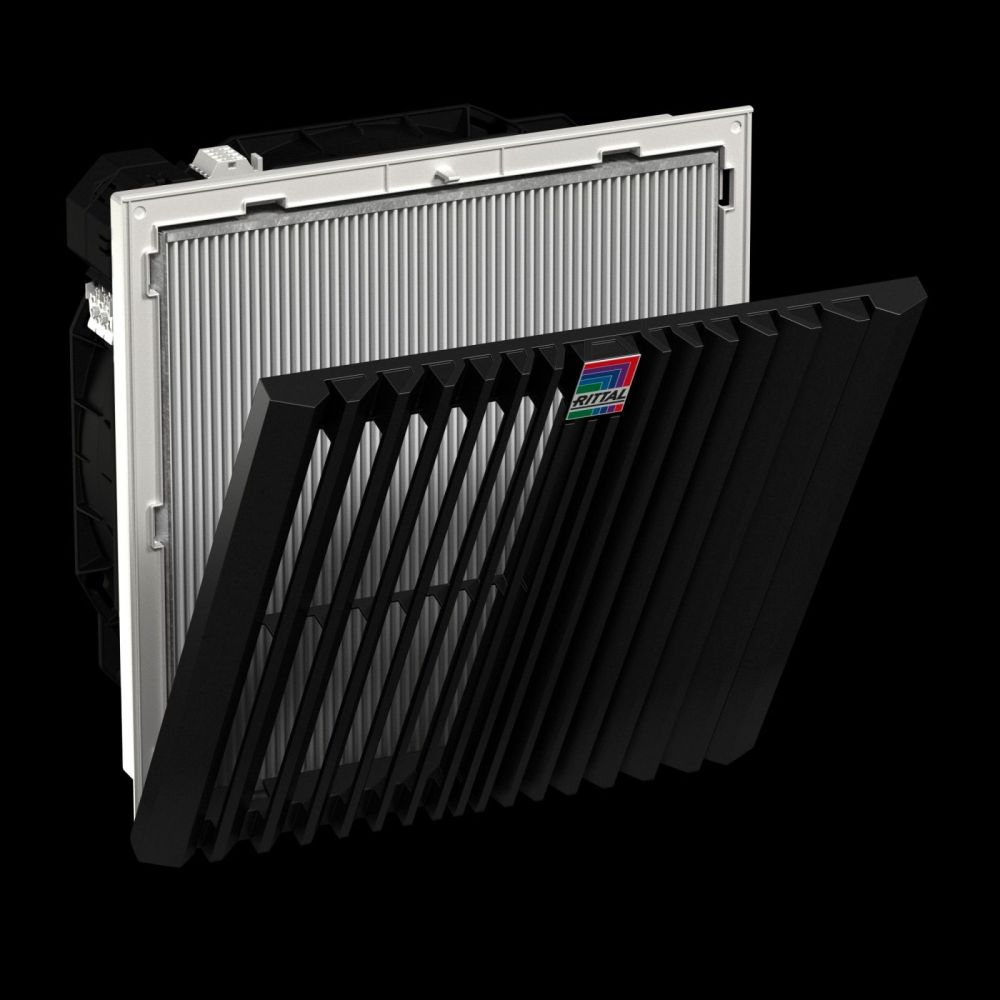

The fan provides high air performance due to the standard-integrated pleated filter, ensuring efficient cooling. The EC technology ensures lower energy consumption and longer service life. The ModBus interface enables intelligent control and monitoring, increasing operational reliability. Tool-free mounting and easy filter replacement reduce installation and maintenance times. The protection rating IP 51 and the possibility to increase it with additional components make the fan suitable for a wide range of industrial applications.
| General | |
| Model | wall mounting, EC |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including pleated filter |
| Fan | diagonal, EC motor |
| Airflow free blowing (with pleated filter) | At 50 Hz: 1,161 m³/h, At 60 Hz: 1,161 m³/h |
| Airflow with associated exhaust filter including pleated filter | At 50 Hz: 969 m³/h |
| Airflow free-blowing (with filter) | At 50 Hz: 931 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 728 m³/h |
| Rated operating voltage | 200 V - 240 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 173.5 W |
| Rated current max. | At 50 Hz: 1.38 A |
| Width | 323 mm |
| Height | 323 mm |
| Depth | 161 mm |
| Built-in depth | 141 mm |
| Mounting cutout | Cutout width: 292 mm, Cutout height: 292 mm |
| Degree of protection IP according to IEC 60 529 | IP 51 with non-woven filter/pleated filter, IP 52 with pleated filter and absorber mat, IP 56 with non-woven filter/pleated filter and spray hood |
| NEMA degree of protection | Type 1, 12 with felt filter/pleated filter, Type 3, 3R with felt filter/pleated filter and spray water hood |
| Fuse | Circuit breaker/fuse: 6 A |
| Operating temperature range | -25 °C...55 °C |
| Storage temperature range | -25 °C...70 °C |
| Sound pressure level | At 50 Hz: 72 dB(A) |
| Interfaces | 0 - 10 V/PWM input, speed output, potential-free fault alarm contact, RS485 (ModBus) |
