Rittal 3124320 SK ModBus adapter for Blue e+ EC filter fan

Your rating:
Average rating
product review for Rittal 3124320 SK ModBus adapter for Blue e+ EC filter fan
( 0 / 5 ) 0 ratings

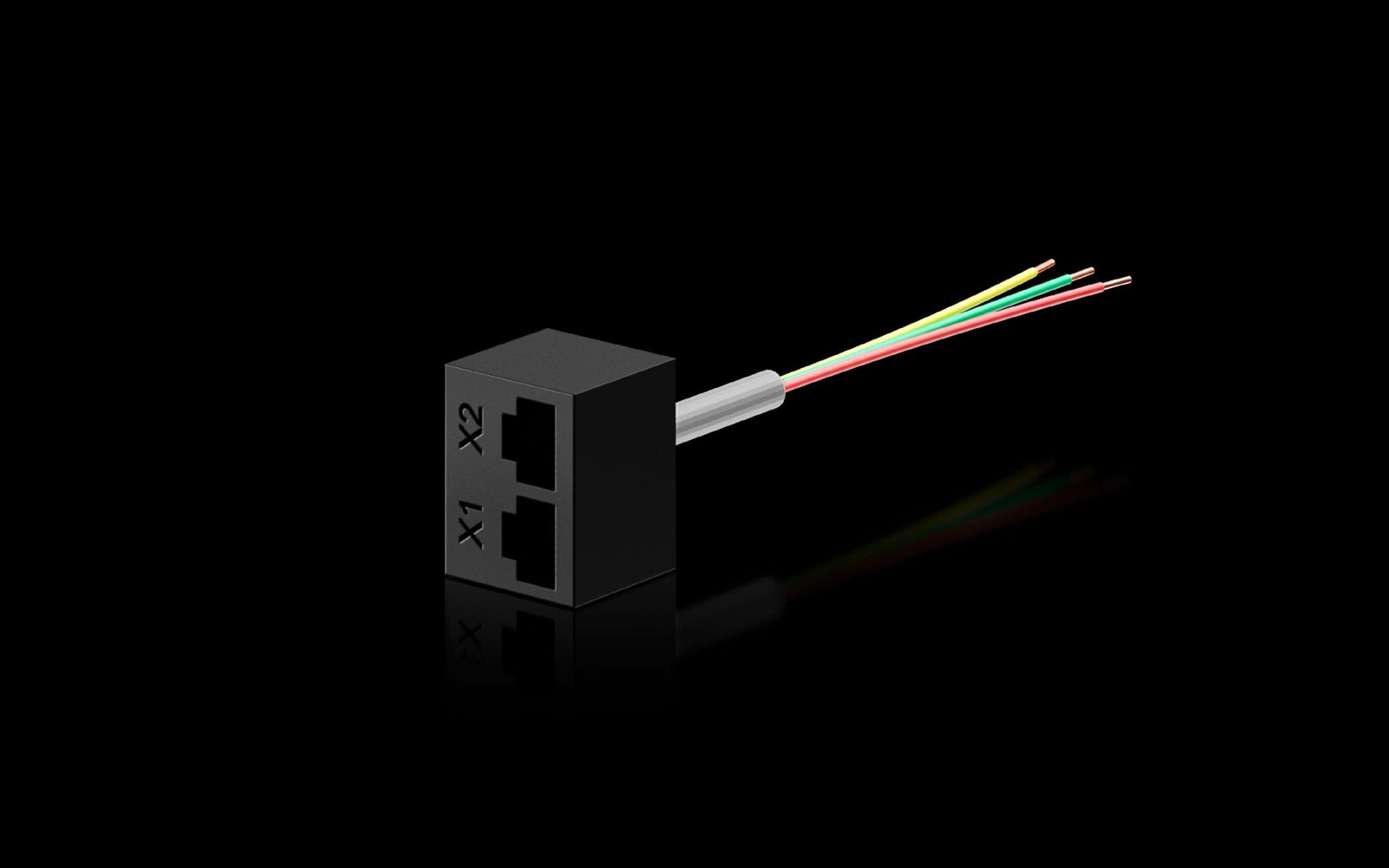

Rittal 3124320
This image may differ from the desired article.
Rittal 3124320Rittal 3124320
20,13 EUR
( 23,95 EUR incl. VAT )
≈ £16.85  |  ≈ $22.12
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 3124320 SK ModBus adapter for Blue e+ EC filter fan
Datasheet:file_download Download
Lieske Part No.:603852
Mfg Part No: 3124320
UPC/EAN: 4028177986053
Weight:0.024 kg
Type:SK 3124320

Product information for Rittal 3124320:

The Rittal SK 3124320 is a ModBus adapter specifically developed for networking EC filter fans of the Blue e+ series. It serves as an interface between the fans and an IoT interface (part number 3124.300), enabling intelligent monitoring and control of fan functions via ModBus. The adapter is compactly designed and finished in RAL 9005, allowing it to blend visually into industrial enclosures.

Applications

The ModBus adapter is used in industrial enclosures where central control and monitoring of fan functions are required. It is particularly suitable for applications where fans need to be controlled, monitored, or integrated into a higher-level building or production control system via a network. Networking enables the collection of operational data such as speed, temperature, or operating hours, which is relevant for maintenance planning and energy efficiency.

Functions and Equipment in Detail

The adapter enables communication of Blue e+ EC filter fans via the ModBus protocol. It is designed for use with fan models having part numbers 3240.900, 3241.900, 3243.900, 3244.900, 3245.90x, and 3245.8x0. A separate ModBus adapter is required for each connected EC filter fan. The cable length is 100 mm, enabling a direct connection to the fan. Communication takes place via the IoT interface (3124.300), which serves as the central interface.

Technology Explained Simply

The ModBus adapter functions as a digital interface that converts the analog signals from the EC filter fans into ModBus-compatible data packets. These data can then be transmitted over a network to a control or monitoring system. The protection rating IP 20 according to IEC 60 529 means the adapter is protected against contact with fingers and against solid foreign objects, but not against water or dust. Therefore, it is suitable for use in enclosed enclosures, but not in open or damp environments.

Compatibility and Accessories

The adapter is exclusively compatible with the specified Blue e+ EC filter fans. The combination of ModBus adapter, IoT interface, and fans enables central control and monitoring of fan functions.

Mounting and Installation

The adapter is directly connected to the EC filter fan, with the 100 mm cable length enabling a direct connection. Mounting takes place within the enclosure, with dimensions of 30 mm (width), 34 mm (height), and 29 mm (depth) ensuring a compact fit. Installation does not require special tools, but correct connection to the fan and the IoT interface must be ensured.

Operational Advantages

By networking the fans via ModBus, operational states can be monitored and documented in real time. This supports predictive maintenance, as anomalies can be detected early. Additionally, central control enables optimized energy usage, as fans can be adjusted according to operating conditions. Integration into existing networks reduces the need for additional sensors or control devices.

General
ColourRAL 9005
NoteEach connected EC filter fan requires a ModBus adapter, cable length: 100 mm
Suitable for part no.3240.900, 3241.900, 3243.900, 3244.900, 3245.90x, 3245.8x0
Width30 mm
Height34 mm
Depth29 mm
Suitable forBlue e+ fan-and-filter unit
Degree of protection IP according to IEC 60 529IP 20


Product data sheet
Datasheet for Rittal 3124320, EAN: 4028177986053

Questions & answers

What is the delivery time of Rittal 3124320 SK ModBus adapter for Blue e+ EC filter fan?

The article Rittal 3124320 SK ModBus adapter for Blue e+ EC filter fan is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3124320 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3124320 SK ModBus adapter for Blue e+ EC filter fan always at the best possible price. We can give you a discount of 2% on Rittal 3124320 SK ModBus adapter for Blue e+ EC filter fan if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
