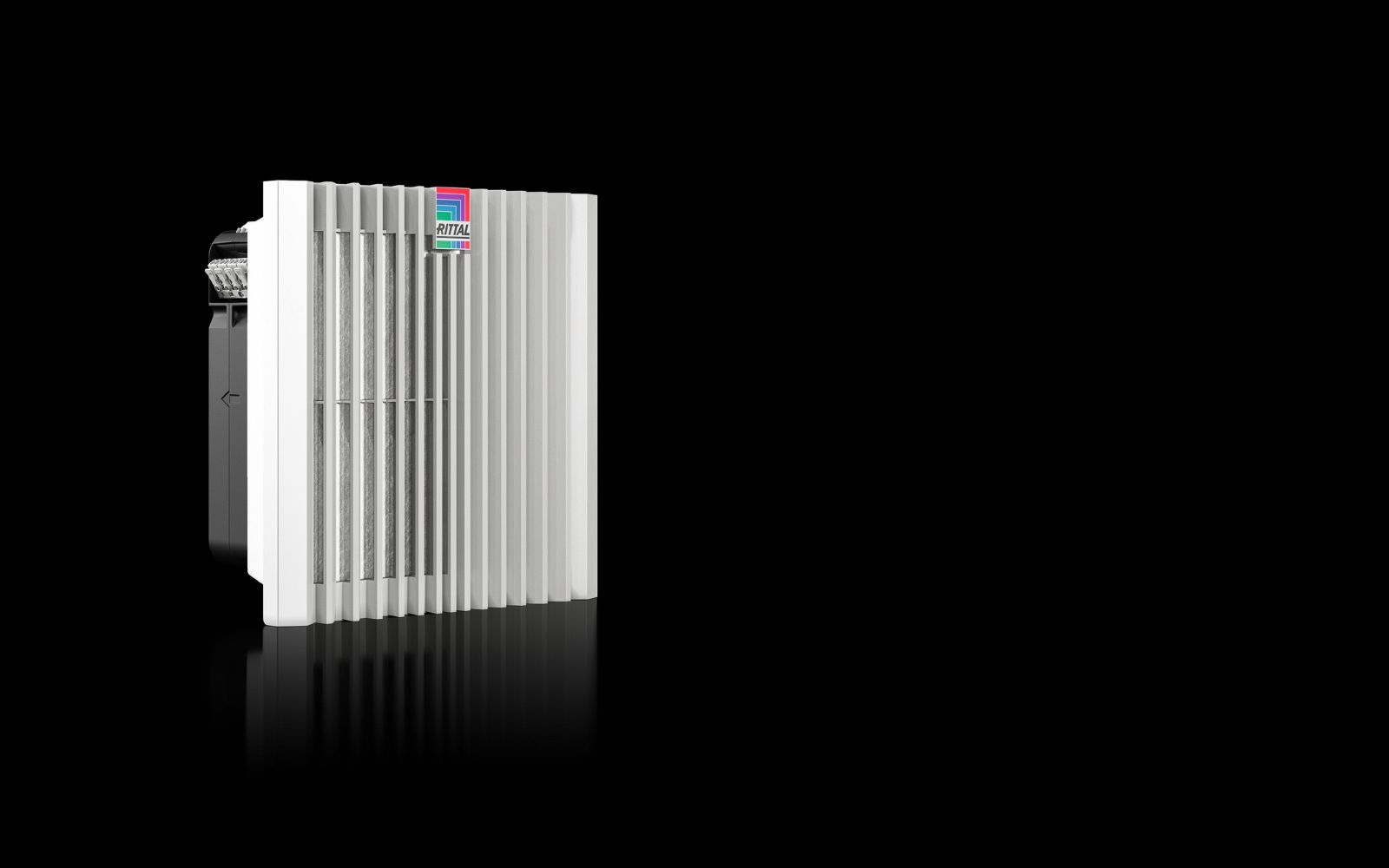

Rittal 3240900 Blue e+ filter fan EC 218 m³/h, 100 V–240 V, RAL 7035

Your rating:
Average rating
product review for Rittal 3240900 Blue e+ filter fan EC 218 m³/h, 100 V–240 V, RAL 7035
( 4.5 / 5 ) 2 ratings
Rittal 3240900
This image may differ from the desired article.
Rittal 3240900Rittal 3240900Rittal 3240900Rittal 3240900Rittal 3240900Rittal 3240900Rittal 3240900
-10% 188,26 EUR 210,00 EUR
( 224,03 EUR incl. VAT )
≈ £157.57  |  ≈ $206.90
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3240900 Blue e+ filter fan EC 218 m³/h, 100 V–240 V, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683841
Mfg Part No: 3240900
UPC/EAN: 4028177998070
Weight:2.324 kg
Type:SK 3240.900

Product information for Rittal 3240900:

The Rittal SK 3240.900 is a filter fan with EC technology, specifically designed for climate control in enclosures. It provides controlled ventilation and cooling of electrical and electronic components in industrial installations, with the integrated filter function retaining dust and particles from the ambient air. The unit is designed for wall mounting and is directly installed into the enclosure, with tool-free assembly. The housing is made of plastic in the colour RAL 7035, enabling visual harmonization with standard enclosure fronts.

Applications

The filter fan is intended for use in industrial environments where continuous cooling and filtration of supply air are required. It is particularly suitable for enclosures in production plants, automation systems, or process industries, where high air performance and simultaneous particle separation are necessary. The IP 54 protection rating with a non-woven or pleated filter ensures protection against dust and splashing water, allowing the fan to operate even in lightly contaminated or damp environments. With additional components such as an absorber mat or spray water hood, the protection rating can be increased to IP 55 or IP 55, enabling use in even more demanding environments.

Functions and Equipment in Detail

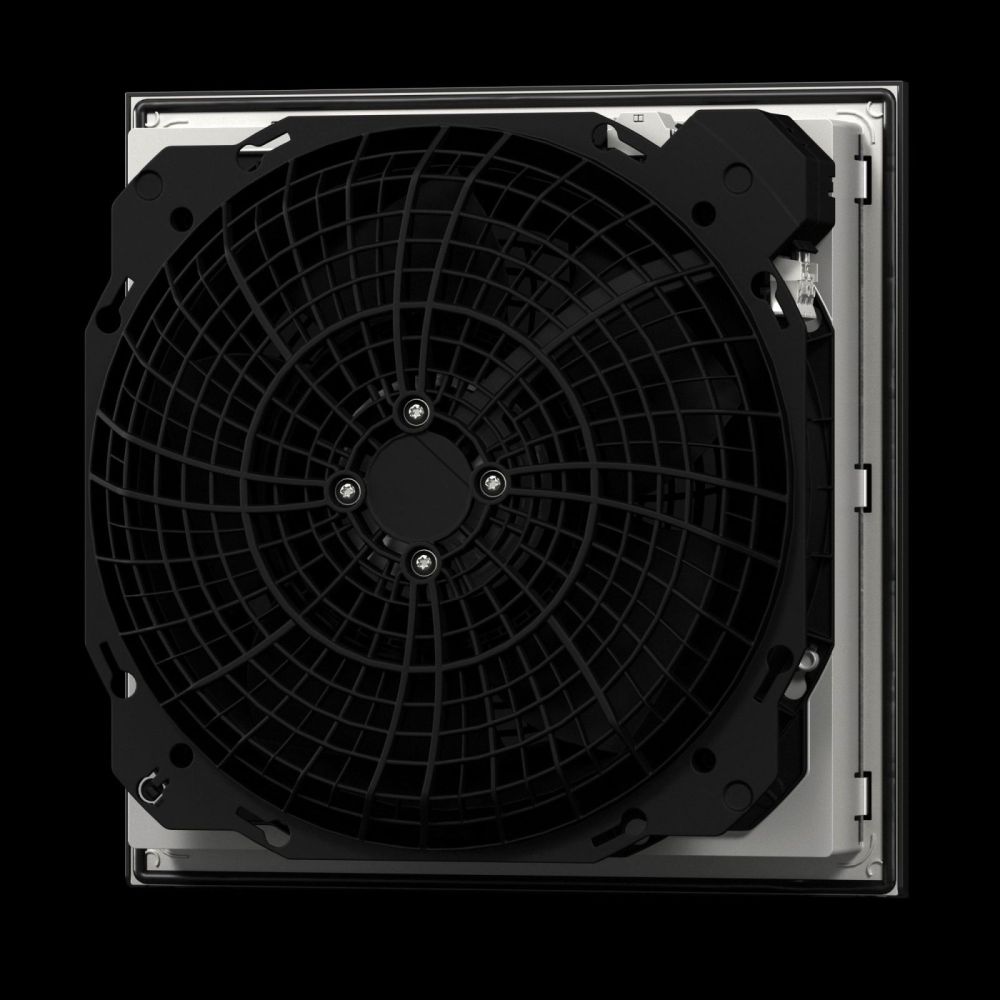

The fan features a diagonal fan with an EC motor, ensuring high pressure stability and even air distribution within the enclosure. The air performance is 218 m³/h free blowing at 50 Hz and 60 Hz, while it reduces to 188 m³/h when an outlet filter is used. With a non-woven filter, the free-blowing air performance drops to 175 m³/h, and with an outlet filter, it further reduces to 130 m³/h. The rated power is 13.4 W at 50 Hz, with a rated current of up to 0.2 A. The rated operating voltage is in the wide range of 100 V to 240 V, 1~, 50 Hz/60 Hz, enabling worldwide use. The operating temperature ranges from -25 °C to 55 °C, and the storage temperature from -25 °C to 70 °C.

Technology Explained Simply

The EC technology (External Commutator) enables higher energy efficiency and longer service life compared to conventional motors. Air is drawn in through a diagonally arranged fan and distributed evenly within the enclosure. The integrated pleated filters supplied as standard ensure high air performance and particle separation. The sound pressure level is 48 dB(A) at 50 Hz, indicating quiet operation. The fuse is rated at 6 A to protect the fan against overloads.

Compatibility and Accessories

The fan is compatible with various accessories that extend its functionality. These include outlet filters in RAL 7035, EC sensor speed controllers for precise speed control, thermostats for internal temperature control, digital temperature display and control, filter mat dispensers, ModBus adapters, spray water hoods made of stainless steel, pleated filters IP 55, hygrostats, replacement filter mats, and control units for Blue e+ EC filter fans. The IoT interface capability allows connection to higher-level control systems.

Mounting and Installation

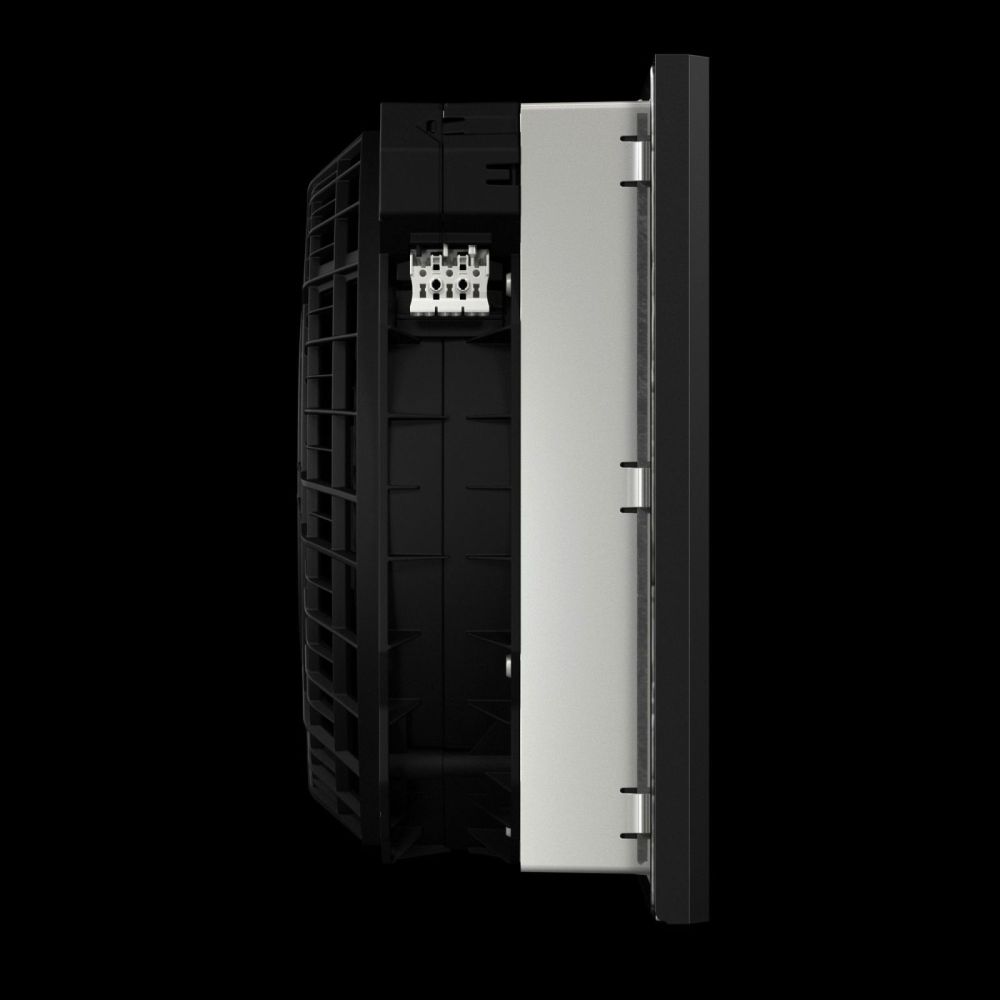

Installation is tool-free, using optimized snap hooks that enable quick and secure attachment to the enclosure. The mounting cutout measures 224 mm (width) × 224 mm (height), and the installation depth is 116.5 mm. The overall dimensions of the unit are 255 mm (width) × 255 mm (height) × 137.5 mm (depth). The unit is delivered as a complete ready-to-install unit including pleated filter.

Operational Advantages

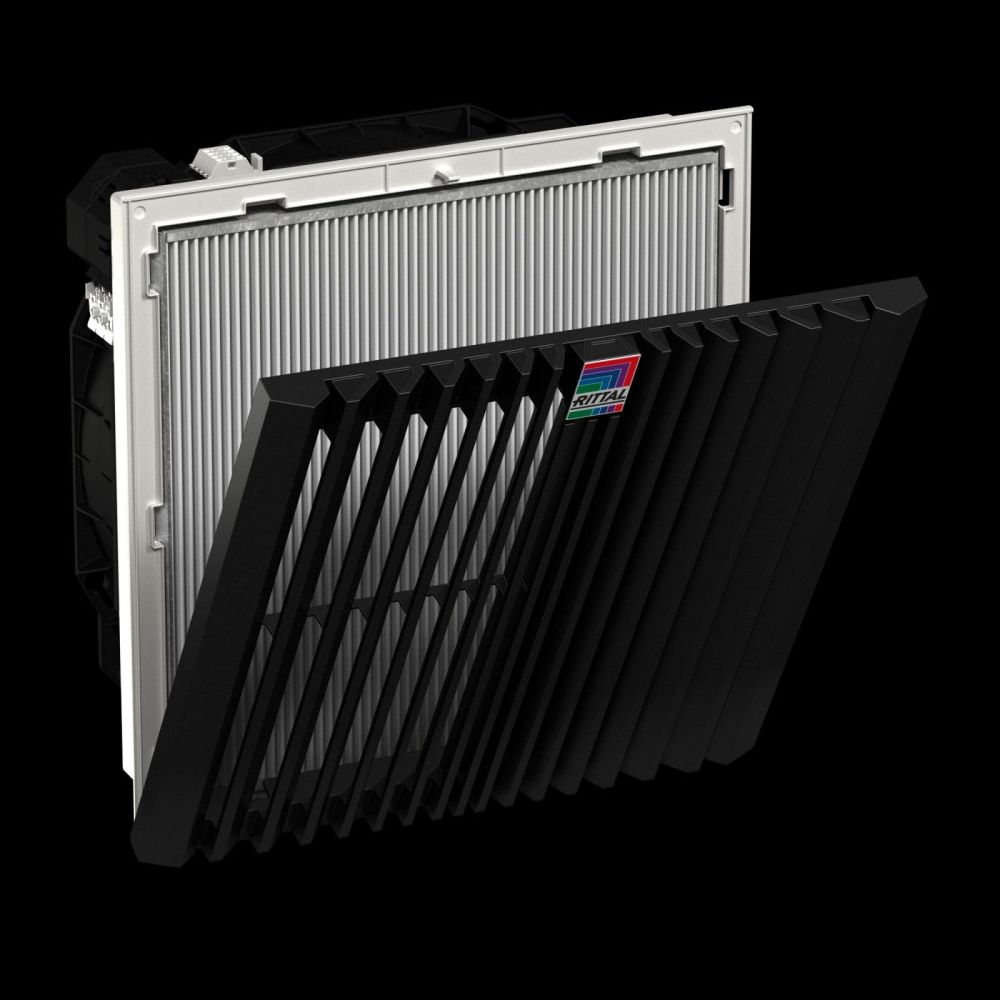

The fan offers high air performance due to the standard-integrated pleated filter, ensuring efficient cooling. The ModBus interface enables control and monitoring, making functions such as automatic filter cleaning, filter maintenance indication, and emergency cooling possible. The tool-free mounting and easy filter replacement via a new opening mechanism on the louver grid reduce maintenance time. The interfaces include a 0–10 V/PWM input, a speed output, a potential-free fault alarm contact, and an RS485 interface (ModBus), enabling flexible integration into existing control systems.

General
Modelwall mounting, EC
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including pleated filter
Fandiagonal, EC motor
Airflow free blowing (with pleated filter)At 50 Hz: 218 m³/h, At 60 Hz: 218 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 188 m³/h
Airflow free-blowing (with filter)At 50 Hz: 175 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 130 m³/h
Rated operating voltage100 V - 240 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 13.4 W
Rated current max.At 50 Hz: 0.2 A
Width255 mm
Height255 mm
Depth137,5 mm
Built-in depth116,5 mm
Mounting cutoutCutout width: 224 mm, cutout height: 224 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 6 A
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...70 °C
Sound pressure levelAt 50 Hz: 48 dB(A)
Interfaces0 - 10 V/PWM input, speed output, potential-free fault alarm contact, RS485 (ModBus)


Product data sheet
Datasheet for Rittal 3240900, EAN: 4028177998070

Questions & answers

What is the delivery time of Rittal 3240900 Blue e+ filter fan EC 218 m³/h, 100 V–240 V, RAL 7035?

The article Rittal 3240900 Blue e+ filter fan EC 218 m³/h, 100 V–240 V, RAL 7035 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3240900 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3240900 Blue e+ filter fan EC 218 m³/h, 100 V–240 V, RAL 7035 always at the best possible price. We can give you a discount of 2% on Rittal 3240900 Blue e+ filter fan EC 218 m³/h, 100 V–240 V, RAL 7035 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
