Rittal 3172120 SK pleated filter IP54 for 3240/3241 1 VE = 5 pcs

Your rating:
Average rating
product review for Rittal 3172120 SK pleated filter IP54 for 3240/3241 1 VE = 5 pcs
( 5 / 5 ) 2 ratings

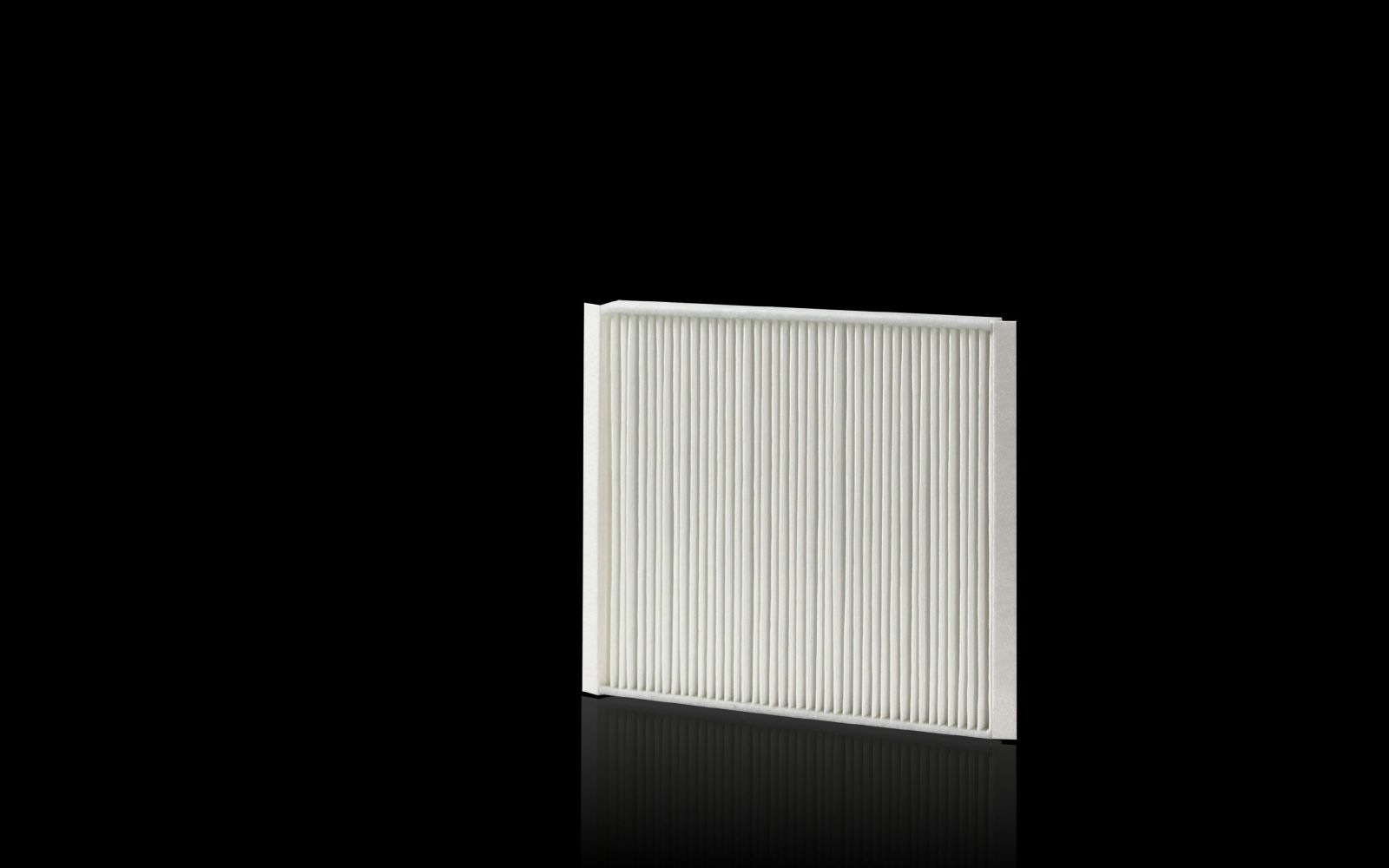

Rittal 3172120
This image may differ from the desired article.
Rittal 3172120Rittal 3172120
-10% 45,71 EUR 51,06 EUR
( 54,39 EUR incl. VAT )
≈ £38.26  |  ≈ $50.24
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3172120 SK pleated filter IP54 for 3240/3241 1 VE = 5 pcs
Datasheet:file_download Download
Lieske Part No.:677444
Mfg Part No: 3172120
UPC/EAN: 4028177969148
Weight:0.34 kg
Type:SK 3172120

Product information for Rittal 3172120:

The Rittal SK 3172120 is a pleated filter for filter fans and outlet filters, specifically designed for use in industrial enclosures and cooling units. It serves air purification and dust separation in the airflow, ensuring the hygiene of the interior space of control systems and extending the service life of fan components. The filter is made of PET material, white painted, and has dimensions of 212.5 mm (width) × 212.5 mm (height) × 21 mm (depth). It is designed for mounting in filter and roof fans as well as outlet filters and meets protection class IP 54 when correctly installed. The filter class corresponds to G4 according to DIN EN 779 and ISO Coarse 70 % according to DIN EN ISO 16890, ensuring efficient separation of coarse particles.

Applications

The filter is primarily intended for use in Rittal filter fans with article numbers 3240.xxx and 3241.xxx. It is used in enclosures, cooling units, and chillers where continuous air purification is required to protect the functionality of electronic components. The application is in industrial environments where dust load and air contamination are relevant. The filter technology enables a higher volume flow compared to conventional nonwoven filters, increasing fan performance and reducing energy consumption.

Functions and Equipment in Detail

The SK 3172120 uses pleated filter technology, enabling a larger filter surface in a compact format. This improves air permeability, resulting in a higher air volume per unit of time. The filter class G4 (ISO Coarse 70 %) ensures effective separation of coarse particles such as dust and dirt. The use of original Rittal filter mats is required to guarantee the specified performance data, protection class, and approvals. The filter mat is not suitable for EMC filter fans, as these require special electrical shielding incompatible with this filter type.

Technology Explained Simply

The pleated structure of the filter increases the filter surface compared to flat nonwoven filters, reducing air resistance and increasing airflow. Protection class IP 54 means the filter is dust-tight and protected against splashing water, making it suitable for outdoor use or in humid indoor environments. Filter class G4 corresponds to coarse particle separation, sufficient for use in industrial enclosures, where the main task is to prevent coarse contamination.

Compatibility and Accessories

The filter is specifically designed for Rittal filter fans with article numbers 3240.xxx and 3241.xxx. It is not suitable for EMC filter fans, as these require special electrical shielding incompatible with this filter type. The use of original Rittal filter mats is necessary to ensure full performance and protection features. The packaging unit is 5 pieces.

Mounting and Installation

Mounting is done into the designated filter holders of filter fans 3240.xxx and 3241.xxx. The filter mat is inserted into the holder and fits securely without additional fastening elements. Correct installation is essential to achieve protection class IP 54. Filters should be regularly inspected and replaced when dirty to maintain air quality and fan performance.

Operational Advantages

Using the SK 3172120 leads to improved air purification, reducing contamination of electronic components in the enclosure. The longer service life of the filter reduces maintenance frequency and lowers service costs. Increased air permeability results in better cooling performance of the fans and reduced energy consumption. Protection class IP 54 ensures reliable operation in dusty and humid environments.

General
Modelfor filter fans/exhaust filters
MaterialPET
ColourWhite
NoteThe performance data, degree of protection and approvals of the devices are only guaranteed in combination with original Rittal filter mats.
Suitable for part no.3240.xxx, 3241.xxx
Width212,5 mm
Height212,5 mm
Depth21 mm
Filter classaccording to DIN EN 779: G4, according to DIN EN ISO 16890: ISO Coarse 70 %
Degree of protection IP according to IEC 60 529IP 54 when mounted in filter & roof fan/exhaust filter
Note on part numberNot suitable for use in EMC filter fans.


Product data sheet
Datasheet for Rittal 3172120, EAN: 4028177969148
