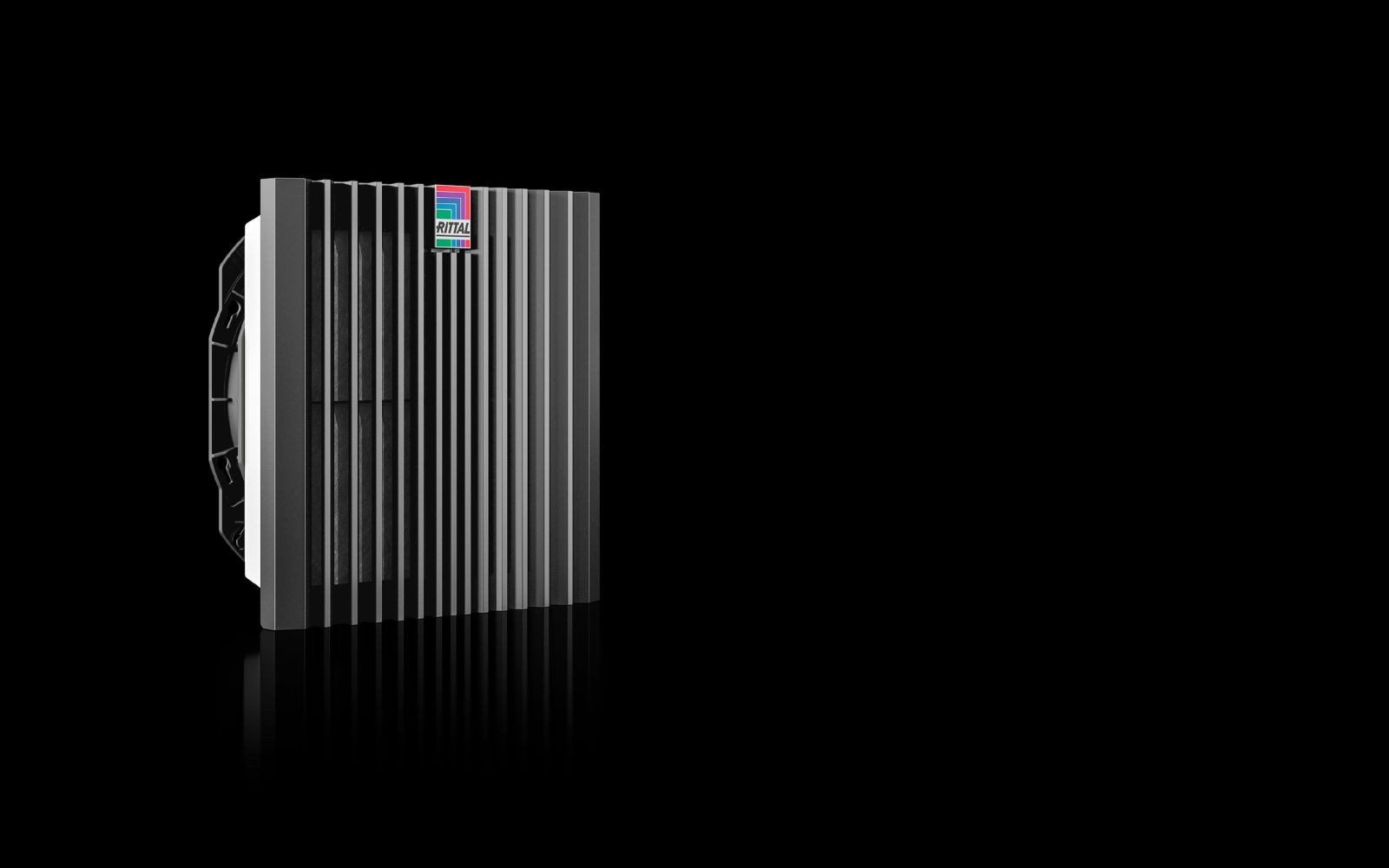

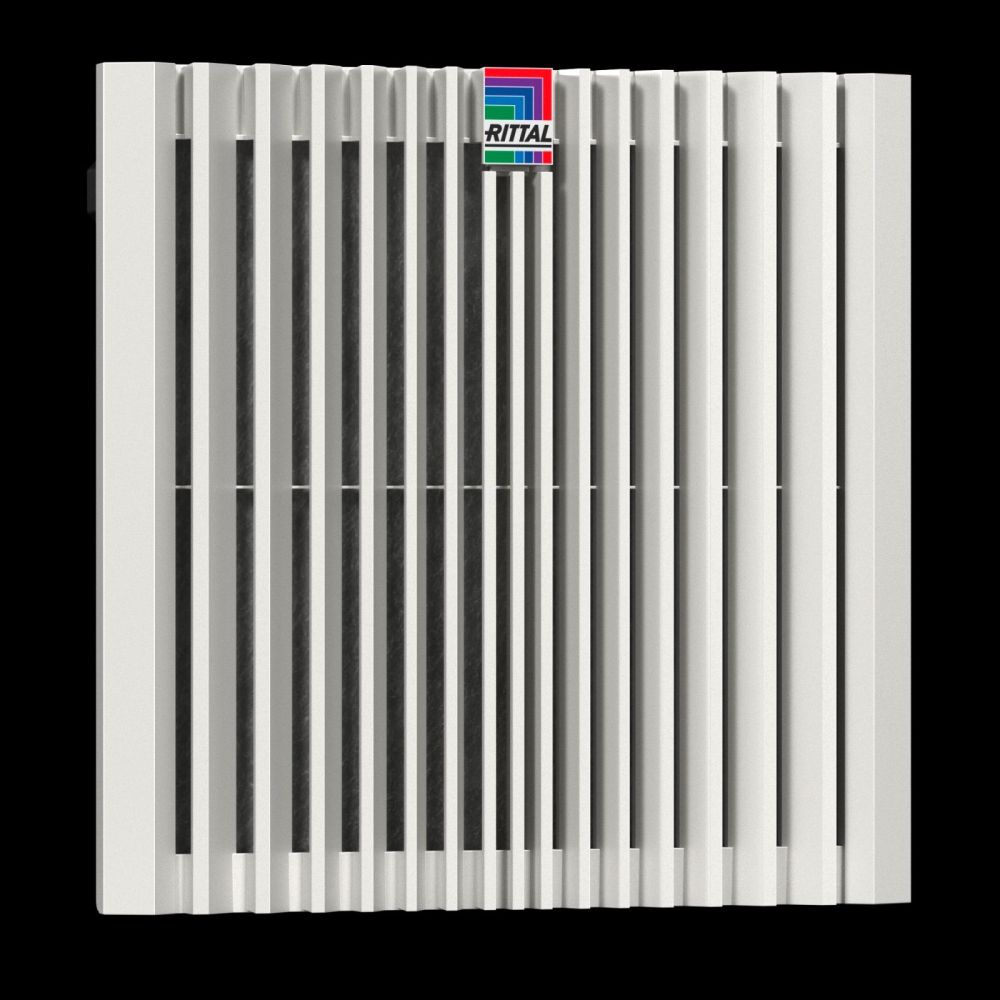

Rittal 3241708 Blue e+ filter fan 272/280 m³/h, 230 V, RAL 9005

Your rating:
Average rating
product review for Rittal 3241708 Blue e+ filter fan 272/280 m³/h, 230 V, RAL 9005
( 5 / 5 ) 1 ratings
Rittal 3241708
This image may differ from the desired article.
Rittal 3241708Rittal 3241708Rittal 3241708Rittal 3241708Rittal 3241708
127,54 EUR
( 151,77 EUR incl. VAT )
≈ £106.75  |  ≈ $140.17
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 3241708 Blue e+ filter fan 272/280 m³/h, 230 V, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683847
Mfg Part No: 3241708
UPC/EAN: 4028177998056
Weight:2.413 kg
Type:SK 3241.708

Product information for Rittal 3241708:

The Rittal SK 3241.708 is a filter fan from the SK Blue e+ series, designed for enclosure climate control. It serves for controlled ventilation of enclosures to regulate internal temperature and ensure the functionality of electronic components. The unit is designed for wall mounting and consists of a plastic housing in the colour RAL 9005.

Applications

The filter fan is intended for use in industrial environments where continuous and reliable ventilation of enclosures is required. It is particularly suitable for installations in manufacturing, automation technology, and energy technology, where compliance with protection ratings and operating temperatures is critical. The unit is suitable for use in indoor and outdoor environments, provided the required protection ratings are achieved using additional components such as spray water hoods or absorber mats.

Functions and equipment in detail

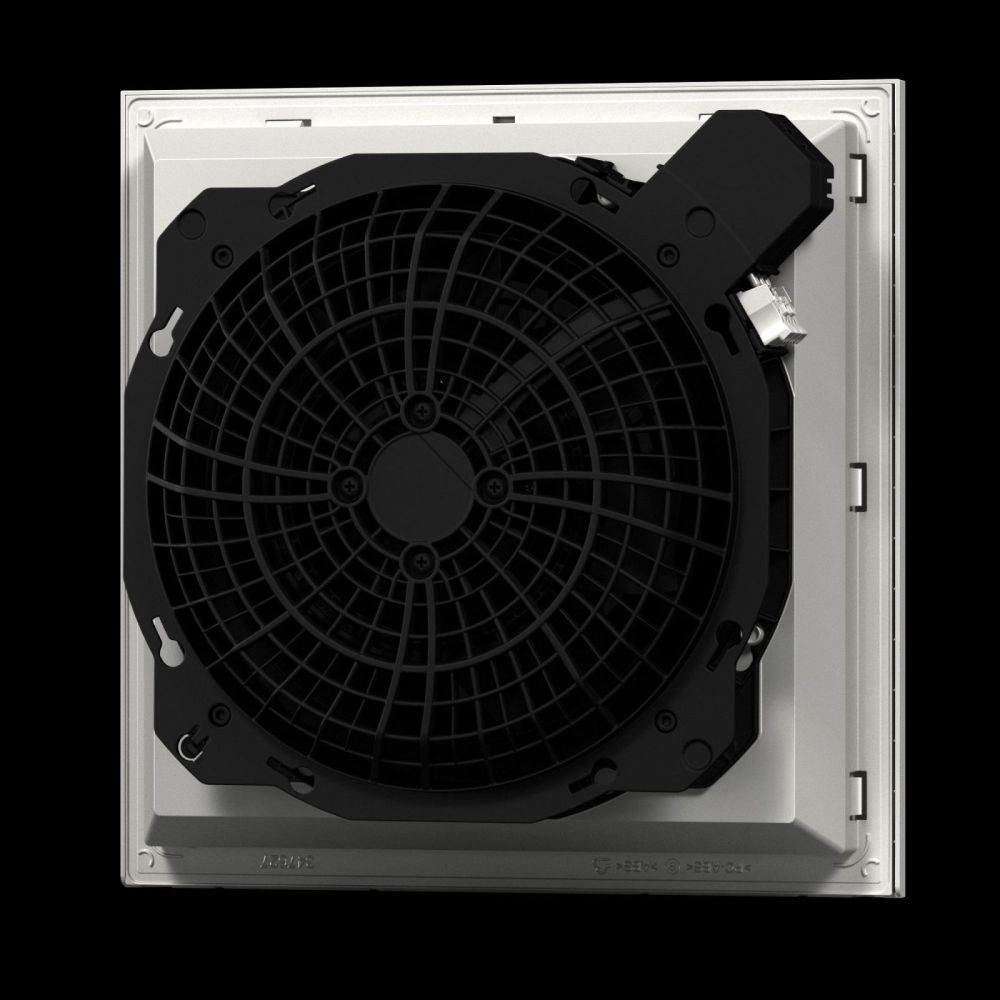

The fan features diagonal fan technology with a slot pole motor, ensuring higher pressure stability and more consistent airflow. The diagonal exhaust direction ensures more even cooling of the enclosure. The airflow rate is 272 m³/h free blowing with pleated filter at 50 Hz and 280 m³/h at 60 Hz. When using an outlet filter, the airflow rate drops to 242 m³/h (50 Hz) and 246 m³/h (60 Hz). The unit is tool-free to mount, with optimised snap hooks enabling faster installation on the enclosure. Filter replacement is performed via a new opening mechanism on the louver grille, simplifying maintenance.

Technology explained simply

The rated operating voltage is 230 V, 1~, designed for frequencies of 50 Hz and 60 Hz. The rated power is 43.2 W (50 Hz) or 54.5 W (60 Hz), and the rated current is up to 0.27 A (50 Hz) or 0.32 A (60 Hz). The protection rating IP 54 is standard with felt filter or pleated filter. Higher protection ratings such as IP 54 or IP 54 can be achieved with additional components such as absorber mats or spray water hoods. The protection rating NEMA Type 12 is also achievable with felt filter/pleated filter, while Type 3, 3R, 4, and 4X can be achieved by combining with a spray water hood. The operating temperature ranges from -30 °C to 55 °C, and the storage temperature ranges from -30 °C to 70 °C. The sound pressure level is 53 dB(A) at 50 Hz and 54 dB(A) at 60 Hz.

Compatibility and accessories

The filter fan is compatible with various accessories to adjust protection rating or functionality. These include Blue e+ outlet filters, spray water hoods made of stainless steel, pleated filters IP 54, felt filters, absorber mats, speed controllers, thermostats, hygrostats, and digital temperature display and control units. Installation requires a cutout of 224 mm width and 224 mm height, with an installation depth of 108 mm. The unit dimensions are 255 mm (width) × 255 mm (height) × 129 mm (depth).

Mounting and installation

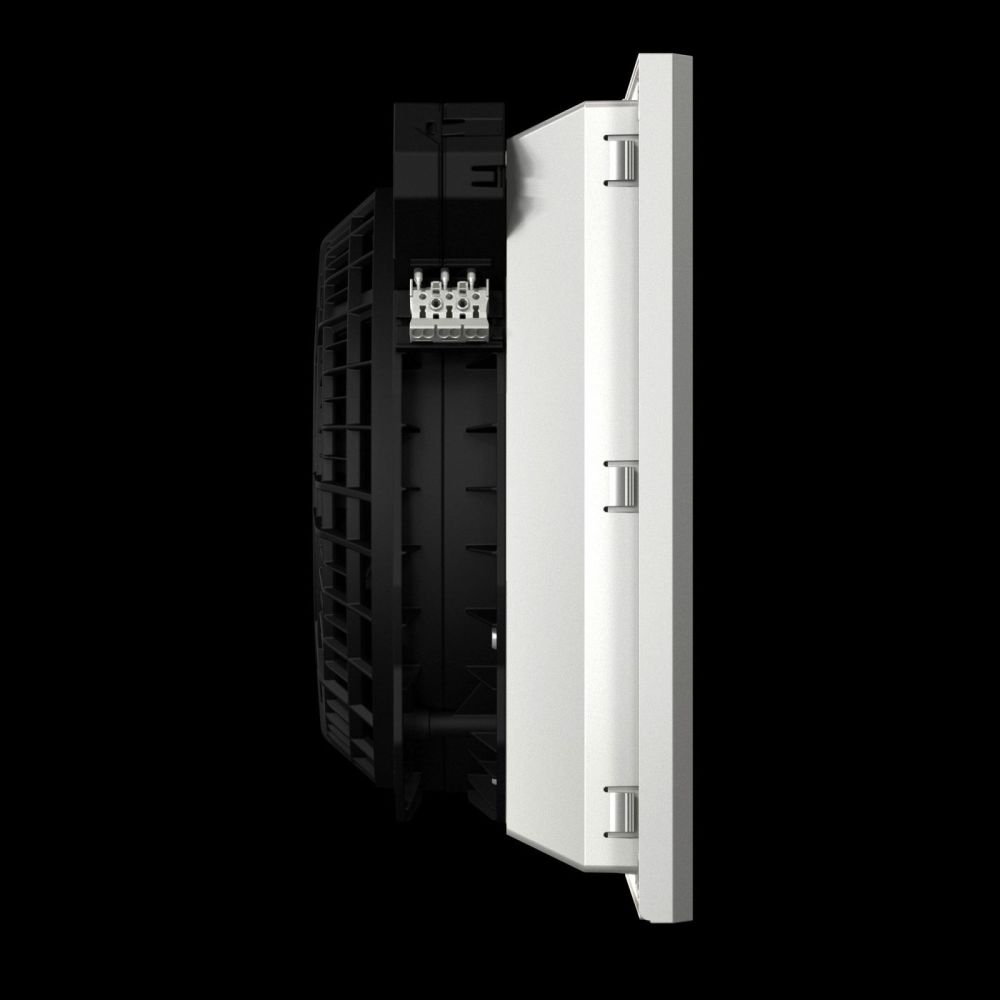

Mounting is tool-free via snap hooks, enabling quick and secure attachment to the enclosure. Electrical connection is made via spring-loaded terminals; for other models (3237.XXX), connection via individual wires is provided. The unit is designed for surface mounting and requires a corresponding cutout in the enclosure.

Advantages in operation

The filter fan provides high airflow in its delivered state, ensured by the integrated pleated filter. The diagonal fan technology ensures even and consistent ventilation, extending the service life of enclosure components. Tool-free mounting and easy filter replacement reduce maintenance time. Compliance with protection ratings IP 54 to IP 54 and NEMA Type 12 to 4X enables use in various environments, including humid or dusty areas.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanDiagonal, split-pole motor
Airflow free blowing (with pleated filter)At 50 Hz: 272 m³/h, At 60 Hz: 280 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 242 m³/h, At 60 Hz: 246 m³/h
Airflow free-blowing (with filter)At 50 Hz: 225 m³/h, At 60 Hz: 245 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 173 m³/h, At 60 Hz: 187 m³/h
Rated operating voltage230 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 43.2 W, At 60 Hz: 54.5 W
Rated current max.At 50 Hz: 0.27 A, At 60 Hz: 0.32 A
Width255 mm
Height255 mm
Depth129 mm
Built-in depth108 mm
Mounting cutoutCutout width: 224 mm, cutout height: 224 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 4 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-30 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 53 dB(A), At 60 Hz: 54 dB(A)
