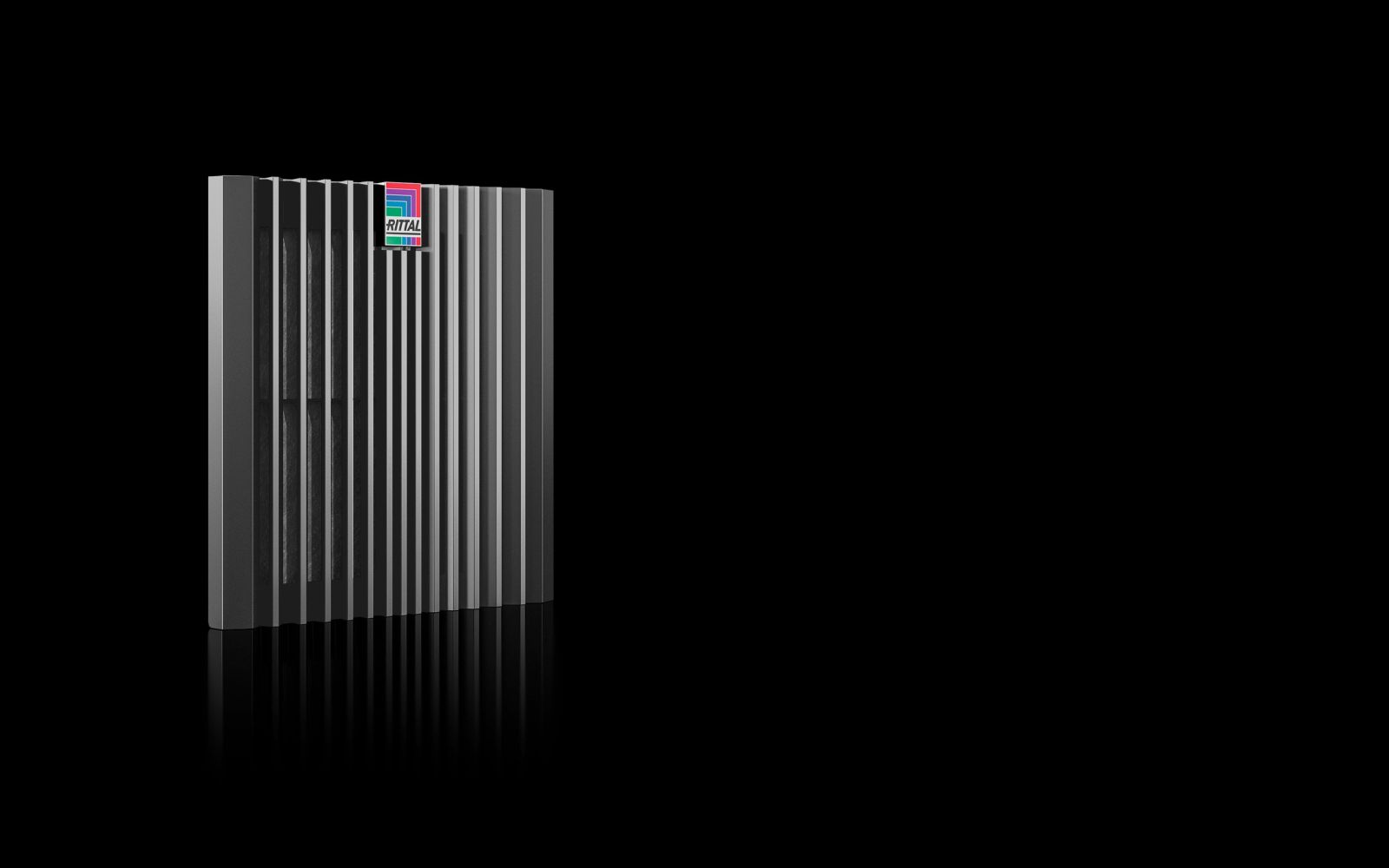

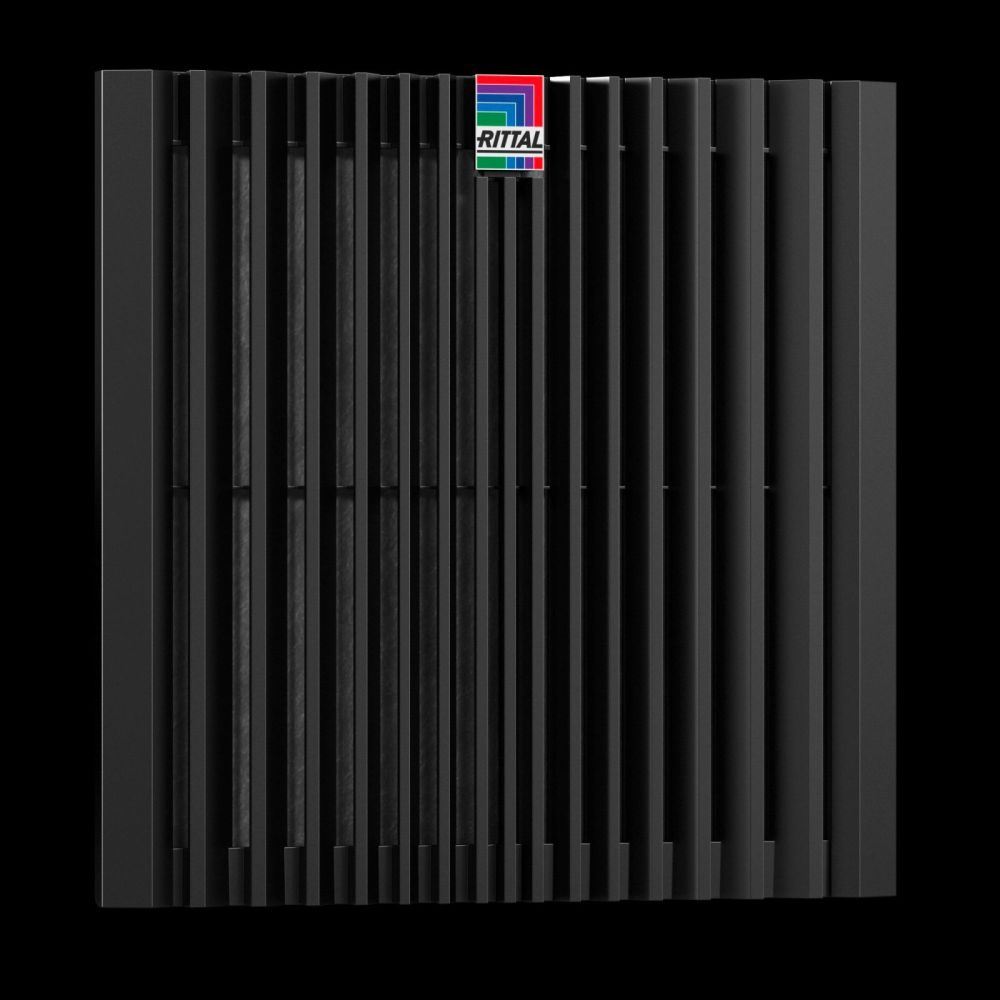

Rittal 3240308 Blue e+ outlet filter, RAL 9005

Your rating:
Average rating
product review for Rittal 3240308 Blue e+ outlet filter, RAL 9005
( 5 / 5 ) 1 ratings
Rittal 3240308
This image may differ from the desired article.
Rittal 3240308Rittal 3240308Rittal 3240308Rittal 3240308Rittal 3240308Rittal 3240308Rittal 3240308Rittal 3240308
36,80 EUR
( 43,79 EUR incl. VAT )
≈ £30.80  |  ≈ $40.44
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3240308 Blue e+ outlet filter, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683830
Mfg Part No: 3240308
UPC/EAN: 4028177998353
Weight:0.665 kg
Type:SK 3240.308

Product information for Rittal 3240308:

The Rittal SK 3240.308 is an outlet filter for filter fans of the SK 3240.7xx/3240.9xx/3241.7xx/3241.9xx series. It is used for enclosure climate control and is employed in conjunction with a filter fan to remove waste heat from the enclosure, regulate internal temperature, and protect temperature-sensitive components. The function is achieved by direct supply of ambient air, the temperature of which must be below the permissible enclosure internal temperature. The filter is designed as a wall-mounted installation and is made of plastic in the colour RAL 9005. Dimensions are 255 mm width, 255 mm height, and 45.2 mm depth, requiring a mounting cutout of 224 mm width and 224 mm height.

Applications

The outlet filter is designed for use in industrial enclosures where controlled ventilation and cooling are required. It is particularly suitable for applications where compliance with protection ratings against dust and water is necessary, for example in production environments, machine controls, or automation technology. It is used in combination with filter fans, which draw air through the filter and introduce it into the enclosure.

Functions and Equipment in Detail

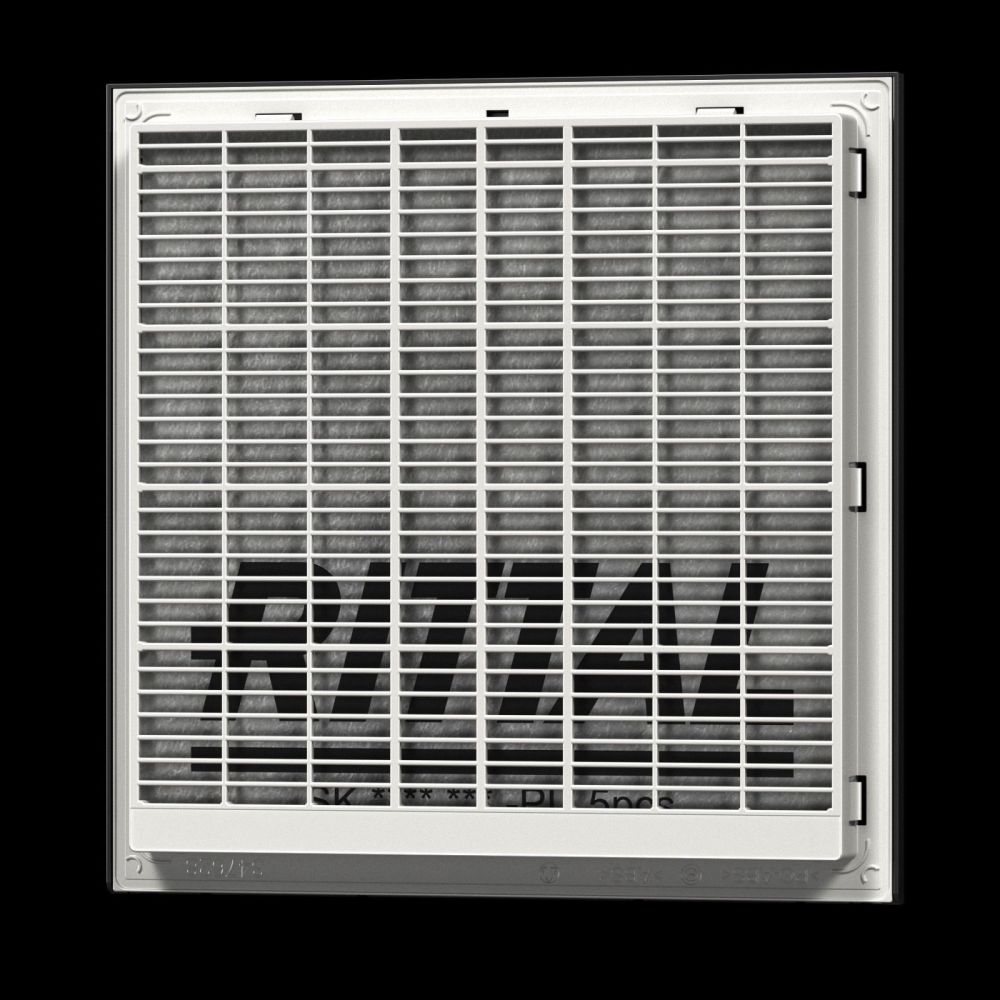

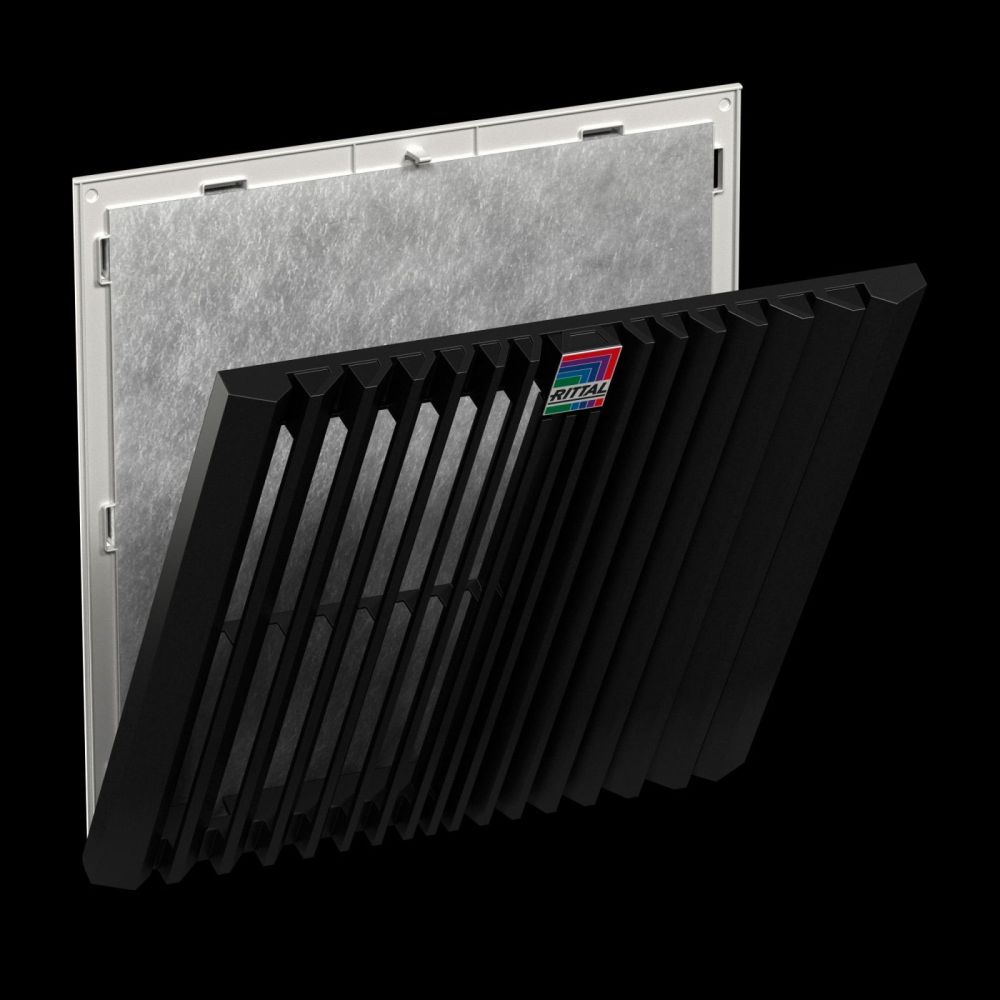

The filter features a new opening mechanism on the louver grille, which simplifies filter replacement. Mounting to the enclosure is tool-free and is accelerated by optimised snap hooks. The delivery includes the outlet filter and a pleated filter. The filter component ensures mechanical separation of particles from the incoming air.

Technology Explained Simply

Protection rating IP 54 is achieved when the filter is operated with a non-woven filter or pleated filter. When using a pleated filter and an absorber mat, the protection rating can be increased to IP 54. With a non-woven filter/pleated filter and a spray water hood, a protection rating of IP 54 is possible. The corresponding NEMA protection ratings are Type 12 (with non-woven filter/pleated filter), as well as Type 3, 3R, 4, and 4X (with non-woven filter/pleated filter and spray water hood). These protection ratings ensure high protection against dust and splashing water, making it suitable for outdoor use or in humid environments. The IP classification according to IEC 60 529 is relevant for use in industrial plants, as it defines mechanical and weather-related durability.

Compatibility and Accessories

The outlet filter is specifically designed for filter fan models SK 3240.7xx, SK 3240.9xx, SK 3241.7xx, and SK 3241.9xx. As accessories, replacement filter mats, pleated filters, a stainless steel spray water hood, and a filter mat dispenser are available. These components allow adaptation to different environmental conditions and increase the protection rating. The blind cover SK 3240020 can be used to cover unused mounting cutouts.

Mounting and Installation

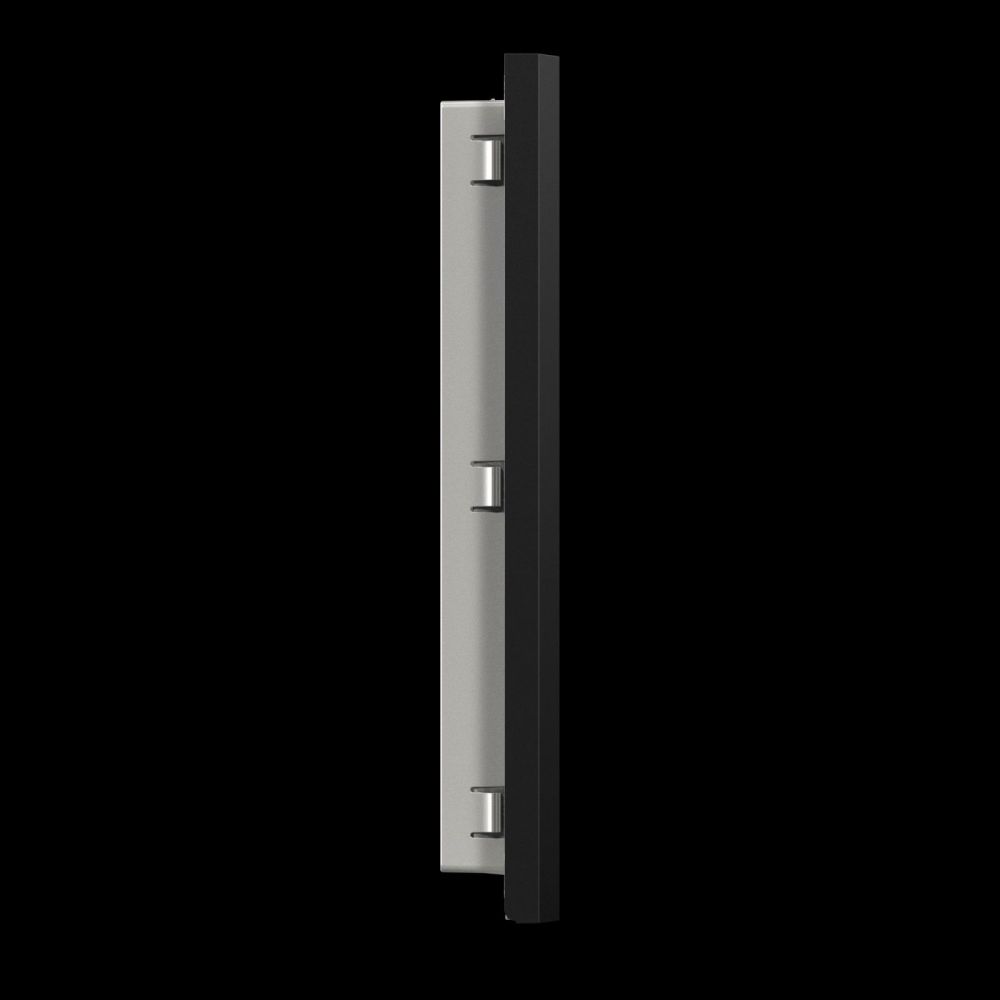

Mounting is tool-free and is quick and easy thanks to optimised snap hooks. The filter is inserted into the designated mounting cutout (224 mm × 224 mm) and secured by the snap hooks. The tool-free mounting reduces installation time and minimises the risk of errors during installation. The filter dimensions (255 mm × 255 mm) are designed to securely cover the mounting cutout.

Operational Advantages

The filter enables efficient and maintenance-friendly climate control of enclosures. The easy filter replacement via the new opening mechanism reduces maintenance time. The tool-free mounting and quick installation on the enclosure increase efficiency during commissioning and maintenance. The combination with various filter and protection components allows flexible adaptation to different environmental conditions, thereby increasing the operational reliability of enclosures.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryOutlet filter, pleated filter
Mounting cutoutCutout width: 224 mm, cutout height: 224 mm
Suitable for part no.SK 3240.7xx/3240.9xx/3241.7xx/3241.9xx
Width255 mm
Height255 mm
Depth45,2 mm
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood


Product data sheet
Datasheet for Rittal 3240308, EAN: 4028177998353

Questions & answers

What is the delivery time of Rittal 3240308 Blue e+ outlet filter, RAL 9005?

The article Rittal 3240308 Blue e+ outlet filter, RAL 9005 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3240308 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3240308 Blue e+ outlet filter, RAL 9005 always at the best possible price. We can give you a discount of 2% on Rittal 3240308 Blue e+ outlet filter, RAL 9005 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
