Rittal 3240208 SK outlet filter for 3240 and 3241.1x8 RAL9005

Your rating:
Average rating
product review for Rittal 3240208 SK outlet filter for 3240 and 3241.1x8 RAL9005
( 4.7 / 5 ) 3 ratings
Rittal 3240208
This image may differ from the desired article.
Rittal 3240208Rittal 3240208Rittal 3240208
35,52 EUR 37,07 EUR
( 42,27 EUR incl. VAT )
≈ £29.73  |  ≈ $39.04
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3240208 SK outlet filter for 3240 and 3241.1x8 RAL9005
Datasheet:file_download Download
Lieske Part No.:316672
Mfg Part No: 3240208
UPC/EAN: 4028177663824
Weight:0.56 kg
Type:SK 3240208

Product information for Rittal 3240208:

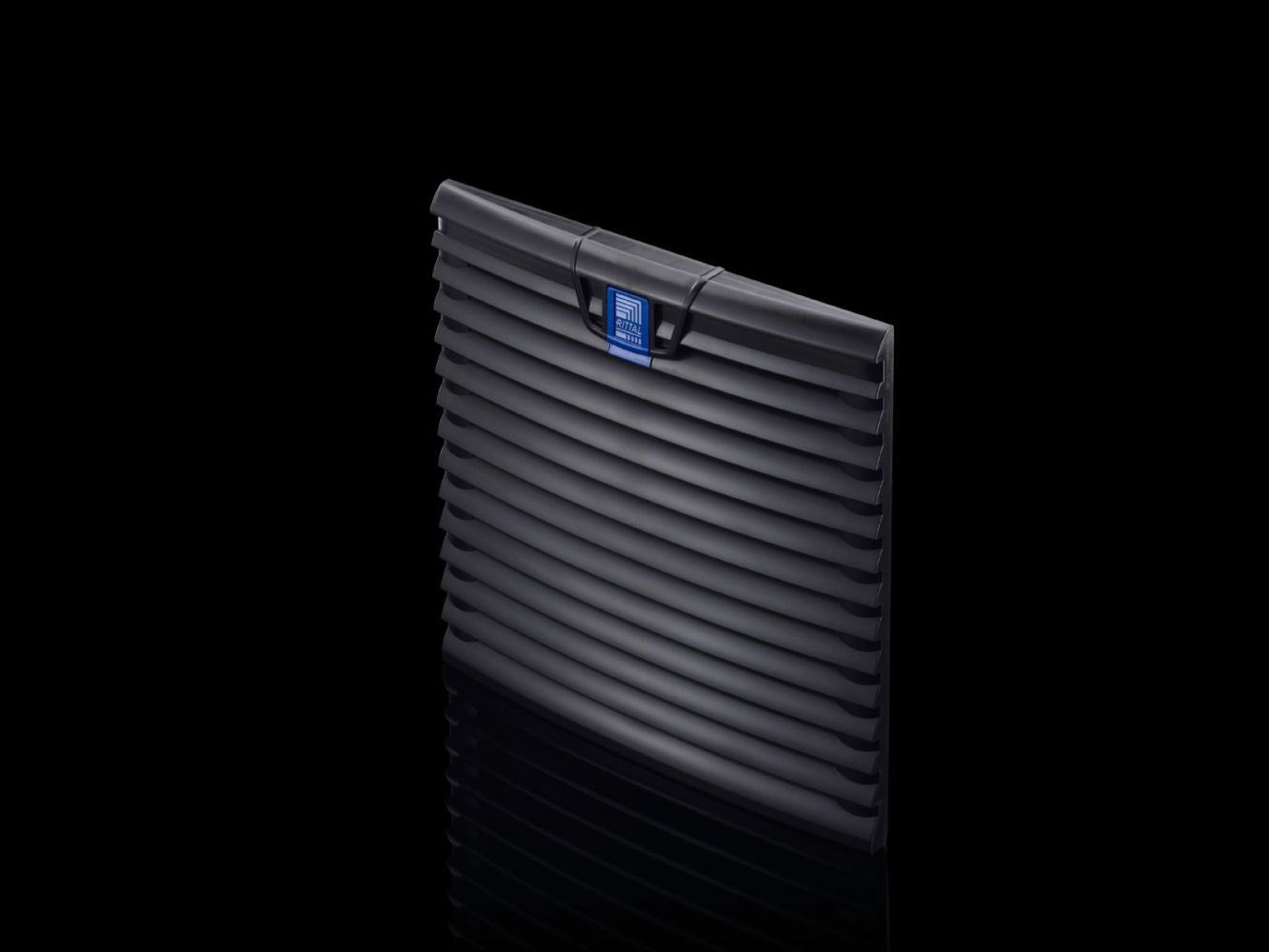

The SK 3240208 from Rittal is an outlet filter for convective ventilation of enclosures. It is mounted in the upper or lower section of the enclosure to enable controlled air exhaust, while simultaneously retaining dust and foreign particles. The device is made of ABS and is available in the colour RAL 9005 (black). Dimensions are 255 mm width, 255 mm height, and 25 mm depth, with the mounting cutout requiring a clearance of 224 mm width and 224 mm height. The filter is specifically designed for enclosure models from the series 3240.1xx, 3240.5xx, 3241.1xx, and 3241.5xx.

Applications

The outlet filter serves passive ventilation of enclosures, where air circulates through natural convection. It is suitable for applications requiring continuous air circulation without the use of additional fans or active ventilators. Installation in the upper or lower section of the enclosure enables efficient heat dissipation from inside the housing. The filtering function protects electronic components from dust and particles, extending the service life of the devices.

Functions and equipment in detail

The product is supplied with an outlet filter and a non-woven filter mat. The non-woven filter mat serves as the primary protective layer against dust and coarse particles. The filter itself is made of ABS, a robust plastic that withstands mechanical stress and environmental influences. The colour RAL 9005 ensures visual harmony with other components in the enclosure. Dimensions of 255 mm × 255 mm × 25 mm allow for standardised installation in the designated enclosure models.

Technology explained simply

Ventilation occurs through convection, i.e., natural air circulation caused by temperature differences within the enclosure. Hot air rises and is discharged through the outlet filter, while cool air flows in through other openings (e.g., inlet filters). The filter retains dust and particles, maintaining internal cleanliness. Protection rating IP 54 is achieved when the filter is equipped with a non-woven or pleated filter. Using a pleated filter and an absorber mat increases the protection rating to IP 54. With a non-woven or pleated filter and a spray hood, a protection rating of IP 54 is possible. NEMA protection ratings include Type 3, 3R, 4, 4X, and Type 12, with higher ratings achieved by adding components such as the spray hood.

Compatibility and accessories

The outlet filter is specifically designed for enclosure models with article numbers 3240.1xx, 3240.5xx, 3241.1xx, and 3241.5xx. As suitable accessories, the Blue e+ outlet filter, RAL 9005 is offered, representing an alternative version. Combining it with a pleated filter and an absorber mat enables a higher protection rating according to IP 54. Using a spray hood in conjunction with the non-woven or pleated filter meets the requirements of protection rating IP 54.

Installation and mounting

Mounting is done by inserting into a pre-defined mounting cutout with dimensions of 224 mm width and 224 mm height. The filter is inserted into the enclosure and secured, with the exact mounting instructions corresponding to the respective enclosure model. Installation requires no additional tools or components, as the filter fits directly into the designated cutout. Positioning in the upper or lower section of the enclosure depends on ventilation requirements.

Operational advantages

Using the outlet filter enables reliable, low-maintenance ventilation without additional energy consumers. The integrated filtering function protects electronic components from contamination, increasing operational safety. Protection ratings from IP 54 to IP 54, along with NEMA classification Type 3 to Type 4X, make the filter suitable for a wide range of industrial environments, including areas with high dust exposure or splashing water. The use of ABS as material ensures high mechanical stability and weather resistance.

General
MaterialABS
ColourRAL 9005
Scope of deliveryexhaust filter, non-woven filter mat
Mounting cutoutCutout width: 224 mm, cutout height: 224 mm
Suitable for part no.3240.1xx/3240.5xx/3241.1xx/3241.5xx
Width255 mm
Height255 mm
Depth25 mm
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, Type 3R, Type 4, Type 4X with felt filter/pleated filter and spray hood
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood


Product data sheet
Datasheet for Rittal 3240208, EAN: 4028177663824

Questions & answers

What is the delivery time of Rittal 3240208 SK outlet filter for 3240 and 3241.1x8 RAL9005?

The article Rittal 3240208 SK outlet filter for 3240 and 3241.1x8 RAL9005 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3240208 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3240208 SK outlet filter for 3240 and 3241.1x8 RAL9005 always at the best possible price. We can give you a discount of 2% on Rittal 3240208 SK outlet filter for 3240 and 3241.1x8 RAL9005 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
