Rittal 3241718 Blue e+ filter fan 272/280 m³/h, 115 V, RAL 9005

Your rating:
Average rating
product review for Rittal 3241718 Blue e+ filter fan 272/280 m³/h, 115 V, RAL 9005
( 5 / 5 ) 1 ratings
Rittal 3241718
This image may differ from the desired article.
Rittal 3241718Rittal 3241718Rittal 3241718Rittal 3241718Rittal 3241718
138,92 EUR 143,06 EUR
( 165,31 EUR incl. VAT )
≈ £116.28  |  ≈ $152.67
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3241718 Blue e+ filter fan 272/280 m³/h, 115 V, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683850
Mfg Part No: 3241718
UPC/EAN: 4028177998032
Weight:2.402 kg
Type:SK 3241.718

Product information for Rittal 3241718:

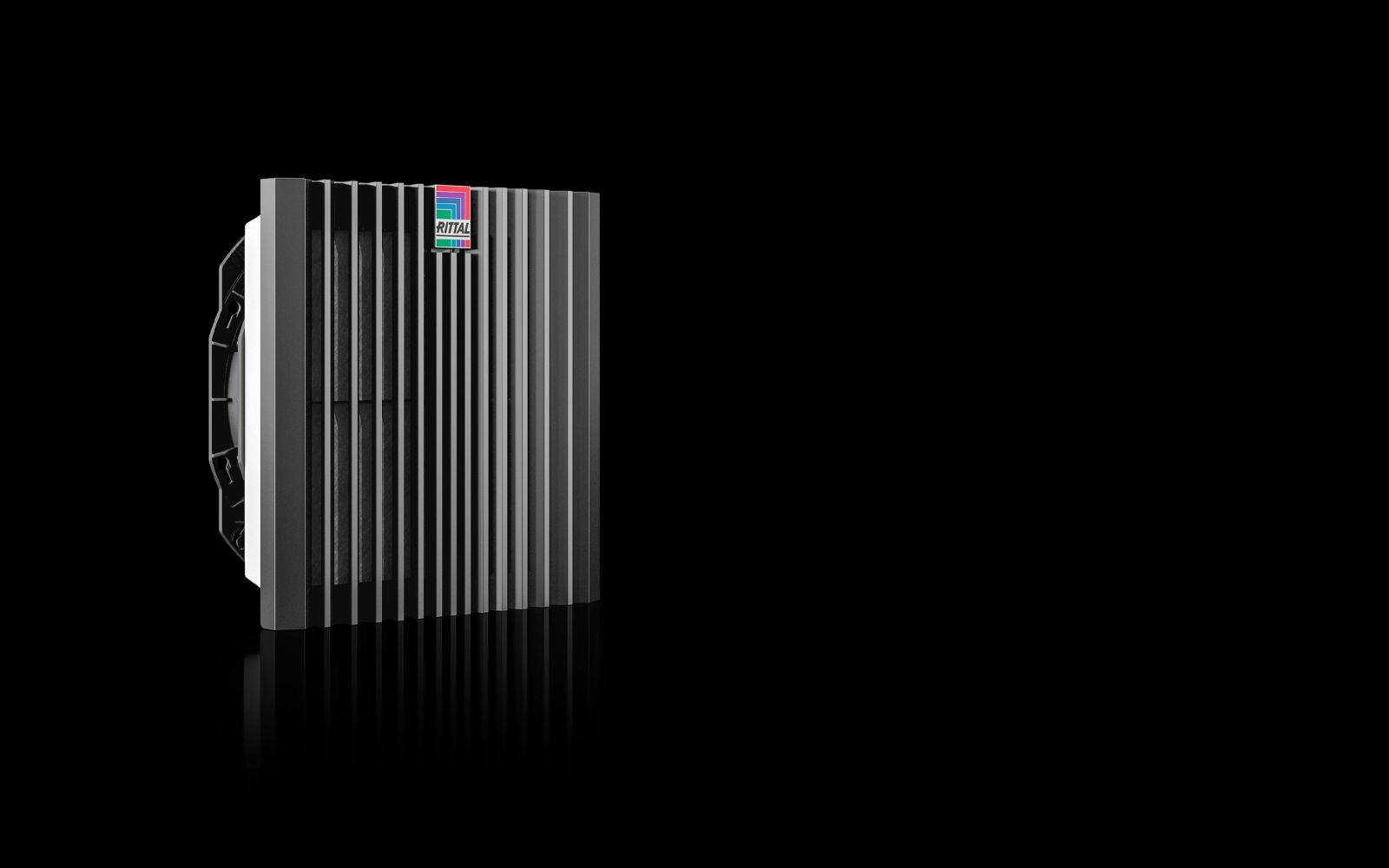

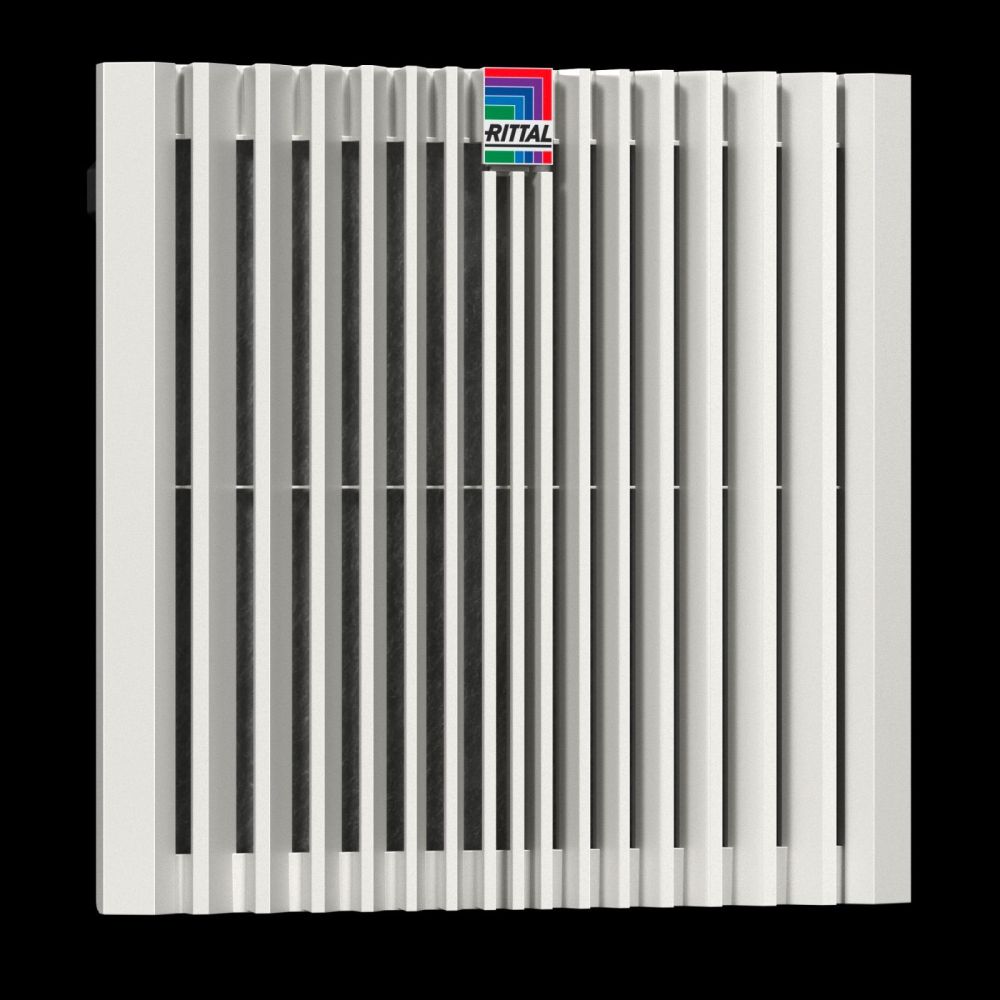

The Rittal SK 3241.718 is a filter fan of the SK Blue e+ series, designed for enclosure climate control in industrial applications. The unit is supplied as a wall-mounted installation and is made of plastic in the colour RAL 9005. It is available as a fully ready-to-install unit, including a pleated filter, and enables efficient ventilation of enclosures through diagonal fan technology. The air performance is 272 m³/h free blowing at 50 Hz and 280 m³/h at 60 Hz, with actual performance being lower when an outlet filter is used. The rated operating voltage is 115 V, 1~, and is designed for frequencies of 50 Hz and 60 Hz. The rated power is 43.4 W at 50 Hz and 52.2 W at 60 Hz, with a maximum rated current of 0.54 A and 0.6 A respectively. The sound pressure level is 53 dB(A) at 50 Hz and 54 dB(A) at 60 Hz, enabling acoustically low-stress operation.

Applications include cooling and ventilation of enclosures in production plants, automation systems, and industrial control units. The fan is suitable for use in environments with high dust loads, as it is delivered with an integrated filter. The protection rating IP 54 is achieved when the fan is operated with a non-woven filter or pleated filter. When using a pleated filter and an absorber mat, the protection rating increases to IP 55, and with a spray water hood and non-woven or pleated filter, the device reaches IP 56. According to NEMA standards, the device corresponds to Type 12 with non-woven or pleated filter, and Type 3, 3R, 4, 4X when using a spray water hood. The operating temperature range is between -30 °C and 55 °C, and the storage temperature range is between -30 °C and 70 °C.

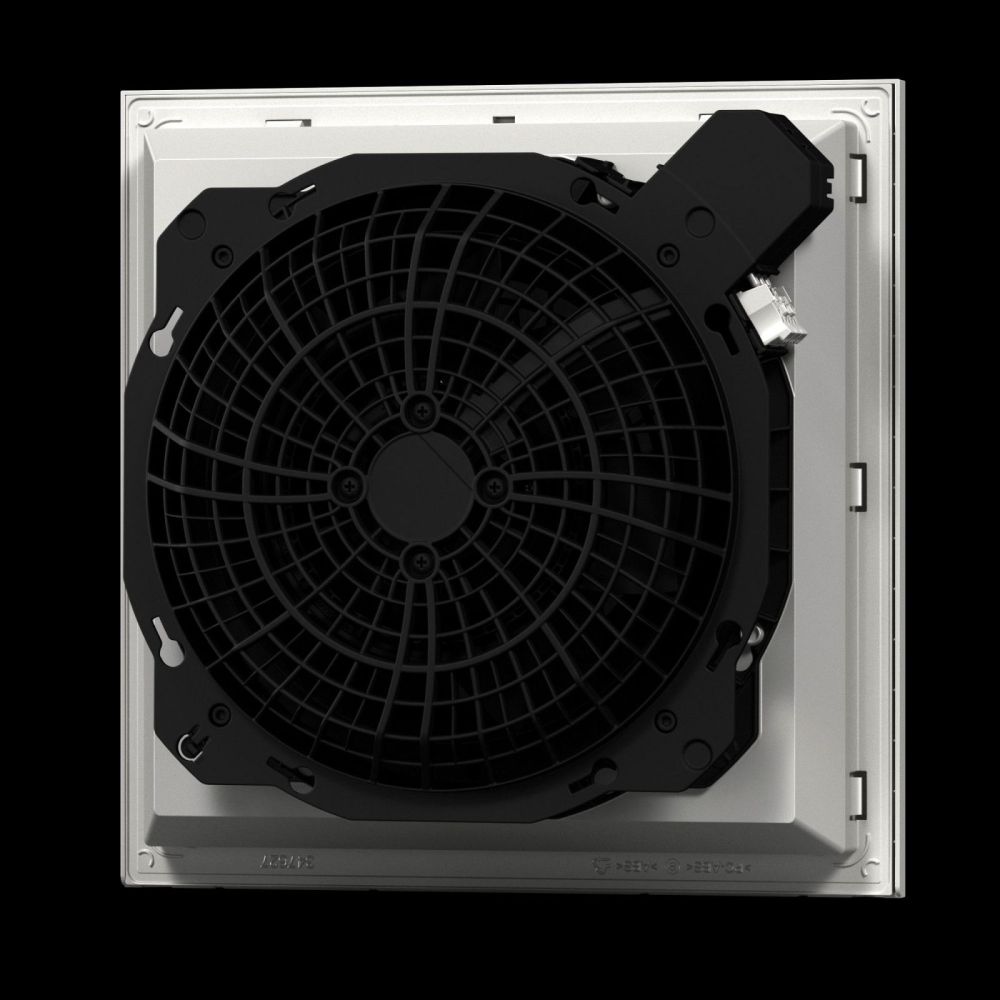

Functions and equipment in detail include diagonal fan technology with a split-pole motor, ensuring higher pressure stability and constant air performance. The diagonal discharge direction ensures more even cooling of the enclosure. The fan features a new opening mechanism on the louver grille, which simplifies filter replacement. Installation is tool-free via optimised snap hooks, accelerating mounting on the enclosure. Dimensions are 255 mm width, 255 mm height, and 129 mm depth, with an installation depth of 108 mm. The mounting cutout requires a 224 mm width and 224 mm height opening.

Technology explained simply shows that the fan enables more even air distribution within the enclosure through diagonal fan technology, resulting in improved cooling performance. The integrated filter technology ensures that dust and particles are filtered from the incoming air, maintaining the cleanliness of the enclosure’s interior. The non-woven and pleated filters are replaceable and can be selected according to requirements. Power supply is via spring clamp terminals; for other models (3237.XXX), a connection cable with two individual conductors (approx. 300 mm) is provided. The pre-fuse is rated at 4 A.

Compatibility and accessories include various options for extending functionality. Suitable accessories include, for example, Blue e+ outlet filters in RAL 9005, thermostats for internal temperature control, speed controllers for filter fans, digital temperature display and control, filter mat dispensers, spray water hoods made of stainless steel, pleated filters IP 54, and replacement filter mats. These components allow adaptation to specific environmental conditions and increase the protection rating of the system.

Mounting and installation are tool-free via integrated snap hooks. Installation dimensions are clearly defined, and the mounting cutout corresponds to a square opening of 224 mm × 224 mm. The installation depth of 108 mm must be considered within the enclosure. Electrical connection is via spring clamp terminals, enabling quick and secure installation.

Operational advantages include high air performance, easy maintenance through accessible filter replacement, tool-free mounting, and high protection rating. The combination of diagonal fan technology and filtration ensures efficient and reliable climate control of enclosures in demanding environments. Operational safety is ensured by the integrated pre-fuse and the robust plastic construction.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanDiagonal, split-pole motor
Airflow free blowing (with pleated filter)At 50 Hz: 272 m³/h, At 60 Hz: 280 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 242 m³/h, At 60 Hz: 246 m³/h
Airflow free-blowing (with filter)At 50 Hz: 225 m³/h, At 60 Hz: 245 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 173 m³/h, At 60 Hz: 187 m³/h
Rated operating voltage115 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 43.4 W, At 60 Hz: 52.2 W
Rated current max.At 50 Hz: 0.54 A, At 60 Hz: 0.6 A
Width255 mm
Height255 mm
Depth129 mm
Built-in depth108 mm
Mounting cutoutCutout width: 224 mm, cutout height: 224 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 4 A

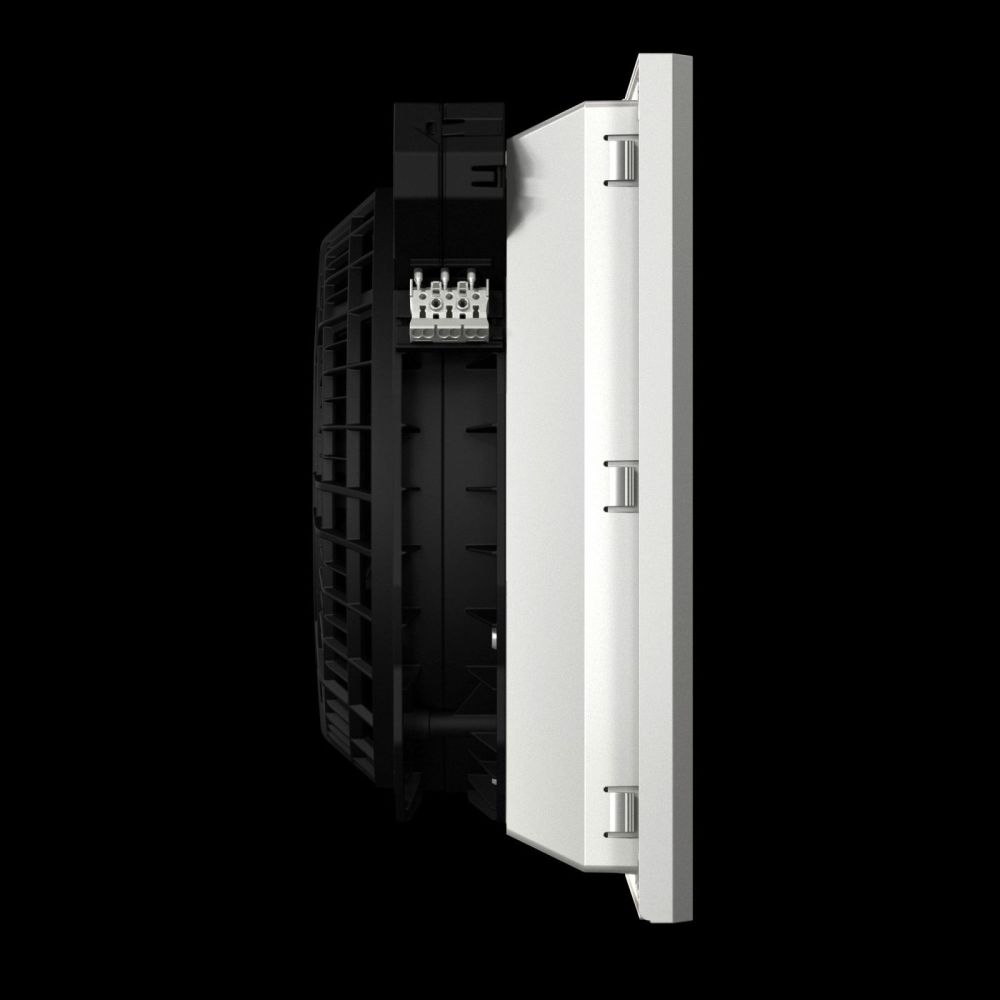

NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-30 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 53 dB(A), At 60 Hz: 54 dB(A)


Product data sheet
Datasheet for Rittal 3241718, EAN: 4028177998032
