Rittal 3182125 Pleated filter IP55 for filter fan/outlet filter

Your rating:
Average rating
product review for Rittal 3182125 Pleated filter IP55 for filter fan/outlet filter
( 4.8 / 5 ) 4 ratings

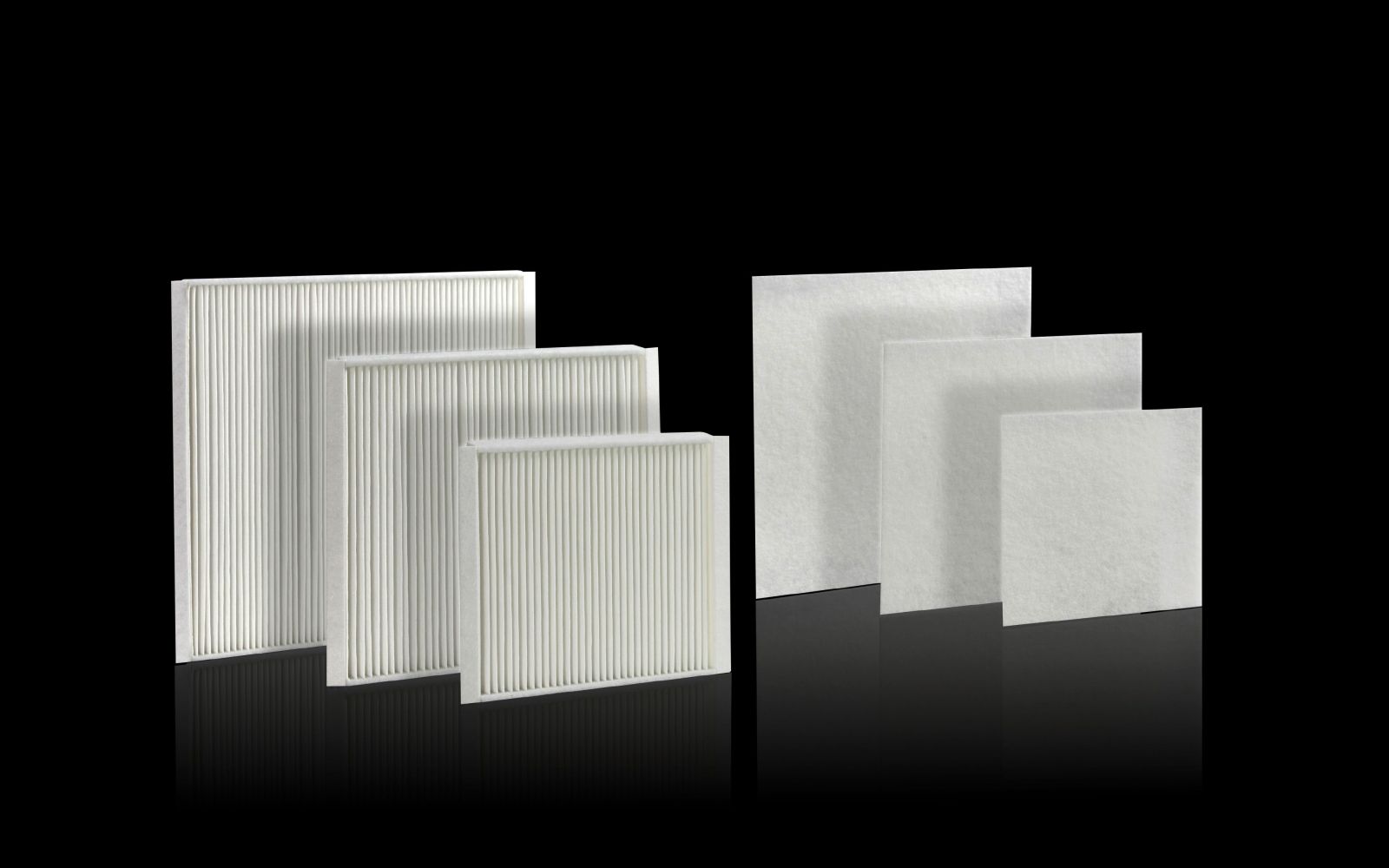

Rittal 3182125
This image may differ from the desired article.
Rittal 3182125Rittal 3182125
-8% 53,59 EUR 58,04 EUR
( 63,77 EUR incl. VAT )
≈ £44.85  |  ≈ $58.90
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 3182125 Pleated filter IP55 for filter fan/outlet filter
Datasheet:file_download Download
Lieske Part No.:1101875
Mfg Part No: 3182125
UPC/EAN: 4028177969094
Weight:0.38 kg
Type:SK 3182125

Product information for Rittal 3182125:

The article SK 3182125 from Rittal is a pleated filter for use in filter fans and outlet filters. It serves air purification in enclosures and similar technical units by filtering dust, particles, and other contaminants from the incoming air. The filter mat is specifically designed for use with Rittal filter fans with article numbers 3240.3xx, 3240.7xx, 3240.900, 3241.7xx, and 3241.900. Dimensions are 212.5 mm (width) × 212.5 mm (height) × 21 mm (depth), with the absorber mat measuring 221 mm × 221 mm × 2.9 mm. The filter colour is white.

Applications

The filter is intended for use in industrial and technical installations, particularly in enclosures where continuous air circulation and purification are required. It is used in combination with filter fans to ensure air quality inside enclosures and extend the service life of electronic components. The filter technology is not suitable for EMC filter fans, as these require special electrical shielding incompatible with this filter type.

Functions and Equipment in Detail

The pleated filter consists of a polyester base with a meltblown polycarbonate coating, enabling high filtration efficiency at low air resistance. The integrated absorber mat made of 100 % polyester provides additional particle separation. The pleated structure increases the filter surface area compared to flat nonwoven filters, resulting in higher airflow and improved performance of the fan unit. This reduces energy consumption and extends maintenance intervals, lowering operating costs.

Technology Explained Simply

The pleated filter technology offers significantly higher airflow compared to conventional nonwoven filters, as the pleated structure increases the effective filter surface area. This leads to better air circulation in the enclosure and more even cooling of electronic components. The protection rating IP 55 according to IEC 60 529 is achieved when mounted in a filter fan or outlet filter, meaning the filter is dust-tight and protected against splashing water. This makes it suitable for use in industrial environments with increased contamination risk.

Compatibility and Accessories

The filter is specifically designed for Rittal filter fan models 3240.3xx, 3240.7xx, 3240.900, 3241.7xx, and 3241.900. The performance data, protection rating, and approvals of the devices are only guaranteed when used with original Rittal filter mats. It is not suitable for EMC filter fans, as these require special electrical shielding incompatible with this filter type.

Installation and Mounting

Mounting is done directly into the designated filter fan or outlet filter. The filter mat is inserted into the device, with dimensions precisely matched to the fan models. The packaging unit contains 5 pieces, sufficient for regular maintenance and replacement intervals.

Operational Advantages

The pleated filter technology increases airflow, improving fan cooling performance and reducing energy consumption. Better filtration results in less dust inside the enclosure, extending the service life of electronic components. Longer intervals between maintenance reduce service costs. The protection rating IP 55 ensures reliable operation in contaminated environments, enhancing operational safety.

General
Modelfor filter fans/exhaust filters
MaterialFolding filter: base polyester, meltblown polycarbonate, absorber mat: 100 % polyester
ColourWhite
NoteThe performance data, degree of protection and approvals of the devices are only guaranteed in combination with original Rittal filter mats.
Suitable for part no.3240.3xx, 3240.7xx, 3240.900, 3241.7xx, 3241.900
Width212,5 mm
Height212,5 mm
Depth21 mm
Absorber mat dimensionswidth: 221 mm, height: 221 mm, depth: 2.9 mm
Degree of protection IP according to IEC 60 529IP 55 when mounted in filter fan/exhaust filter
Note on part numberNot suitable for use in EMC filter fans.


Product data sheet
Datasheet for Rittal 3182125, EAN: 4028177969094

Questions & answers

What is the delivery time of Rittal 3182125 Pleated filter IP55 for filter fan/outlet filter?

The article Rittal 3182125 Pleated filter IP55 for filter fan/outlet filter is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3182125 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3182125 Pleated filter IP55 for filter fan/outlet filter always at the best possible price. We can give you a discount of 2% on Rittal 3182125 Pleated filter IP55 for filter fan/outlet filter if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
