Rittal 3240700 Blue e+ filter fan 218/191 m³/h, 230 V, RAL 7035

Your rating:
Average rating
product review for Rittal 3240700 Blue e+ filter fan 218/191 m³/h, 230 V, RAL 7035
( 5 / 5 ) 2 ratings

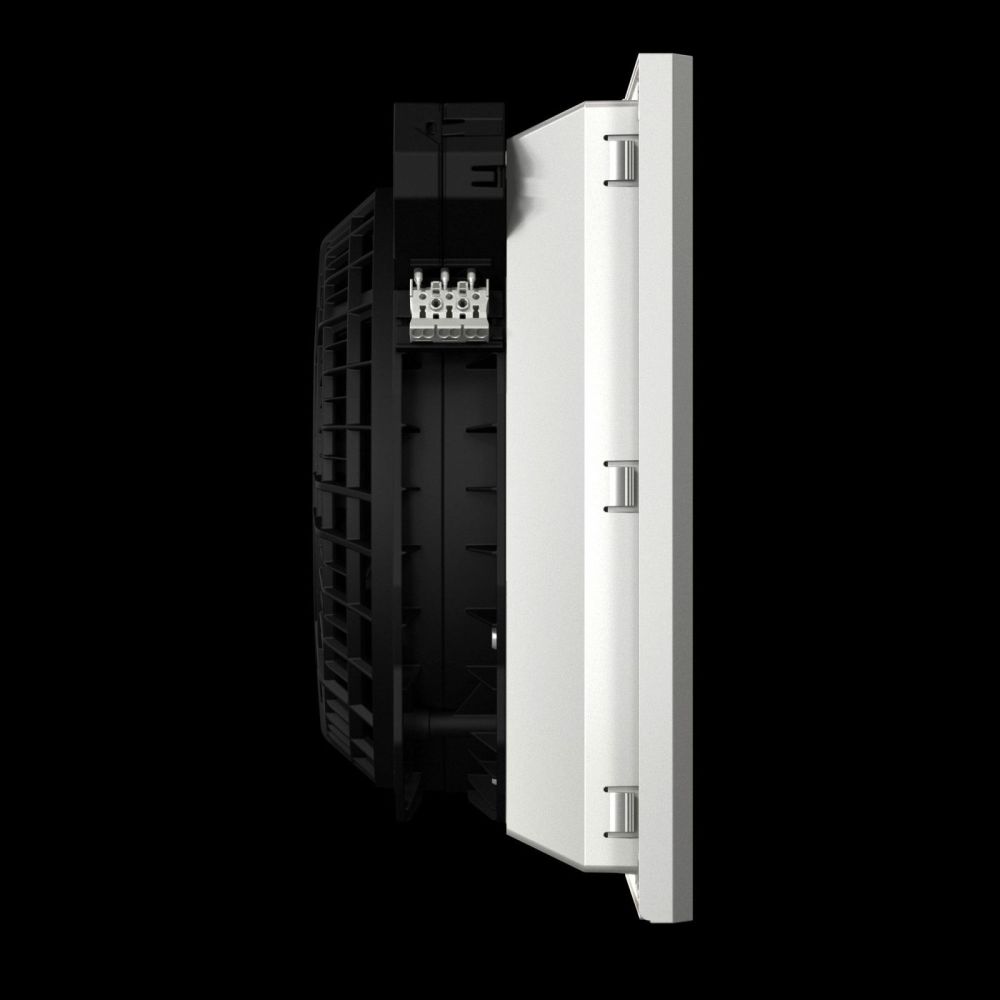

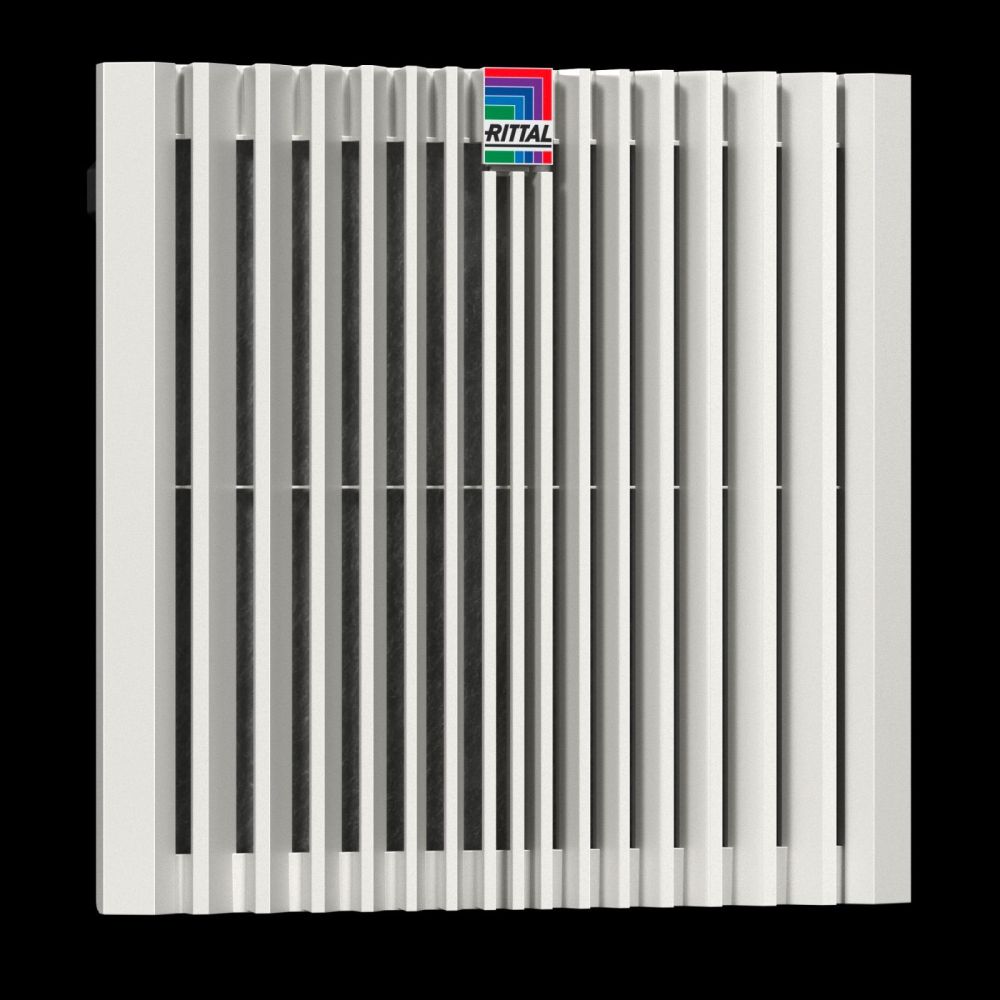

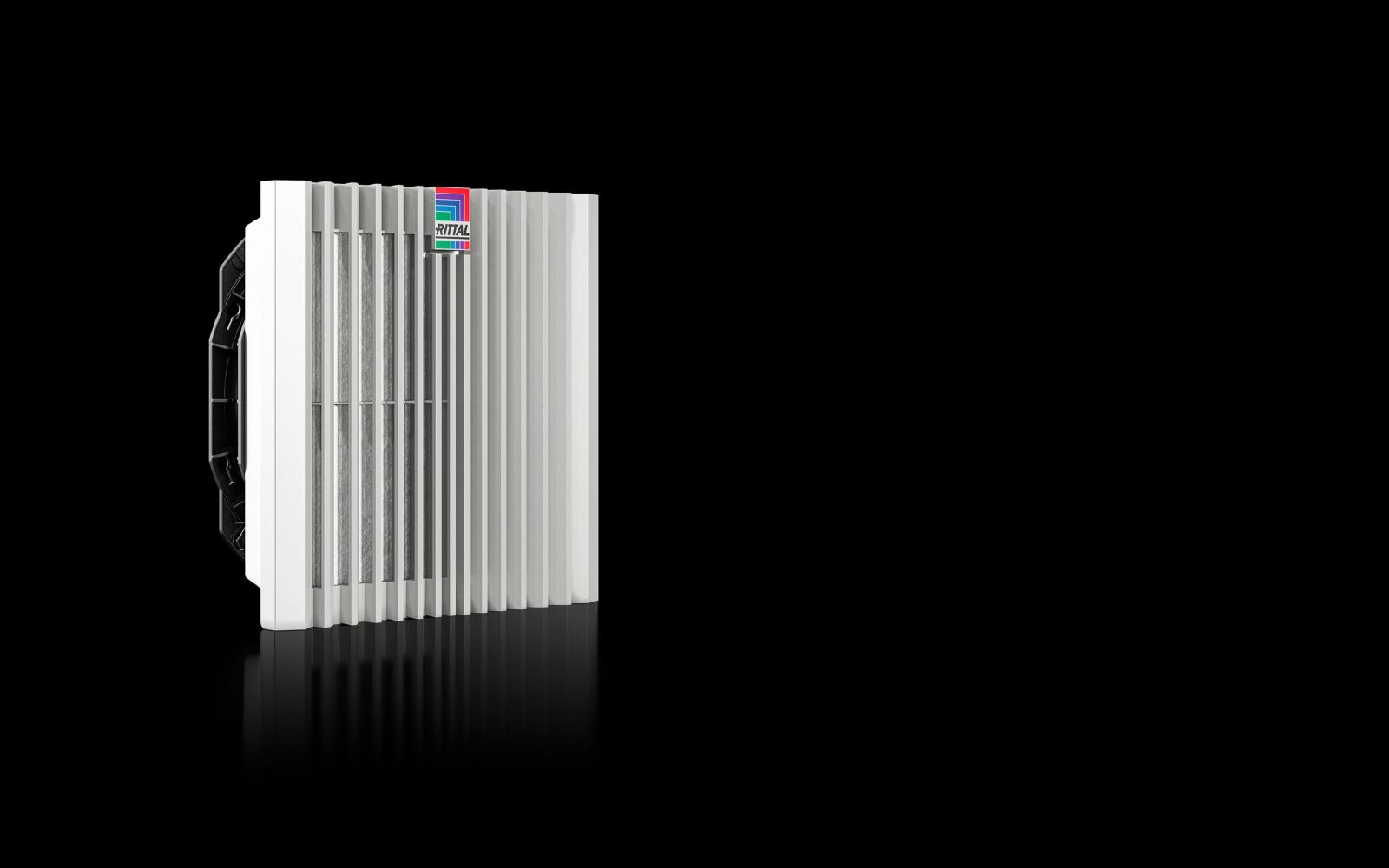

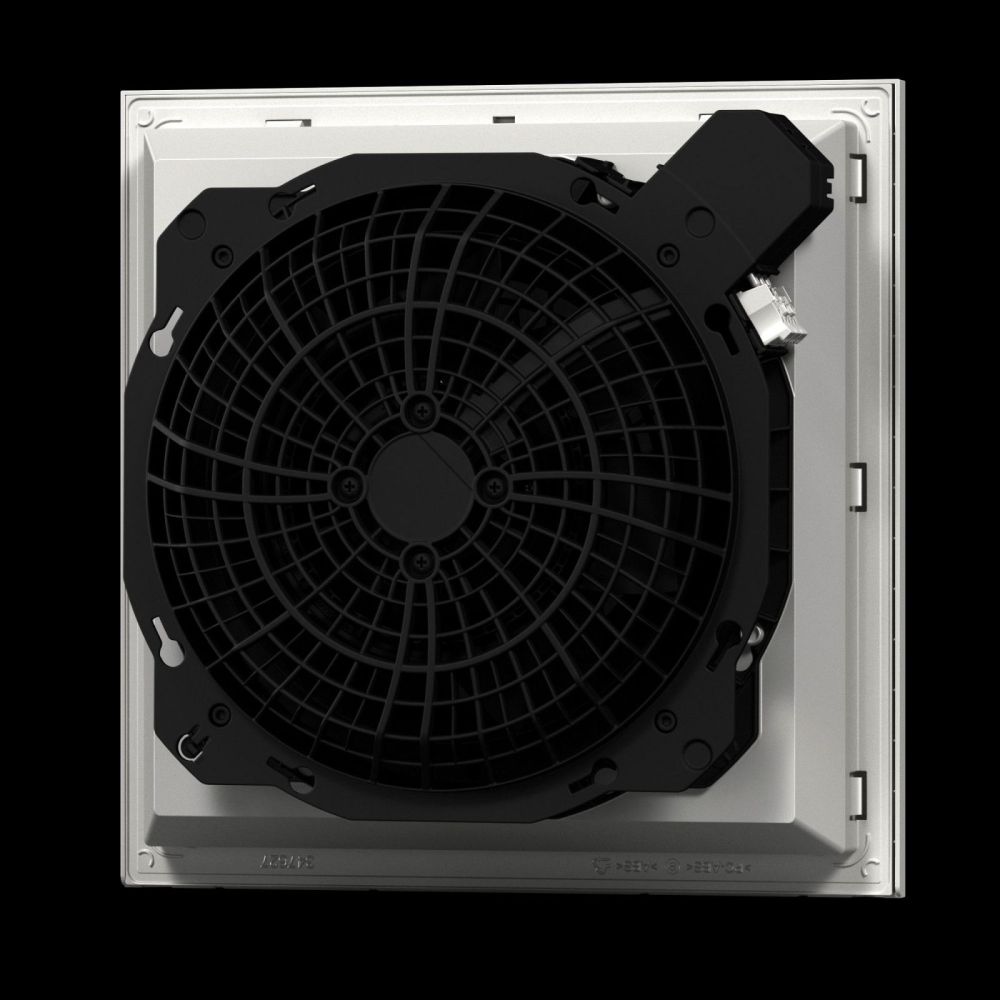

Rittal 3240700
This image may differ from the desired article.
Rittal 3240700Rittal 3240700Rittal 3240700Rittal 3240700Rittal 3240700
105,28 EUR
( 125,28 EUR incl. VAT )
≈ £88.12  |  ≈ $115.70
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 3240700 Blue e+ filter fan 218/191 m³/h, 230 V, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683832
Mfg Part No: 3240700
UPC/EAN: 4028177998148
Weight:2.401 kg
Type:SK 3240.700

Product information for Rittal 3240700:

Rittal SK 3240.700 is a filter fan of the Blue e+ series, designed for enclosure climate control in industrial applications. It serves for controlled ventilation of enclosures to ensure even cooling of installed electronic components. The unit is designed for wall mounting and is installed tool-free, thus accelerating installation on the enclosure. The housing is made of plastic in the color RAL 7035, enabling robust and visually uniform integration into industrial environments. The delivery includes a fully ready-to-install unit including pleated filter, immediately ready for use.

Applications

The filter fan is suitable for use in enclosures requiring continuous ventilation to maintain the operating temperature of electronic components within the permissible range of -30 °C to 55 °C. It is particularly suitable for installations in manufacturing industry, power supply, or automation technology, where reliable cooling and simultaneous protection against dust and foreign objects are required. The protection rating IP 54 is standard, with higher protection levels up to IP 54 achievable by adding components such as absorber mat or spray water hood. According to NEMA standards, the unit provides protection class Type 12 with felt or pleated filter, as well as Type 3, 3R, 4, and 4X when combined with spray water hood.

Functions and Equipment in Detail

The fan operates with diagonal fan technology, which ensures a more constant and even airflow in the enclosure due to higher pressure stability. The diagonal exhaust direction improves heat dissipation and prevents local overheating. The air performance is 218 m³/h free blowing at 50 Hz and 191 m³/h at 60 Hz when the supplied pleated filter is installed. When using a felt filter, the air performance drops to 175 m³/h (50 Hz) or 157 m³/h (60 Hz). The air performance decreases further when an outlet filter is added, with values of 191 m³/h (50 Hz) or 161 m³/h (60 Hz) with pleated filter, and 130 m³/h (50 Hz) or 112 m³/h (60 Hz) with felt filter. The rated power is 33.1 W at 50 Hz and 37.3 W at 60 Hz, with a rated current of max. 0.2 A or 0.21 A. The fuse is rated at 2 A.

Technology Explained Simply

The fan is a split-phase motor, designed for reliable and low-maintenance operation. Air is passed through a pleated filter, which filters dust and particles from the incoming air to maintain the cleanliness of the enclosure interior. Filter replacement is facilitated by a new opening mechanism on the louver grille. Mounting is done via optimized snap hooks, enabling quick and secure attachment to the enclosure. Electrical connection is made via spring clamp terminals, ensuring tool-free installation. The operating voltage is 230 V, 1~, designed for frequencies of 50 Hz and 60 Hz. The sound pressure level is 48 dB(A) at 50 Hz and 45 dB(A) at 60 Hz, enabling acoustically pleasant operation near the enclosure.

Compatibility and Accessories

The filter fan can be combined with various accessories to extend functionality and protection level. These include outlet filters in RAL 7035, spray water hoods made of stainless steel, pleated filters and felt filters in various versions, as well as filter mat dispensers for easy replacement. Additionally, thermostats, speed controllers, and digital temperature display and control units are available to control airflow based on temperature. The blind cover SK 3240020 can be used to close mounting cutouts when no fan is installed.

Mounting and Installation

Mounting is tool-free on a flat surface, requiring a mounting cutout width and height of 224 mm each. The installation depth is 108 mm, and the overall dimensions of the unit are 255 mm (width) × 255 mm (height) × 129 mm (depth). The unit is designed for use in enclosures that provide sufficient mounting capability. Installation is done by snapping the hooks into the designated openings, ensuring stable fixation.

Operational Advantages

The Rittal SK 3240.700 offers high air performance with low energy consumption and low acoustic load. Tool-free mounting and easy filter replacement reduce maintenance time. The integrated filter technology protects electronic components in the enclosure from contamination. The high pressure stability of diagonal fan technology ensures even air distribution, extending the service life of installed components. The unit is suitable for use in environments with increased dust or humidity, especially when combined with additional protection components such as spray water hood or absorber mat.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanDiagonal, split-pole motor
Airflow free blowing (with pleated filter)At 50 Hz: 218 m³/h, At 60 Hz: 191 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 191 m³/h, At 60 Hz: 161 m³/h
Airflow free-blowing (with filter)At 50 Hz: 175 m³/h, at 60 Hz: 157 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 130 m³/h, At 60 Hz: 112 m³/h
Rated operating voltage230 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 33.1 W, At 60 Hz: 37.3 W
Rated current max.At 50 Hz: 0.2 A, At 60 Hz: 0.21 A
Width255 mm
Height255 mm
Depth129 mm
Built-in depth108 mm
Mounting cutoutCutout width: 224 mm, cutout height: 224 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 2 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-30 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 48 dB(A), At 60 Hz: 45 dB(A)


Product data sheet
Datasheet for Rittal 3240700, EAN: 4028177998148
