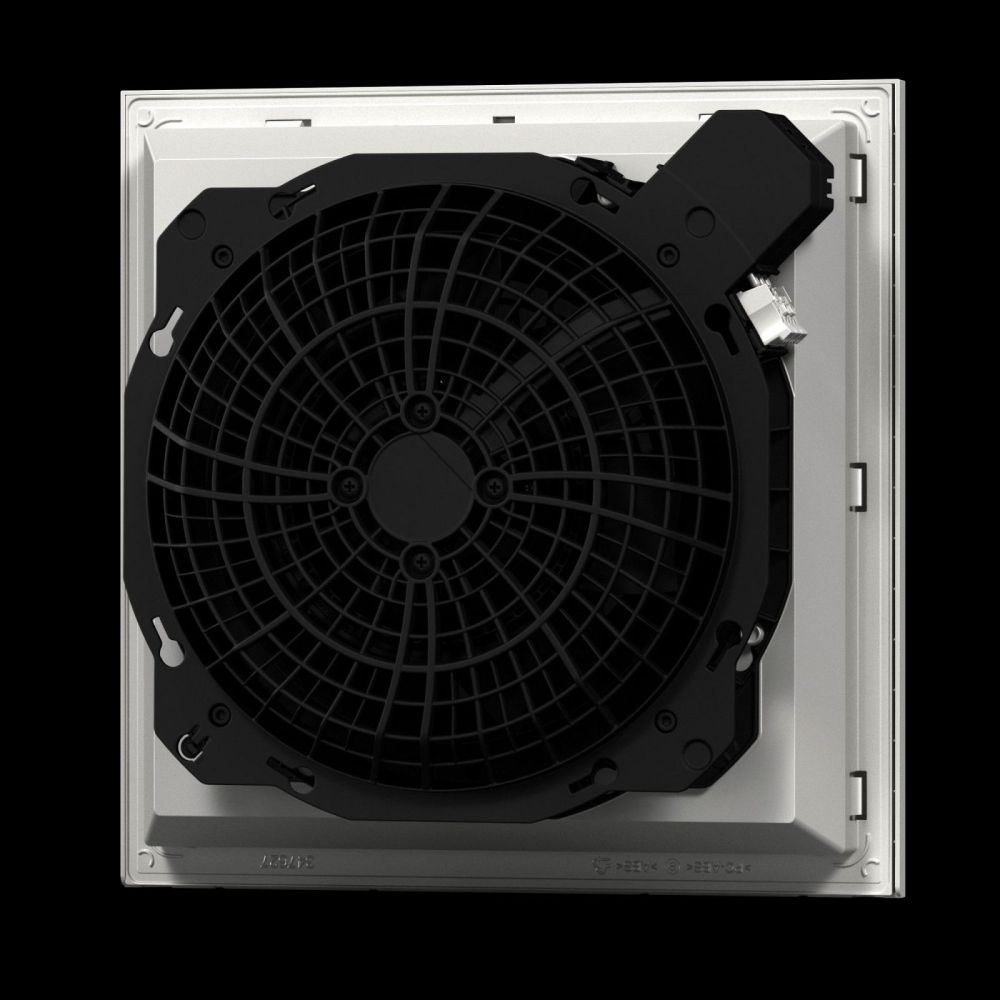

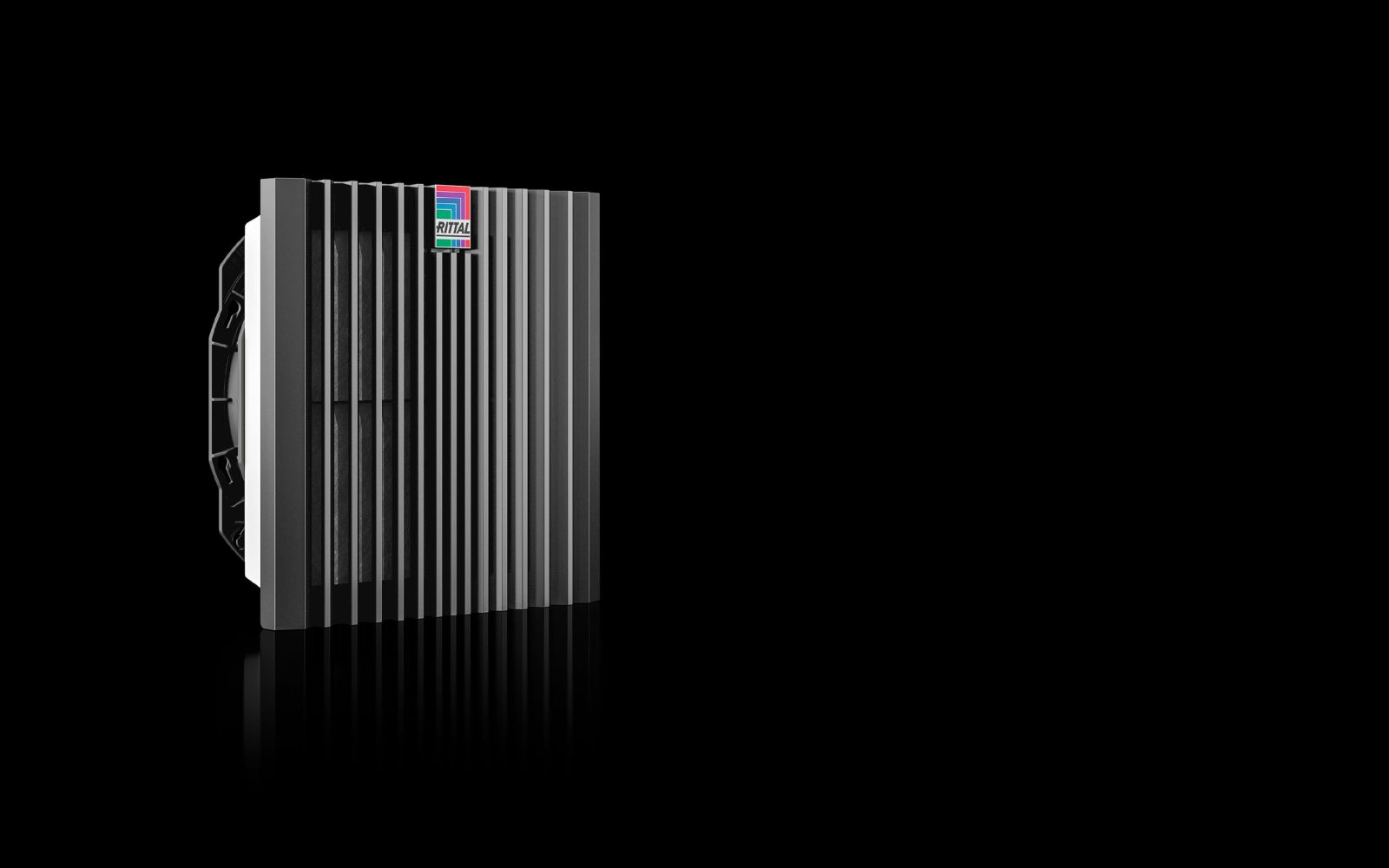

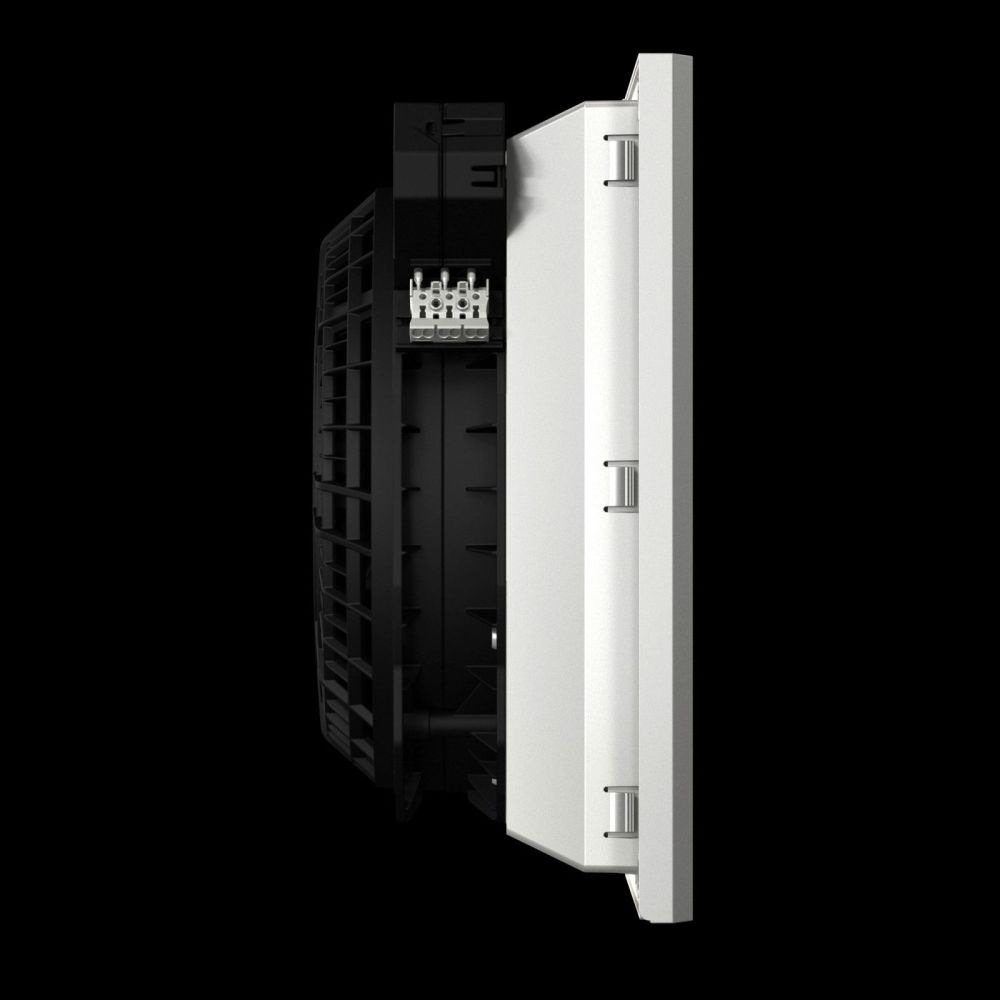

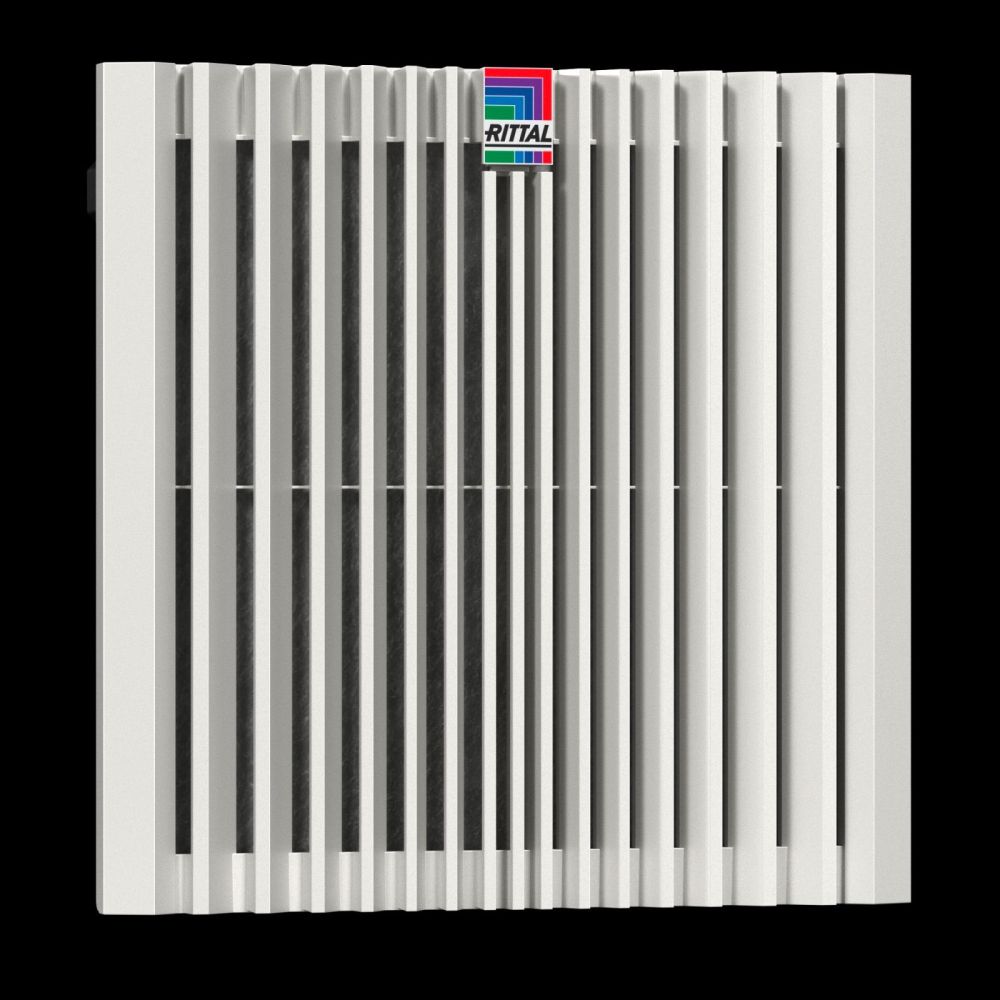

Rittal 3240708 Blue e+ filter fan 218/191 m³/h, 230 V, RAL 9005

Your rating:
Average rating
product review for Rittal 3240708 Blue e+ filter fan 218/191 m³/h, 230 V, RAL 9005
( 4.5 / 5 ) 2 ratings
Rittal 3240708
This image may differ from the desired article.
Rittal 3240708Rittal 3240708Rittal 3240708Rittal 3240708Rittal 3240708
113,70 EUR
( 135,30 EUR incl. VAT )
≈ £95.17  |  ≈ $124.96
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3240708 Blue e+ filter fan 218/191 m³/h, 230 V, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683833
Mfg Part No: 3240708
UPC/EAN: 4028177998131
Weight:2.391 kg
Type:SK 3240.708

Product information for Rittal 3240708:

The Rittal SK 3240.708 is a filter fan of the SK Blue e+ series, designed for enclosure climate control in industrial applications. It serves for controlled ventilation of enclosures, regulating internal temperature and extending the service life of installed electronic components. The unit is designed for wall mounting and consists of a plastic housing in the colour RAL 9005.

Applications
This filter fan is suitable for use in industrial environments where continuous and reliable ventilation of enclosures is required. It is particularly suitable for installations in manufacturing, energy supply, or automation technology, where high air performance combined with protection against dust and splashing water is necessary. The protection rating IP 54 is standard, protecting the fan against dust and splashing water. When additional components such as an absorber mat or a spray water hood are used, the protection rating can be increased to IP 54 or IP 54. According to NEMA standards, the unit corresponds to Type 12 with a non-woven filter or pleated filter, and Type 3, 3R, 4, and 4X when used with a spray water hood.

Functions and Equipment in Detail
The fan features diagonal fan technology with a split-pole motor, ensuring higher pressure stability and constant air performance. The diagonal airflow direction provides more even cooling of the enclosure. Air performance is 218 m³/h at 50 Hz free blowing with a pleated filter, and 191 m³/h at 60 Hz. When an outlet filter is used, air performance reduces to 191 m³/h (50 Hz) or 161 m³/h (60 Hz). The unit is supplied with a pleated filter, enabling high air performance. A new opening mechanism on the louver grille simplifies filter replacement. Installation is tool-free via optimised snap hooks, speeding up mounting on the enclosure.

Technology Explained Simply
The rated operating voltage is 230 V, 1~, designed for frequencies of 50 Hz and 60 Hz. The rated power is 33.1 W (50 Hz) or 37.3 W (60 Hz), and the rated current is up to 0.2 A (50 Hz) or 0.21 A (60 Hz). The installation depth is 108 mm, with the mounting cutout having a width and height of 224 mm each. The dimensions of the unit are 255 mm (width) × 255 mm (height) × 129 mm (depth). The operating temperature ranges from -30 °C to 55 °C, and the storage temperature from -30 °C to 70 °C. The sound pressure level is 48 dB(A) at 50 Hz and 45 dB(A) at 60 Hz. Electrical connection is via spring clamp terminals; for other models (3237.XXX), connection via individual wires is possible. A pre-fuse rated at 2 A is provided.

Compatibility and Accessories
Various accessories are available to extend protection functions and adapt to specific requirements. These include outlet filters in RAL 9005, spray water hoods made of stainless steel, pleated filters and non-woven filters in various versions, as well as filter mat dispensers. Additionally, thermostats, speed controllers, and digital temperature display and control units can be used for more precise temperature regulation. The blank cover SK 3240020 serves as a closure for mounting cutouts when no fan is installed.

Mounting and Installation
Mounting is tool-free to the enclosure wall using integrated snap hooks. The mounting cutout measures 224 mm (width) × 224 mm (height). The unit is designed for simple and quick installation, with tool-free mounting and integrated filter reducing installation time. The unit is designed for use in flat surfaces, with the installation depth of 108 mm to be considered.

Advantages in Operation
The filter fan provides high air performance with simultaneous protection against dust and splashing water. The diagonal fan technology ensures even and constant ventilation of the enclosure. Tool-free mounting and easy filter replacement reduce maintenance time. The unit is designed for operating temperatures from -30 °C to 55 °C, enabling broad application in various environments. The protection rating IP 54 is standard, with higher protection levels achievable using additional components. The integrated pre-fuse rated at 2 A protects the system against overloads. Air performance varies depending on frequency and filter type, allowing flexible adaptation to different requirements. Sound pressure levels are 48 dB(A) (50 Hz) and 45 dB(A) (60 Hz), enabling acoustically pleasant operation.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanDiagonal, split-pole motor
Airflow free blowing (with pleated filter)At 50 Hz: 218 m³/h, At 60 Hz: 191 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 191 m³/h, At 60 Hz: 161 m³/h
Airflow free-blowing (with filter)At 50 Hz: 175 m³/h, at 60 Hz: 157 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 130 m³/h, At 60 Hz: 112 m³/h
Rated operating voltage230 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 33.1 W, At 60 Hz: 37.3 W
Rated current max.At 50 Hz: 0.2 A, At 60 Hz: 0.21 A
Width255 mm
Height255 mm
Depth129 mm
Built-in depth108 mm
Mounting cutoutCutout width: 224 mm, cutout height: 224 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 2 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-30 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 48 dB(A), At 60 Hz: 45 dB(A)


Product data sheet
Datasheet for Rittal 3240708, EAN: 4028177998131

Questions & answers

What is the delivery time of Rittal 3240708 Blue e+ filter fan 218/191 m³/h, 230 V, RAL 9005?

The article Rittal 3240708 Blue e+ filter fan 218/191 m³/h, 230 V, RAL 9005 is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3240708 to our sales team for an exact delivery time.
