Rittal 3240718 Blue e+ filter fan 218/191 m³/h, 115 V, RAL 9005

Your rating:
Average rating
product review for Rittal 3240718 Blue e+ filter fan 218/191 m³/h, 115 V, RAL 9005
( 4 / 5 ) 1 ratings

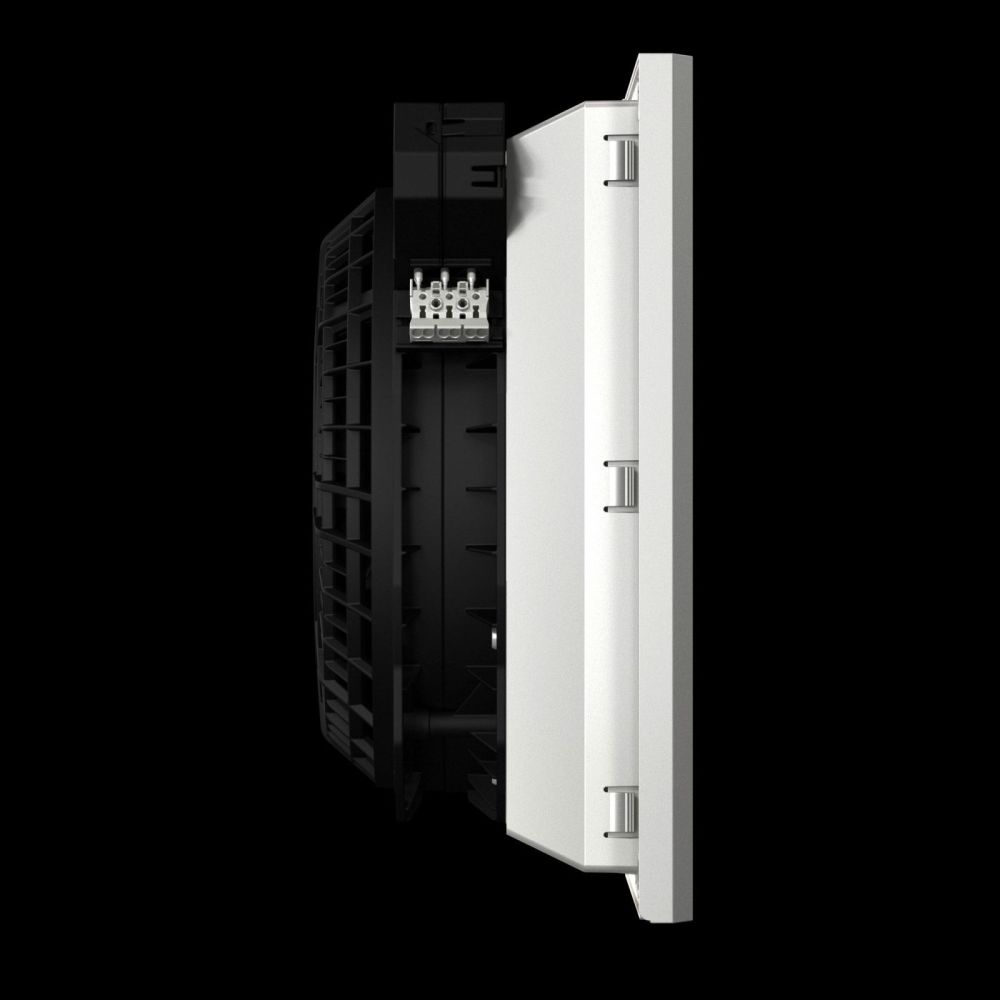

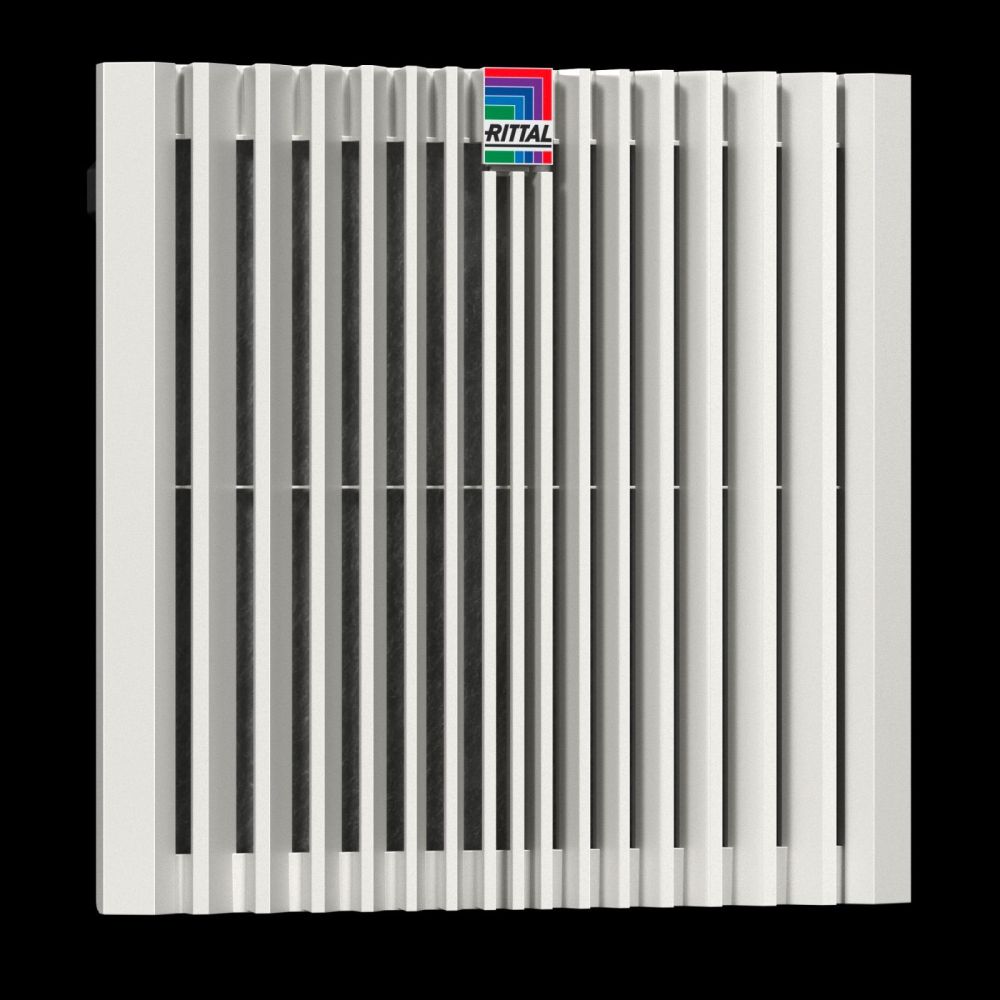

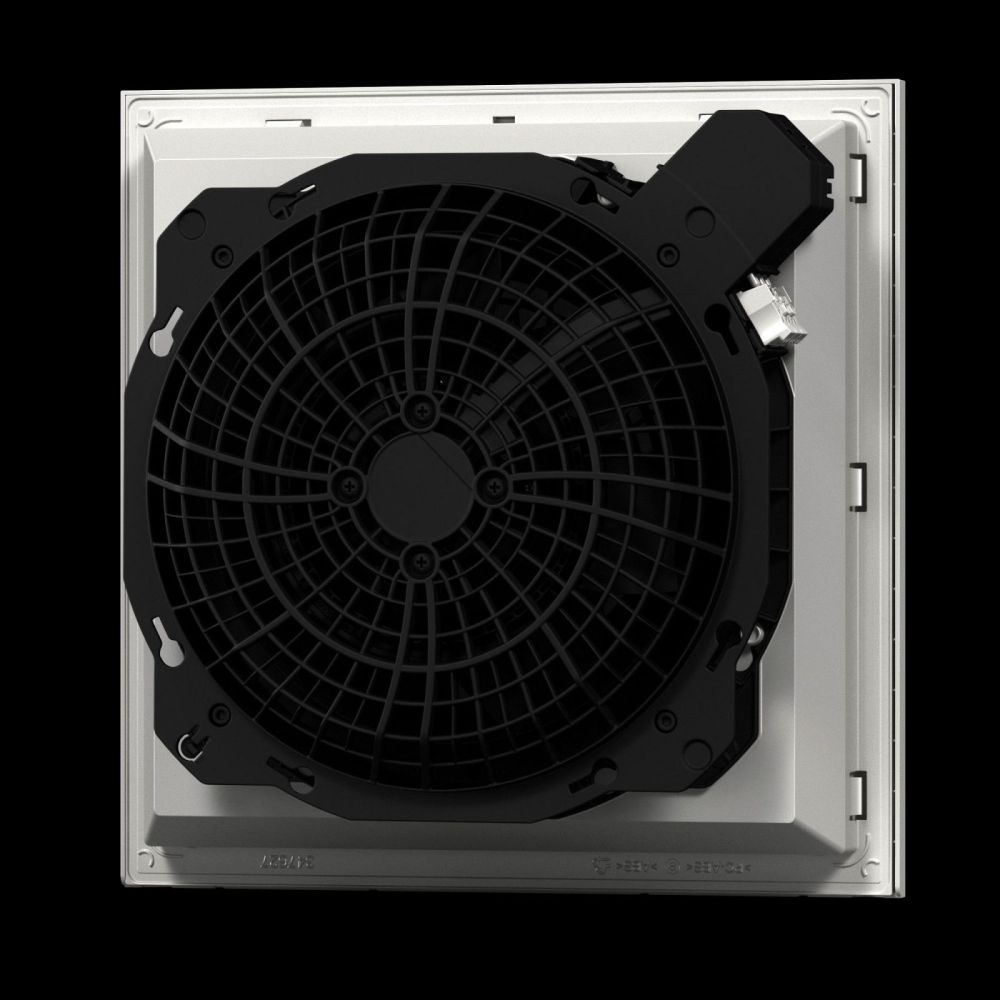

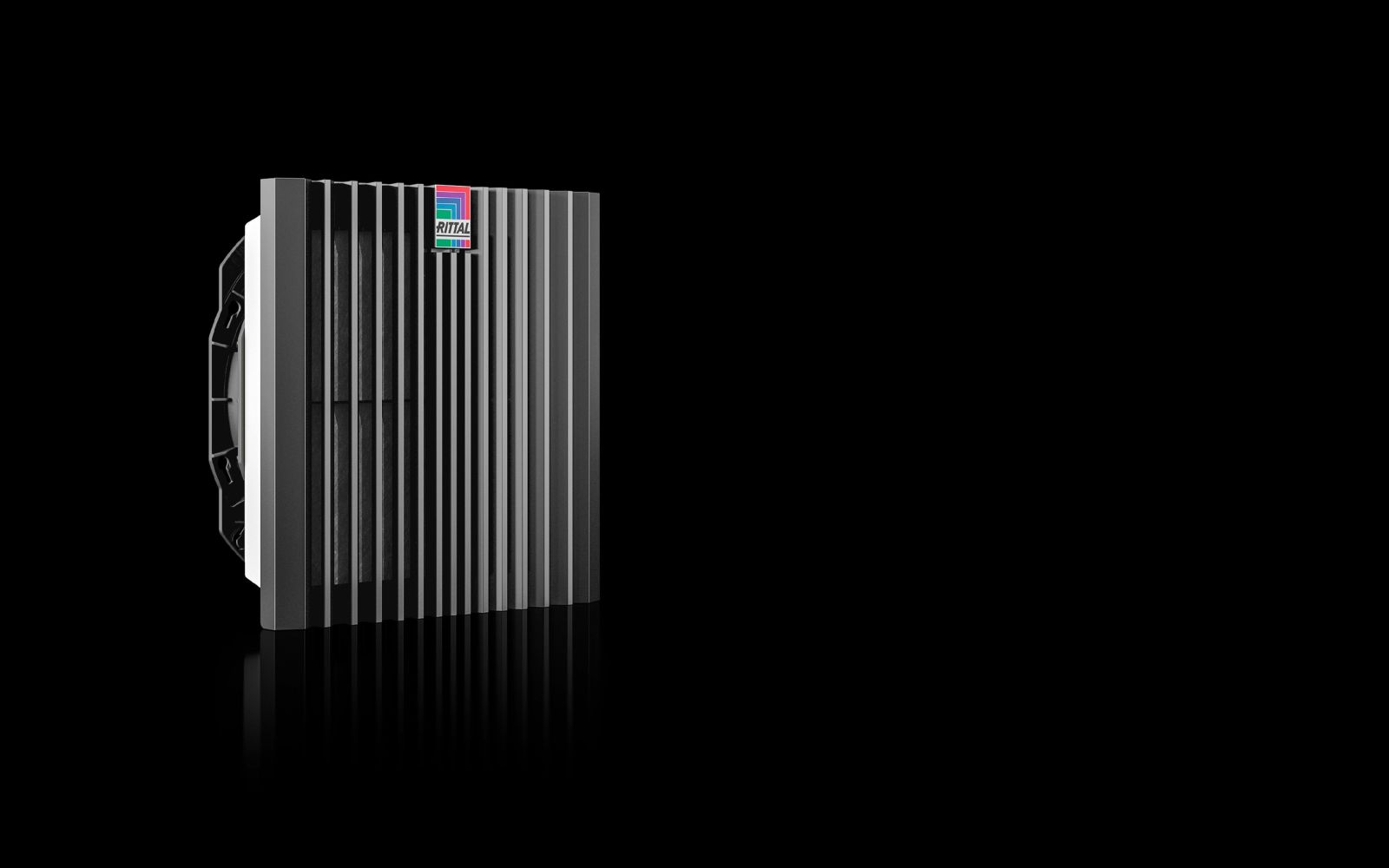

Rittal 3240718
This image may differ from the desired article.
Rittal 3240718Rittal 3240718Rittal 3240718Rittal 3240718Rittal 3240718
125,12 EUR 128,11 EUR
( 148,89 EUR incl. VAT )
≈ £104.73  |  ≈ $137.51
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3240718 Blue e+ filter fan 218/191 m³/h, 115 V, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683836
Mfg Part No: 3240718
UPC/EAN: 4028177998117
Weight:1.82 kg
Type:SK 3240.718

Product information for Rittal 3240718:

The Rittal SK 3240.718 is a filter fan for enclosure climate control, designed as a wall-mounted unit. It serves for controlled ventilation of enclosures, regulating internal temperature and extending the service life of installed electronic components. The device is finished in RAL 9005 and made of plastic, enabling a robust yet lightweight construction. The unit is fully ready for installation and including pleated filter, allowing direct mounting on the enclosure without requiring additional filters or components.

Applications

The filter fan is designed for use in industrial environments where continuous and reliable ventilation is required. It is particularly suitable for enclosures in production plants, automation systems, or process industries, where heat generation from electronic modules and power electronics is high. The protection rating IP 54 (with nonwoven filter/pleated filter) ensures protection against dust and splashing water, making it suitable for many indoor and outdoor applications. When additional components such as an absorber mat or spray water hood are used, the protection rating can be increased to IP 54 or IP 54, offering higher resistance against splashing and spraying water. According to NEMA standards, the device corresponds to Type 12 (with nonwoven filter/pleated filter) as well as Type 3, 3R, 4, 4X (with nonwoven filter/pleated filter and spray water hood), confirming its suitability for use in humid or dusty environments.

Functions and Equipment in Detail

The fan features diagonal fan technology with a split-pole motor, ensuring higher pressure stability and more consistent airflow. The diagonal exhaust direction provides more even air distribution within the enclosure, leading to more efficient cooling of electronic modules. The airflow rate is 218 m³/h at 50 Hz and 191 m³/h at 60 Hz (with pleated filter) when free blowing. With an outlet filter, the performance drops to 191 m³/h (50 Hz) and 161 m³/h (60 Hz). With a nonwoven filter, the values are 175 m³/h (50 Hz) and 157 m³/h (60 Hz) free blowing, and 130 m³/h (50 Hz) and 112 m³/h (60 Hz) with outlet filter. The rated power is 35.5 W at 50 Hz and 38.2 W at 60 Hz, with a rated current of max. 0.41 A (50 Hz) or 0.42 A (60 Hz). The rated operating voltage is 115 V, 1~, 50 Hz/60 Hz, enabling universal use in various power networks. The fuse is rated at 4 A to ensure safe operation.

Technology Explained Simply

The diagonal fan technology ensures that air flows out of the device diagonally rather than vertically, preventing stagnation and ensuring even air distribution within the enclosure, which is particularly beneficial for larger or complex systems. The pleated filter included in the delivery filters particles from incoming air, reducing contamination of internal components. Tool-free mounting is achieved via optimized snap hooks, enabling quick and secure attachment to the enclosure. The opening mechanism on the louver grille simplifies filter replacement, making maintenance easier. The sound pressure level is 48 dB(A) at 50 Hz and 45 dB(A) at 60 Hz, representing acceptable noise emissions for an industrial environment.

Compatibility and Accessories

The filter fan can be combined with various accessories to extend protection rating or functionality. These include outlet filters in RAL 9005, spray water hoods made of stainless steel, pleated filters IP 54, nonwoven filters, replacement filter mats, and filter mat dispensers. Additionally, thermostats, speed controllers, or digital temperature display and control units can be integrated to enable more precise ventilation control. Installation is carried out into a mounting cutout of 224 mm width and height, with an installation depth of 108 mm. The overall dimensions of the device are 255 mm width, 255 mm height, and 129 mm depth.

Mounting and Installation

Mounting is tool-free via integrated snap hooks, which are inserted into the designated mounting cutout of the enclosure. Electrical connection is made via spring clamp terminals, providing a quick and secure connection. The unit is designed for an operating temperature range of -30 °C to 55 °C, with a storage temperature up to 70 °C. The installation depth of 108 mm must be considered during installation to ensure correct mounting.

Operational Advantages

The SK 3240.718 offers high airflow at low energy consumption and enables reliable cooling of enclosures. The tool-free mounting and easy filter replacement reduce maintenance time. The combination of diagonal fan technology and pleated filter ensures even air distribution and effective particle filtration. The protection rating IP 54 and compatibility with additional protective measures make the device suitable for a wide range of industrial applications. The operating voltage of 115 V enables use in various regions and power networks.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanDiagonal, split-pole motor
Airflow free blowing (with pleated filter)At 50 Hz: 218 m³/h, At 60 Hz: 191 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 191 m³/h, At 60 Hz: 161 m³/h
Airflow free-blowing (with filter)At 50 Hz: 175 m³/h, at 60 Hz: 157 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 130 m³/h, At 60 Hz: 112 m³/h
Rated operating voltage115 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 35.5 W, At 60 Hz: 38.2 W
Rated current max.At 50 Hz: 0.41 A, At 60 Hz: 0.42 A
Width255 mm
Height255 mm
Depth129 mm
Built-in depth108 mm
Mounting cutoutCutout width: 224 mm, cutout height: 224 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 4 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-30 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 48 dB(A), At 60 Hz: 45 dB(A)


Product data sheet
Datasheet for Rittal 3240718, EAN: 4028177998117
