Rittal 3241900 Blue e+ filter fan EC 272 m³/h, 100 V–240 V, RAL 7035

Your rating:
Average rating
product review for Rittal 3241900 Blue e+ filter fan EC 272 m³/h, 100 V–240 V, RAL 7035
( 4.7 / 5 ) 3 ratings
Rittal 3241900
This image may differ from the desired article.
Rittal 3241900Rittal 3241900Rittal 3241900Rittal 3241900Rittal 3241900Rittal 3241900Rittal 3241900
-10% 196,19 EUR 218,85 EUR
( 233,47 EUR incl. VAT )
≈ £164.21  |  ≈ $215.61
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 3241900 Blue e+ filter fan EC 272 m³/h, 100 V–240 V, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683856
Mfg Part No: 3241900
UPC/EAN: 4028177997998
Weight:2.324 kg
Type:SK 3241.900

Product information for Rittal 3241900:

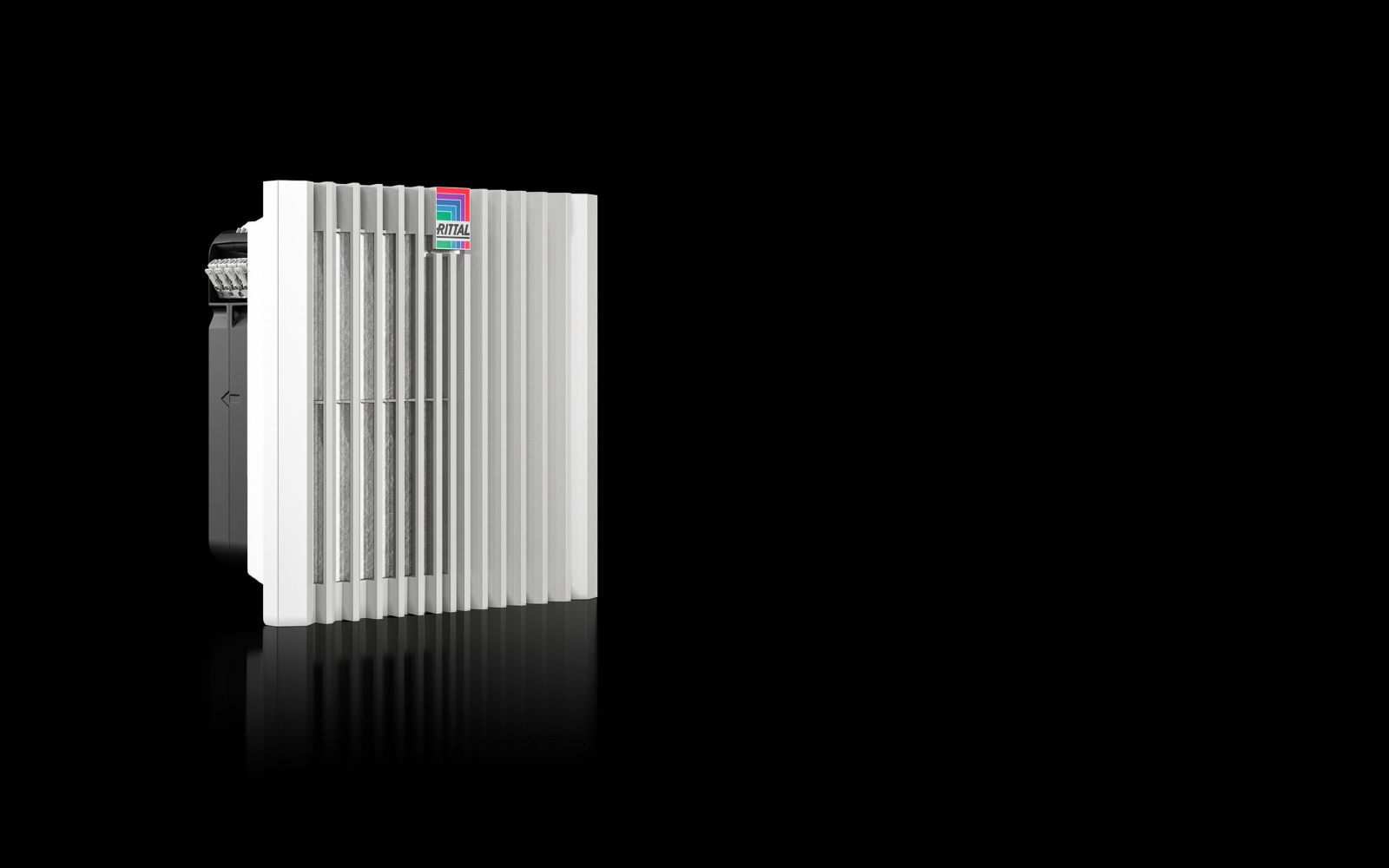

The Rittal SK 3241.900 is a filter fan with EC technology for the climate control of enclosures. It is designed as a wall-mounted installation and serves for controlled ventilation of electrical switchgear, regulating internal temperature and extending the service life of installed components. The device is supplied in the colour RAL 7035 and is made of plastic. It is available as a fully ready-to-install unit, including pleated filter, enabling direct mounting on the enclosure.

Applications

The filter fan is designed for use in industrial environments where continuous and reliable ventilation is required. It is particularly suitable for enclosures in production plants, automation systems, or process industries, where high air flow and simultaneous particle filtration in the air stream are necessary. The integrated filter technology ensures that dust and other contaminants in the ambient air are retained, improving the internal hygiene of the enclosure.

Functions and Equipment in Detail

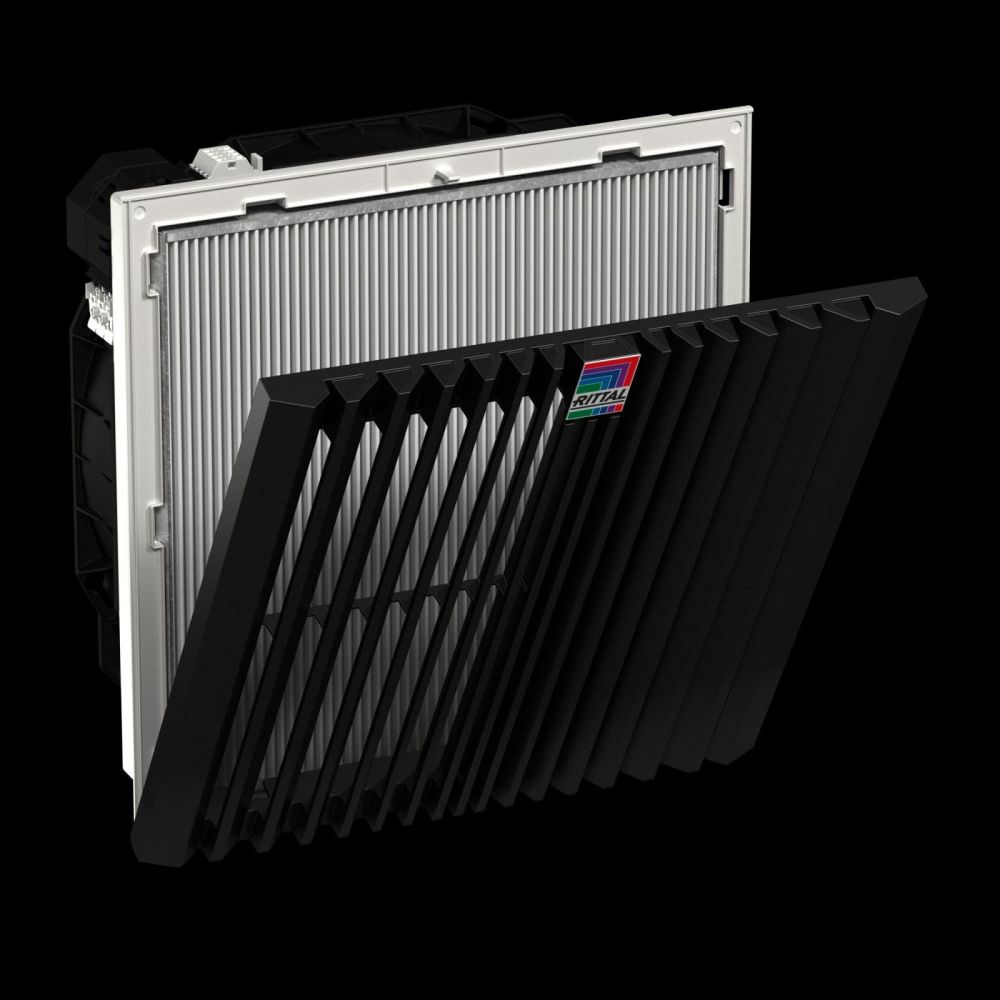

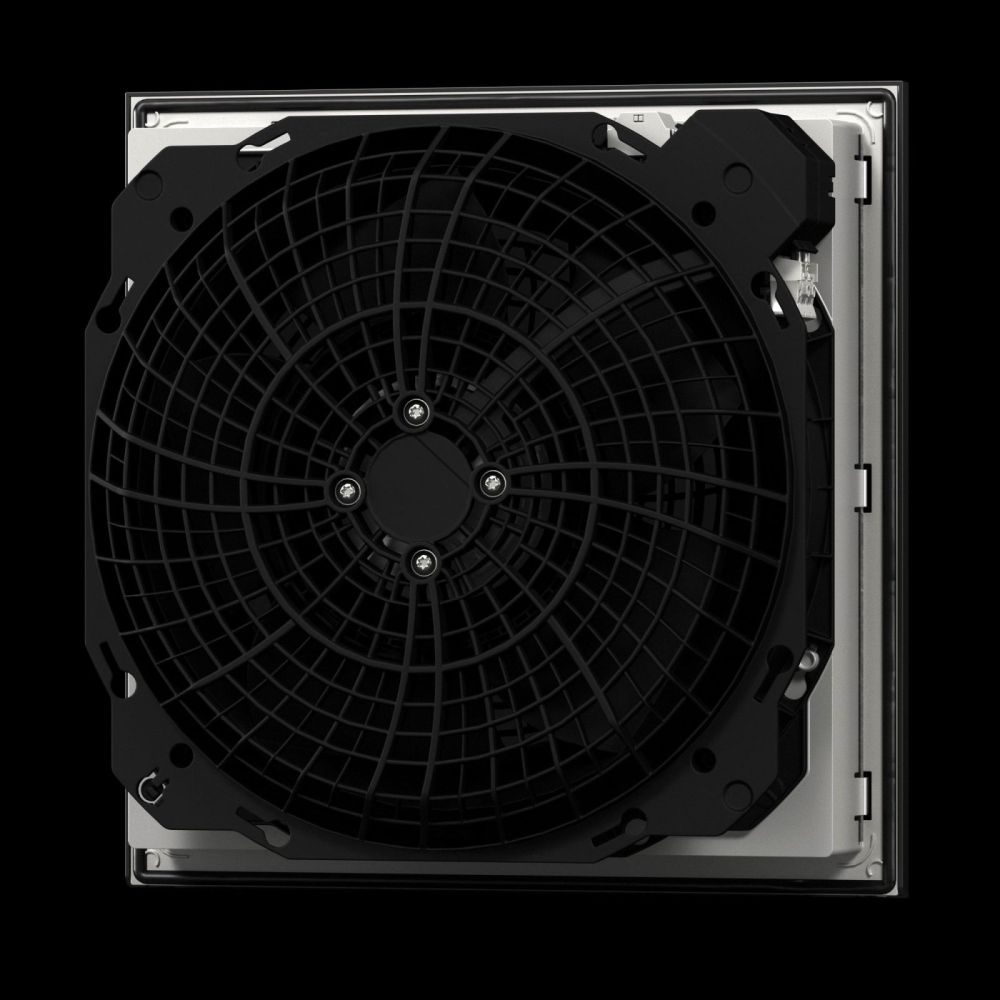

The fan features a diagonal fan with EC motor, ensuring high pressure stability and even air distribution within the enclosure. The air flow rate is 272 m³/h free blowing at 50 Hz and 60 Hz, decreasing to 240 m³/h when an outlet filter is used. The air flow rate with a non-woven filter is 225 m³/h free blowing and drops to 173 m³/h when an outlet filter is used. The rated operating voltage is in the wide range of 100 V to 240 V, 1~, 50 Hz/60 Hz, enabling worldwide use. The rated power is 19.8 W at 50 Hz, with a rated current of max. 0.3 A. The fuse is rated for 6 A.

Technology Explained Simply

The EC technology (Electronically Commutated) enables efficient and quiet operation of the fan. The motor is electronically controlled, allowing precise speed regulation and low energy consumption. The air flow is maximized by the integrated pleated filter technology, which provides a high filter surface area in a compact design. The protection rating IP 54 is achieved when non-woven or pleated filters are used. With an additional absorber mat, the protection rating increases to IP 55, and with a spray water hood, the device reaches IP 56. The protection rating NEMA Type 12 is also achievable with non-woven or pleated filters, while Type 3, 3R, 4, 4X are only possible in combination with non-woven/pleated filter and spray water hood. The sound pressure level is 54 dB(A) at 50 Hz, ensuring acoustically pleasant operation.

Compatibility and Accessories

The fan is compatible with various accessories to extend its functionality. These include Blue e+ outlet filters, EC sensor speed controller, thermostat for internal temperature control, digital temperature display and control, filter mat dispenser, SK ModBus adapter, stainless steel spray water hood, SK pleated filter IP 54, hygrostat, replacement filter mat, pleated filter IP 54, SK 3235460 control unit, and IoT interface. These components allow individual adaptation to specific requirements such as air purification, remote monitoring, or intelligent control.

Mounting and Installation

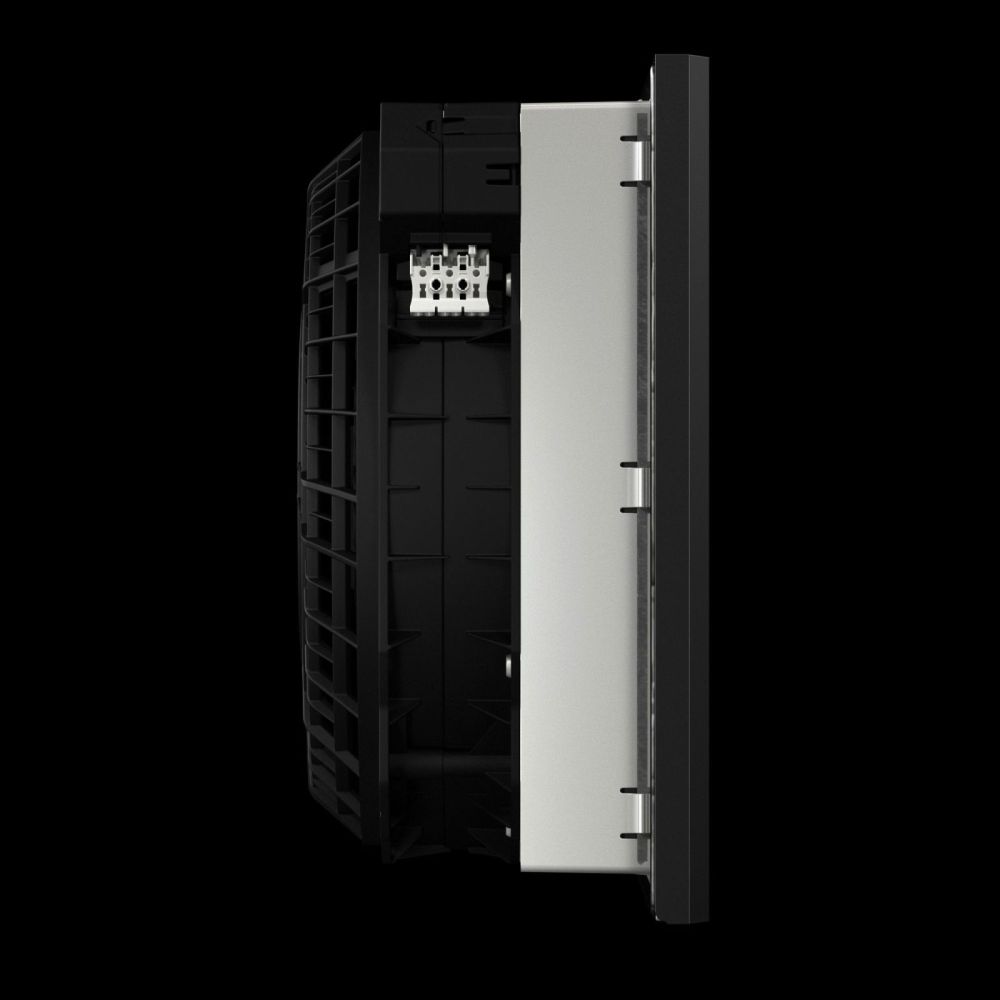

Mounting is done on the enclosure wall using an optimized snap hook, enabling tool-free installation. The cutout size is 224 mm (width) × 224 mm (height). The installation depth of the device is 116.5 mm, and the overall dimensions are 255 mm (width) × 255 mm (height) × 137.5 mm (depth). The operating temperature ranges from -25 °C to 55 °C, and the storage temperature from -25 °C to 70 °C.

Advantages in Operation

The fan offers high air flow at low energy consumption and quiet operation. The integrated ModBus interface (RS485) enables connection to monitoring and control systems, making functions such as automatic filter cleaning, filter maintenance indication, or emergency cooling function possible. The IoT connectivity allows remote monitoring and control. The easy filter replacement via a new opening mechanism on the louver grid reduces maintenance effort. The interfaces include a 0–10 V/PWM input, a speed output, a potential-free fault alarm contact, and the RS485 (ModBus) interface.

General
Modelwall mounting, EC
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including pleated filter
Fandiagonal, EC motor
Airflow free blowing (with pleated filter)At 50 Hz: 272 m³/h, At 60 Hz: 272 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 240 m³/h
Airflow free-blowing (with filter)At 50 Hz: 225 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 173 m³/h
Rated operating voltage100 V - 240 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 19.8 W
Rated current max.At 50 Hz: 0.3 A
Width255 mm
Height255 mm
Depth137,5 mm
Built-in depth116,5 mm
Mounting cutoutCutout width: 224 mm, cutout height: 224 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 6 A
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...70 °C
Sound pressure levelAt 50 Hz: 54 dB(A)
Interfaces0 - 10 V/PWM input, speed output, potential-free fault alarm contact, RS485 (ModBus)


Product data sheet
Datasheet for Rittal 3241900, EAN: 4028177997998
