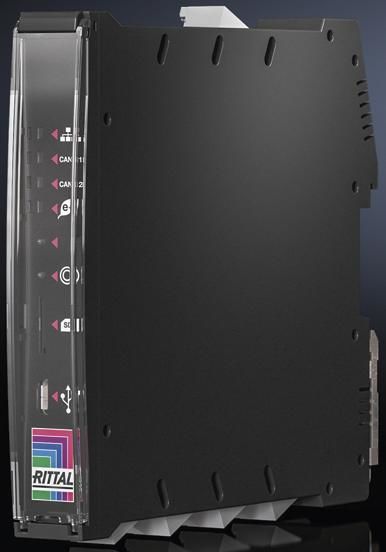

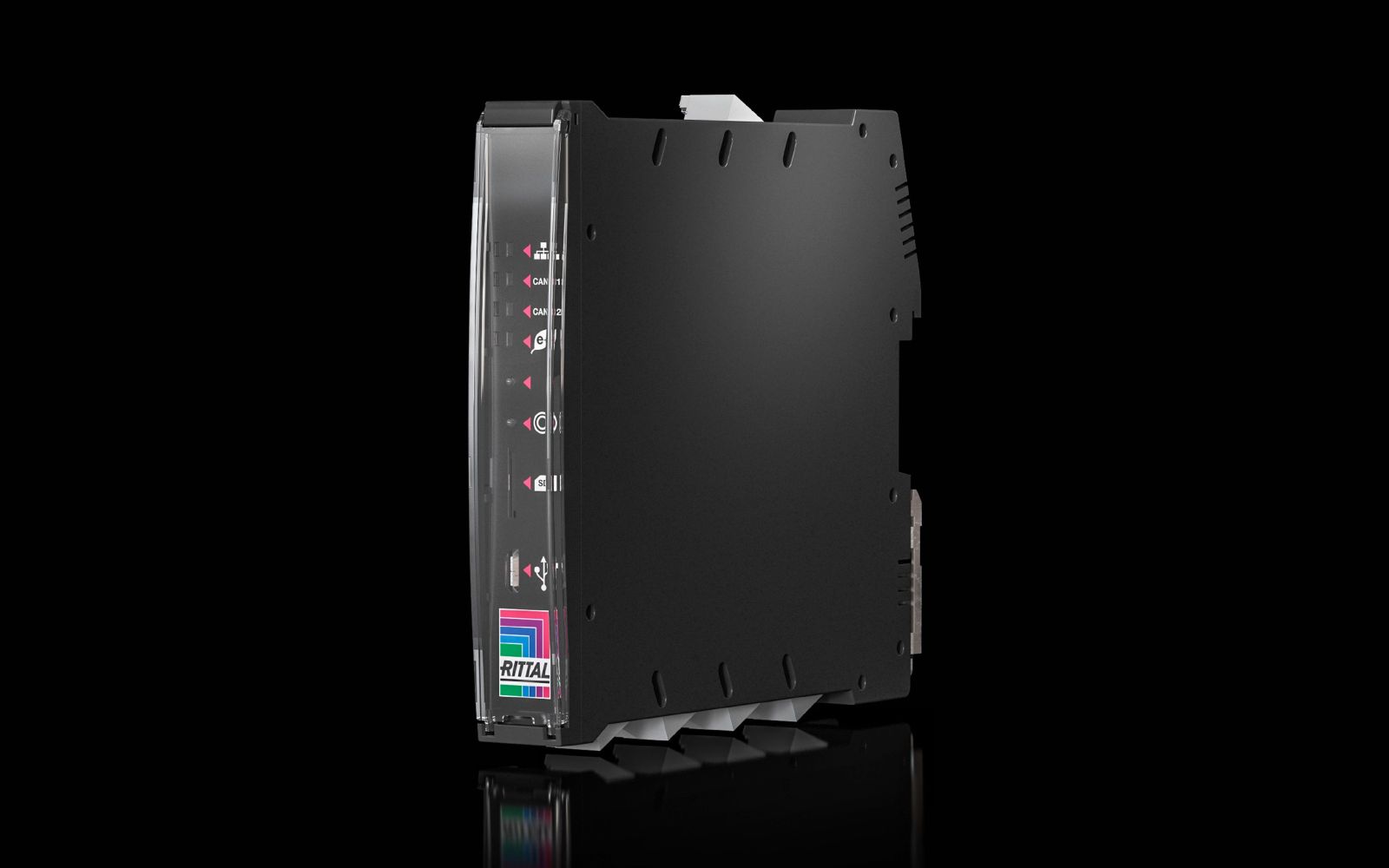

Rittal SK 3124300 IoT interface for connecting Blue+/Blue e+ chillers
|
347,42 EUR |
|
|
( 413,43 EUR incl. VAT ) ≈ £290.79 | ≈ $381.81 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1904542 |
| Mfg Part No: | 3124300 |
| UPC/EAN: | 4028177924369 |
| Weight: | 0.28 kg |
| Type: | SK 3124300 |
Product information for Rittal 3124300:
Applications
The IoT Interface is primarily used for networking Rittal cooling units from the Blue e+ series. It enables monitoring and control of climate units as well as integration of sensors for capturing physical environmental conditions. The application is in industrial and technical environments where digital networking of cooling units and environmental data is required. The devices are designed for indoor use, as the protection rating IP 20 does not provide protection against touch or splashing water.
Functions and Equipment in Detail
The module features a variety of interfaces, including two RJ45 sockets for CAN-Bus, two RJ45 sockets for RS 485 interfaces (for connection to climate units), and a Micro-USB Type-B interface for USB 2.0. A Micro-SD card slot supports data storage according to the SD 2.0 standard. Additionally, a USB 2.0 High-Speed function (EHCI) is integrated. An acknowledgment button allows for manual confirmation of status messages. A push-in spring terminal is provided for connecting an NTC sensor. Power supply is via a push-in spring terminal with 24 V DC.
Technology Explained Simply
The network interface supports Ethernet according to IEEE 802.3 with standards 10BASE-T, 100BASE-T, and 1000BASE-T, enabling flexible connection to existing networks. Support for IPv4 and IPv6 ensures compatibility with modern network environments. The device operates within a temperature range of 0 °C to 70 °C and is made of plastic according to UL 94-V0, indicating a high flame resistance class. The color is RAL 7016, an anthracite gray tone that integrates well in industrial environments.
Compatibility and Accessories
The IoT Interface is compatible with Blue e+ cooling units starting from firmware version 1.11.0. For networking cooling units from the Blue e series, the Blue e IoT Adapter (3124.310) is additionally required. Connection is made via the integrated interfaces, with the RS 485 interfaces specifically designed for communication with climate units. Support for protocols such as OPC-UA, SNMP, Modbus/TCP, FTP, SFTP, HTTP, HTTPS, NTP, DHCP, DNS, SMTP, Syslog, and LDAP enables broad integration into various IT systems.
Mounting and Installation
The device can be mounted on a DIN rail with dimensions 35 x 7.5 mm according to DIN EN 60715 using a spring-loaded metal clamp. Alternatively, it can be mounted using a mounting bracket on the rear of a Blue e+ cooling unit. Dimensions are 18 mm (width) × 117 mm (height) × 120 mm (depth).
Operational Advantages
Networked monitoring enables continuous data collection and analysis, allowing optimization of maintenance intervals and minimization of downtime. The plug-and-run configuration via the integrated web server reduces commissioning time. Support for numerous protocols ensures flexible integration into existing IT infrastructures. The use of standard interfaces such as Ethernet and USB 2.0 simplifies system maintenance and expansion. The protection rating IP 20 is suitable for use in enclosed, dry rooms, although it does not provide protection against splashing water or dust.
The delivery includes the IoT Interface, a USB cable (USB-A plug to Micro-USB-B plug), and a mounting bracket for Blue e+ cooling units.
| General | |
| Material | Plastic according to UL 94-V0 |
| Colour | RAL 7016 |
| Scope of delivery | IoT interface, USB cable (USB-A plug to Micro-USB-B plug), mounting bracket for Blue e+ cooling unit |
| Electrical connection type | Push-in spring terminal (24 V DC) |
| Interface bus system | 2 x RJ45 CAN-bus |
| Network interface | Ethernet IPv4/IPv6, Ethernet according to IEEE 802.3 via 10BASE-T, 100BASE-T and 1000BASE-T |
| Interfaces | 1 x Micro USB Type B (device) for USB 2.0, 1 x Micro-SD card slot for SD 2.0, 1 x USB 2.0 High-Speed functions (EHCI), 1 x Acknowledge button, 1 x Push-in spring terminal for NTC sensor, 2 x RJ45 socket for RS 485 interface (air conditioning unit interface) |
| Mounting note | The IoT interface can be mounted on a 35 x 7.5 mm DIN rail according to DIN EN 60715 using a spring-loaded metal clamp, or using mounting brackets on the rear of a Blue e+ cooling unit. |
| Note | The IoT interface is supported by Blue e+ cooling units starting from firmware version 1.11.0. For connecting Blue e series cooling units, the Blue e IoT adapter (3124.310) is additionally required. |
| Protocols | OPC-UA, SNMPv1, SNMPv2c, SNMPv3, Modbus/TCP, TCP/IPv4, TCP/IPv6, Radius, Telnet, SSH, FTP, SFTP, HTTP, HTTPS, NTP, DHCP, DNS, SMTP, Syslog, LDAP |
| Width | 18 mm |
| Height | 117 mm |
| Depth | 120 mm |
| Operating temperature range | 0 °C...70 °C |
| Degree of protection IP according to IEC 60 529 | IP 20 |
