Rittal 3304548 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 1100 W Com

Your rating:
Average rating
product review for Rittal 3304548 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 1100 W Com
( 4.5 / 5 ) 2 ratings

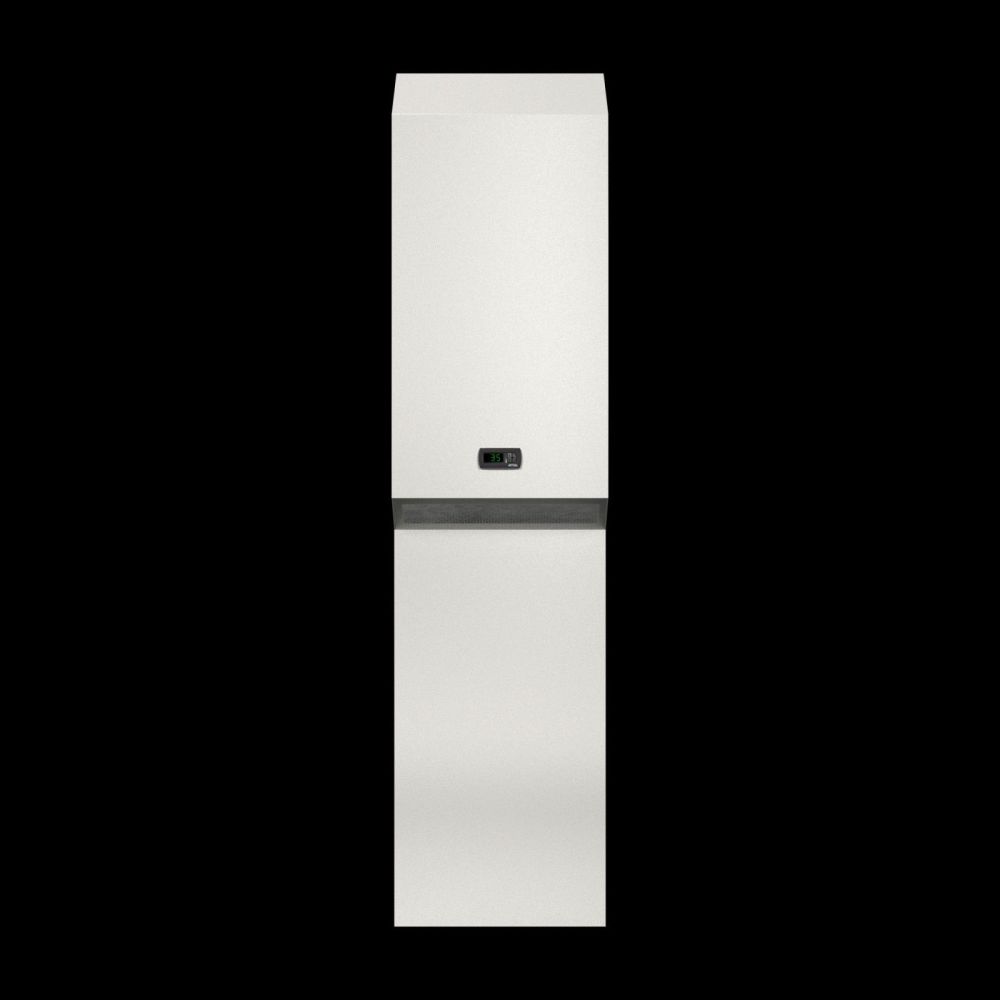

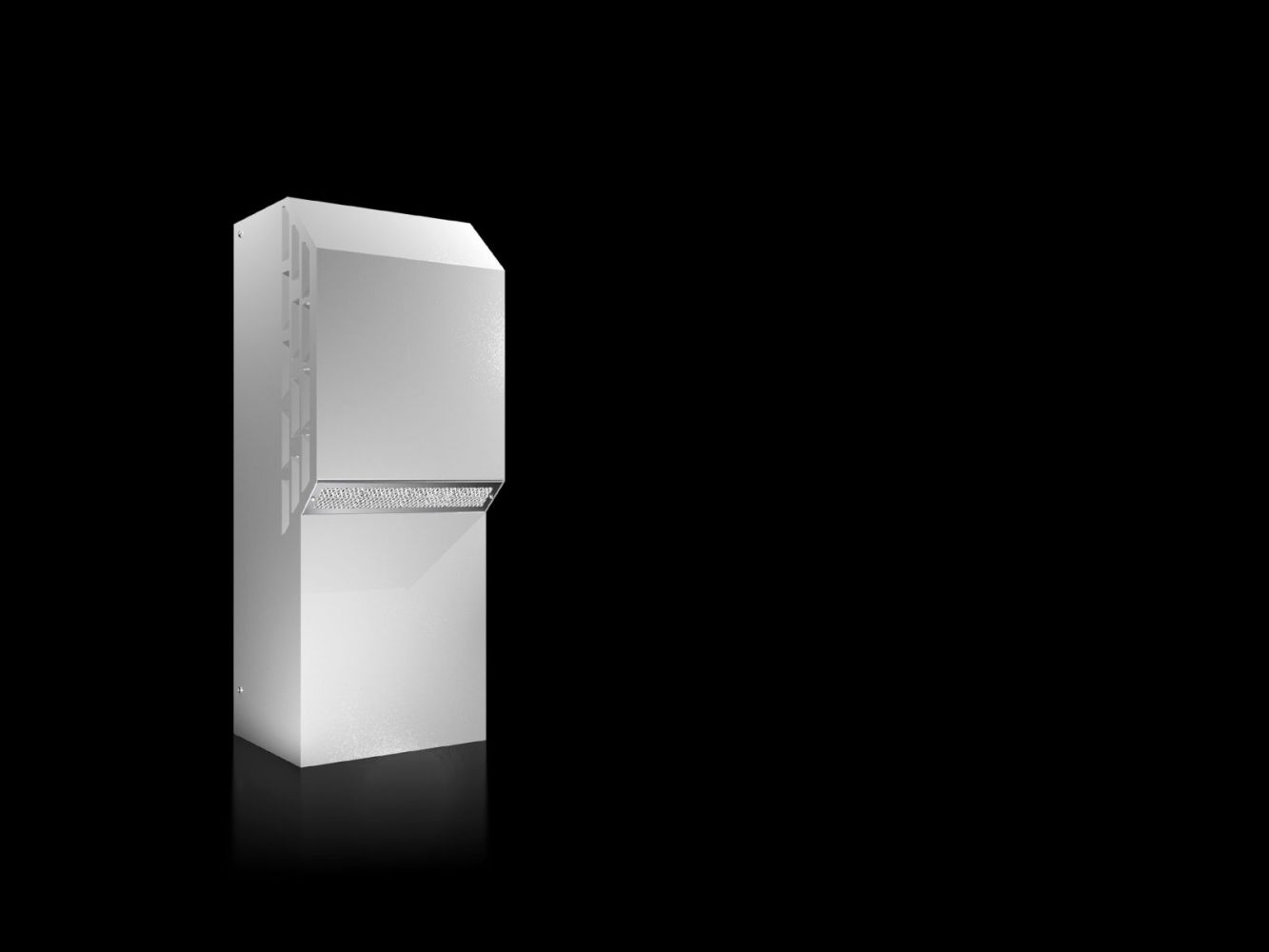

Rittal 3304548
This image may differ from the desired article.
Rittal 3304548Rittal 3304548Rittal 3304548Rittal 3304548
2.089,55 EUR
( 2.486,56 EUR incl. VAT )
≈ £1,748.95  |  ≈ $2,296.42
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 3304548 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 1100 W Com
Datasheet:file_download Download
Lieske Part No.:469267
Mfg Part No: 3304548
UPC/EAN: 4028177943711
Weight:62 kg
Type:SK 3304548

Product information for Rittal 3304548:

Rittal SK 3304548 is a wall-mounted cooling unit of the Blue e series, specifically developed for climate control in enclosures and industrial housings. It ensures temperature regulation inside enclosures to guarantee the function and service life of installed electronic components. The unit is suitable for outdoor use and features an integrated electric condensate evaporation system that prevents condensation formation. The cooling capacity is 1.1 kW at 400 V, 3~, 50 Hz, increasing to 1.25 kW at 60 Hz. The operating voltage includes both 400 V, 3~, 50 Hz and 460 V, 3~, 60 Hz, enabling flexible integration into various power supply systems. The unit is made of sheet steel and painted in RAL 7035, providing a robust and aesthetically pleasing surface.

Applications
This cooling unit is designed for industrial environments, particularly for enclosures installed outdoors or in harsh operating conditions. The protection rating UL Type 3R/4/12 makes it suitable for environments with moisture, dust, and splashing water. It can be mounted on walls and is designed for cooling enclosures with a maximum cooling capacity of 1.25 kW. The operating temperature range extends from -20 °C to 50 °C, with the compressor activating at +10 °C ambient temperature. Between -20 °C and +10 °C, only the internal fan operates to ensure passive air circulation.

Functions and Equipment in Detail

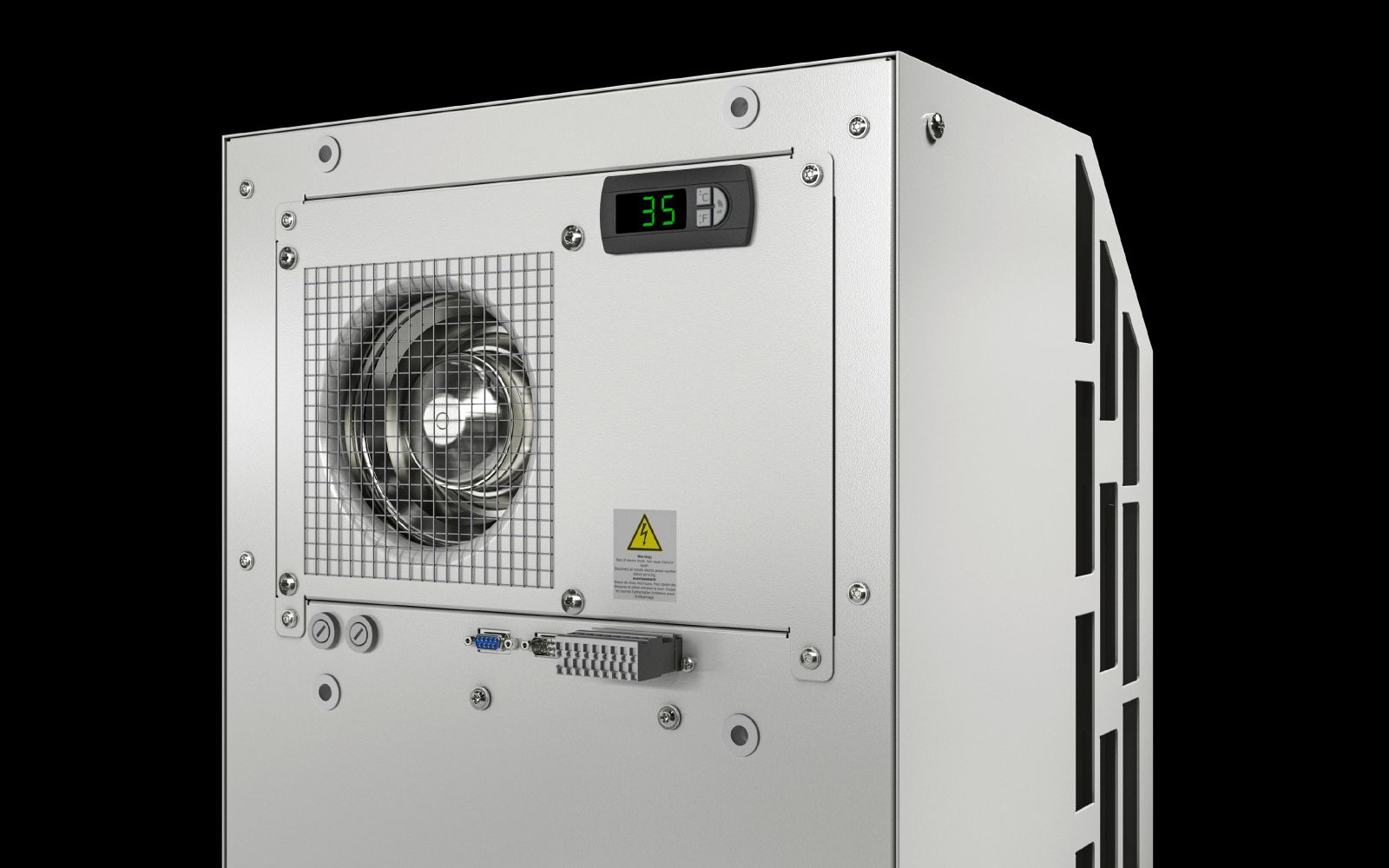

The unit features an integrated e-Comfort controller, factory-set to +35 °C, covering a temperature range from 20 °C to 50 °C. The electric condensate evaporation ensures that any condensate formed evaporates within the unit and does not need to be drained. The condenser is coated with a hydrophobic RiNano coating, reducing water absorption and increasing efficiency. The unit is pre-wired with a plug-in terminal strip, simplifying installation. The delivery includes a drilling template and mounting hardware to facilitate wall mounting.

Technology Explained Simply
The cooling capacity is generated by a compressor that compresses the refrigerant R-513A. The refrigerant has a Global Warming Potential (GWP) of 631 and a quantity of 0.325 kg, equivalent to 0.21 t of CO₂. The airflow rate is 950 m³/h in the outdoor circuit and 540 m³/h in the indoor circuit, ensuring efficient air circulation within the enclosure. Energy efficiency is described by the Energy efficiency ratio (EER), which is 1.72 at 50 Hz and 1.58 at 60 Hz. The rated power is 0.64 kW at 50 Hz and 0.79 kW at 60 Hz. The maximum rated current is 2.2 A at 50 Hz and 2.1 A at 60 Hz, while the maximum starting current is 11.5 A at 50 Hz and 12.7 A at 60 Hz. The permissible operating pressure limit is 28 bar, and the fuse is a motor protection switch with a nominal value of 6.3 to 10 A.

Compatibility and Accessories
The cooling unit is networkable with the Blue e IoT adapter, enabling connection to the IoT interface. This is available for cooling units with a cooling capacity of 500 W or more and equipped with an e-Comfort controller. Additional accessories such as an SK air deflector for SK 3304/3305, a door position switch, or an SK Master/Slave cable for SK-bus systems can be used to extend functionality and integration into existing systems. The protection rating IP 34 for the outdoor circuit and IP 34 for the indoor circuit ensures a high level of protection against dust and water.

Mounting and Installation
Mounting is done on a wall, with the drilling template and mounting hardware included in the delivery. The terminal strip is plug-in, enabling quick and secure wiring. The unit dimensions are 405 mm width, 1,020 mm height, and 358 mm depth. Installation requires a power supply matching the rated voltage (400 V, 3~, 50 Hz or 460 V, 3~, 60 Hz). Storage is permitted in a temperature range from -40 °C to 70 °C.

Operational Advantages
The unit offers high energy efficiency with an EER value of 1.72 at 50 Hz and 1.58 at 60 Hz. The integrated electric condensate evaporation reduces maintenance effort, as no condensate needs to be drained. The robust construction from sheet steel and the protection rating UL Type 3R/4/12 make it suitable for outdoor use. The networkable technology via the Blue e IoT adapter enables monitoring and control of the unit through IoT systems, simplifying operational supervision and optimization. The factory setting of the e-Comfort controller to +35 °C ensures reliable temperature control without additional customer adjustments.

General
ModelWall surface mounted
Materialsteel sheet
ColourRAL 7035
Scope of deliveryCondenser with hydrophobic RiNano coating, pre-wired (pluggable terminal block), drilling template, mounting material, integrated electrical condensate evaporation
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 1.1 kW, Cooling capacity L35 L35/60 Hz: 1.25 kW, Cooling capacity L35 L50/50 Hz: 0.98 kW, Cooling capacity L35 L50/60 Hz: 0.9 kW
Rated operating voltage400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz
Rated current max.At 50 Hz: 2.2 A, At 60 Hz: 2.1 A
Inrush current (max.)At 50 Hz: 11.5 A, At 60 Hz: 12.7 A
Air performance (free blowing)External circuit: 950 m³/h, internal circuit: 540 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling performance coefficient L35 L35 (EER) 50 Hz: 1.72, Cooling performance coefficient L35 L35 (EER) 60 Hz: 1.58
Width405 mm
Height1.020 mm
Depth358 mm
Degree of protection IP according to EN 60 529External circuit IP 34, internal circuit IP 56
NEMA degree of protectionUL Type 3R, UL Type 4, UL Type 12
Refrigerant/cooling mediumRefrigerant: R-513A, quantity: 0.325 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.21 t
Temperature controle-Comfortcontroller (factory setting +35 °C)
Operating temperature range-20 °C...50 °C
Operation temperatureCompressor cooling mode from +10 °C ambient temperature. In the temperature range -20 °C to +10 °C, only the internal fan is active.
Storage temperature range-40 °C...70 °C
Adjustment range20 °C...50 °C
Rated power PelRated power L35 L35/50 Hz: 0.64 kW, Rated power L35 L35/60 Hz: 0.79 kW, Rated power L35 L50/50 Hz: 0.73 kW, Rated power L35 L50/60 Hz: 0.9 kW
Permissible operating pressure (p max.)28 bar
FuseMotor protection switch: 6.3...10 A


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3304548, EAN: 4028177943711
