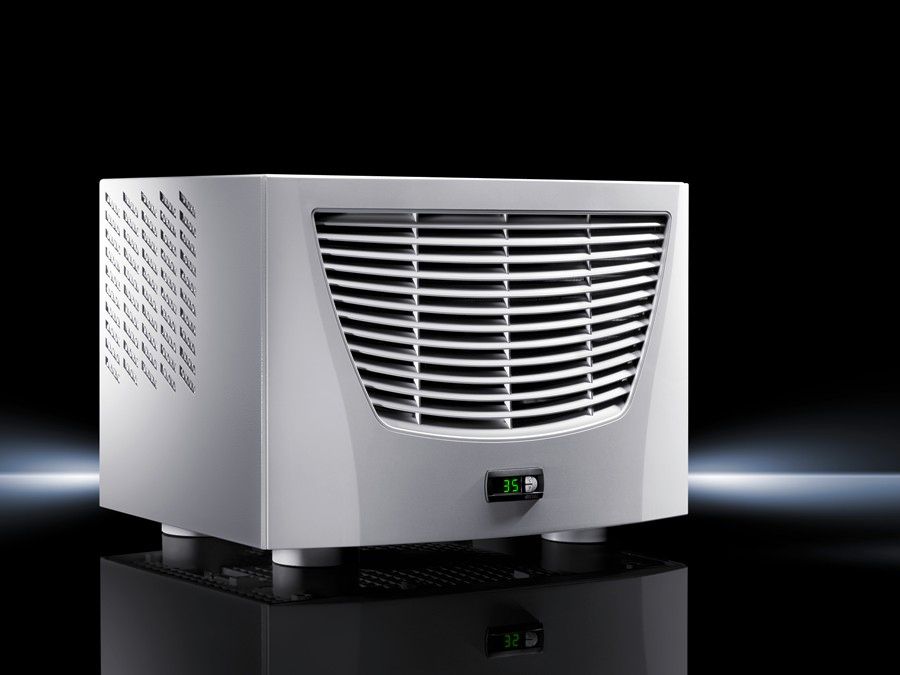

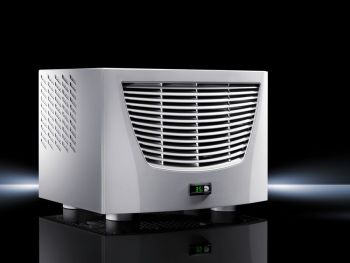

Rittal 3384510 RTT Blue e cooling unit roof mount, 1500 W, comfort control
|
1.680,15 EUR 1.747,36 EUR |
|
|
( 1.999,38 EUR incl. VAT ) ≈ £1,406.29 | ≈ $1,846.48 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 576123 |
| Mfg Part No: | 3384510 |
| UPC/EAN: | 4028177322868 |
| Weight: | 54 kg |
| Type: | SK 3384510 |
Product information for Rittal 3384510:
Applications
This cooling unit is designed for temperature control in enclosures and electrical housings, ensuring a constant internal temperature of up to +35 °C. It is suitable for applications in manufacturing, automation technology, power supply, and other areas where electronic components must be protected against overheating. The operating temperature range is between 10 °C and 55 °C, with a maximum operating temperature of 53 °C at 60 Hz. Storage temperature ranges extend from -40 °C to 70 °C, enabling storage under extreme conditions.
Functions and Equipment in Detail
The unit features an integrated e-Comfort controller, factory-set to +35 °C, enabling precise temperature control. The adjustment range is 20 °C to 53 °C. Electric condensate evaporation ensures that condensate formed during operation evaporates automatically, eliminating the need for additional drainage. The condenser is coated with a hydrophobic RiNano coating, improving heat transfer and simplifying cleaning. The unit is pre-wired and includes a plug-in terminal strip, simplifying installation and maintenance.
Technology Explained Simply
The cooling capacity is measured according to DIN EN 14511 and amounts to 1.6 kW at 50 Hz and L35 operation. Energy efficiency is described by the coefficient of performance (EER), which is 2.3 at 50 Hz and 1.92 at 60 Hz. Airflow in the outdoor circuit is 1,600 m³/h, and in the indoor circuit, it is 491 m³/h. The unit uses refrigerant R-513A with a quantity of 0.88 kg, a Global Warming Potential (GWP) of 631, and a CO₂ equivalent of 0.56 t. The maximum allowable operating pressure is 28 bar. The duty cycle is rated at 100 %, ensuring continuous operational readiness. The pre-fuse is implemented as a transformer protection switch with a nominal value of 14 to 20 A.
Compatibility and Accessories
The cooling unit is networkable via the IoT interface using the Blue e IoT adapter, enabling remote monitoring and control over a network. It is compatible with the SK-Bus system, for which a master/slave cable is available. Suitable accessories include, among others, a quick-change frame for TopTherm units, air duct systems, metal filters, transport eyes, a condensate hose (12 x 2 mm, 10 m length), closure plugs, a door position switch, and a filter mat. These components support installation, maintenance, and operation of the unit.
Mounting and Installation
The unit is designed as a roof-mounted cooling unit and is installed on the enclosure roof. It is supplied with a drilling template and mounting materials, simplifying installation. Electrical connection is made via a plug-in terminal strip, enabling a secure and quick connection. The protection rating is IP 34 for the outdoor circuit and IP 34 for the indoor circuit, providing sufficient protection against dust and water indoors and against splashing water outdoors.
Operational Advantages
The integrated electric condensate evaporation reduces maintenance effort, as no condensate drainage is required. High energy efficiency (EER 2.3 at 50 Hz) reduces energy consumption. Networkable functionality via the IoT interface enables remote monitoring and control. The robust construction from sheet steel and high operational reliability (duty cycle 100 %) ensure reliable performance in demanding environments. The hydrophobic RiNano coating on the condenser improves heat transfer and simplifies cleaning.
Scope of Delivery
The unit is delivered with a condenser featuring hydrophobic RiNano coating, integrated electric condensate evaporation, pre-connected plug-in terminal strip, drilling template, and mounting materials.
| General | |
| Model | Roof structure |
| Material | steel sheet |
| Colour | RAL 7035 |
| Scope of delivery | Condenser with hydrophobic RiNano coating, Integrated electric condensate evaporation, Pre-wired (pluggable terminal block), Drilling template, Mounting hardware |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 1.6 kW, Cooling capacity L35 L35/60 Hz: 1.75 kW, Cooling capacity L35 L50/50 Hz: 1.15 kW, Cooling capacity L35 L50/60 Hz: 1.21 kW |
| Rated operating voltage | 115 V, 1~, 50 Hz/60 Hz |
| Note | The rooftop cooling unit 3273.500 can be used for office applications due to its low noise level. |
| Rated current max. | At 50 Hz: 11 A, At 60 Hz: 12.5 A |
| Inrush current (max.) | At 50 Hz: 27.2 A, At 60 Hz: 23.2 A |
| Air performance (free blowing) | Outer circuit: 1,600 m³/h, Inner circuit: 491 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling capacity factor L35 L35 (EER) 50 Hz: 2.3, cooling capacity factor L35 L35 (EER) 60 Hz: 1.92 |
| Width | 597 mm |
| Height | 417 mm |
| Depth | 475 mm |
| Degree of protection IP according to EN 60 529 | External circuit: IP 34, internal circuit: IP 54 |
| Refrigerant/cooling medium | Refrigerant: R-513A, Quantity: 0.88 kg, Global Warming Potential (GWP): 631, CO₂ Equivalent (CO₂e): 0.56 t |
| Electrical connection type | Plug-in terminal block |
| Working time | 100 % |
| Temperature control | e-Comfortcontroller (factory setting +35 °C) |
| Operating temperature range | 10 °C...55 °C |
| Maximum operating temperature at 60 Hz | 53 °C |
| Storage temperature range | -40 °C...70 °C |
| Adjustment range | 20 °C...53 °C |
| Rated power Pel | Rated power L35 L35/50 Hz: 0.7 kW, Rated power L35 L35/60 Hz: 0.91 kW, Rated power L35 L50/50 Hz: 0.79 kW, Rated power L35 L50/60 Hz: 1 kW |
| Permissible operating pressure (p max.) | 28 bar |
| Fuse | Transformer protection switch: 14...20 A |
Questions & answers
What is the delivery time of Rittal 3384510 RTT Blue e cooling unit roof mount, 1500 W, comfort control?
The article Rittal 3384510 RTT Blue e cooling unit roof mount, 1500 W, comfort control is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3384510 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3384510 RTT Blue e cooling unit roof mount, 1500 W, comfort control always at the best possible price. We can give you a discount of 2% on Rittal 3384510 RTT Blue e cooling unit roof mount, 1500 W, comfort control if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
