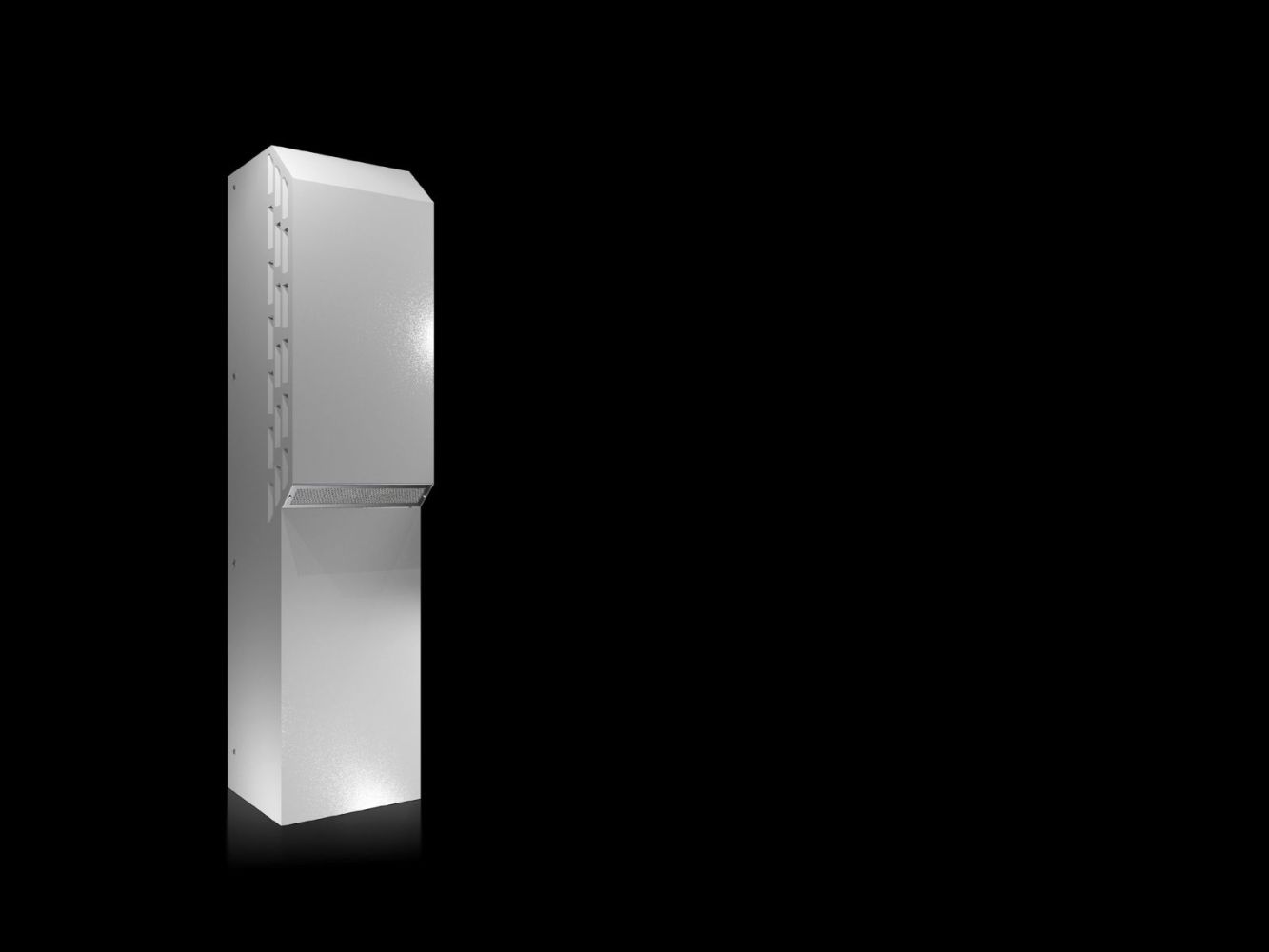

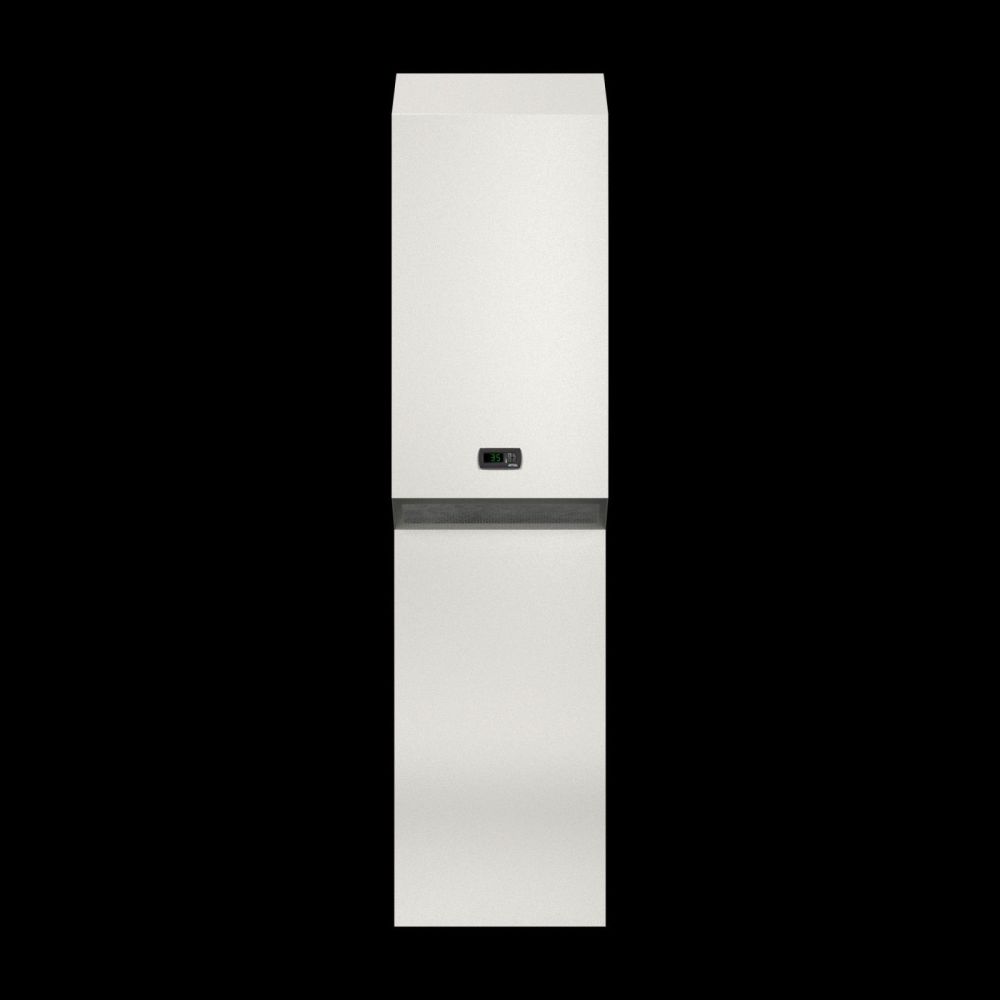

Rittal 3329548 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 2550 W Com
|
3.427,00 EUR |
|
|
( 4.078,13 EUR incl. VAT ) ≈ £2,868.40 | ≈ $3,766.27 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 334057 |
| Mfg Part No: | 3329548 |
| UPC/EAN: | 4028177937116 |
| Weight: | 95 kg |
| Type: | SK 3329548 |
Product information for Rittal 3329548:
Applications
This cooling unit is designed for industrial applications where constant temperature inside the enclosure is required to ensure the function and lifespan of electronic components. It is particularly suitable for outdoor use, where the protection rating UL Type 3R/4/12 ensures resistance against rain, splashing water, and dust. The operating temperature range extends from -20 °C to +50 °C, with the compressor activating at ambient temperatures above +10 °C. Between -20 °C and +10 °C, only the internal fan operates to enable passive cooling.
Functions and Equipment in Detail

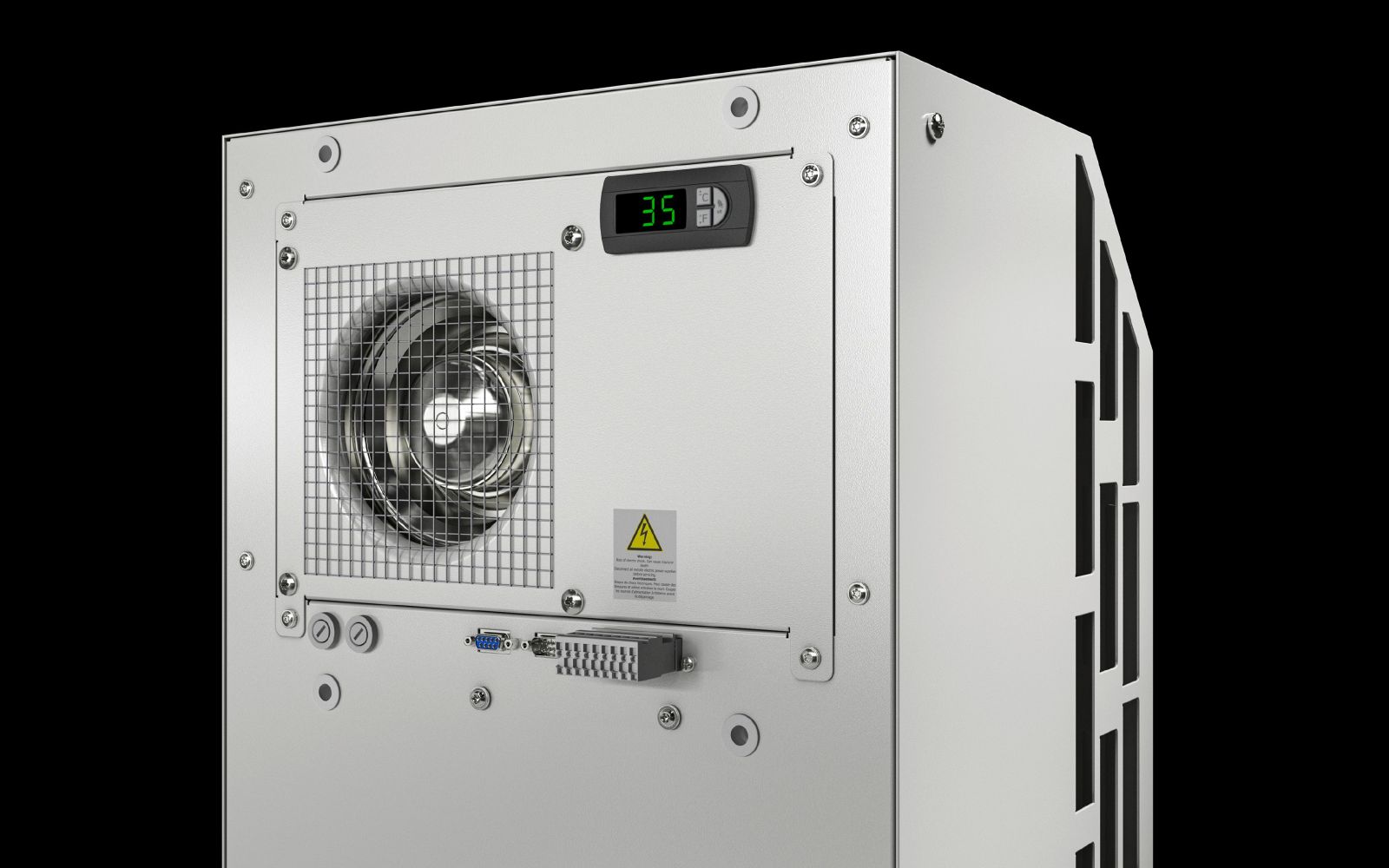

The unit features an e-Comfort controller, factory-set to +35 °C, covering a temperature range from 20 °C to 50 °C. The air flow rate is 1,200 m³/h in both the external and internal circuits, enabling efficient air circulation within the enclosure. The integrated electric condensate evaporation ensures that condensate evaporates directly within the unit and does not need to be drained. The condenser is coated with a hydrophobic RiNano coating, improving heat transfer and facilitating cleaning.
Technology Explained Simply
The cooling unit operates with refrigerant R-513A, which has a lower environmental impact than conventional refrigerants. The quantity is 1.1 kg, with a Global Warming Potential (GWP) of 631, equivalent to 0.69 t of CO₂. Energy efficiency is described by the Energy Efficiency Ratio (EER), which is 2.14 at 50 Hz and 1.44 at 60 Hz. The rated operating voltage is 400 V, 3~, 50 Hz and 460 V, 3~, 60 Hz, with a maximum rated current of 3.3 A (50 Hz) and 3.4 A (60 Hz). The starting current is up to 6.8 A (50 Hz) and 7.6 A (60 Hz). The permissible operating pressure is 28 bar, and the fuse is a motor protection switch rated 6.3 to 10 A.
Compatibility and Accessories
The cooling unit is networkable via the IoT Interface using the Blue e IoT Adapter, enabling monitoring and control through digital systems. Compatible accessories include the SK air deflector for SK 3328/3329, the TS support roller for TS, SE, PC, the SK Master/Slave cable for SK-bus systems, and transport eyes for VX, TS, SE. The drilling template and mounting materials are included in the delivery scope to ensure easy installation.
Mounting and Installation
The unit is designed for wall mounting and is installed using the included drilling template and mounting materials. The pre-wired plug-in terminal strip simplifies the electrical connection. Installation takes place on a suitable wall within the enclosure area, ensuring unobstructed air intake and exhaust.
Operational Advantages
The Blue e technology ensures energy-efficient cooling, while the integrated electric condensate evaporation reduces maintenance requirements. The protection rating UL Type 3R/4/12 allows outdoor use, and the networkable functionality via the IoT Interface offers additional control and monitoring options. The robust construction from sheet steel and the wide operating temperature range make the unit a reliable solution for demanding industrial environments.
| General | |
| Model | Wall surface mounted |
| Material | steel sheet |
| Colour | RAL 7035 |
| Scope of delivery | Condenser with hydrophobic RiNano coating, pre-wired (pluggable terminal block), drilling template, mounting material, integrated electrical condensate evaporation |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 2.55 kW, Cooling capacity L35 L35/60 Hz: 2.75 kW, Cooling capacity L35 L50/50 Hz: 1.9 kW, Cooling capacity L35 L50/60 Hz: 2 kW |
| Rated operating voltage | 400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz |
| Rated current max. | At 50 Hz: 3.3 A, At 60 Hz: 3.4 A |
| Inrush current (max.) | At 50 Hz: 6.8 A, At 60 Hz: 7.6 A |
| Air performance (free blowing) | External circuit: 1.200 m³/h, internal circuit: 1.200 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling performance factor L35 L35 (EER) 50 Hz: 2.14, Cooling performance factor L35 L35 (EER) 60 Hz: 1.44 |
| Width | 405 mm |
| Height | 1.650 mm |
| Depth | 388 mm |
| Degree of protection IP according to EN 60 529 | External circuit IP 34, internal circuit IP 56 |
| NEMA degree of protection | UL Type 3R, UL Type 4, UL Type 12 |
| Refrigerant/cooling medium | Refrigerant: R-513A, Quantity: 1.1 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.69 t |
| Temperature control | e-Comfortcontroller (factory setting +35 °C) |
| Operating temperature range | -20 °C...50 °C |
| Operation temperature | Compressor cooling mode from +10 °C ambient temperature. In the temperature range -20 °C to +10 °C, only the internal fan is active. |
| Storage temperature range | -40 °C...70 °C |
| Adjustment range | 20 °C...50 °C |
| Rated power Pel | Rated power L35 L35/50 Hz: 1.19 kW, rated power L35 L35/60 Hz: 1.78 kW, rated power L35 L50/50 Hz: 1.45 kW, rated power L35 L50/60 Hz: 1.75 kW |
| Permissible operating pressure (p max.) | 28 bar |
| Fuse | Motor protection switch: 6.3...10 A |
